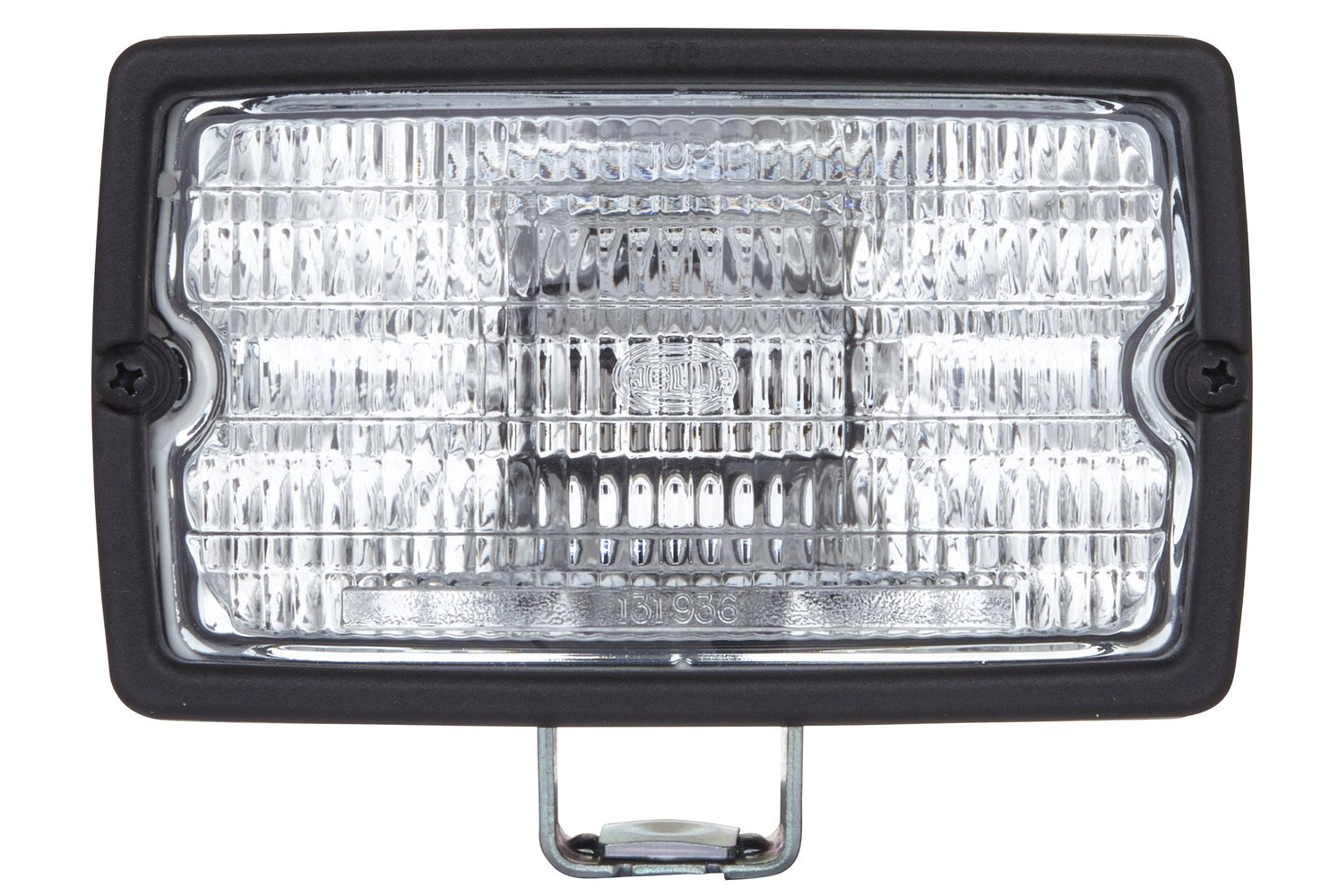

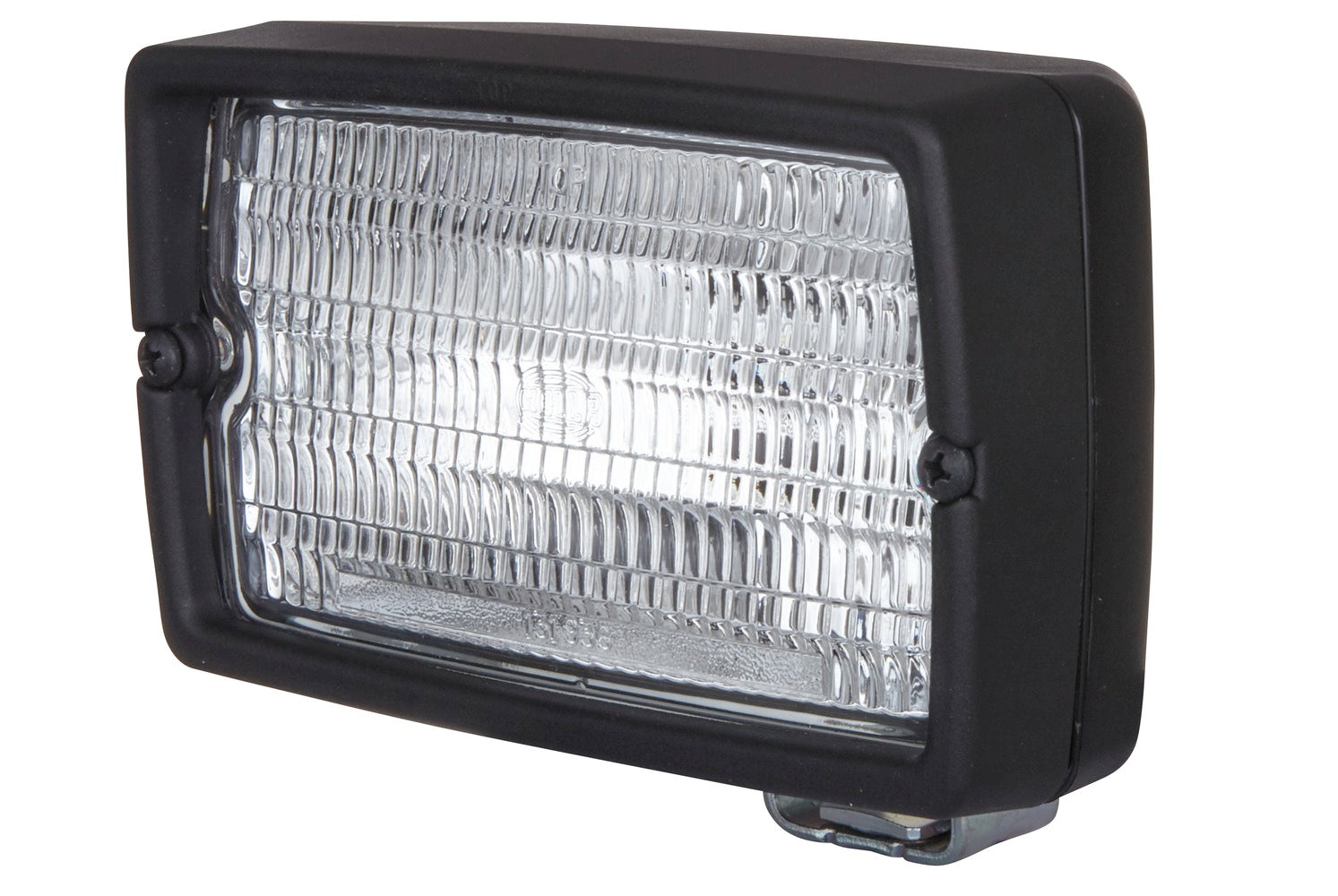

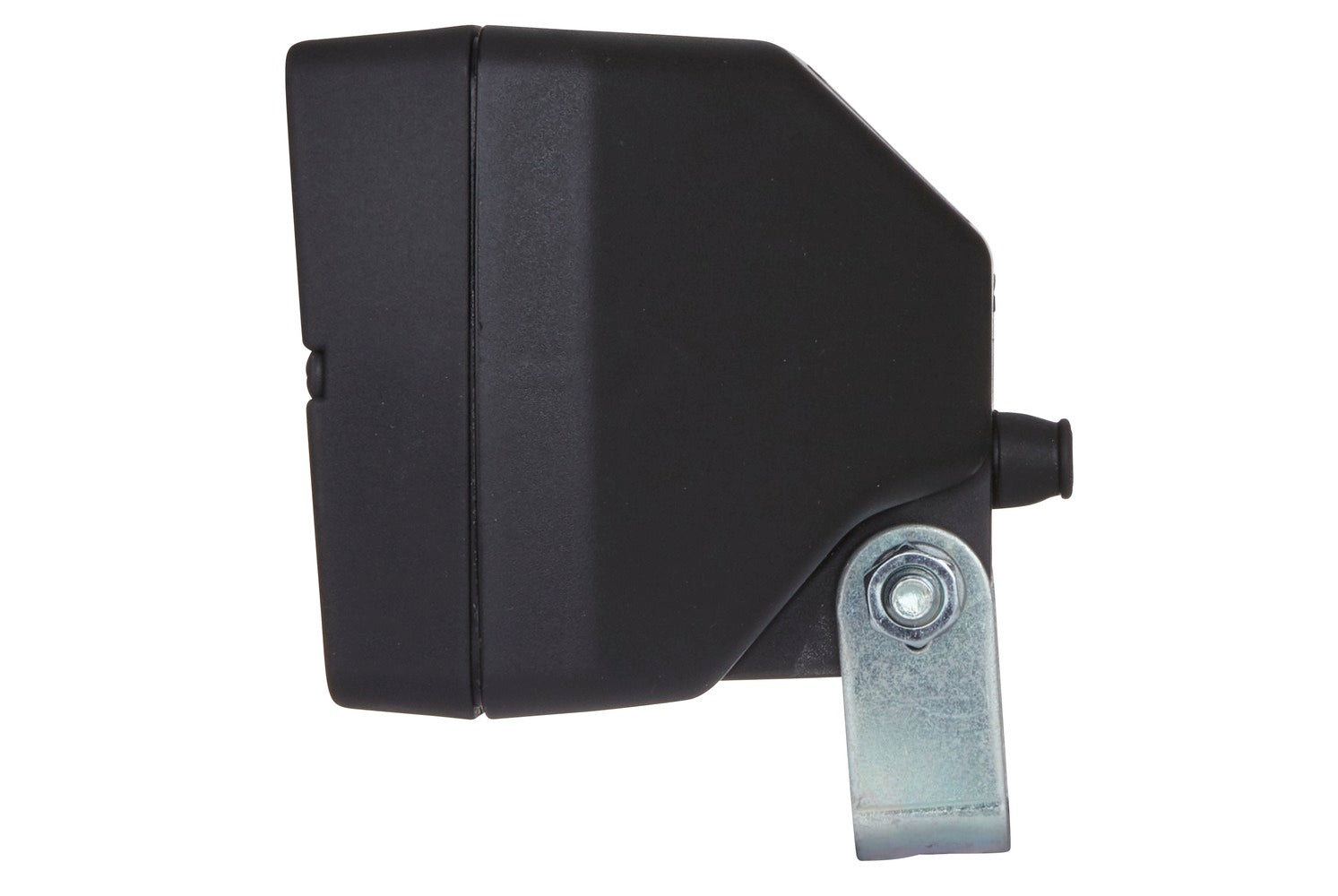

HELLA Halogen-Worklight - Master 5060 - 12/24V 1GA005060-001

Halogen-Worklight - Master 5060 - 12/24V - Bolted/mounting - Suspended/Vertical - Long-range illumination - Plug: Blade Terminal

Flexible and corrosion-free for homogeneous illumination. Lighting technology: Together with specially developed lens optics, the parabolic reflector allows homogenous close-range lighting of the working area, or long-range illumination. An H3 bulb is used as the light source (not included with the worklight) allowing the worklight to be used with both 12V and 24V vehicle electrical systems. Design: The black housing of this sturdy worklight is made of glassfibre reinforced, acid and corrosion-resistant plastic. To protect the lens, the housing has a raised edge at the front. The extremely compact dimensions allow a great deal of flexibility in the choice of mounting position. The Master is suitable both for upright and pendant mounting by rotating the reflector insert. Sealing of the cable duct is carried out via a grommet.

• Together with a specially developed diffuser optic, the parabolic reflector enables homogeneous illumination of the working area at close or long-range.
• The black housing of this robust worklight is made of glass fibre reinforced, acid and corrosion resistant plastic.
• To protect the diffusing lens, the housing is provided with a protruding edge at its front.
• The extremely compact dimensions allow a high degree of flexibility when choosing the mounting position.

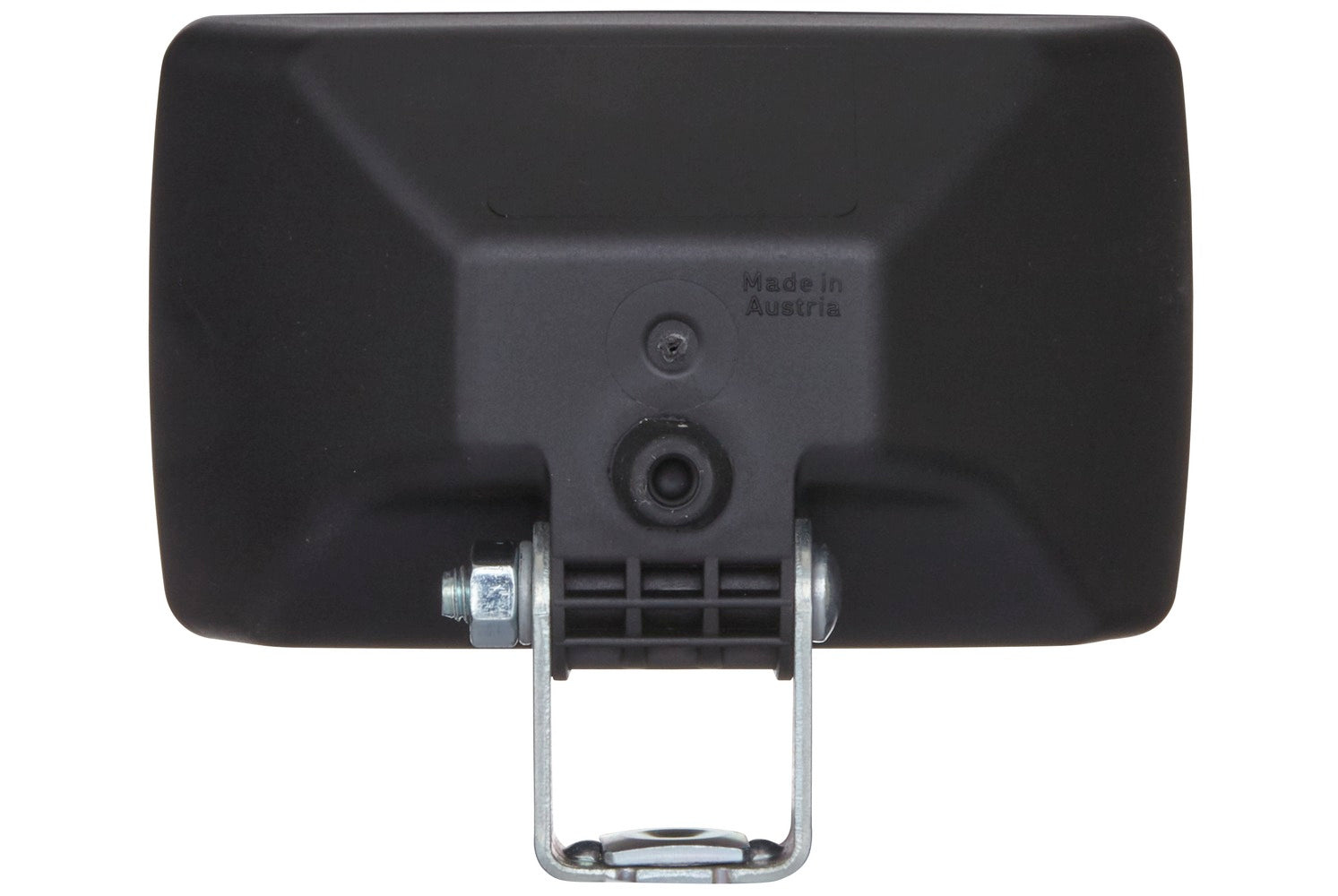

• By turning the reflector insert, the master is suitable for both upright and suspended mounting.
• Lamp Type: H3 - Power consumption: 35/70W
• Patterned diffusing lens

Item Attributes:

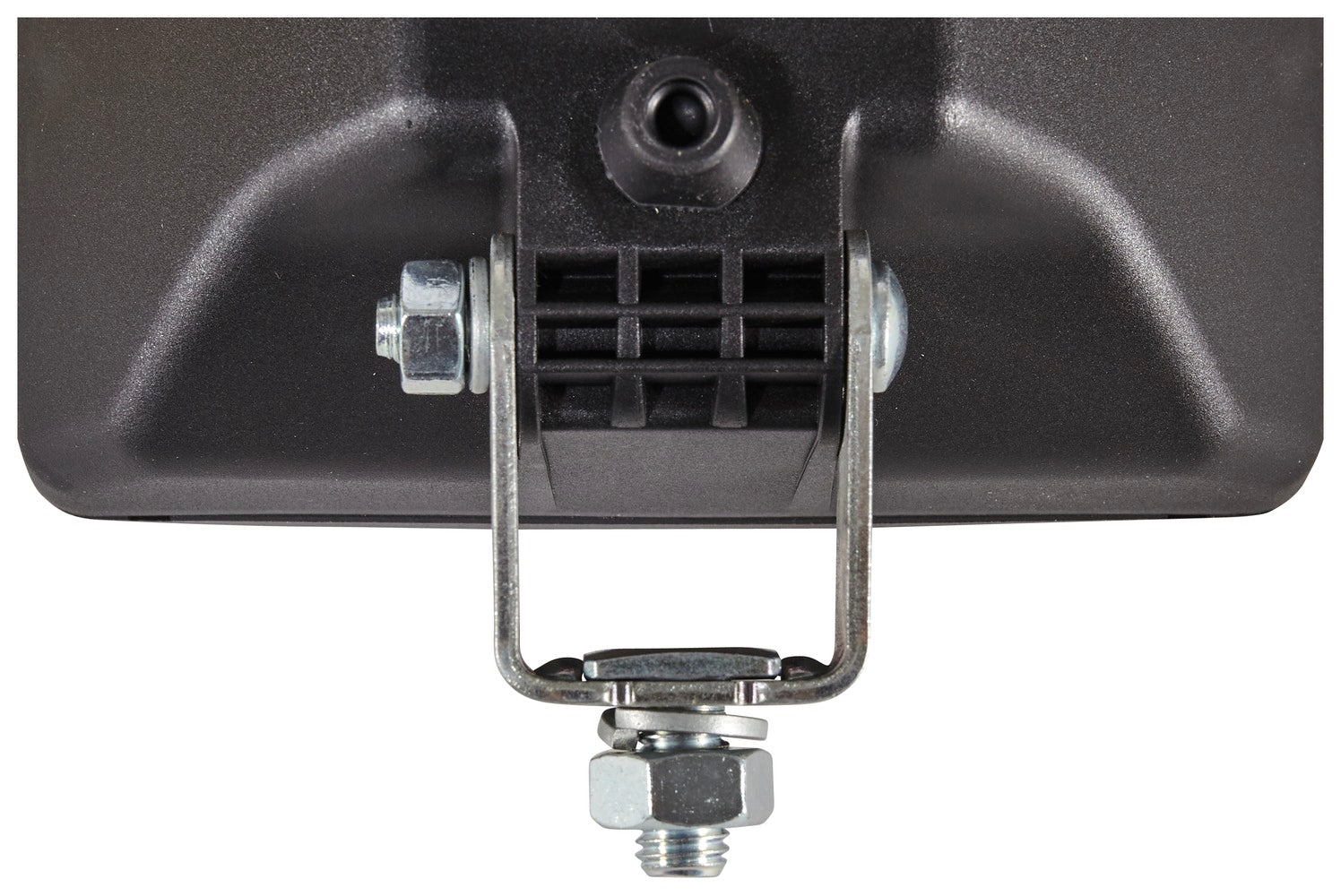

Mounting Type: mounting / Bolted
Fastening Type: Vertical / Suspended
Lamp Type: H3
Light Design: Halogen
Voltage: 24 V / 12 V
Power consumption: 35 W / 70 W
Width: 153 mm
Height: 118 mm
Depth: 92 mm
Diffusing Lens Material: Glass
Plug: Blade Terminal
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Type: Patterned diffusing lens
Prot.type (IP Code): IP5K4K
Light Distribution: Long-range illumination
Supplementary Article/Supplementary Info 2: without bulbs
Assembly by qualified personnel required!

OE references: AEBI 12-97700696; AGCO E400018; AGRIFAC 7788677; AHLMANN 55290371/6929001; ATLAS COPCO 1744761; ATLAS COPCO 5350661210; BUCHER 46/45; BUCHER 622036; BUCHER 76553510; BUCHER 7-655-3705; CARNEHL 9795; CASE IH 1960077; CATERPILLAR 196-0077; CLAAS 4-60000280000; DAF 1359959; DELVANO 8040796; DEMAG 63424440; DEUTZ-FAHR 091 200007-7826; DOLL 899800; DOOSAN 534-00076; DOOSAN 9534-9003; DRONNINGBORG 45084700; FAUN 5231-056; FAUN ES0028; FAYMONVILLE 5861; FELDBINDER 1014493; FRUEHAUF L-SX0311-555; GOLDHOFER 141205700-; HAKO 90321928; HAKO 90321928 (30)ALT; HYDREMA 10001010; HYSTER S01121270002; IVECO 41635108; JCB 8424/01085; JOHN DEERE AL 75 393; JOHN DEERE ZZ 10 006; JUNGHEINRICH 07939863; JUNGHEINRICH 50120411; KOMATSU 4220 512 M91; KOMATSU 4230 6H2 140; KOMATSU 423-06-H2140; KRAMER 56513; KRONE 505806987; KRONE 5806987/0; KUBOTA 30-W-00910; LAMBERET 23523; LIEBHERR 6 000 804; LINDE 000 974 04 12; LINDE 8112587; LINDE FM8 112 58 7; LINDNER 3000242; MANITOU N750000506001; MASSEY FERGUSON 3 105 630 M1; MASSEY FERGUSON 3387 863 M91; MERCEDES-BENZ 000 544 09 47; MERCEDES-BENZ 532 300 4; MERCEDES-BENZ A 000 532 30 04; MERCEDES-BENZ A 000 544 09 47; MERCEDES-BENZ A 532 300 4; O&K 1960077; O&K 1960077X; PACTON 181574; PAUS 512125; PUTZMEISTER 404122; RENDERS 30009008; ROSENBAUER 04407656; ROSENBAUER 4012842; SAME 091 200007-7826; SCANIA 1906626; SCHMITZ CARGOBULL 612791; SOLARIS 1503-060-001; SOLARIS 1503-148-300; SOMMER 2801160001.; SPERRY NEW HOLLAND 1960077; SPERRY NEW HOLLAND 920019495; SPIERINGS 400213; STEINBOCK 000 32851; STEINBOCK 079 39863; STILL 000 974 04 12; STILL 525016; TEREX 1744761; TEREX 1960077; TEREX 5350661210; TEREX 63424440; TEREX 94763424440; VAN HOOL 11159831; VDL 11159831; YANMAR 17215917400; YANMAR 5350661210; ZIEGLER 407241
