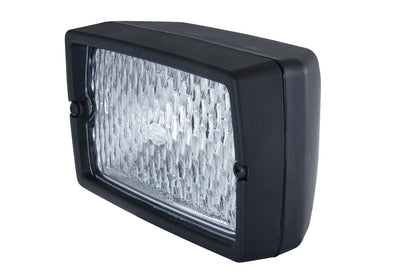

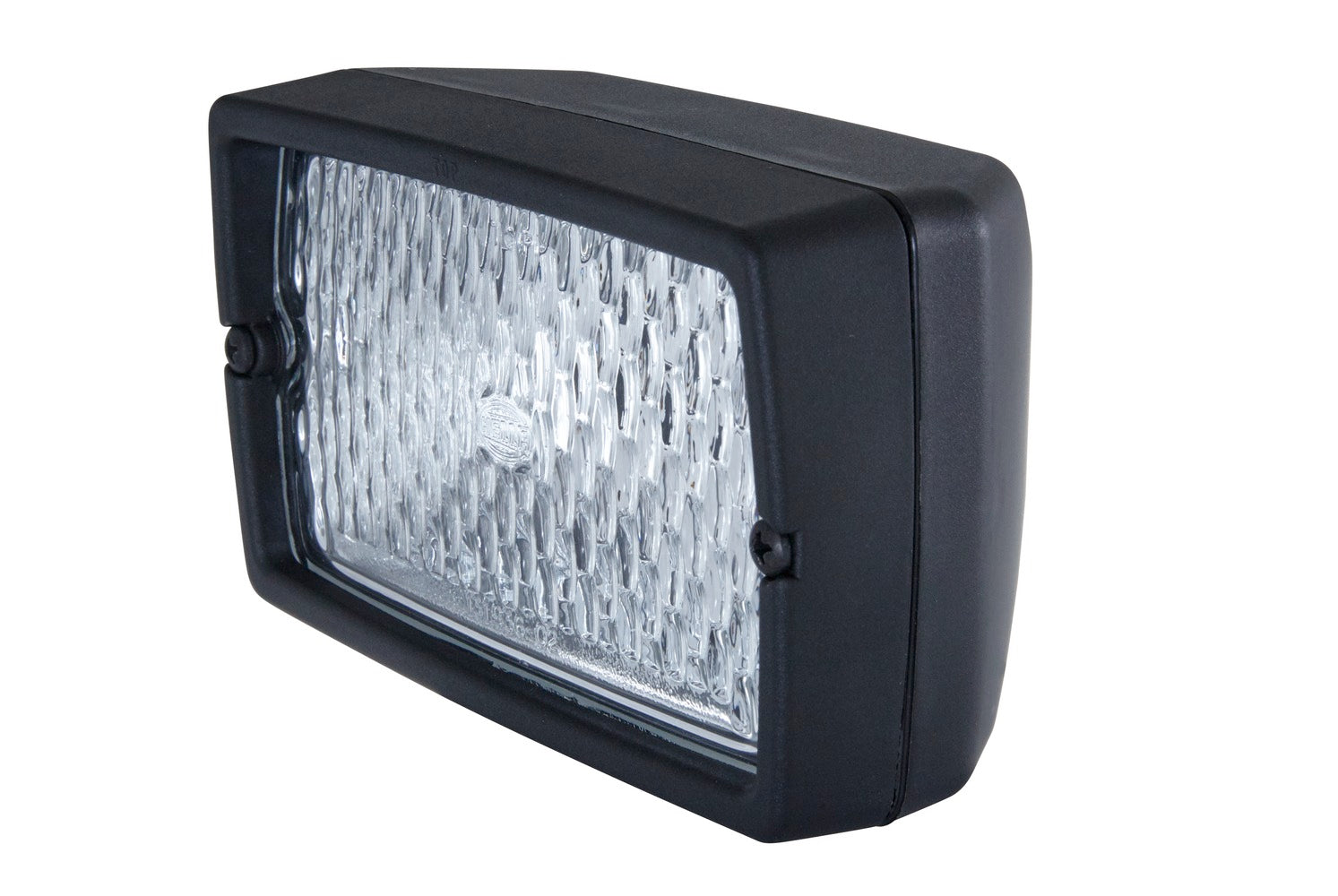

HELLA Halogen-Worklight - Master 5060 - 12/24V 1GA005060-041

Halogen-Worklight - Master 5060 - 12/24V - Bolted/mounting - Suspended/Vertical - Short-Range Illumination - Plug: Blade Terminal

Flexible and corrosion-free for homogeneous illumination. Lighting technology: Together with specially developed lens optics, the parabolic reflector allows homogenous close-range lighting of the working area, or long-range illumination. An H3 bulb is used as the light source (not included with the worklight) allowing the worklight to be used with both 12V and 24V vehicle electrical systems. Design: The black housing of this sturdy worklight is made of glassfibre reinforced, acid and corrosion-resistant plastic. To protect the lens, the housing has a raised edge at the front. The extremely compact dimensions allow a great deal of flexibility in the choice of mounting position. The Master is suitable both for upright and pendant mounting by rotating the reflector insert. Sealing of the cable duct is carried out via a grommet.

• Together with a specially developed diffuser optic, the parabolic reflector enables homogeneous illumination of the working area at close or long-range.
• The black housing of this robust worklight is made of glass fibre reinforced, acid and corrosion resistant plastic.
• To protect the diffusing lens, the housing is provided with a protruding edge at its front.
• The extremely compact dimensions allow a high degree of flexibility when choosing the mounting position.

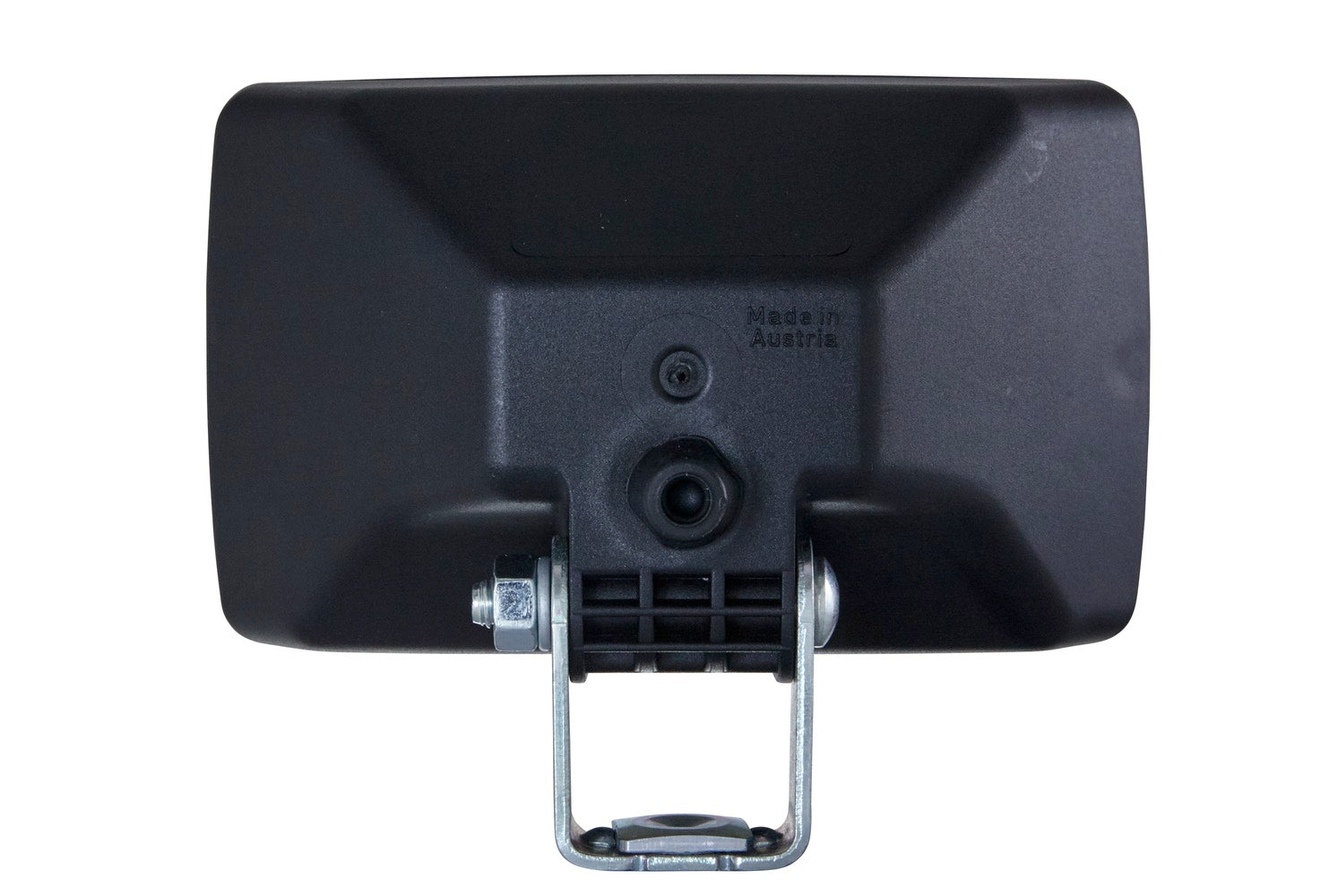

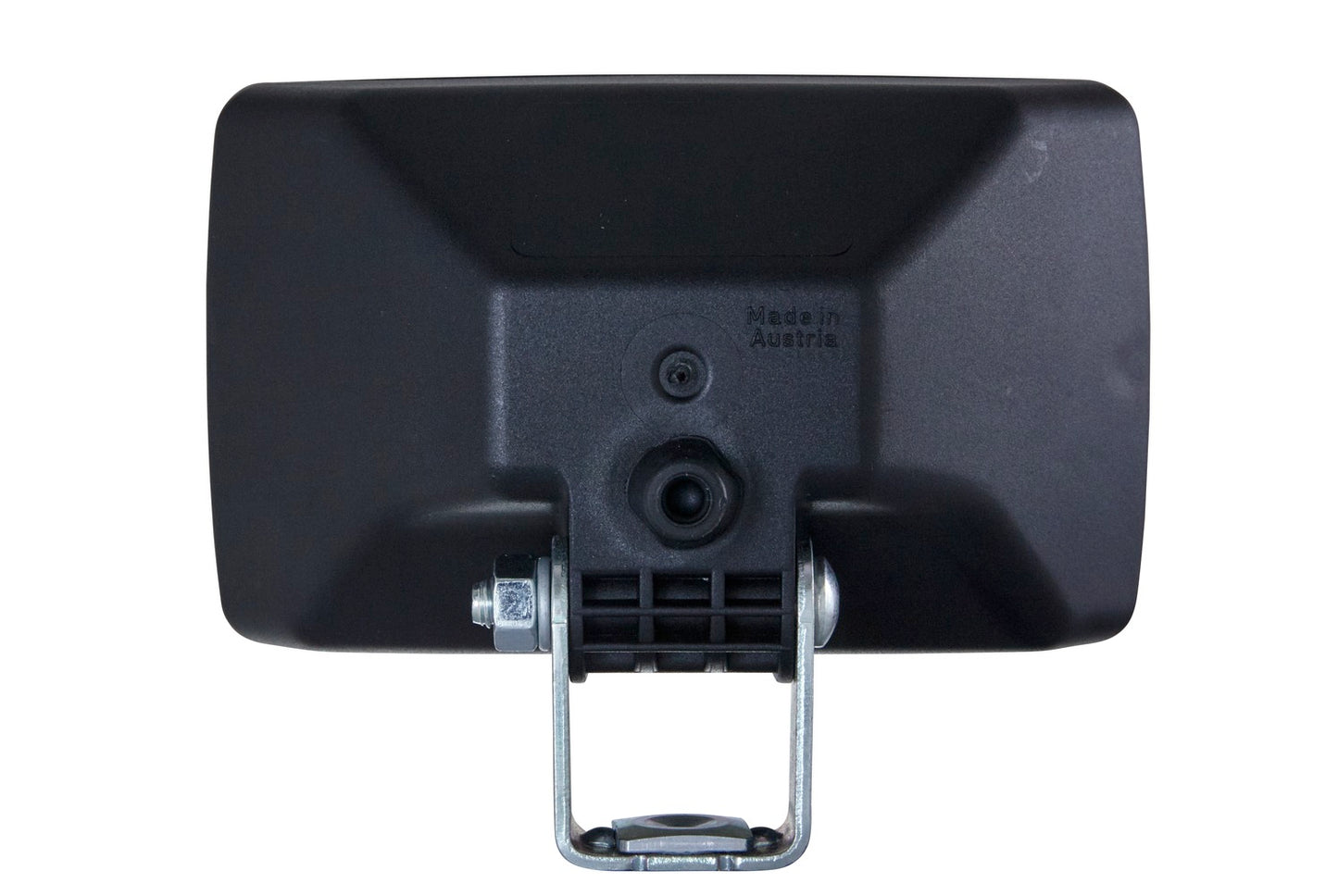

• By turning the reflector insert, the master is suitable for both upright and suspended mounting.
• Lamp Type: H3 - Power consumption: 35/70W

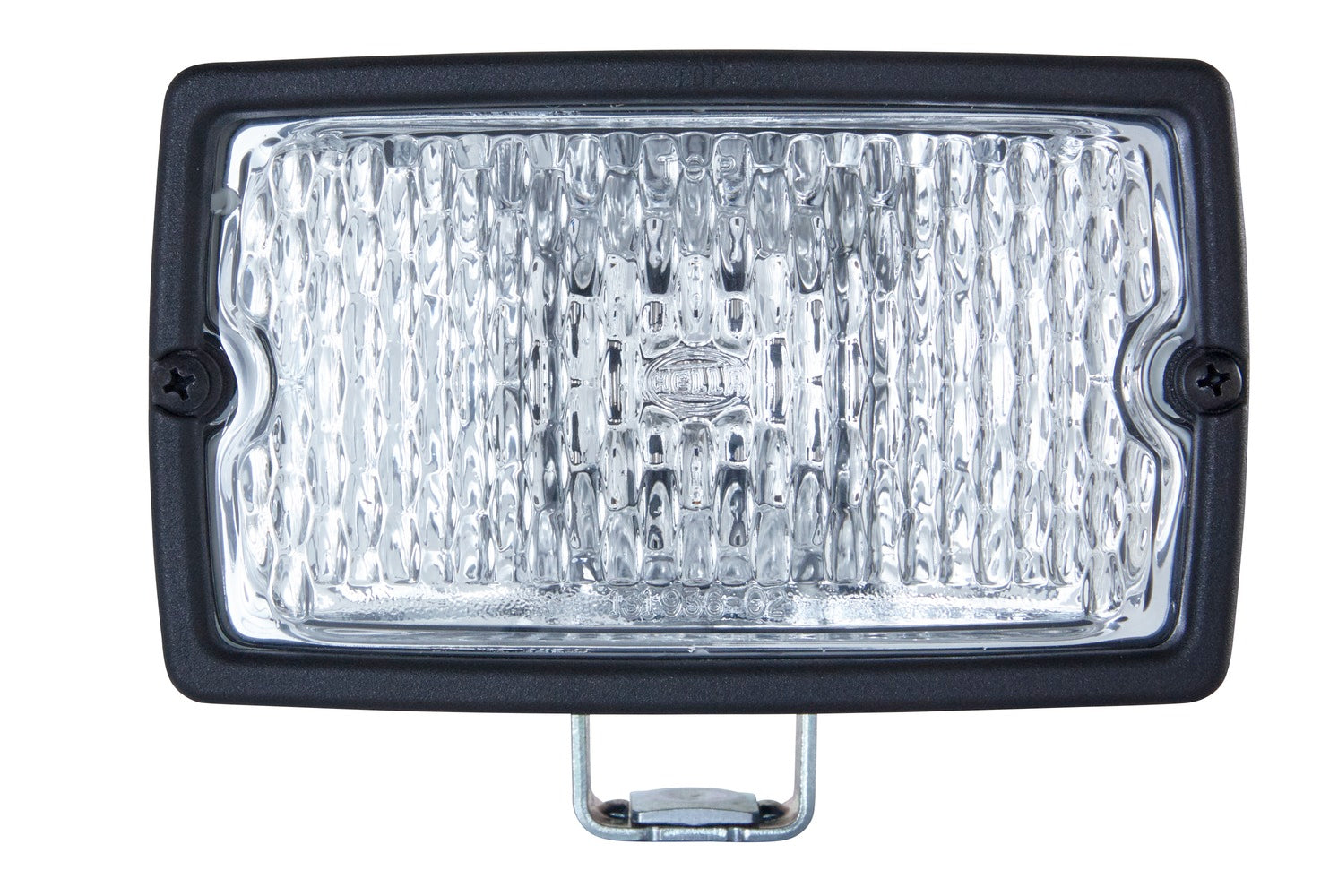

• Patterned diffusing lens

Item Attributes:

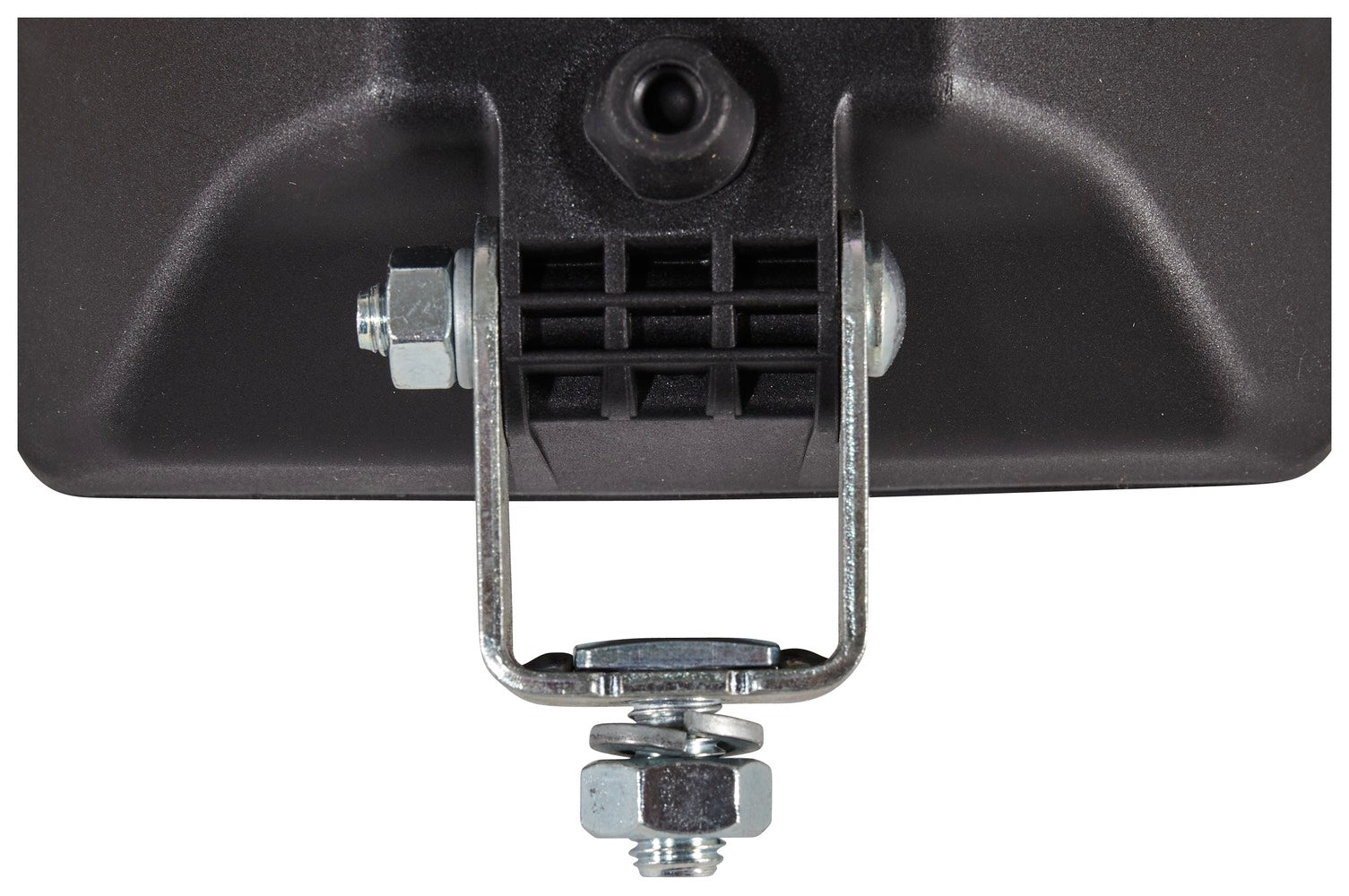

Mounting Type: Bolted / mounting
Fastening Type: Vertical / Suspended
Lamp Type: H3
Light Design: Halogen
Voltage: 12 V / 24 V
Power consumption: 35 W / 70 W
Width: 153 mm
Height: 118 mm
Depth: 92 mm
Diffusing Lens Material: Glass
Plug: Blade Terminal
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Type: Patterned diffusing lens
Prot.type (IP Code): IP5K4K
Light Distribution: Short-Range Illumination
Supplementary Article/Supplementary Info 2: without bulbs
Assembly by qualified personnel required!

OE references: ATLAS COPCO 5350658682; BUCHER 622037; BUCHER 7655-3715; CASE IH 0 605020 70; CASE IH 9819611; DELVANO 8040884.; DEMAG 62150740; FAUN 5231-056; FENDT G 380.902.110.020; GOLDHOFER 141205702; GOLDHOFER 250861; HOLMER 1019008958; JUNGHEINRICH 16029020; JUNGHEINRICH 16036350; KEMPF A57816; KOMATSU B 969 271 456 001; LAMBERET 28064; PAUS 502465; RENDERS 30009009; ROSENBAUER 04407655; ROSENBAUER 590942-001; SANY B241100000236; SCANIA 1934128; SCHMITZ CARGOBULL 116070; SCHMITZ CARGOBULL 16070; SCHMITZ CARGOBULL 980776; SCHWARZMÜLLER 34612; SPERRY NEW HOLLAND 89819611; SPERRY NEW HOLLAND 9819611; TEREX 5350658682; TEREX 62150740; TEREX 94762150740; VDL 20233930; ZIEGLER 167227
