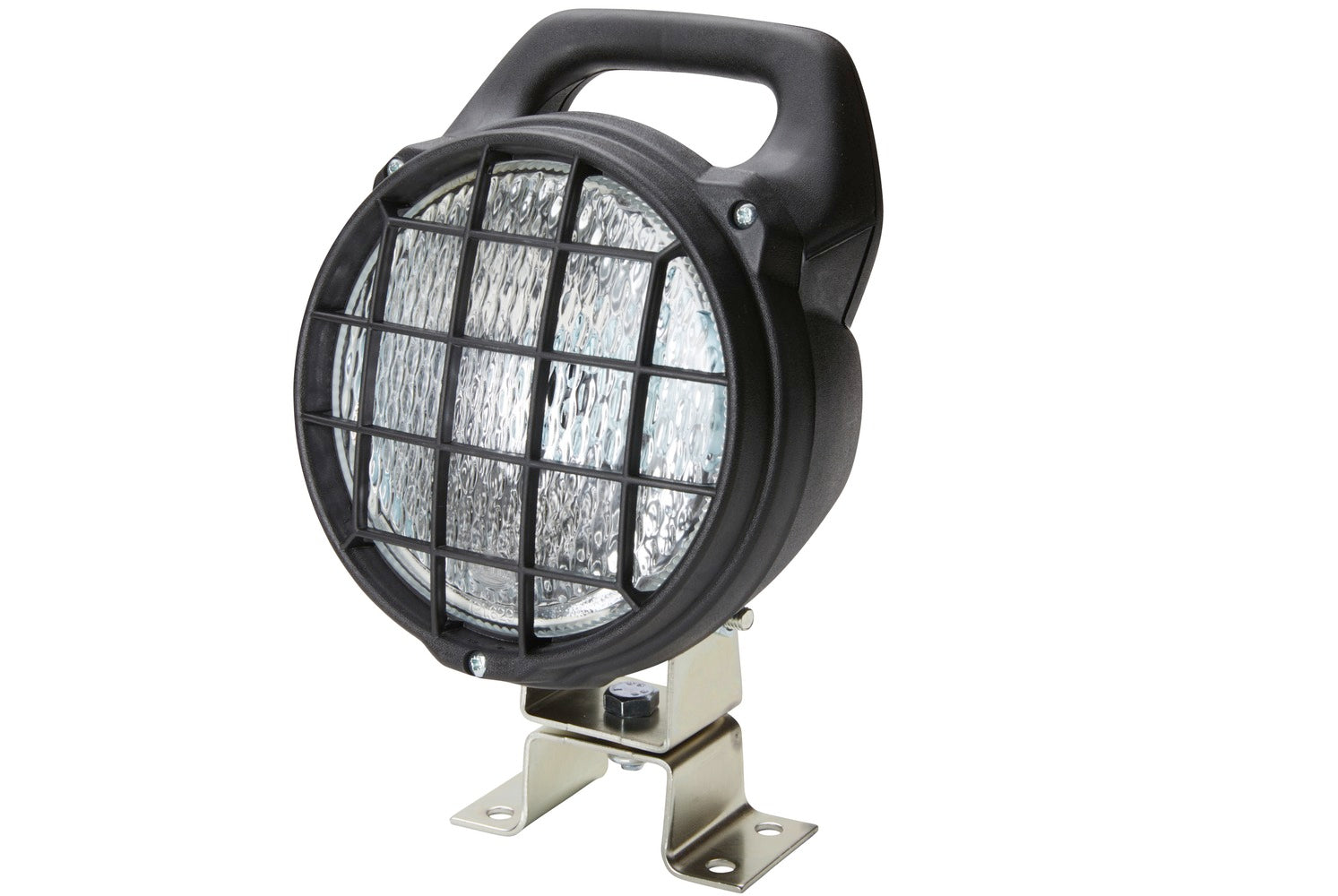

HELLA Halogen-Worklight - Matador - 12/24V 1G4003470-031

Halogen-Worklight - Matador - 12/24V - mounting/Screw Connection - Four-point attachment - Short-Range Illumination - Plug: open cable ends

Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens, the housing is provided with a protruding rim at its front. The handle, together with the swivel foot, simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version, the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting, as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.

• Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working area at close range.
• The black housing of this robust worklight consists of glass fibre reinforced plastic.
• To protect the diffusing lens, the housing is provided with a protruding edge at its front.

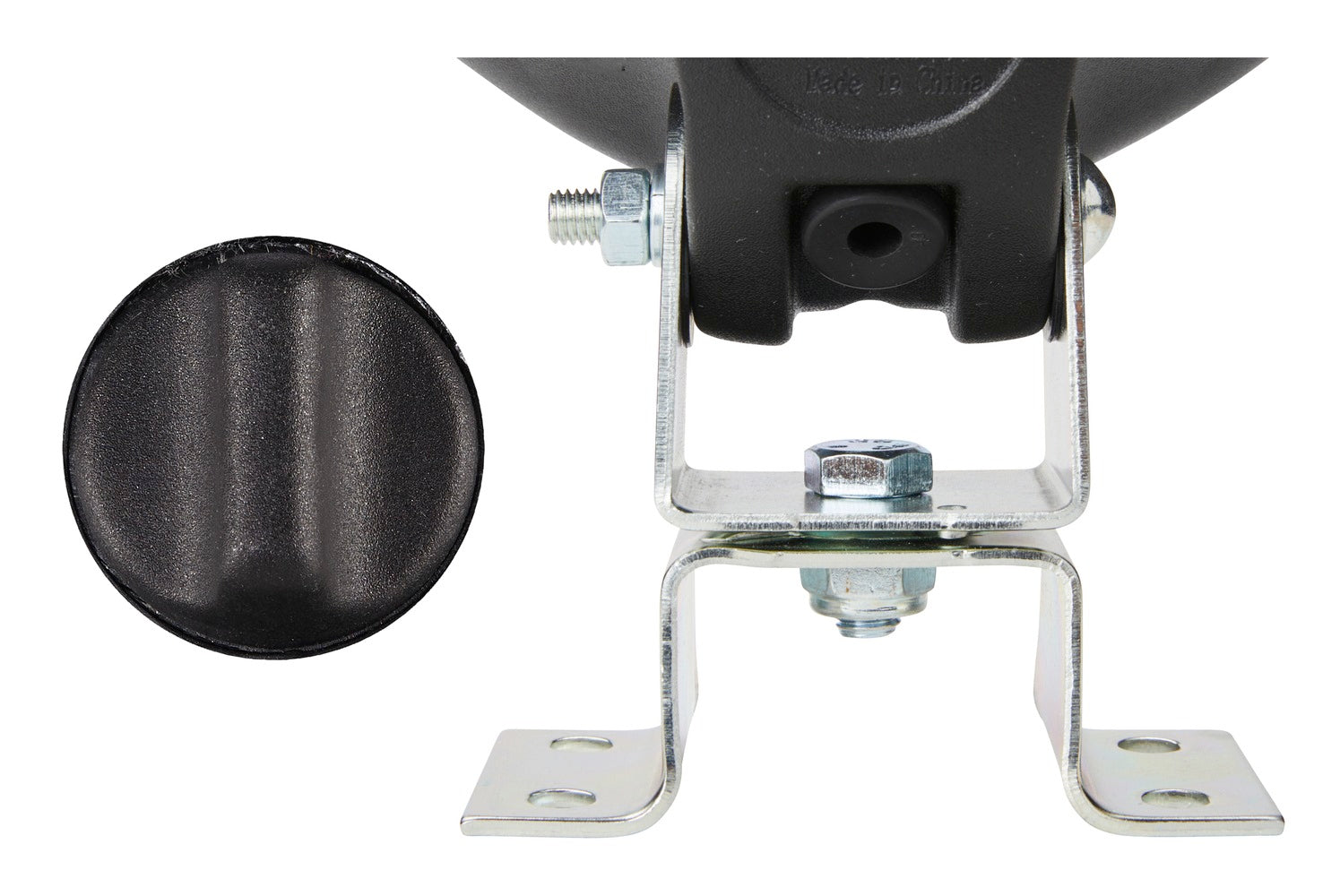

• Together with the swivel base, the handle simplifies the adjustment of the worklights, so that the working area can be optimally illuminated.
• The bracket enables a stable four-point mounting of the worklight.
• Lamp Type: H3 - Power consumption: 35/70W
• Patterned diffusing lens

Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: H3
Voltage: 24 V / 12 V
Height: 263 mm
Width: 168 mm
Depth: 126 mm
Light Distribution: Short-Range Illumination
Plug: open cable ends
Prot.type (IP Code): IP5K4K
Power consumption: 35 W / 70 W
Supplementary Article/Supplementary Info 2: without bulbs / with integrated grille
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: ATLAS COPCO 1786294; AUDI KDWHLO9430; BOBCAT L000008711; BUCHER 622030; CASE IH 1 089208 R91; CASE IH 1133292R1; CATERPILLAR 826850; DAF 0867386; DAF 1341734; DAF 273336; DEMAG 00053012; DEMAG 32483940; FAYMONVILLE 3491; FELDBINDER 007101; FORD 5C46 13N429 AA; FORD 5C46 13N4299AA; FORD V1C4415592AA; HAKO 90-19447-3; INTERNATIONAL HARV. 1 089 208 R 91; JOHN DEERE 26.01.102; JOHN DEERE WZ 26 01102; JUNGHEINRICH 025416; JUNGHEINRICH 50153283; KAMAG 80077799; KÖGEL 77799; KOMATSU 32483940; KRONE 5804155/0; LAMBERET 02433904; LANGENDORF 1084173; LIEBHERR 6 071 388 08; LINDE FM8 112 64 0; MAN 81.25103-6033; MAN ZF251036033; MASSEY FERGUSON 3 248 394 0; MERCEDES-BENZ 000 482 57 02; MERCEDES-BENZ 531 551 1; MERCEDES-BENZ A 000 482 57 02; MERCEDES-BENZ A 000 531 55 11; MERCEDES-BENZ A 531 551 1; O&K 1185972; PAUS 519137; PUTZMEISTER 065255.007; ROSENBAUER 036417; ROSENBAUER FE0014; SANY B241100000067; SCANIA 1934127; SCANIA 20223815; SCHWARZMÜLLER 15834; SOMMER 2800726001; SPIERINGS 1055439; TEREX 32483940; VAN HOOL 10704399; VDL 10704399; VW KDWHLO9430; ZOOMLION 1020401035
