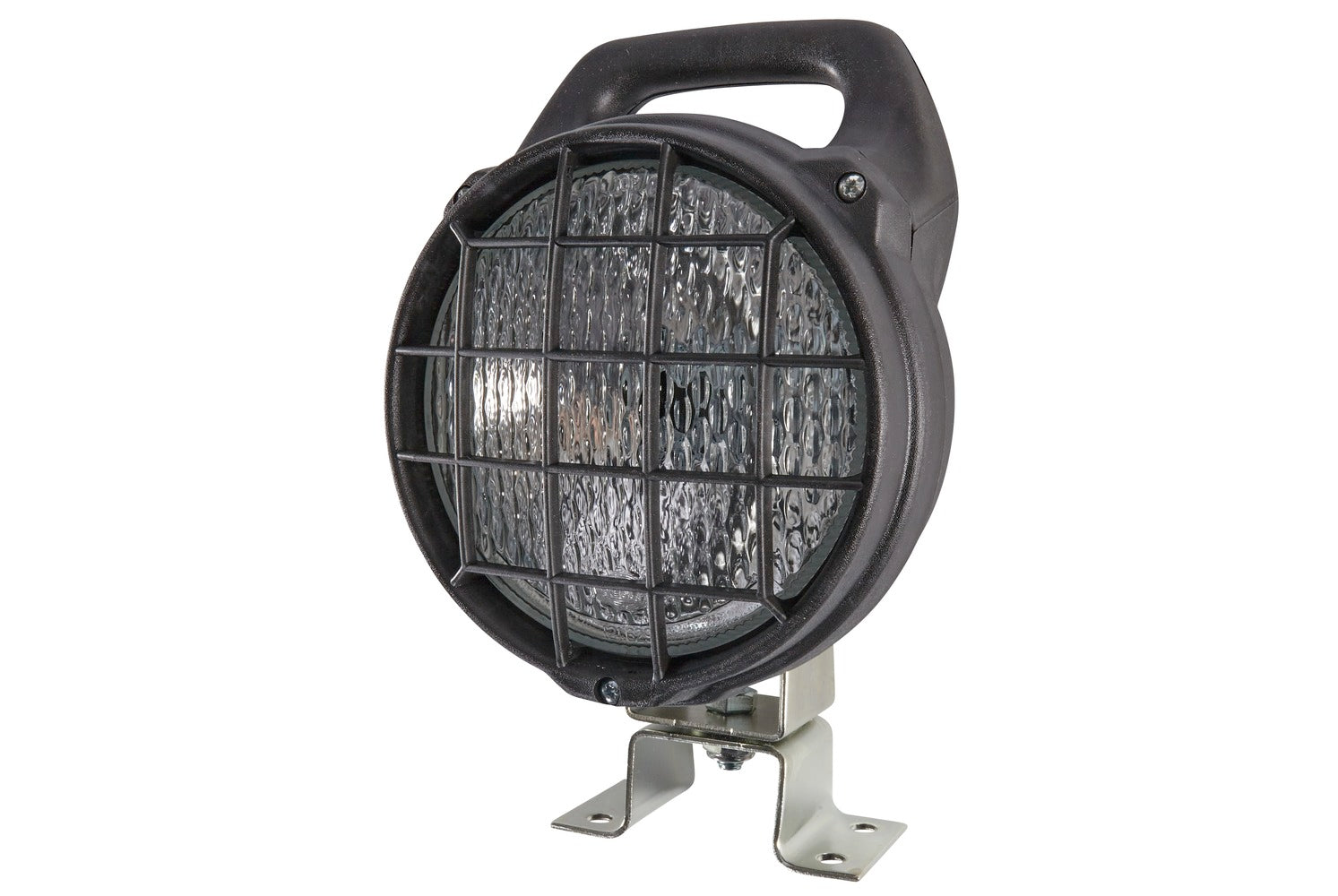

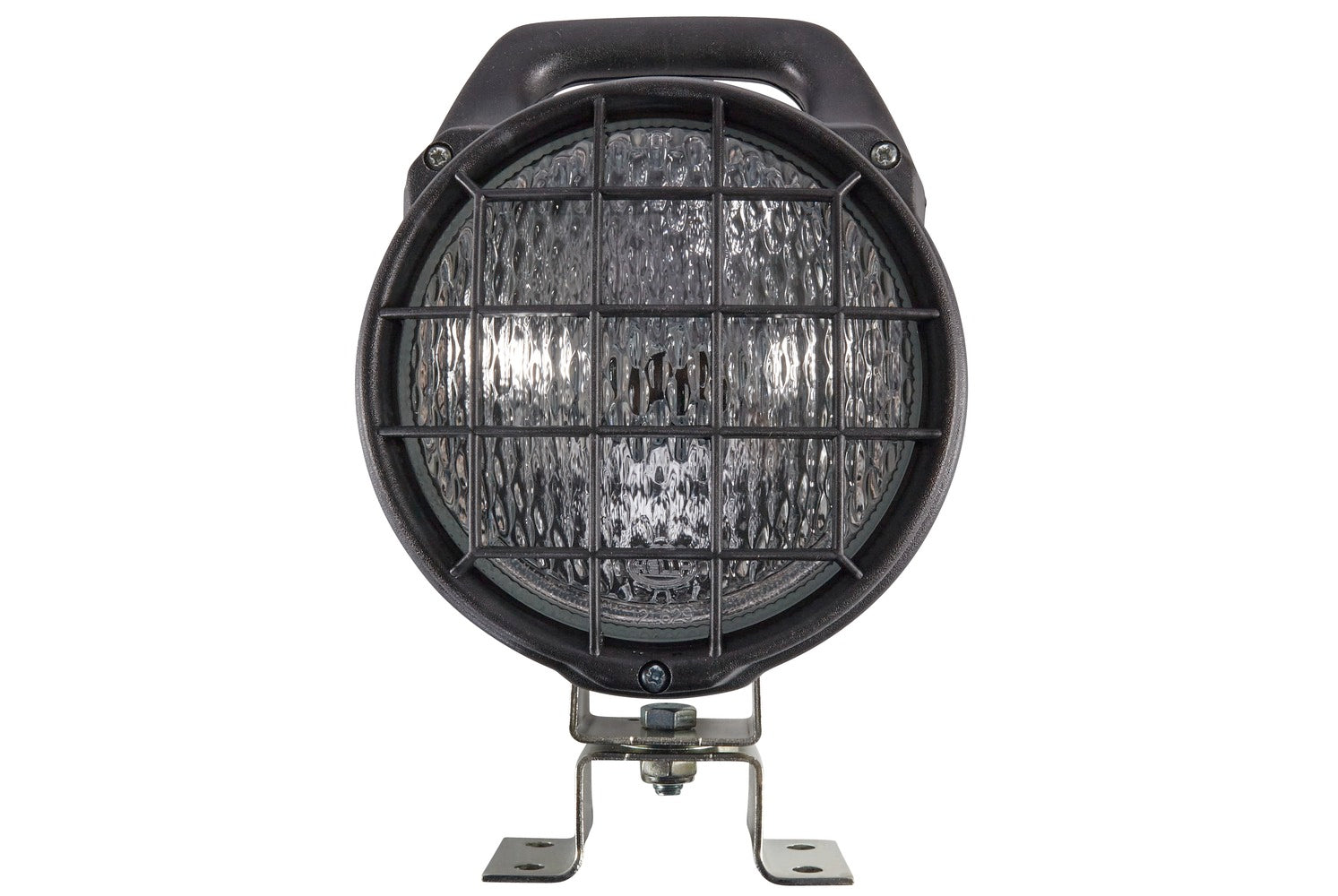

HELLA Halogen-Worklight - Matador - 24/12V 1G4003470-051

Halogen-Worklight - Matador - 24/12V - Screw Connection/mounting - Four-point attachment - Short-Range Illumination - Plug: open cable ends

Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens, the housing is provided with a protruding rim at its front. The handle, together with the swivel foot, simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version, the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting, as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.

• Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working area at close range.
• The black housing of this robust worklight consists of glass fibre reinforced plastic.
• To protect the diffusing lens, the housing is provided with a protruding edge at its front.

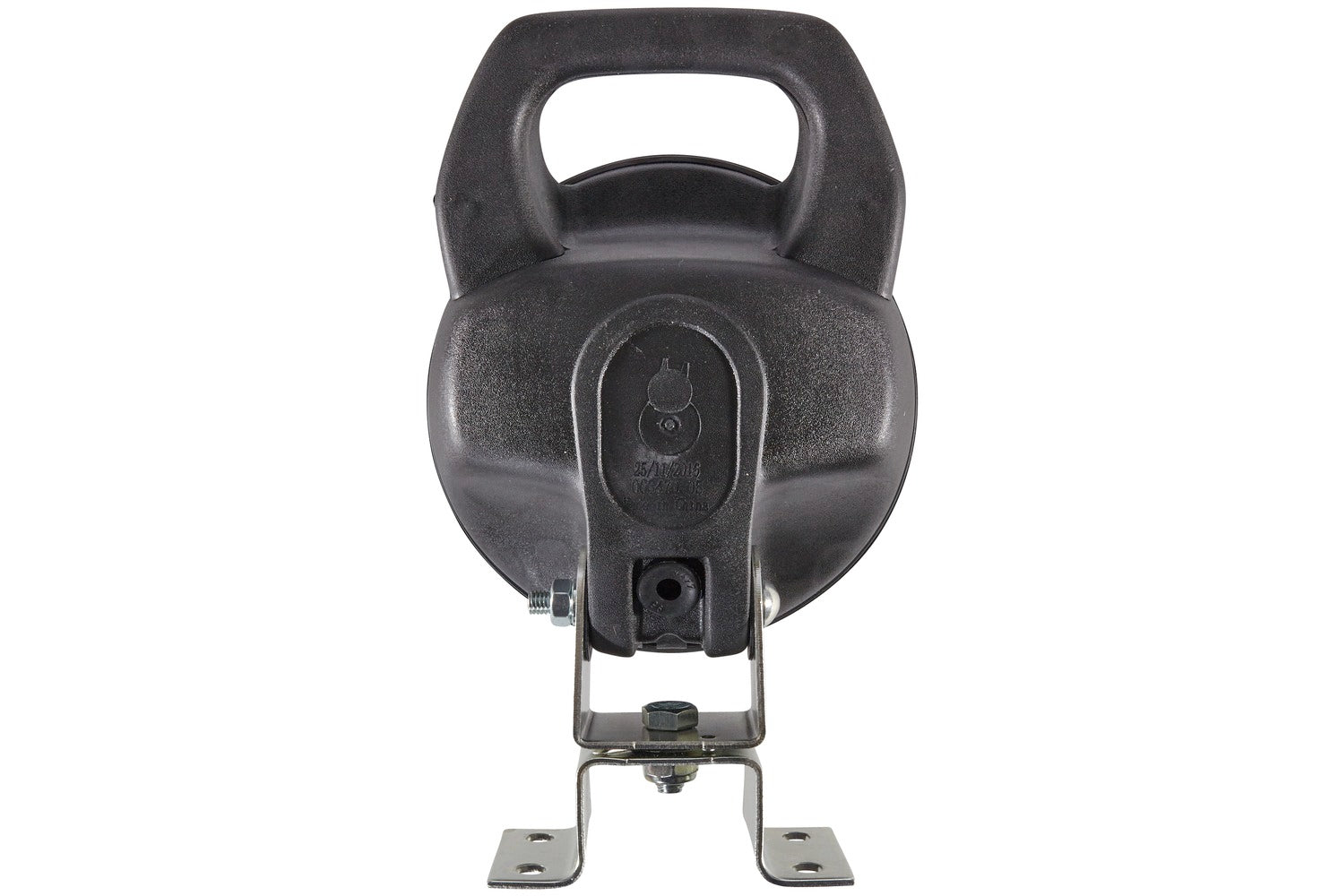

• Together with the swivel base, the handle simplifies the adjustment of the worklights, so that the working area can be optimally illuminated.

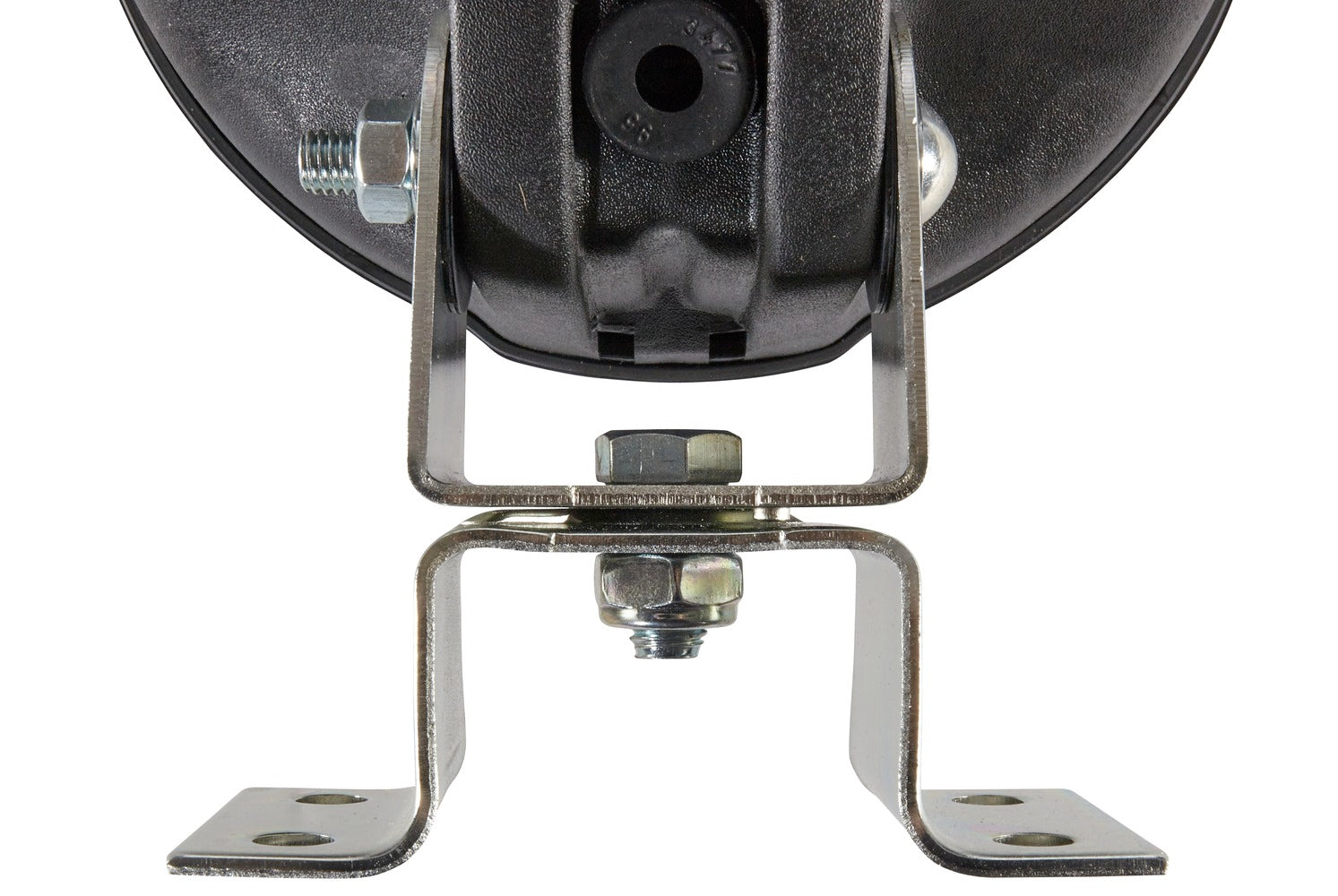

• The bracket enables a stable four-point mounting of the worklight.
• Lamp Type: H3 - Power consumption: 35/70W
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Screw Connection
Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: H3
Voltage: 24 V / 12 V
Height: 263 mm
Width: 168 mm
Depth: 126 mm
Light Distribution: Short-Range Illumination
Plug: open cable ends
Prot.type (IP Code): IP5K4K
Power consumption: 35 W / 70 W
Supplementary Article/Supplementary Info 2: without switch / without bulbs
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: ATLAS COPCO 0870693; ATLAS COPCO 2260031; BUCHER 7-655-3303; CASE IH 1740048; CASE IH 3 369718 R91; CATERPILLAR 120-6776; CATERPILLAR 5W-2681; CLAAS 057 097 51; DAF 867445; DEMAG 0870693; DEMAG 46128540; FORD V1C4415592AA; KÖGEL 80372; LANGENDORF 1084172; LIEBHERR 6 000 776; LIEBHERR 6 071 057 05; LIEBHERR 6 071 142 08; NOOTEBOOM 0225503; O&K 1740048; ROSENBAUER 520163; TEREX 0870693; TEREX 20038248; TEREX 2260031; TEREX 46128540; TEREX 5350658670; TEREX 94746128540; VOLVO 20005239651; VOLVO 5239651; WEIRO 11339; YANMAR 5350658670
