HELLA Halogen-Worklight - Matador - 24V 1G4003470-131

Halogen-Worklight - Matador - 24V - mounting/Screw Connection - Four-point attachment - Short-Range Illumination - Plug: open cable ends

Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens, the housing is provided with a protruding rim at its front. The handle, together with the swivel foot, simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version, the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting, as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.

• Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working area at close range.
• The black housing of this robust worklight consists of glass fibre reinforced plastic.
• To protect the diffusing lens, the housing is provided with a protruding edge at its front.
• Together with the swivel base, the handle simplifies the adjustment of the worklights, so that the working area can be optimally illuminated.

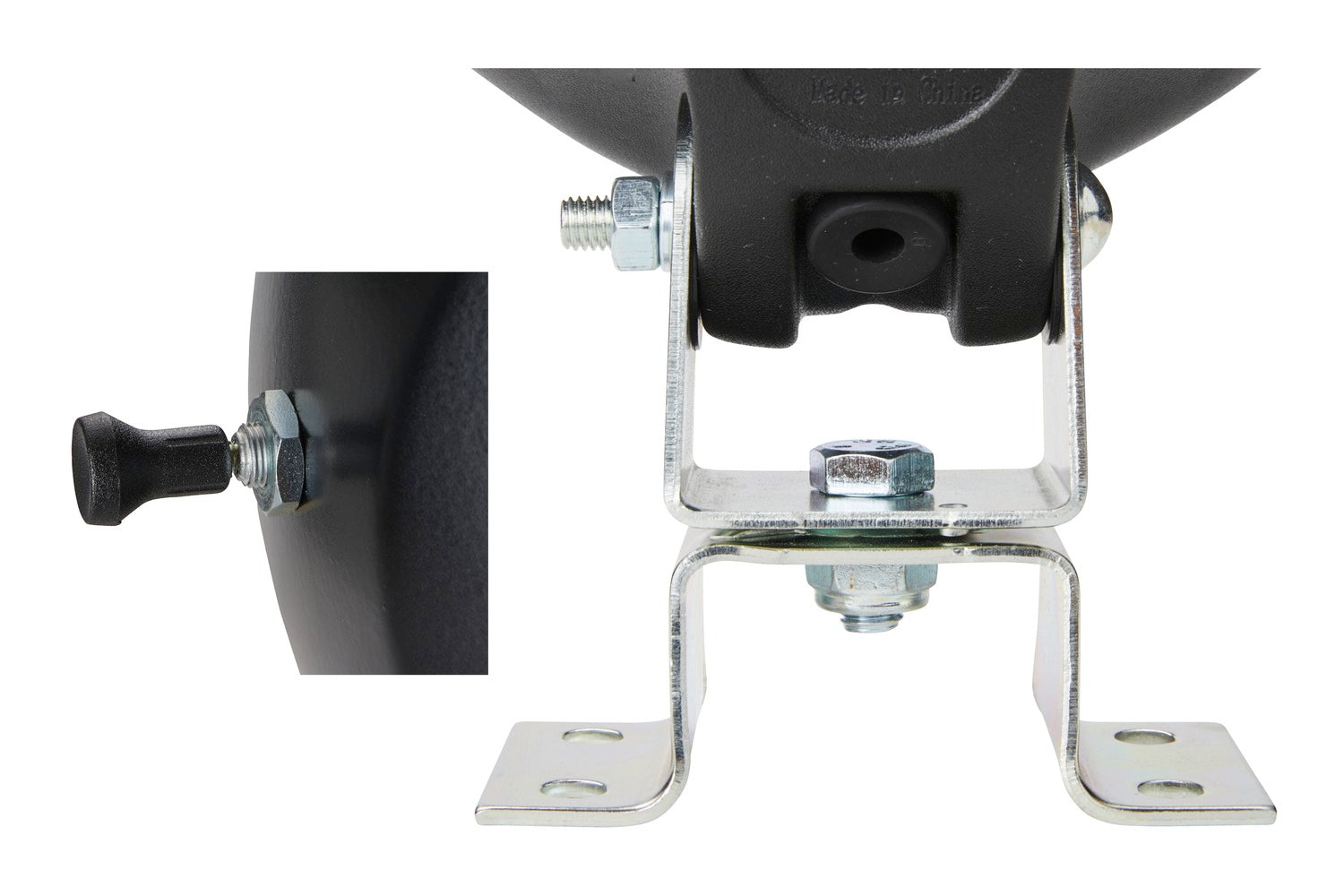

• The bracket enables a stable four-point mounting of the worklight.
• Lamp Type: F2 - Power consumption: 35W
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Screw Connection
Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: F2
Voltage: 24 V
Height: 227 mm
Width: 168 mm
Depth: 126 mm
Light Distribution: Short-Range Illumination
Plug: open cable ends
Prot.type (IP Code): IP5K4K
Power consumption: 35 W
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: DAF 906484; MAN ZF251030002; MERCEDES-BENZ 000 544 11 47; MERCEDES-BENZ 000 623 50 84; MERCEDES-BENZ A 000 544 11 47; MERCEDES-BENZ A 000 623 50 84; MERCEDES-BENZ A 623 508 4; SCANIA 1605160; VOLVO 8153930
