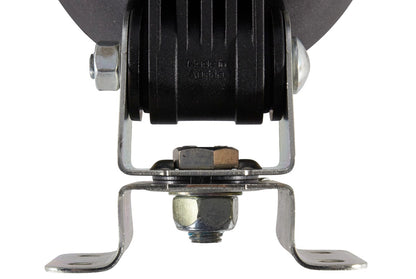

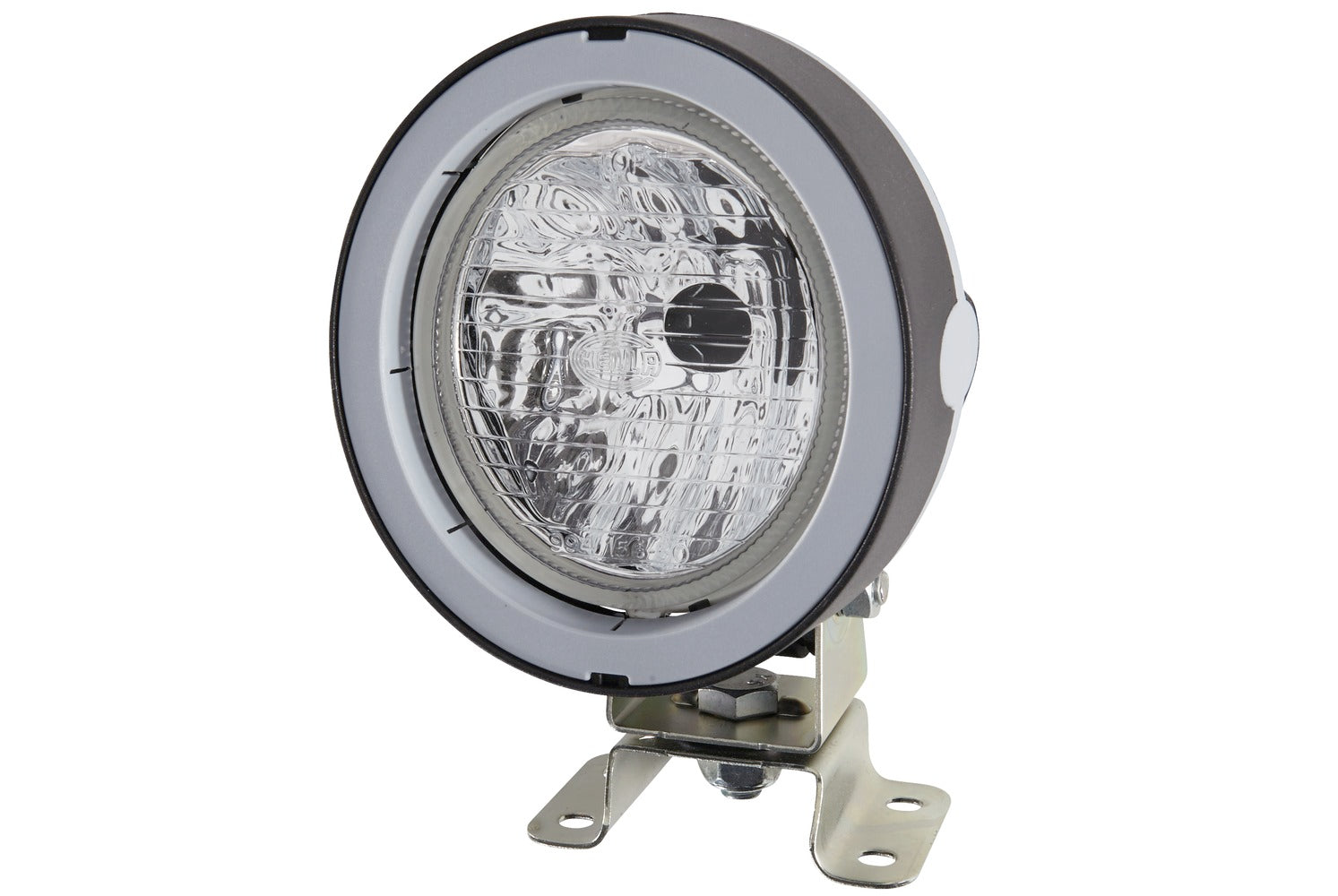

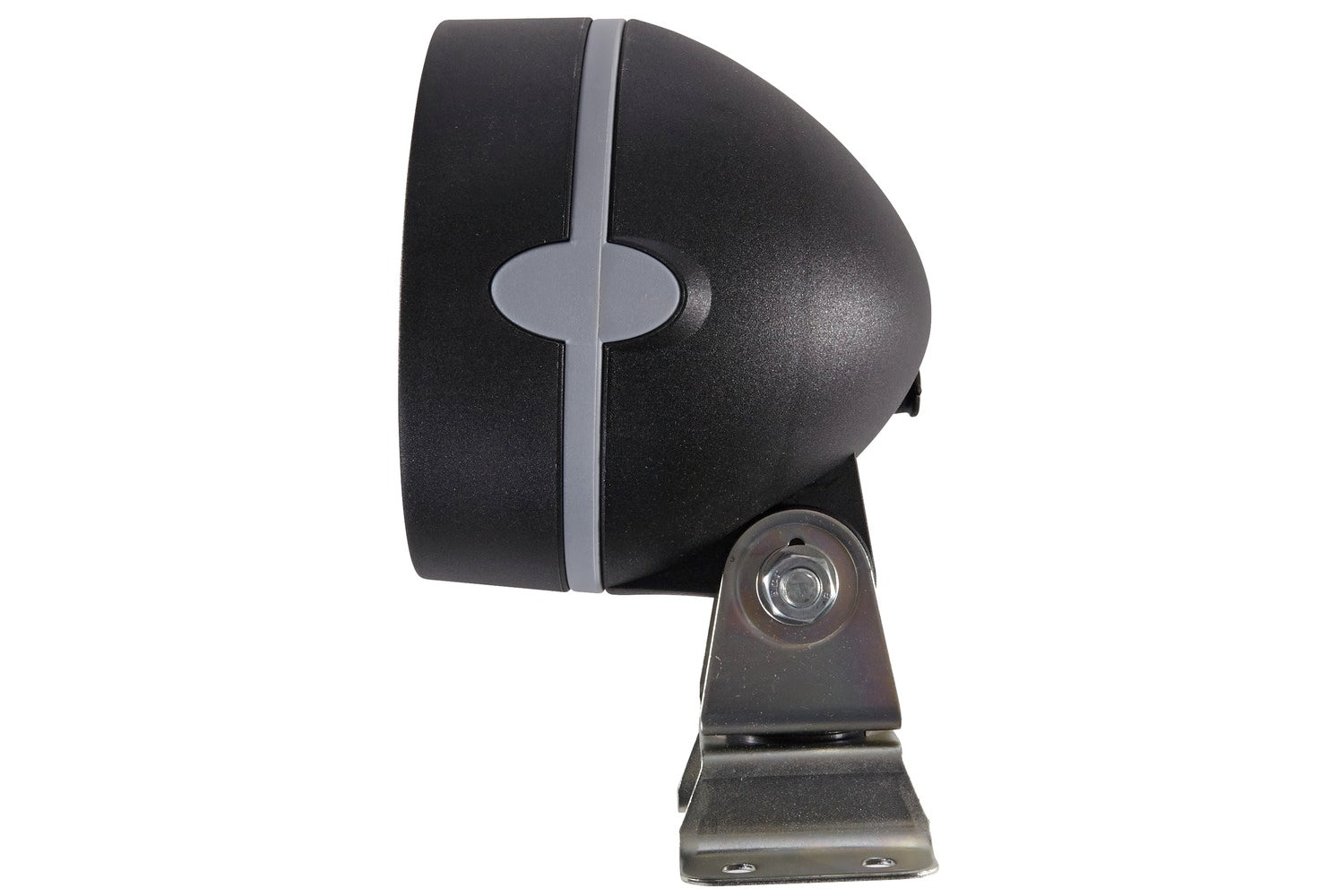

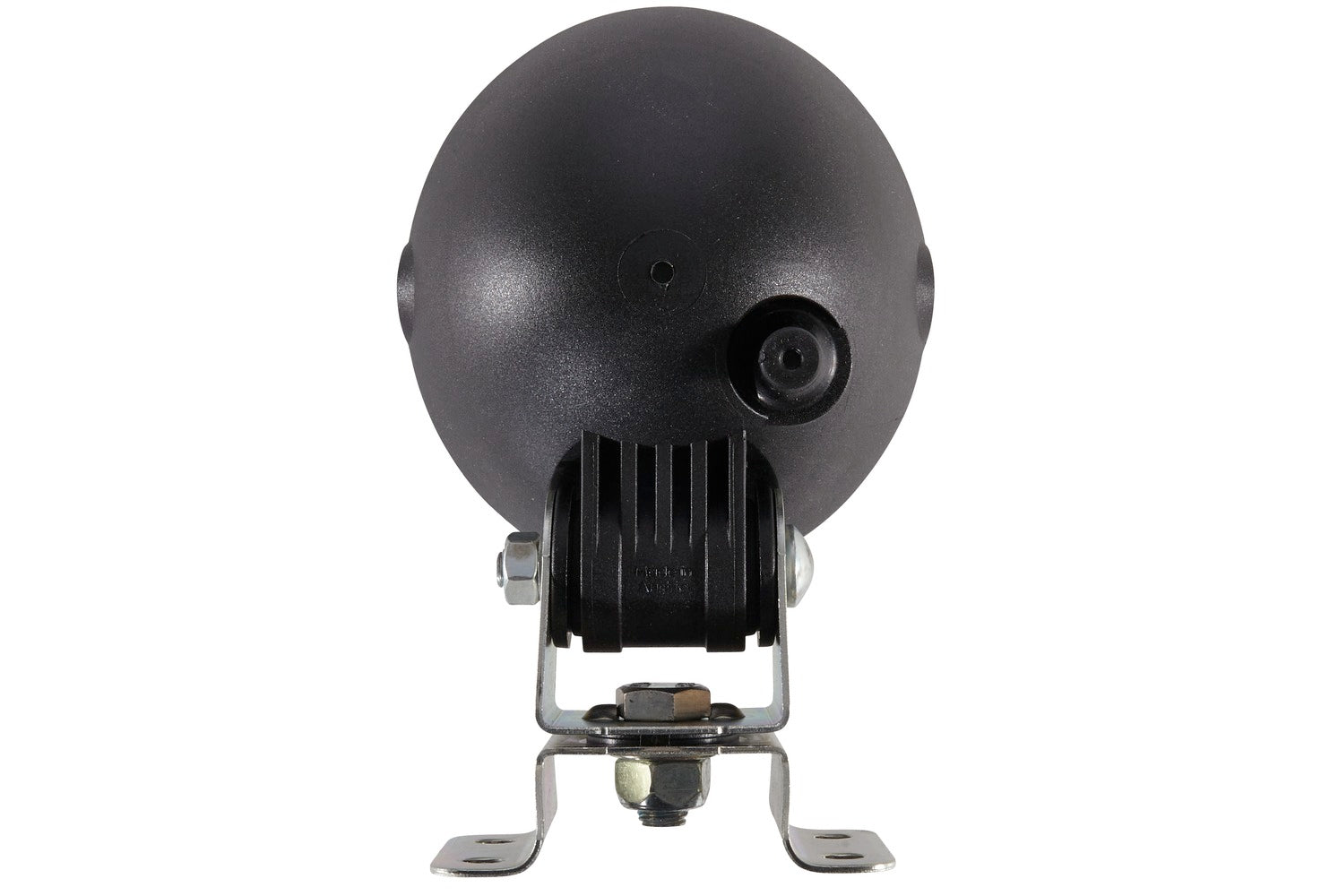

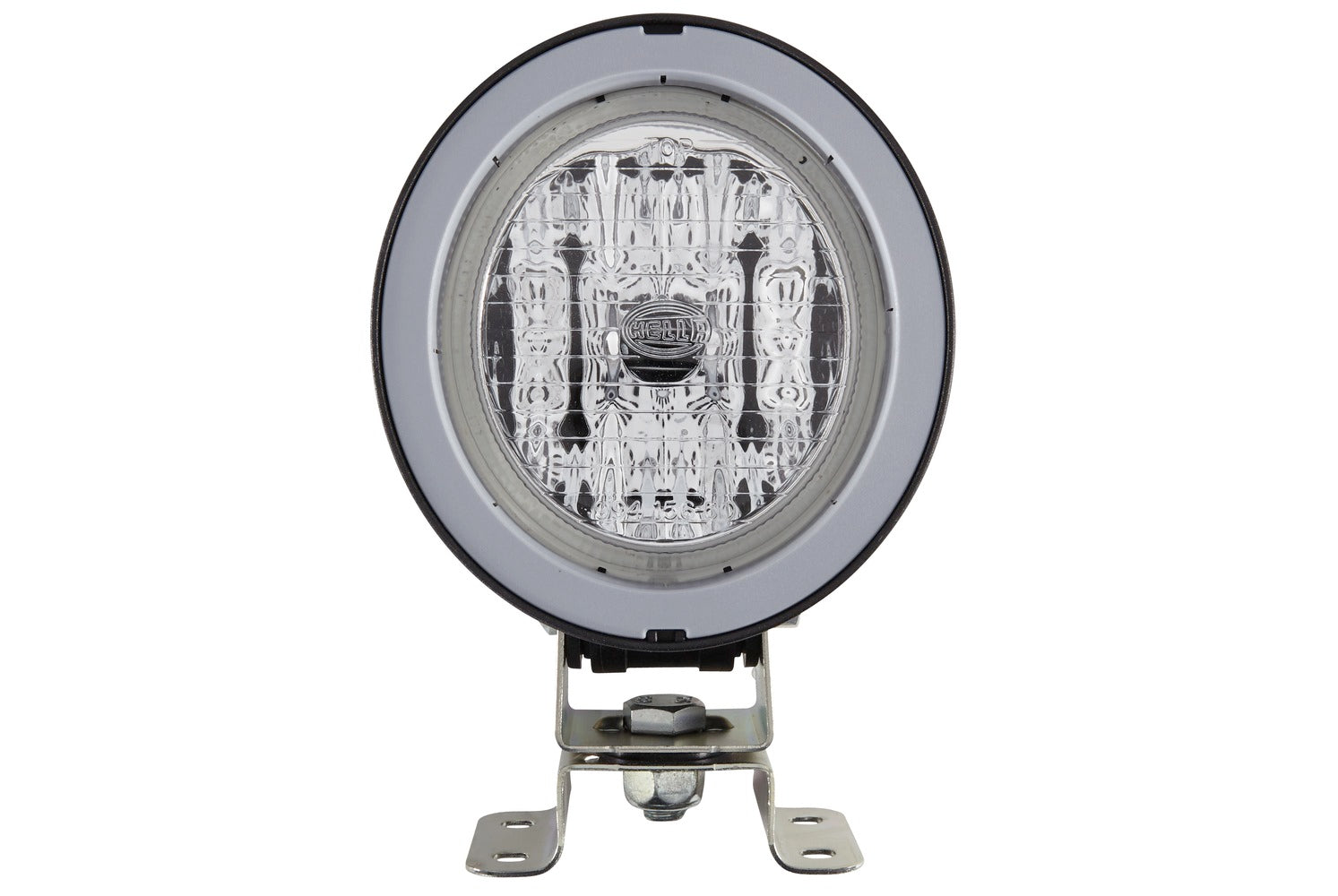

HELLA Halogen-Worklight - Mega Beam - 12/24V 1GM996134-061

Halogen-Worklight - Mega Beam - 12/24V - mounting/Screw Connection - Four-point attachment - Off-road Lighting

The Mega Beam H3 is a halogen worklight whose aluminium reflector is based on free-form technology. Despite its compact dimensions, the reflector provides excellent light output. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The black lamp housing of these robust worklights is made of glass-fibre reinforced plastic that is resistant to acid and corrosion. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally. The surface-mounted versions are suitable for standing and suspended mounting by turning the light insert. HeavyDuty versions with vibration damping use a patented damping system that protects the headlamp from vibrations and thus extends the service life of the bulb.

• The Mega Beam H3 is a halogen worklight whose aluminium reflector is based on free-form technology.
• Despite its compact dimensions, the reflector ensures excellent light output.
• The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.
• The housing is provided with a protruding edge to protect the diffusing lens.
• Lamp Type: H3 - Power consumption: 35/70W
• Patterned diffusing lens
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP5K9K

Item Attributes:

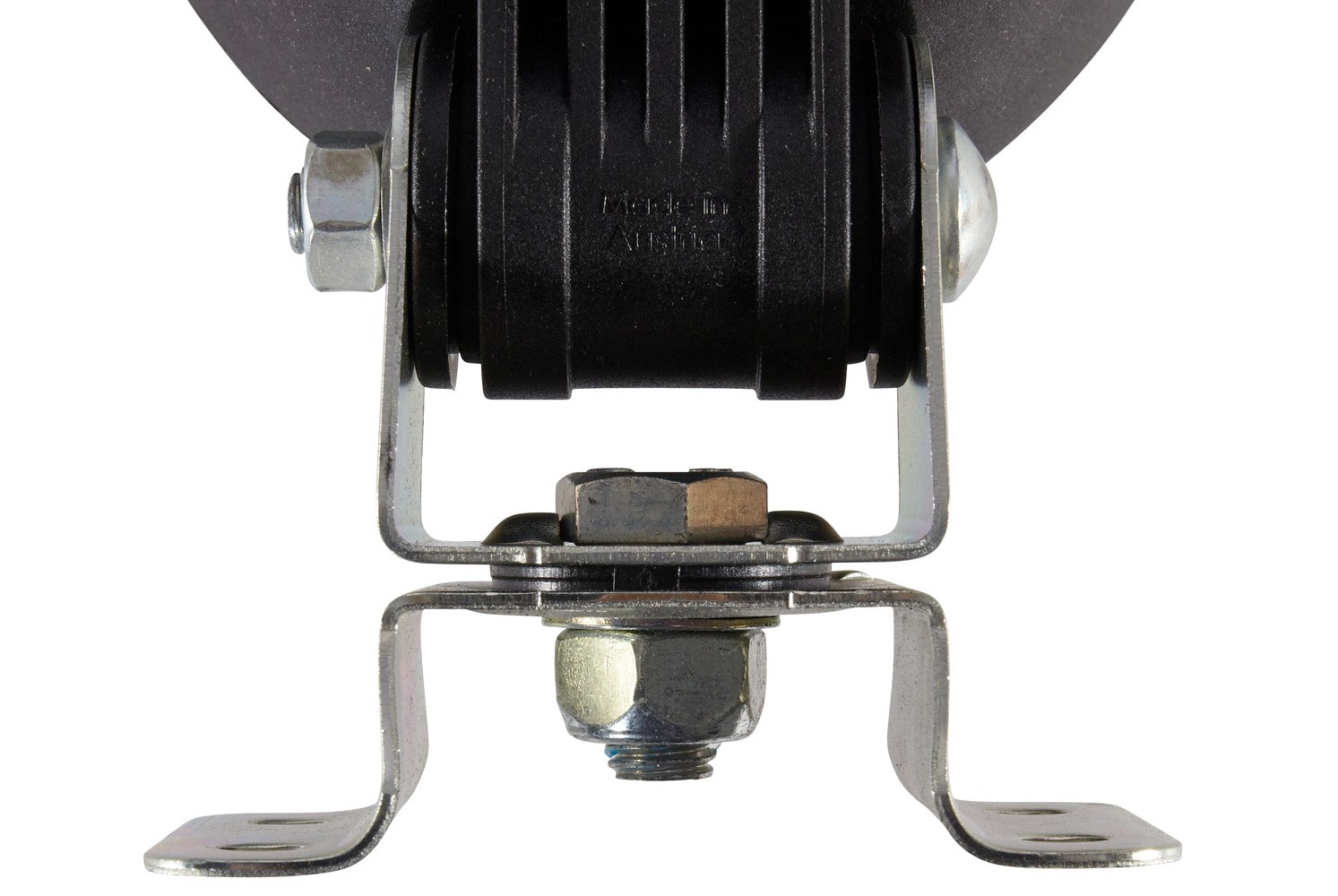

Mounting Type: mounting / Screw Connection
Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: H3
Voltage: 24 V / 12 V
Height: 170 mm
Width: 110 mm
Depth: 103 mm
Light Distribution: Off-road Lighting
Registration Type: ADR/GGVS
Prot.type (IP Code): IP5K9K
Power consumption: 70 W / 35 W
Supplementary Article/Supplementary Info 2: without bulbs / with rubber grommet
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: FENDT G 210.902.113.010; FENDT G931.901.110.010; FENDT G931.901.113.010; JOHN DEERE AL 119 291; JOHN DEERE AL 150 478; JOHN DEERE AL 17 4364; JOHN DEERE AZ 100 106; JOHN DEERE AZ 59 788; JOHN DEERE RE 21 9708; JOHN DEERE RE 23 3263; ROSENBAUER 865362; SPERRY NEW HOLLAND 84607497; TEREX D6341724
