HELLA Halogen-Worklight - Mega Beam - 12/24V 1GM996134-071

Halogen-Worklight - Mega Beam - 12/24V - Bracket mounting - Four-point attachment - Long-range illumination - Plug: AMP

The Mega Beam H3 is a halogen worklight whose aluminium reflector is based on free-form technology. Despite its compact dimensions, the reflector provides excellent light output. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The black lamp housing of these robust worklights is made of glass-fibre reinforced plastic that is resistant to acid and corrosion. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally. The surface-mounted versions are suitable for standing and suspended mounting by turning the light insert. HeavyDuty versions with vibration damping use a patented damping system that protects the headlamp from vibrations and thus extends the service life of the bulb.

• The Mega Beam H3 is a halogen worklight whose aluminium reflector is based on free-form technology.
• Despite its compact dimensions, the reflector ensures excellent light output.
• The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.
• The housing is provided with a protruding edge to protect the diffusing lens.
• Lamp Type: H3 - Power consumption: 35/70W
• Clear diffusing lens
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP5K9K

Item Attributes:

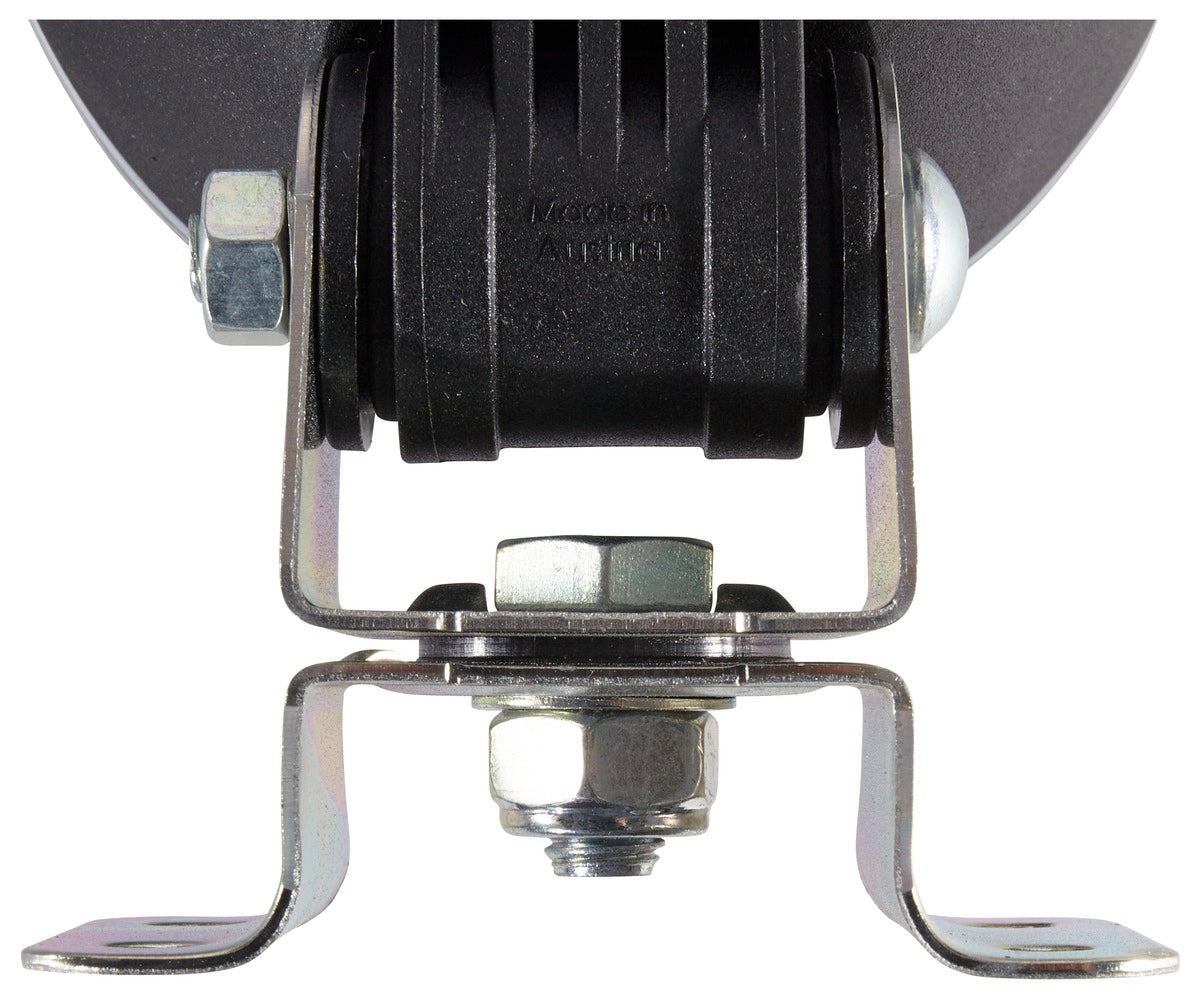

Mounting Type: Bracket mounting
Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: H3
Voltage: 24 V / 12 V
Height: 170 mm
Width: 110 mm
Depth: 103 mm
Light Distribution: Long-range illumination
Registration Type: ADR/GGVS

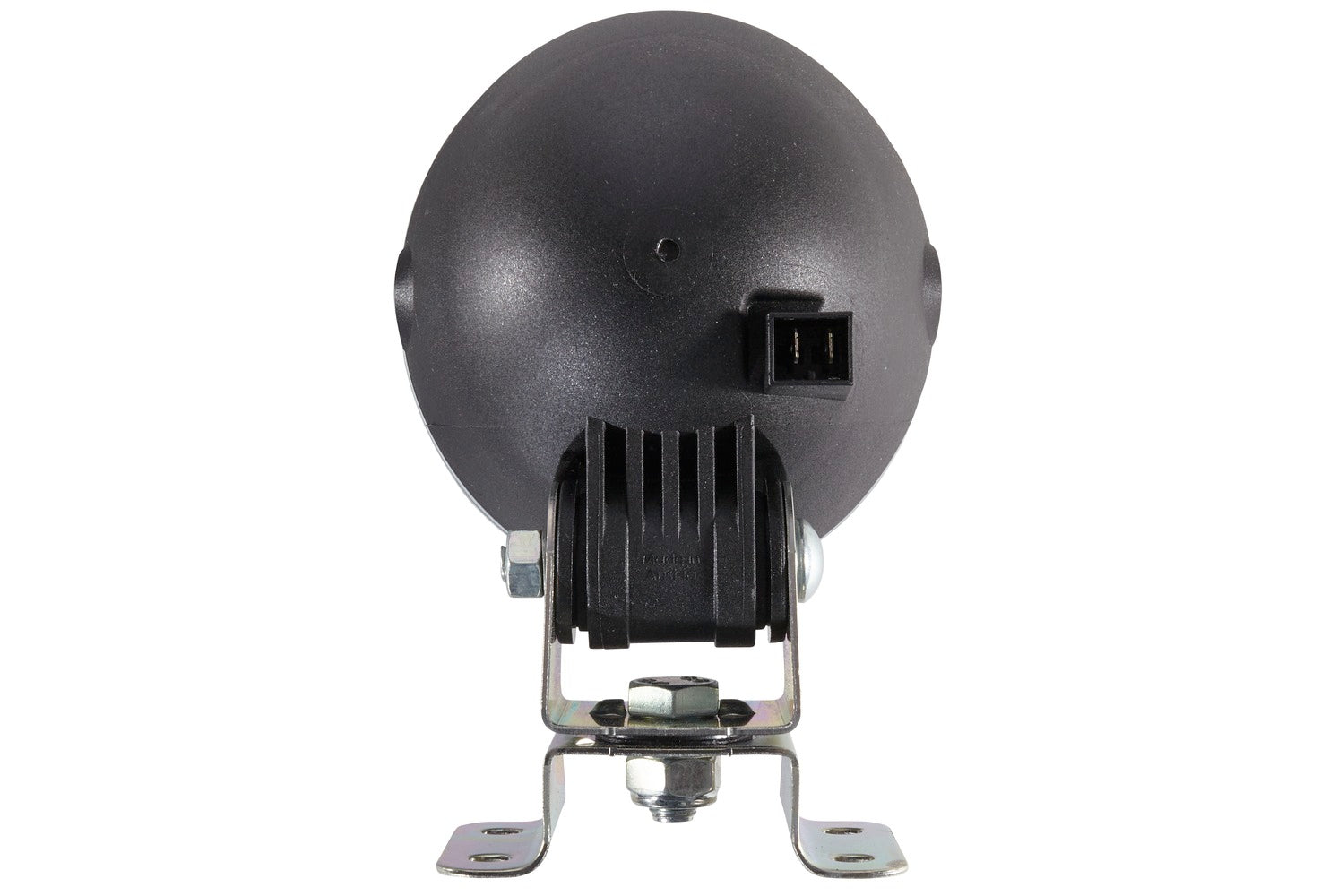

Plug: AMP
Prot.type (IP Code): IP5K9K
Power consumption: 35 W / 70 W
Supplementary Article/Supplementary Info 2: without bulbs
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Clear diffusing lens
Assembly by qualified personnel required!

OE references: DAF 1524402; KÄSSBOHRER 7.517.139.000.0; LINDE 9740460; LINDE 9740462; STILL 0009740459; STILL 0009740460; STILL 0009740461; STILL 0009740462; STILL 709580; STILL 709581; STILL 709582; STILL 709583
