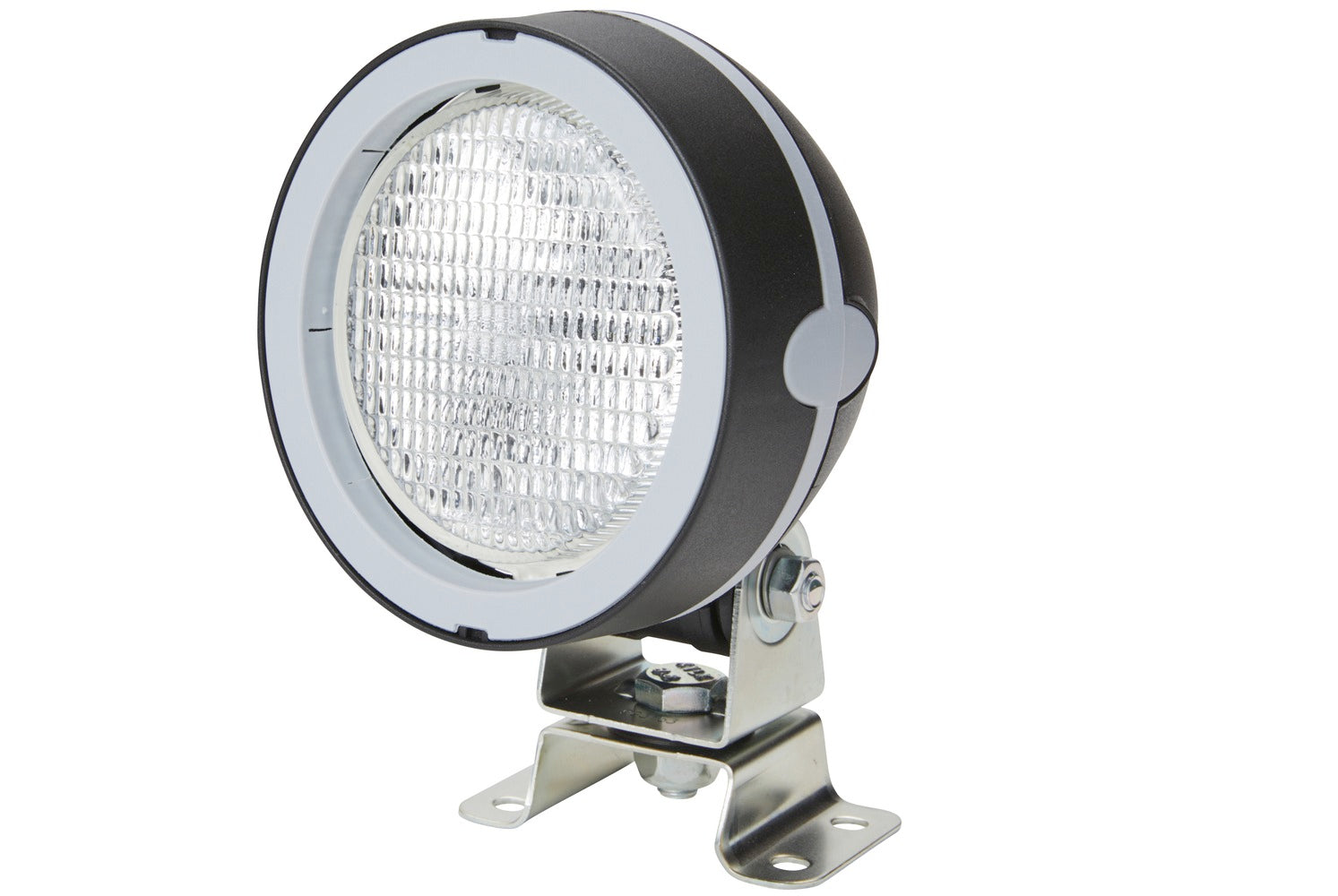

HELLA Halogen-Worklight - Mega Beam - 12/24V 1GM996134-321

Halogen-Worklight - Mega Beam - 12/24V - mounting/Bolted - Vertical/Swivelling Mounting Bracket - Ground Illumination

The Mega Beam H3 is a halogen worklight whose aluminium reflector is based on free-form technology. Despite its compact dimensions, the reflector provides excellent light output. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The black lamp housing of these robust worklights is made of glass-fibre reinforced plastic that is resistant to acid and corrosion. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally. The surface-mounted versions are suitable for standing and suspended mounting by turning the light insert. HeavyDuty versions with vibration damping use a patented damping system that protects the headlamp from vibrations and thus extends the service life of the bulb.

• The Mega Beam H3 is a halogen worklight whose aluminium reflector is based on free-form technology.
• Despite its compact dimensions, the reflector ensures excellent light output.
• The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.
• The housing is provided with a protruding edge to protect the diffusing lens.
• Lamp Type: H3 - Power consumption: 35/70W
• Patterned diffusing lens
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP5K9K

Item Attributes:
Mounting Type: mounting / Bolted

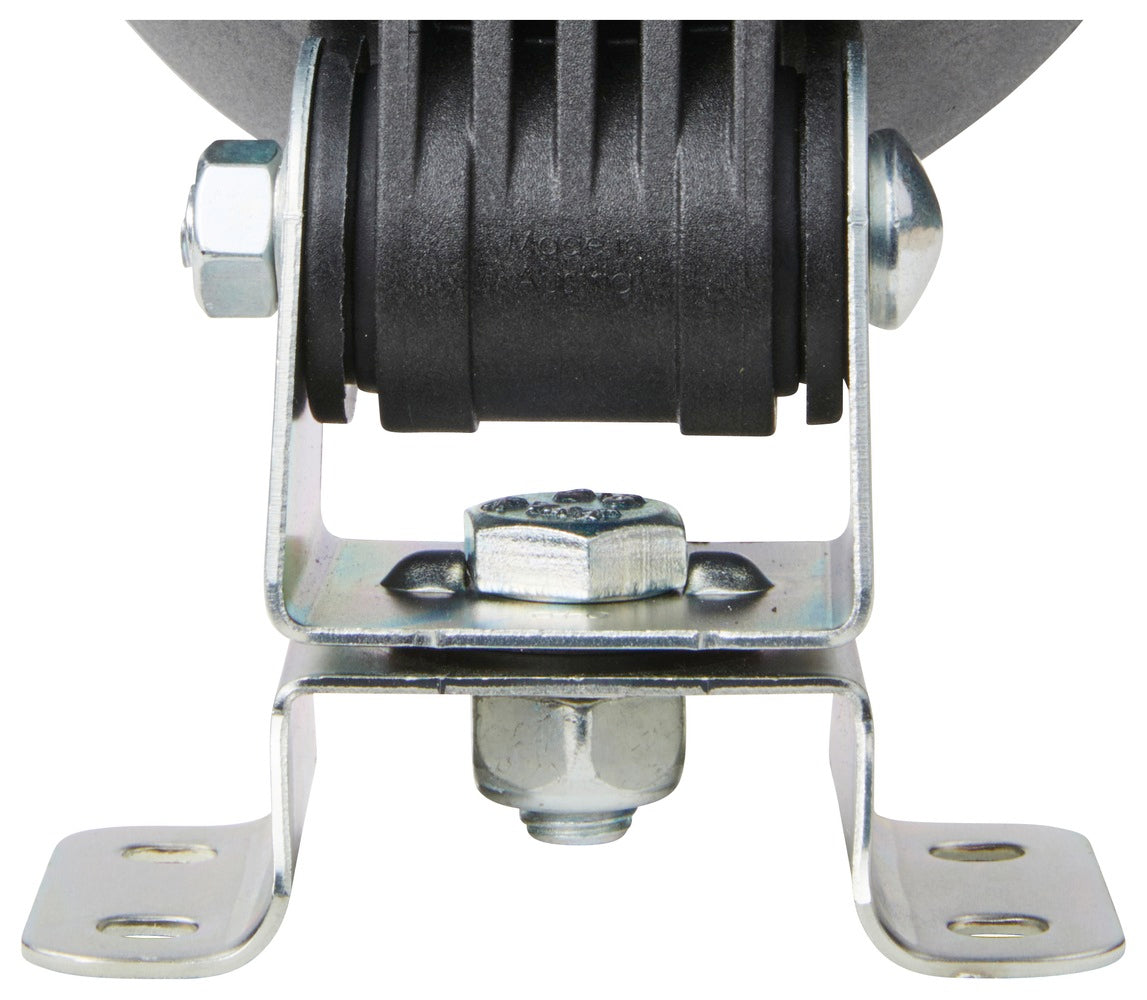

Fastening Type: Swivelling Mounting Bracket / Vertical
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 170 mm
Width: 110 mm
Depth: 103 mm
Light Distribution: Ground Illumination
Registration Type: ADR/GGVS
Prot.type (IP Code): IP5K9K
Power consumption: 35 W / 70 W
Supplementary Article/Supplementary Info 2: with rubber grommet / without bulbs
Housing Type: Synthetic Material Housing
Housing Colour: grey
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: FENDT G 210.902.113.010; JOHN DEERE AL 119 291; JOHN DEERE AL 20 2742; JOHN DEERE AL 20 2743; JOHN DEERE AL175528; JOHN DEERE AL175529; JOHN DEERE AZ 100 106; JOHN DEERE RE 219 708; PAUS 534782
