HELLA Halogen-Worklight - Modul 70 - 12V 1G0996176-051

Halogen-Worklight - Modul 70 - 12V - mounting/Bolted - Vertical/Swivelling Mounting Bracket - Long-range illumination - Plug: open cable ends

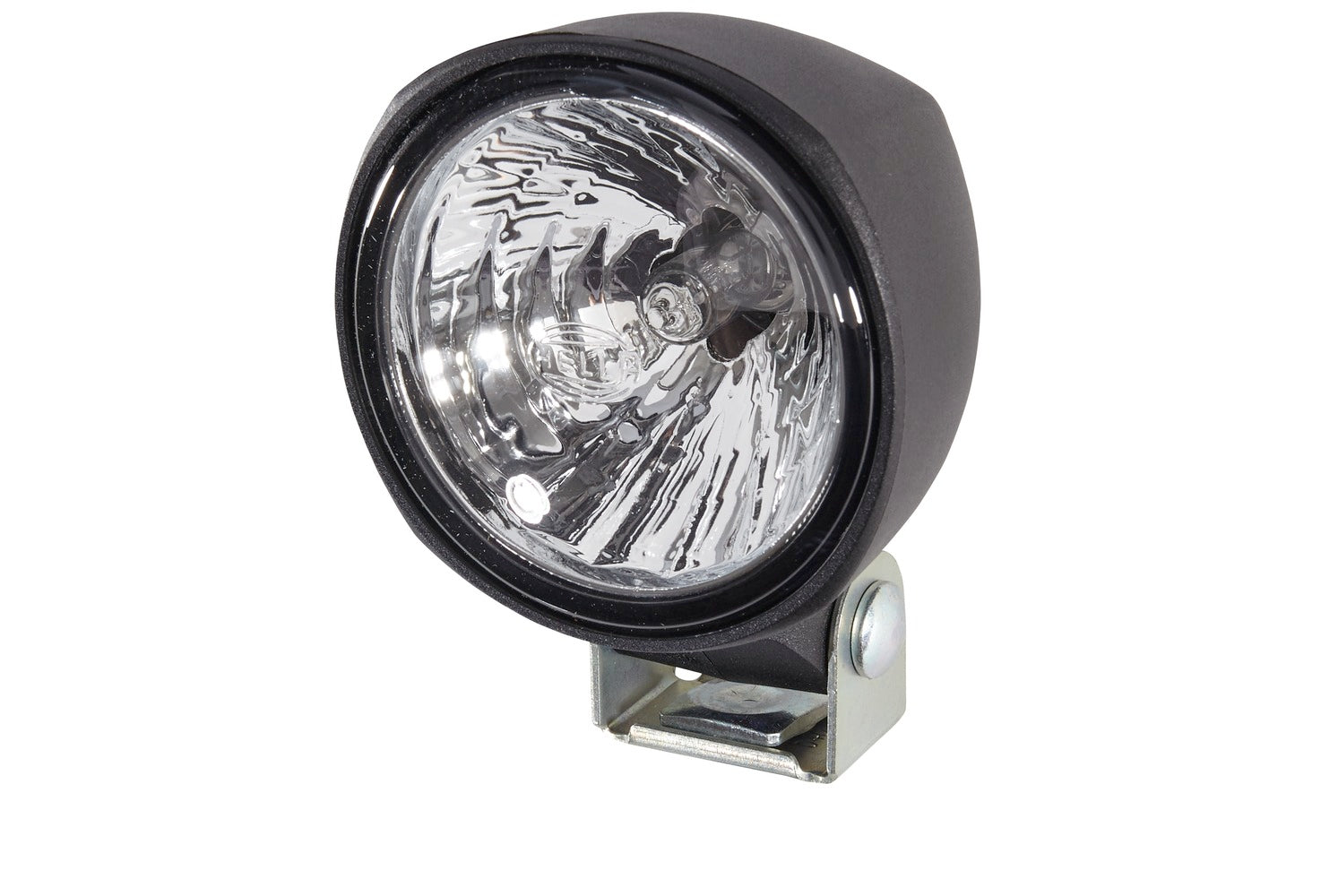

The Module 70 with H9 bulb is a compact worklight with an extremely small installation space. Despite its small size, the free-form reflector made of die-cast aluminium produces excellent light output. Thanks to the optics-free, hardened diffusing lens, the unit shines with the most modern design. Versions for illuminating the near working area or with long-range illumination are optionally available. The use of the H9 bulb results in significant advantages for the customer. The robust headlamp housing is made of glass-fibre reinforced plastic and is resistant to acid and corrosion. Due to its compact dimensions, the worklight can be used universally. The housing is firmly glued to the reflector and the diffusing lens. The plug-in connection is made directly via the bulb. Fast, tool-free bulb replacement is guaranteed with all versions. This headlamp is available as a surface-mounted headlamp (depending on the version: upright, or suspended) and as a recessed version.

• The H9 bulb offers 50% better light output than an H3 bulb.
• With the optic-free, hardened diffusing lens, the unit shines with a modern design.
• The robust headlamp housing is made of glass fibre reinforced plastic and is acid and corrosion resistant.
• Thanks to its compact dimensions, the worklight can be used universally.
• Lamp Type: H9 - Power consumption: 65W
• Clear diffusing lens
• Prot.type (IP Code): IP5K9K

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: Vertical / Swivelling Mounting Bracket
Light Design: Halogen
Lamp Type: H9
Voltage: 12 V
Height: 113 mm
Width: 83 mm
Depth: 85 mm
Light Distribution: Long-range illumination
Plug: open cable ends
Prot.type (IP Code): IP5K9K
Power consumption: 65 W
Supplementary Article/Supplementary Info 2: without cable
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Clear diffusing lens
Assembly by qualified personnel required!

OE references: AGCO 003234458000; AGCO LA323445800; CARRARO 474557; CLAAS 112 440 70; LANDINI 6515369J90/P; MASSEY FERGUSON ENQ7094
