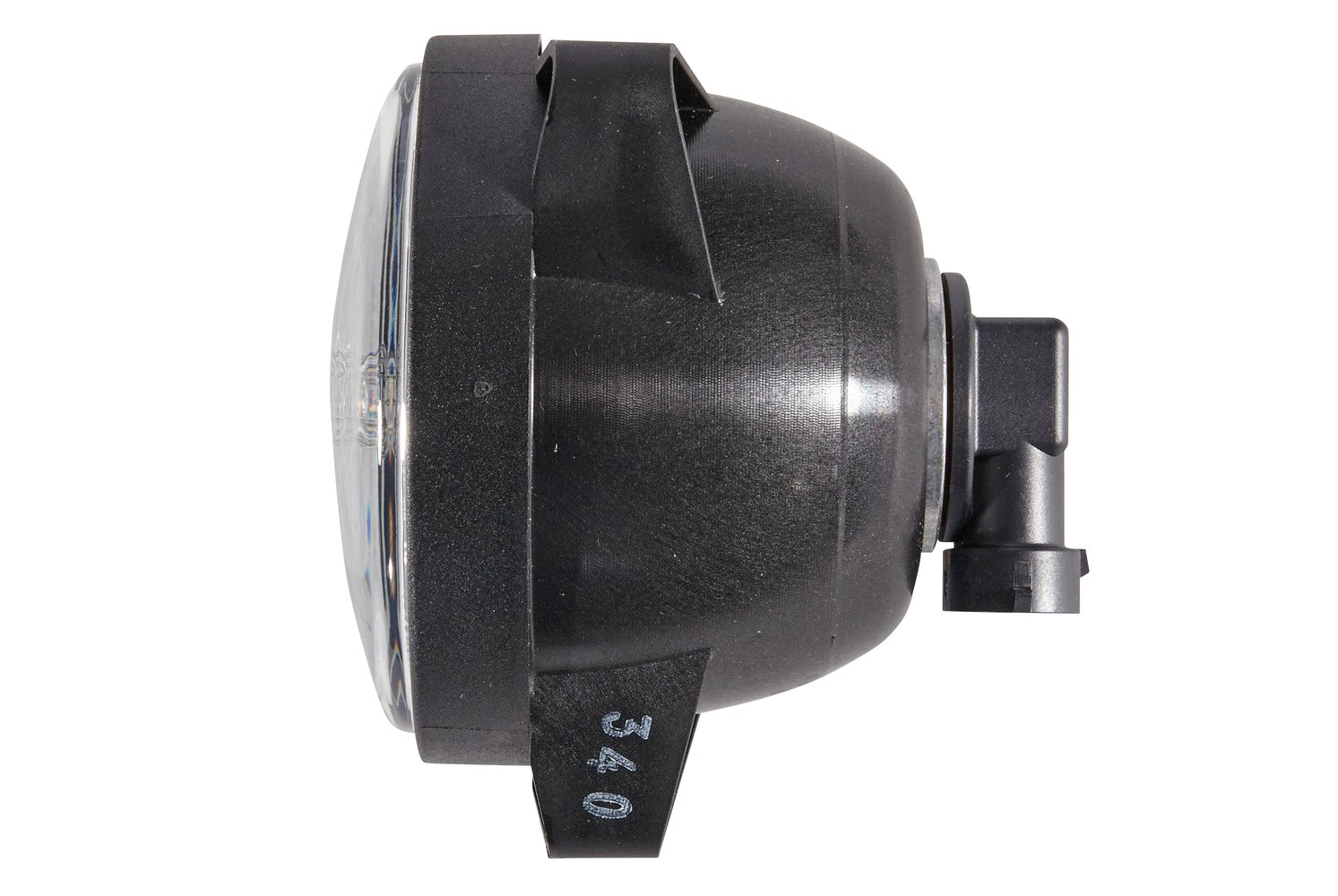

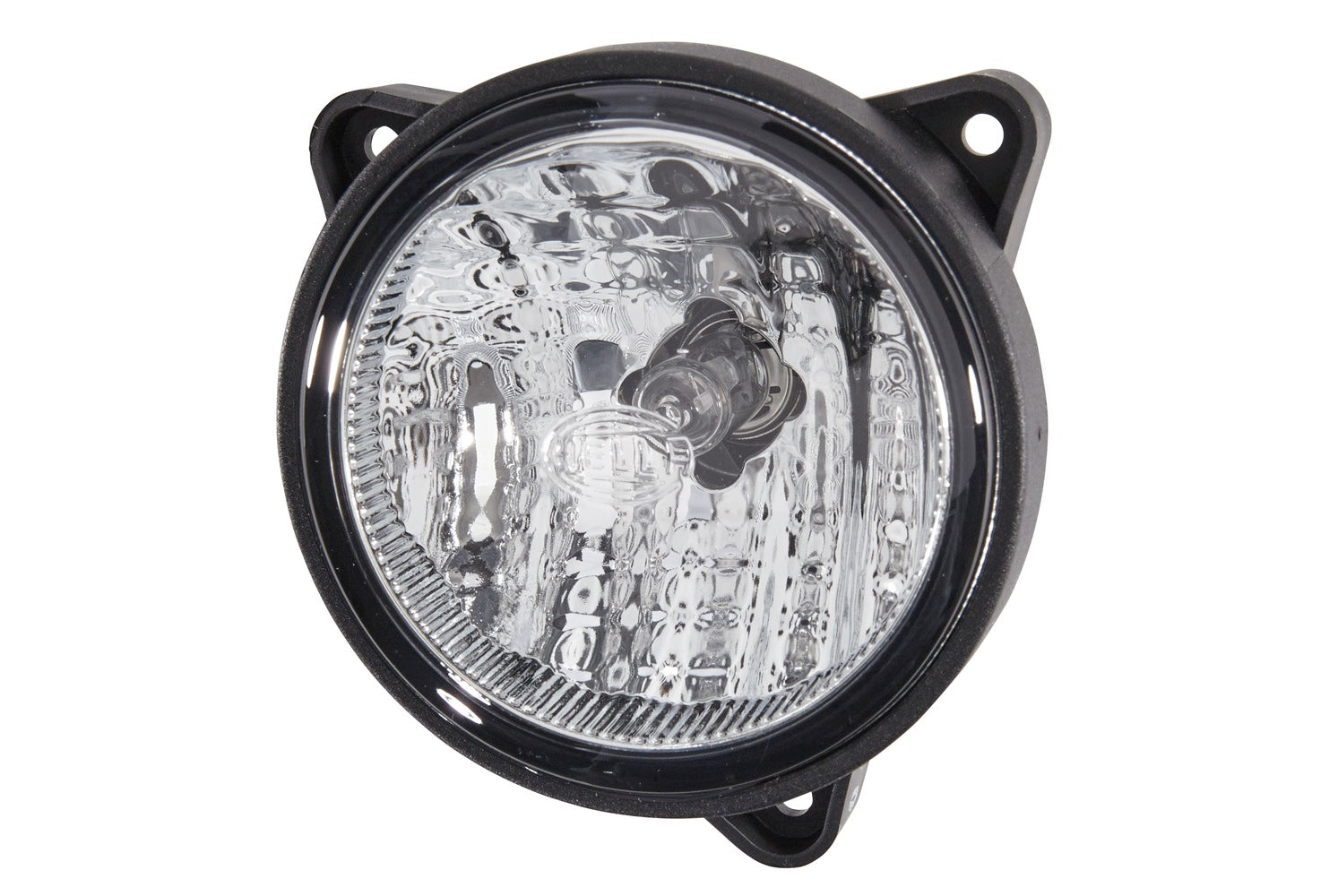

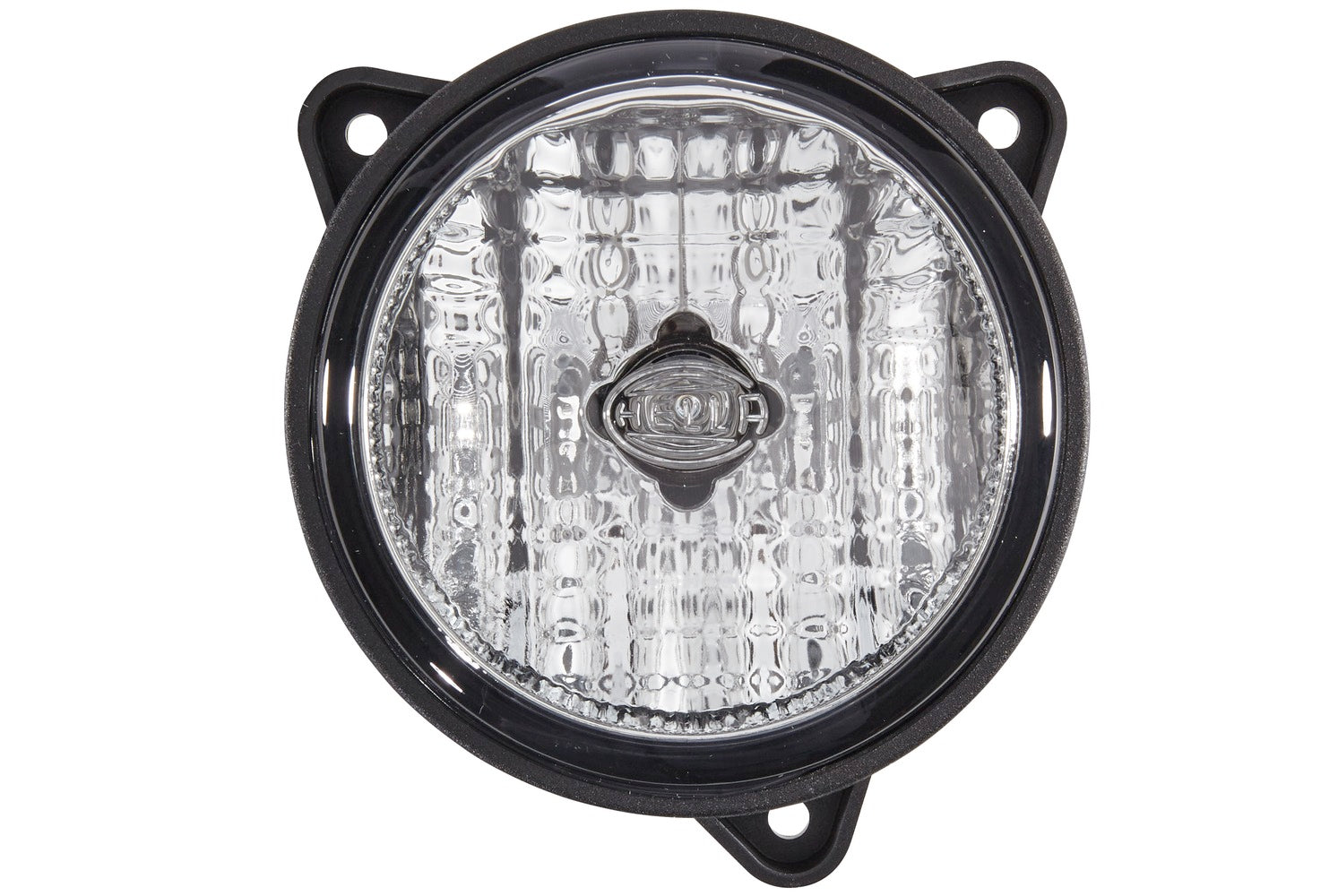

HELLA Halogen-Worklight - Modul 70 - 12V 1G0996176-061

Halogen-Worklight - Modul 70 - 12V - Fitting/Screw Connection - 3-point attachment - Short-Range Illumination - Plug: open cable ends

The Module 70 with H9 bulb is a compact worklight with an extremely small installation space. Despite its small size, the free-form reflector made of die-cast aluminium produces excellent light output. Thanks to the optics-free, hardened diffusing lens, the unit shines with the most modern design. Versions for illuminating the near working area or with long-range illumination are optionally available. The use of the H9 bulb results in significant advantages for the customer. The robust headlamp housing is made of glass-fibre reinforced plastic and is resistant to acid and corrosion. Due to its compact dimensions, the worklight can be used universally. The housing is firmly glued to the reflector and the diffusing lens. The plug-in connection is made directly via the bulb. Fast, tool-free bulb replacement is guaranteed with all versions. This headlamp is available as a surface-mounted headlamp (depending on the version: upright, or suspended) and as a recessed version.

• The H9 bulb offers 50% better light output than an H3 bulb.
• With the optic-free, hardened diffusing lens, the unit shines with a modern design.
• The robust headlamp housing is made of glass fibre reinforced plastic and is acid and corrosion resistant.
• Thanks to its compact dimensions, the worklight can be used universally.

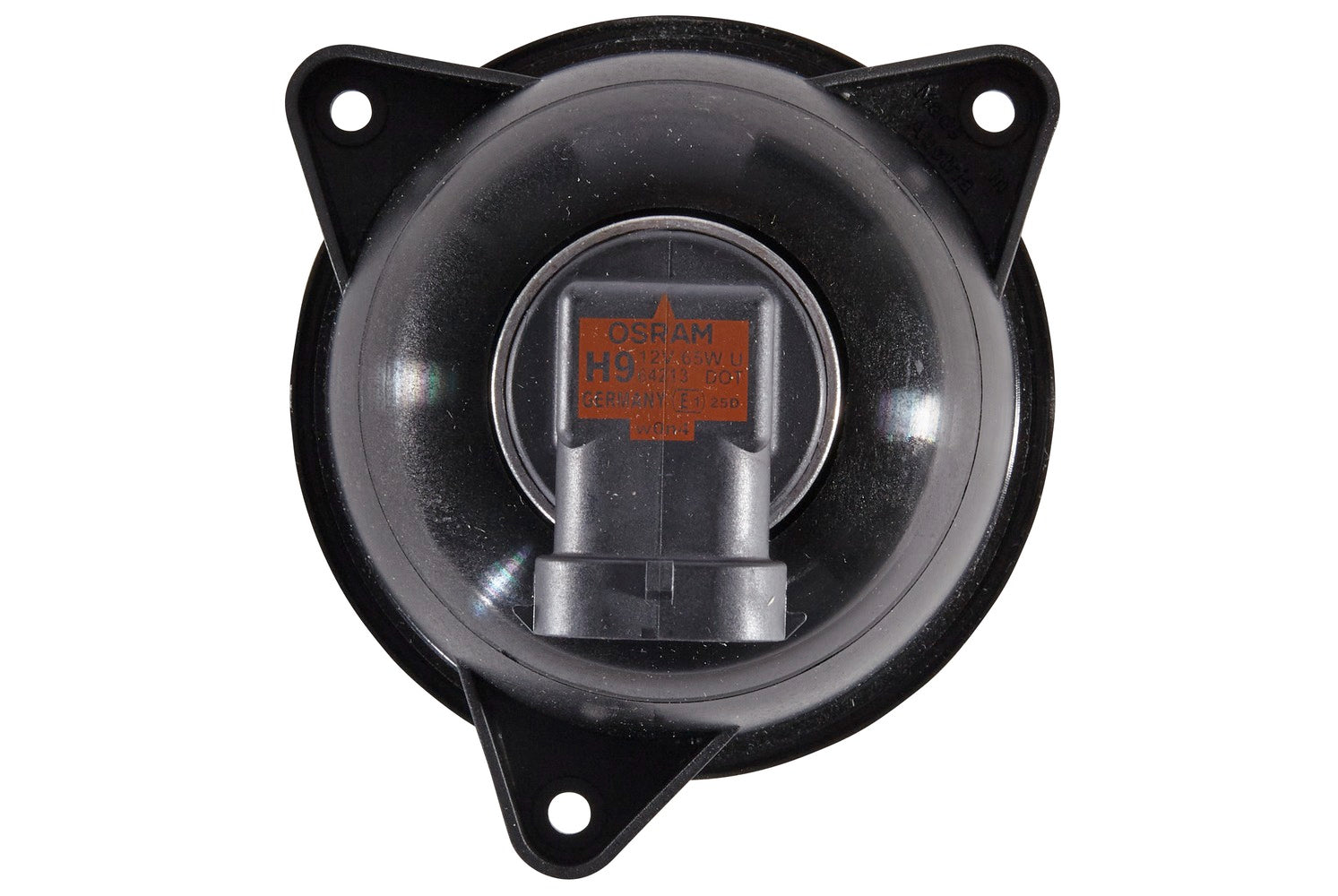

• Lamp Type: H9 - Power consumption: 65W
• Patterned diffusing lens
• Prot.type (IP Code): IP5K9K

Item Attributes:
Mounting Type: Fitting / Screw Connection
Fastening Type: 3-point attachment
Light Design: Halogen
Lamp Type: H9
Voltage: 12 V
Height: 95 mm
Width: 85 mm
Depth: 85 mm
Light Distribution: Short-Range Illumination

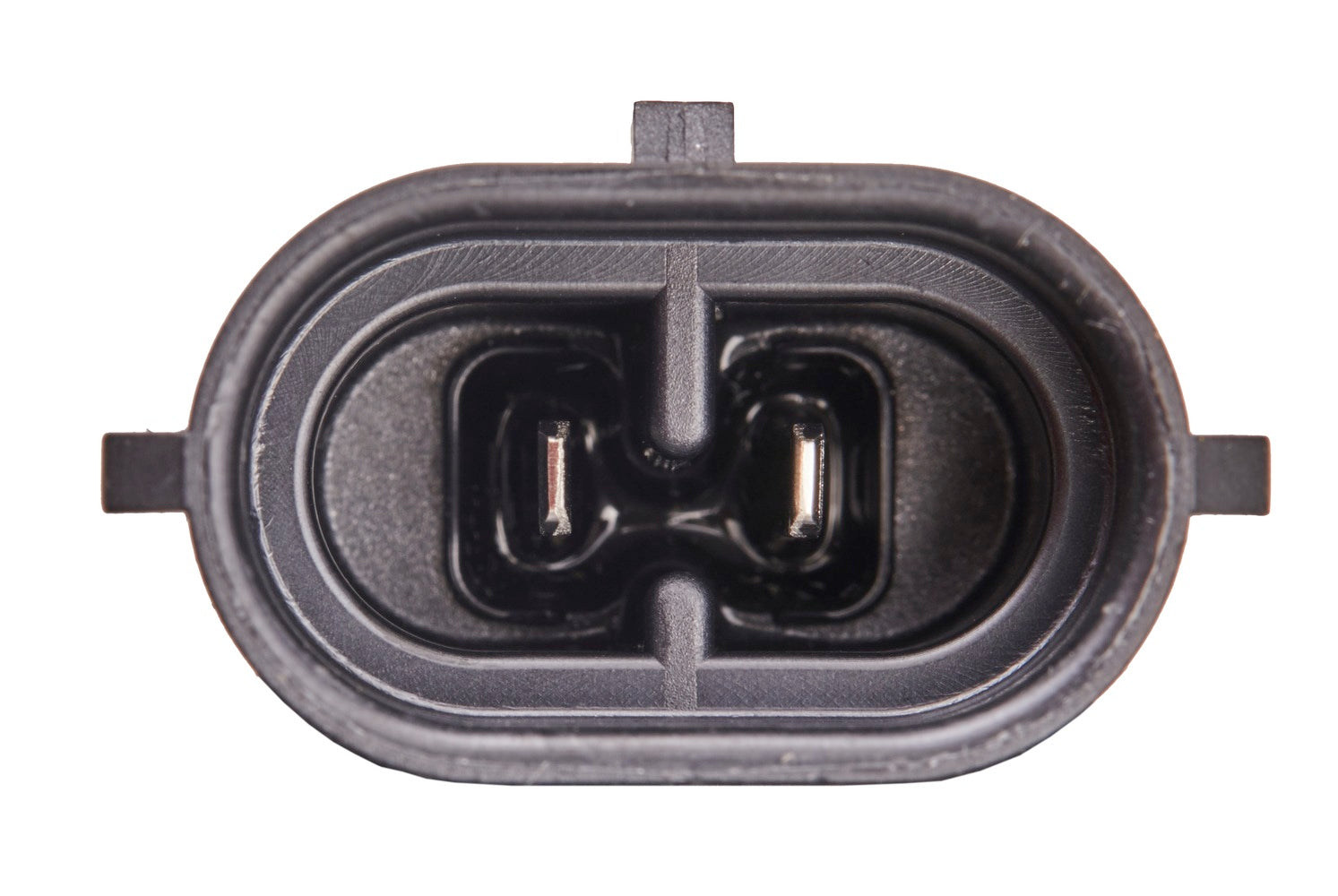

Plug: open cable ends
Prot.type (IP Code): IP5K9K
Power consumption: 65 W
Supplementary Article/Supplementary Info 2: without cable
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AGCO 519438D1; AGCO G334 900 111 020; CASE IH 8 752 189 0; CLAAS 11244010; DEUTZ-FAHR 2.8039.017.0; FENDT G334.900.111.020; HAMM 2074846; LANDINI 6514943M91; REFORM 900530202; SAME 2.8039.017.0; VERSATILE 86066078
