HELLA Halogen-Worklight - Oval 100 - 12V 1GA996161-281

Halogen-Worklight - Oval 100 - 12V - mounting - Vertical - Long-range illumination - Cable: 2000mm - Plug: AMP

The halogen worklight with FF reflector made of die-cast aluminium is available with extremely wide and homogeneous close-range illumination or with long-range illumination. Both illuminators are available as clear glass versions. In addition to the standard single-chamber solution (1x H3), the OVAL 100 worklight is also available as a Double Beam (2x H3) with double the light output. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic . The housing has a protruding rim to protect the diffusing lens. Versions with vibration damping use a patented damping system that protects the headlamp from vibrations, thus extending the life of the bulb.

• Halogen work lamp with die-cast aluminium FF reflector.
• The housing of this robust worklight is made of acid and corrosion resistant, glass fibre reinforced plastic.
• The housing is provided with a protruding edge to protect the diffusing lens.
• Lamp Type: H3 - Power consumption: 55W
• Hardened diffusing lens/Clear diffusing lens
• Prot.type (IP Code): IP5K4K
• Synthetic Material Housing - Diffusing Lens Material: Glass

Item Attributes:
Mounting Type: mounting
Light Design: Halogen
Voltage: 12 V
Width: 160 mm
Height: 100 mm
Overall Height: 128 mm
Depth: 78 mm
Illuminated Area: 130 x 75 mm
Light Distribution: Long-range illumination
Supplementary Article/Supplementary Info: with bulb
Lamp Type: H3

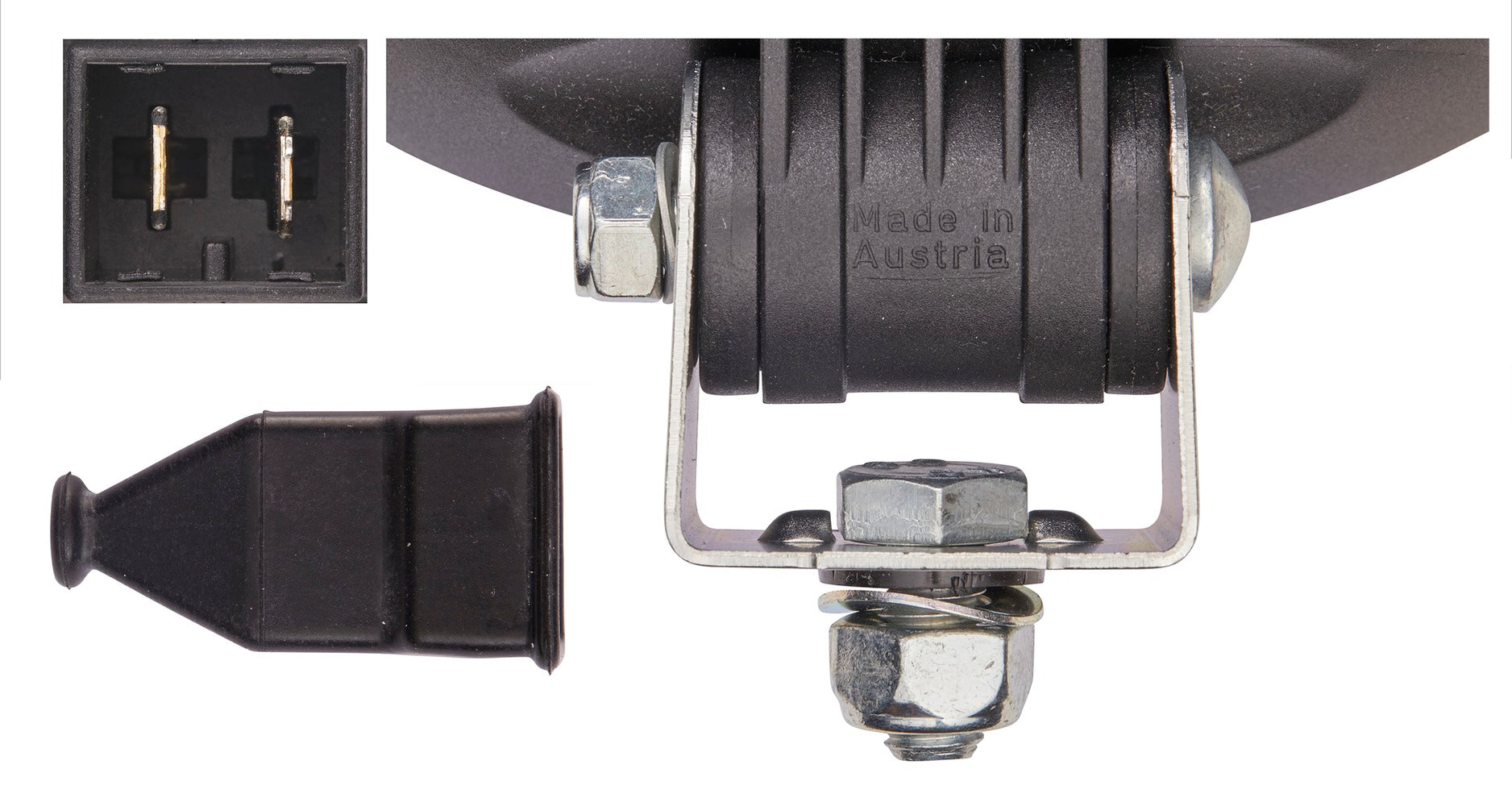

Plug: AMP
Prot.type (IP Code): IP5K4K
Power consumption: 55 W
Housing Type: Synthetic Material Housing
Fastening Type: Vertical
Cable: 2000 mm
Reflector Type: Single Reflector
Diffusing Lens Material: Glass
Diffusing Lens Type: Clear diffusing lens / Hardened diffusing lens
Assembly by qualified personnel required!

OE references: AGRIFAC 7910714; DELVANO 8041034; JCB 700/50081; JCB 700/50082
