HELLA Halogen-Worklight - Oval 100 - 12V 1GN996361-461

Halogen-Worklight - Oval 100 - 12V - mounting/Bolted - for horizontal fastening - Short-Range Illumination - Cable: 430mm - Plug: open cable ends

The halogen worklight with FF reflector made of die-cast aluminium is available with extremely wide and homogeneous close-range illumination or with long-range illumination. Both illuminators are available as clear glass versions. In addition to the standard single-chamber solution (1x H3), the OVAL 100 worklight is also available as a Double Beam (2x H3) with double the light output. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic . The housing has a protruding rim to protect the diffusing lens. Versions with vibration damping use a patented damping system that protects the headlamp from vibrations, thus extending the life of the bulb.

• Modern oval design
• Robust and powerful halogen worklight with FF reflector
• Acid and corrosion resistant, glass fibre reinforced plastic housing
• Lamp Type: H3 - Power consumption: 110W
• Patterned diffusing lens
• Prot.type (IP Code): IP6K9K
• Synthetic Material Housing - Housing Colour: Black - Diffusing Lens Material: Polyamid 12

Item Attributes:

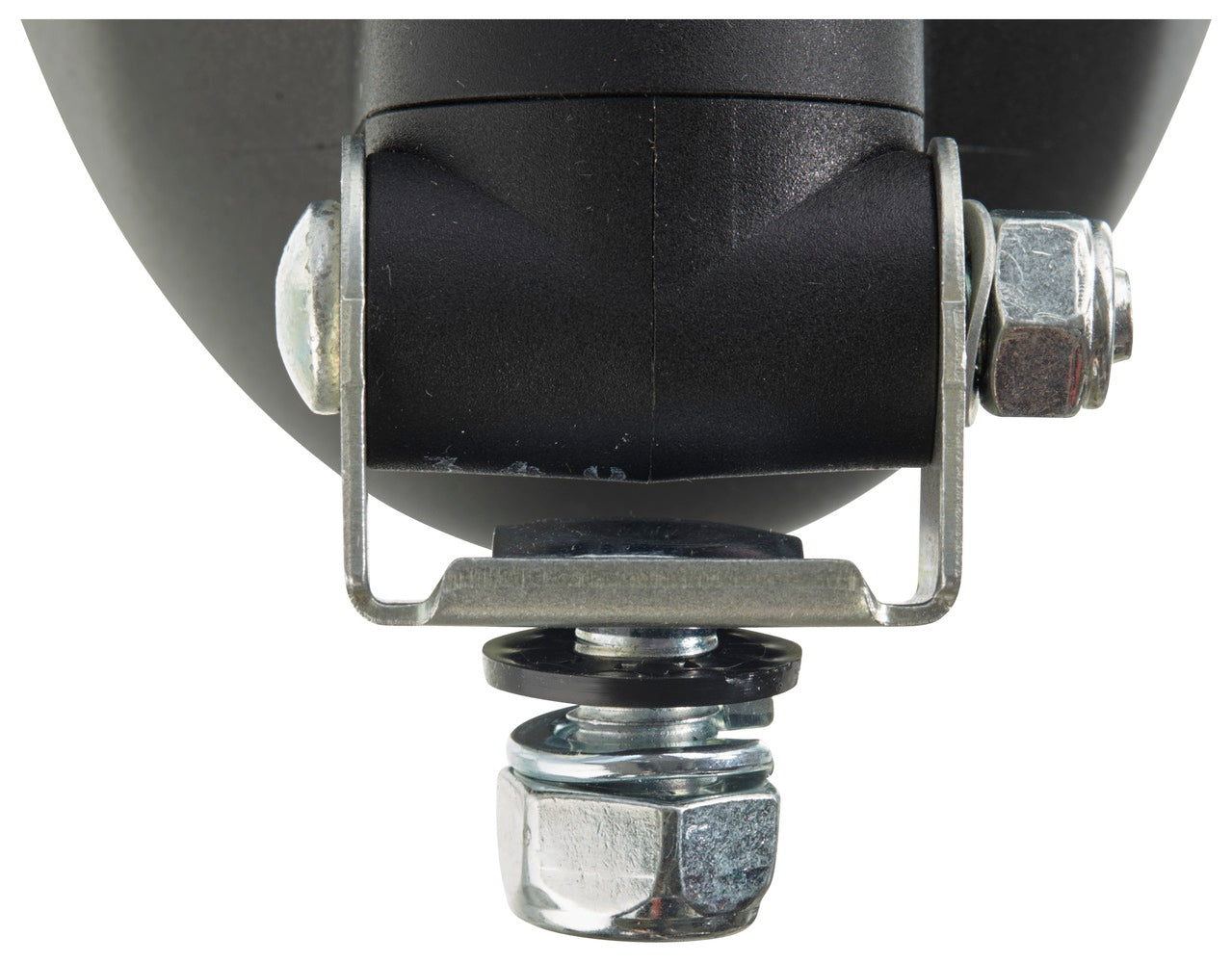

Mounting Type: mounting / Bolted
Fastening Type: for horizontal fastening
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V
Height: 160 mm
Width: 100 mm
Depth: 127 mm
Light Distribution: Short-Range Illumination
Plug: open cable ends
Prot.type (IP Code): IP6K9K
Power consumption: 110 W
Supplementary Article/Supplementary Info 2: with screw / with frame
Cable: 430 mm
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AGCO ST117195; LINDE 9740471; STILL 9740471
