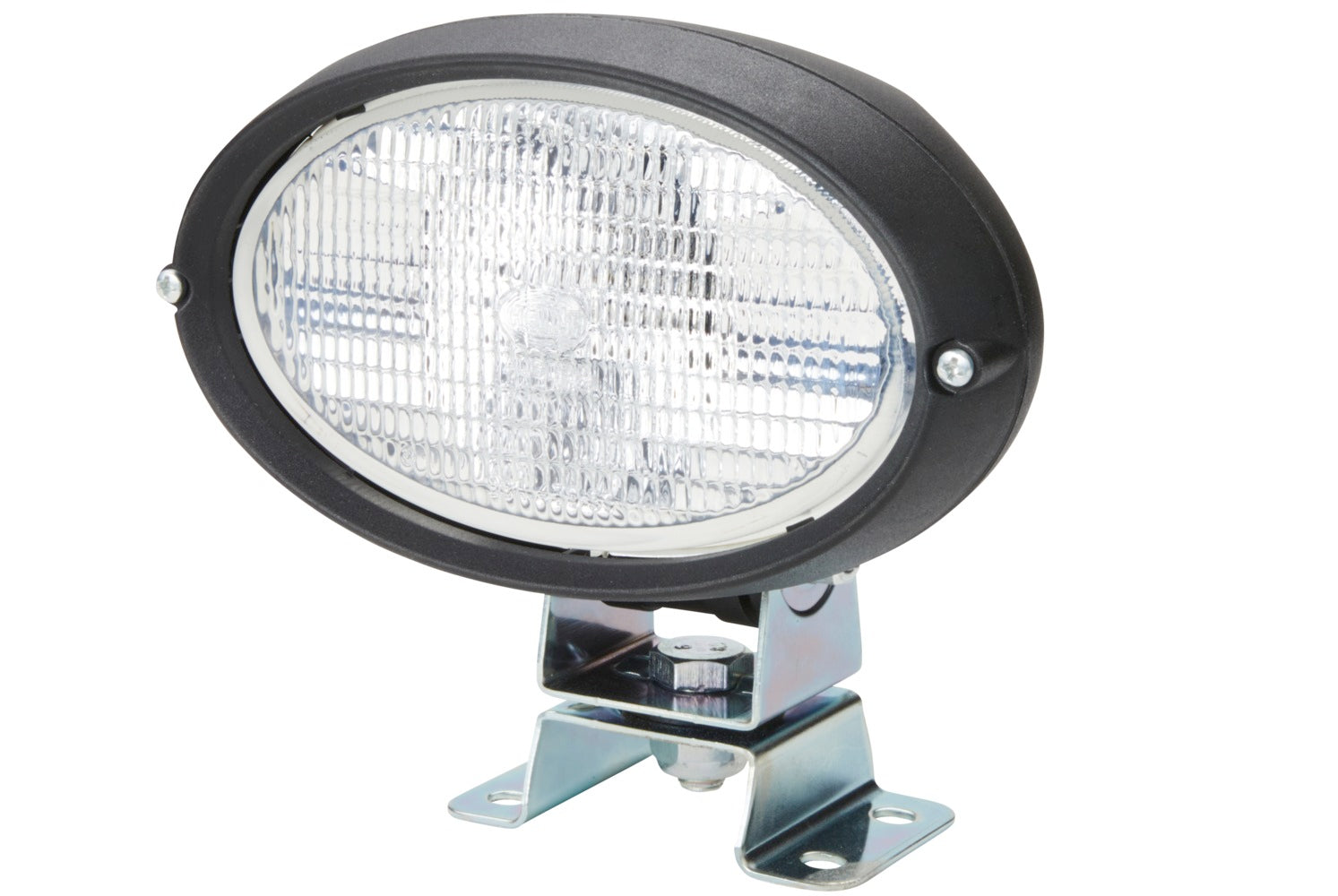

HELLA Halogen-Worklight - Oval 100 - 24/12V 1GA996161-581

Halogen-Worklight - Oval 100 - 24/12V - Screw Connection/mounting - Four-point attachment - Short-Range Illumination - Plug: AMP

The halogen worklight with FF reflector made of die-cast aluminium is available with extremely wide and homogeneous close-range illumination or with long-range illumination. Both illuminators are available as clear glass versions. In addition to the standard single-chamber solution (1x H3), the OVAL 100 worklight is also available as a Double Beam (2x H3) with double the light output. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic . The housing has a protruding rim to protect the diffusing lens. Versions with vibration damping use a patented damping system that protects the headlamp from vibrations, thus extending the life of the bulb.

• Halogen work lamp with die-cast aluminium FF reflector.
• The housing of this robust worklight is made of acid and corrosion resistant, glass fibre reinforced plastic.
• The housing is provided with a protruding edge to protect the diffusing lens.
• Lamp Type: H3 - Power consumption: 70W
• Patterned diffusing lens
• Prot.type (IP Code): IP5K9K
• Synthetic Material Housing - Housing Colour: Black - Diffusing Lens Material: Polyamid 12

Item Attributes:
Mounting Type: mounting / Screw Connection
Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 128 mm
Width: 160 mm
Depth: 78 mm
Light Distribution: Short-Range Illumination

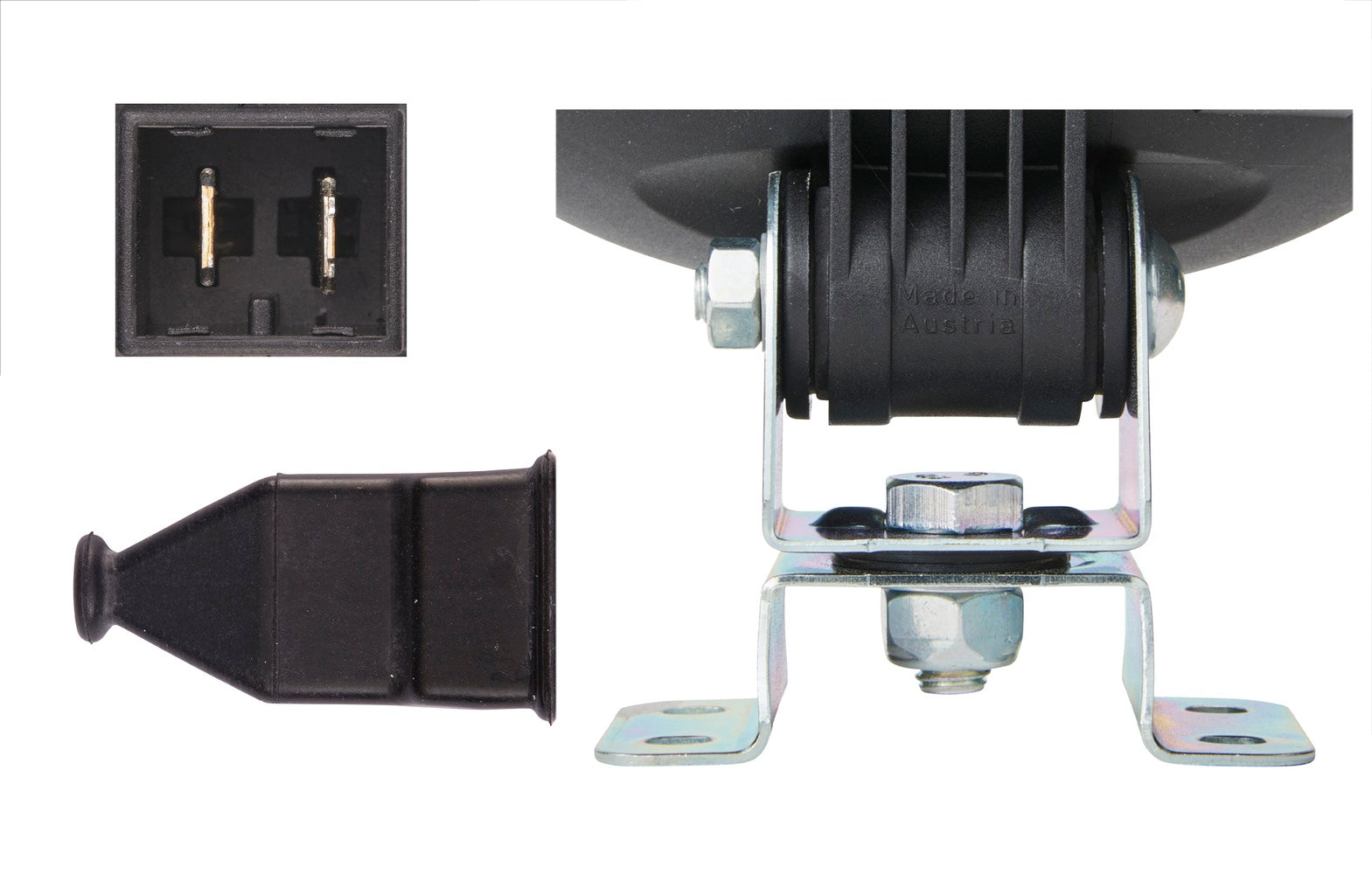

Plug: AMP
Prot.type (IP Code): IP5K9K
Power consumption: 70 W
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AEBI 1132704-9; DAF 906491; FAYMONVILLE 238762; LIEBHERR 1 029 721 4; VÖGELE 2031558; ZIEGLER 1012209
