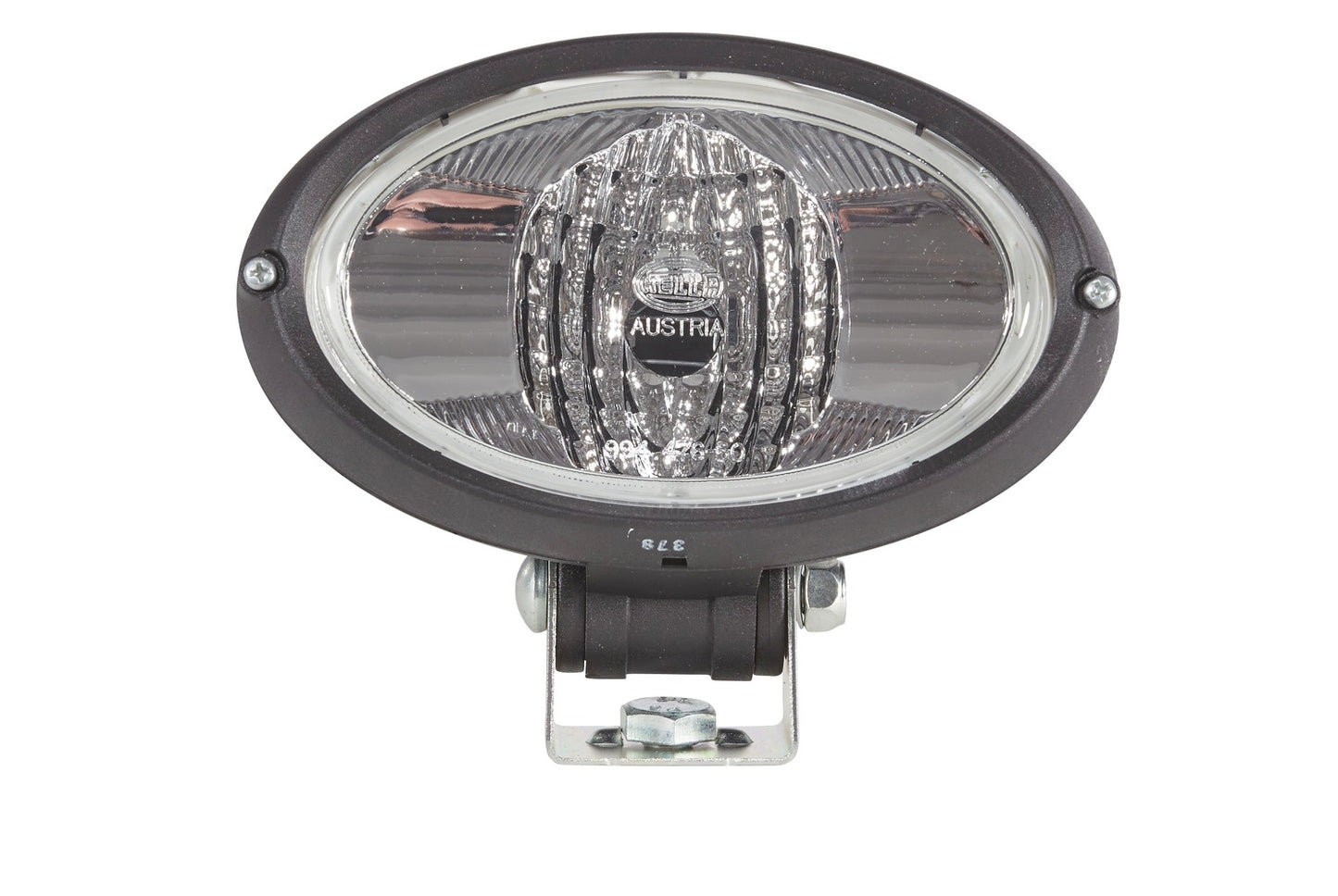

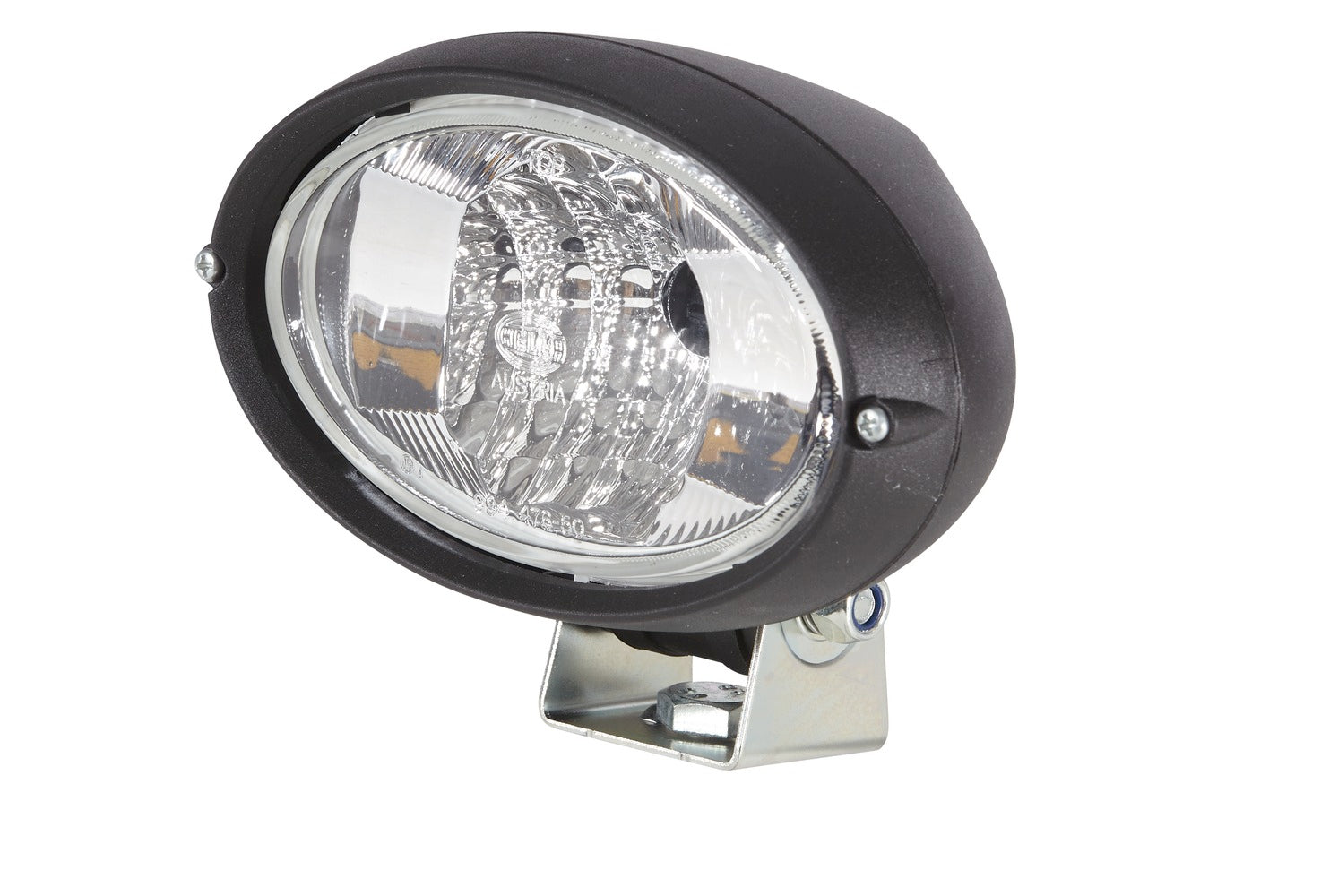

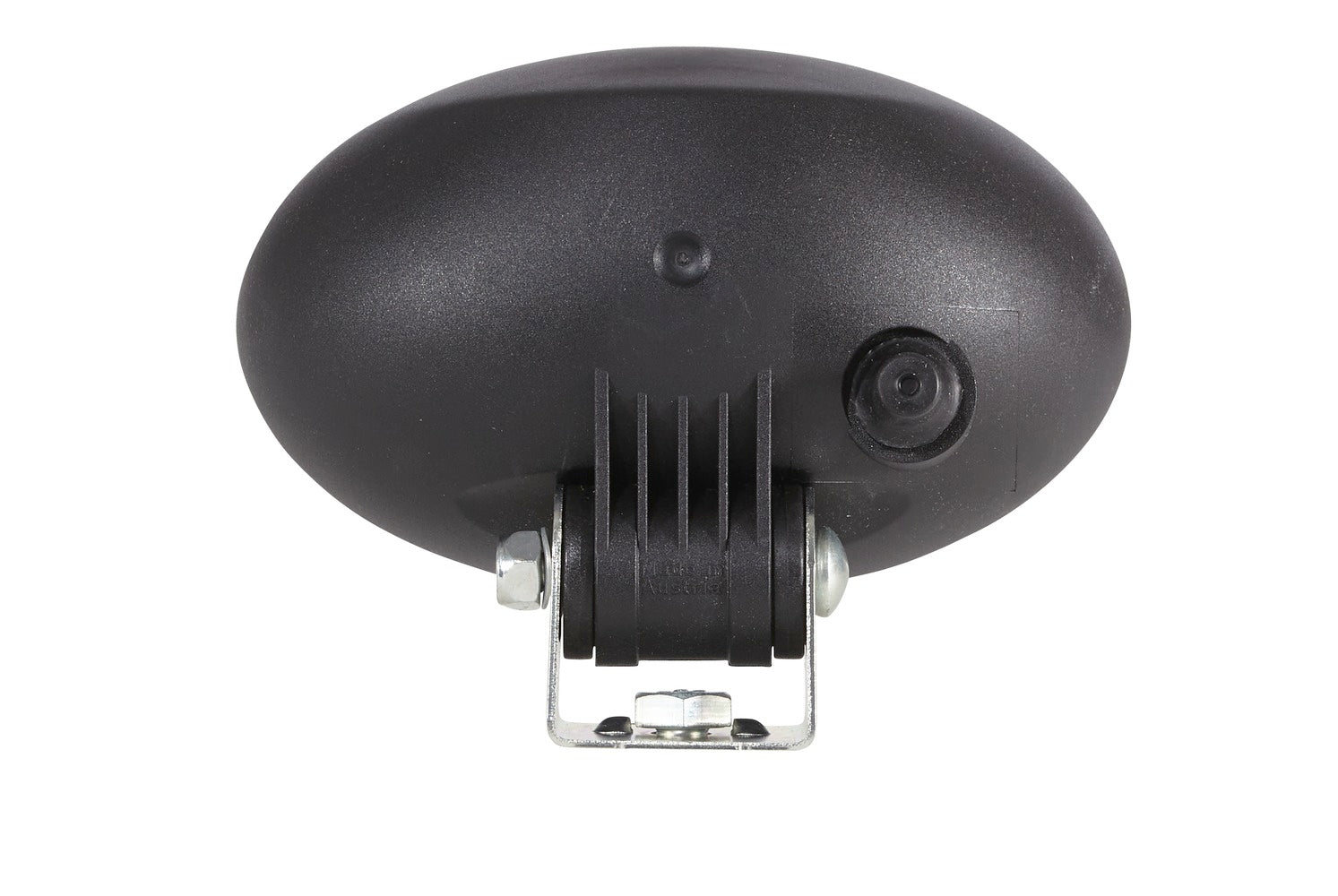

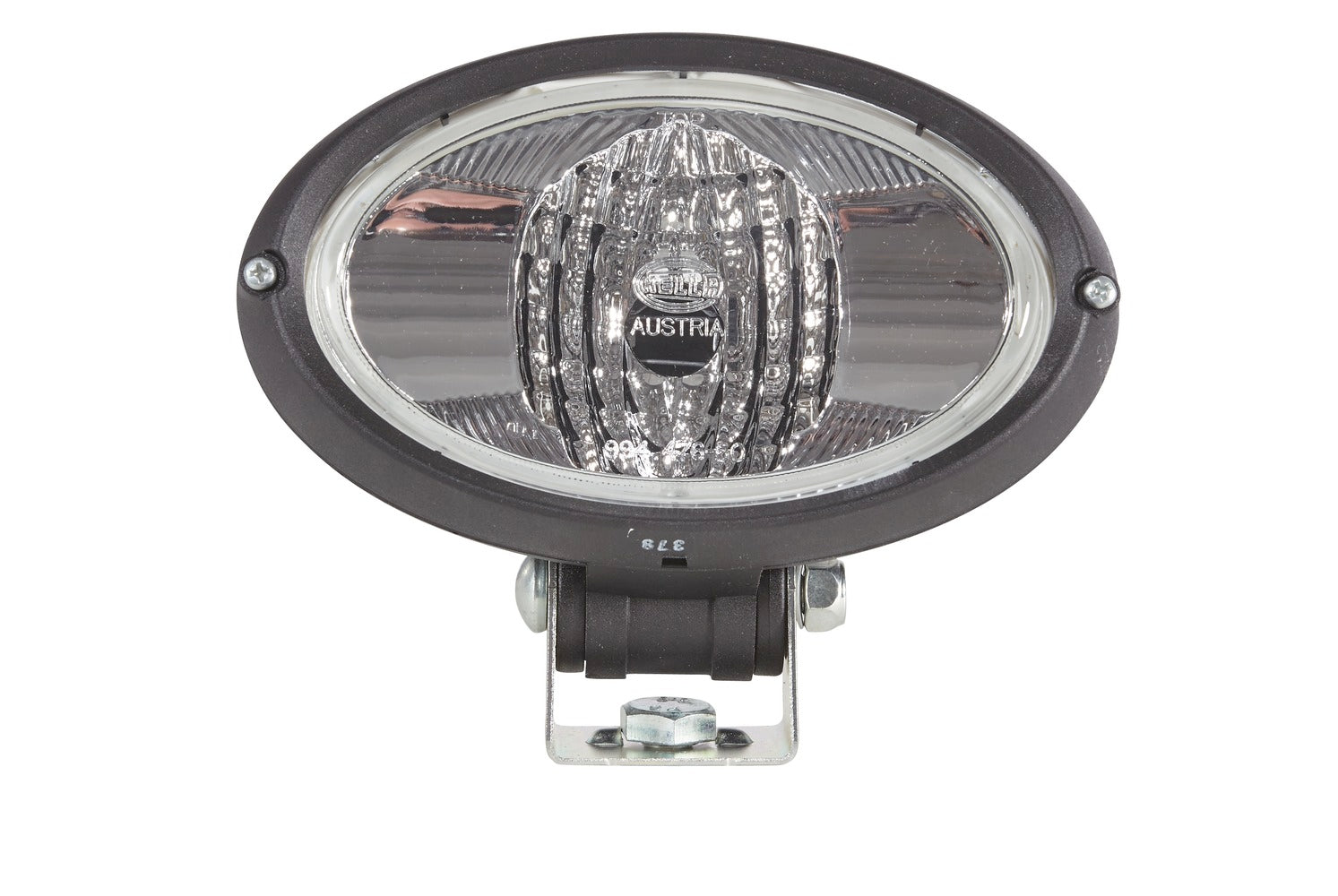

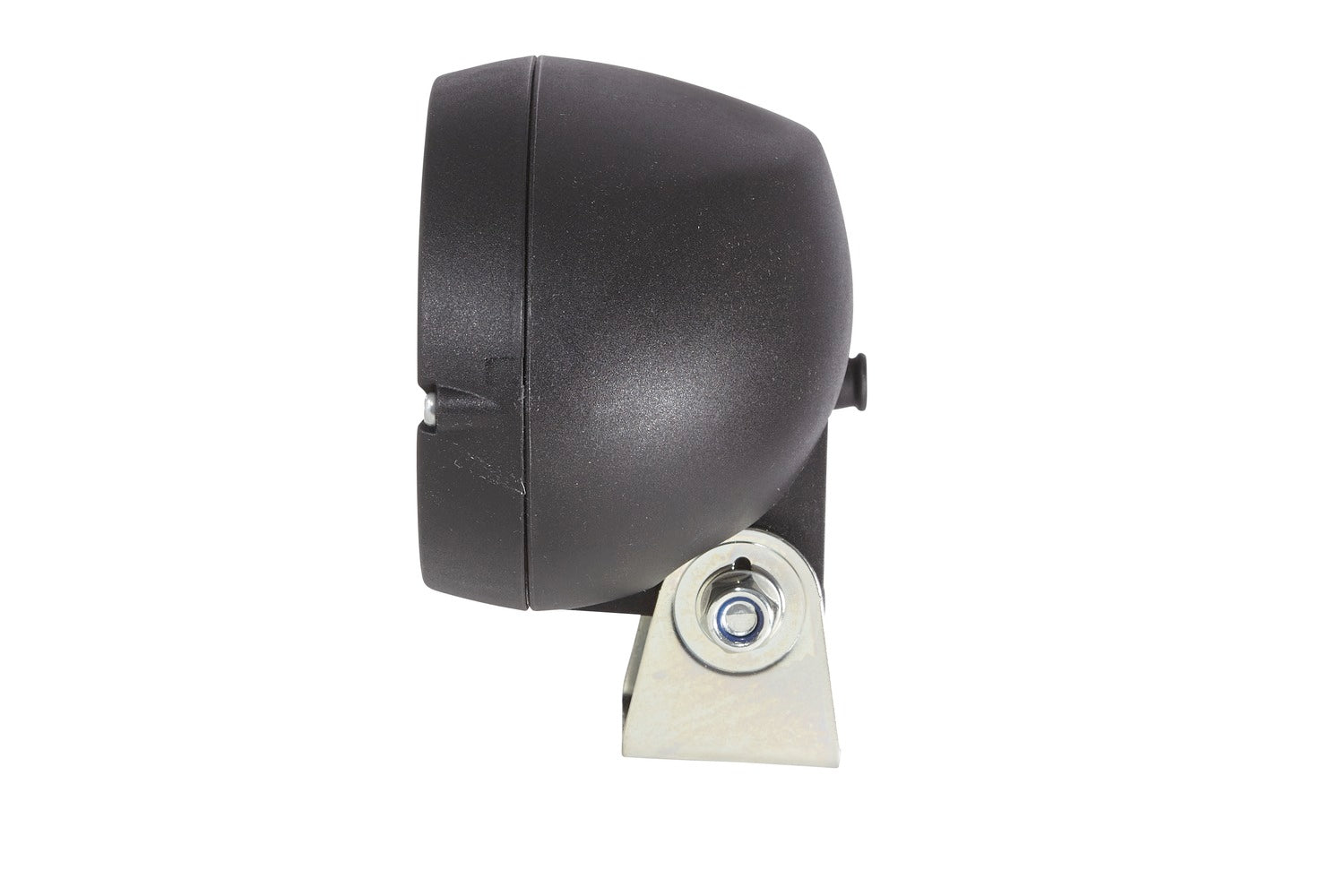

HELLA Halogen-Worklight - Oval 100 - 24/12V 1GA996361-501

Halogen-Worklight - Oval 100 - 24/12V - mounting/Bolted - Vertical/Swivelling Mounting Bracket - Short-Range Illumination - Plug: Blade Terminal

The halogen worklight with FF reflector made of die-cast aluminium is available with extremely wide and homogeneous close-range illumination or with long-range illumination. Both illuminators are available as clear glass versions. In addition to the standard single-chamber solution (1x H3), the OVAL 100 worklight is also available as a Double Beam (2x H3) with double the light output. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic . The housing has a protruding rim to protect the diffusing lens. Versions with vibration damping use a patented damping system that protects the headlamp from vibrations, thus extending the life of the bulb.

• Modern oval design
• Robust and powerful halogen worklight with FF reflector
• Acid and corrosion resistant, glass fibre reinforced plastic housing
• Lamp Type: H3 - Power consumption: 70W
• Patterned diffusing lens
• Prot.type (IP Code): IP5K4K
• Synthetic Material Housing - Housing Colour: Black - Diffusing Lens Material: Polyamid 12

Item Attributes:
Mounting Type: Bolted / mounting

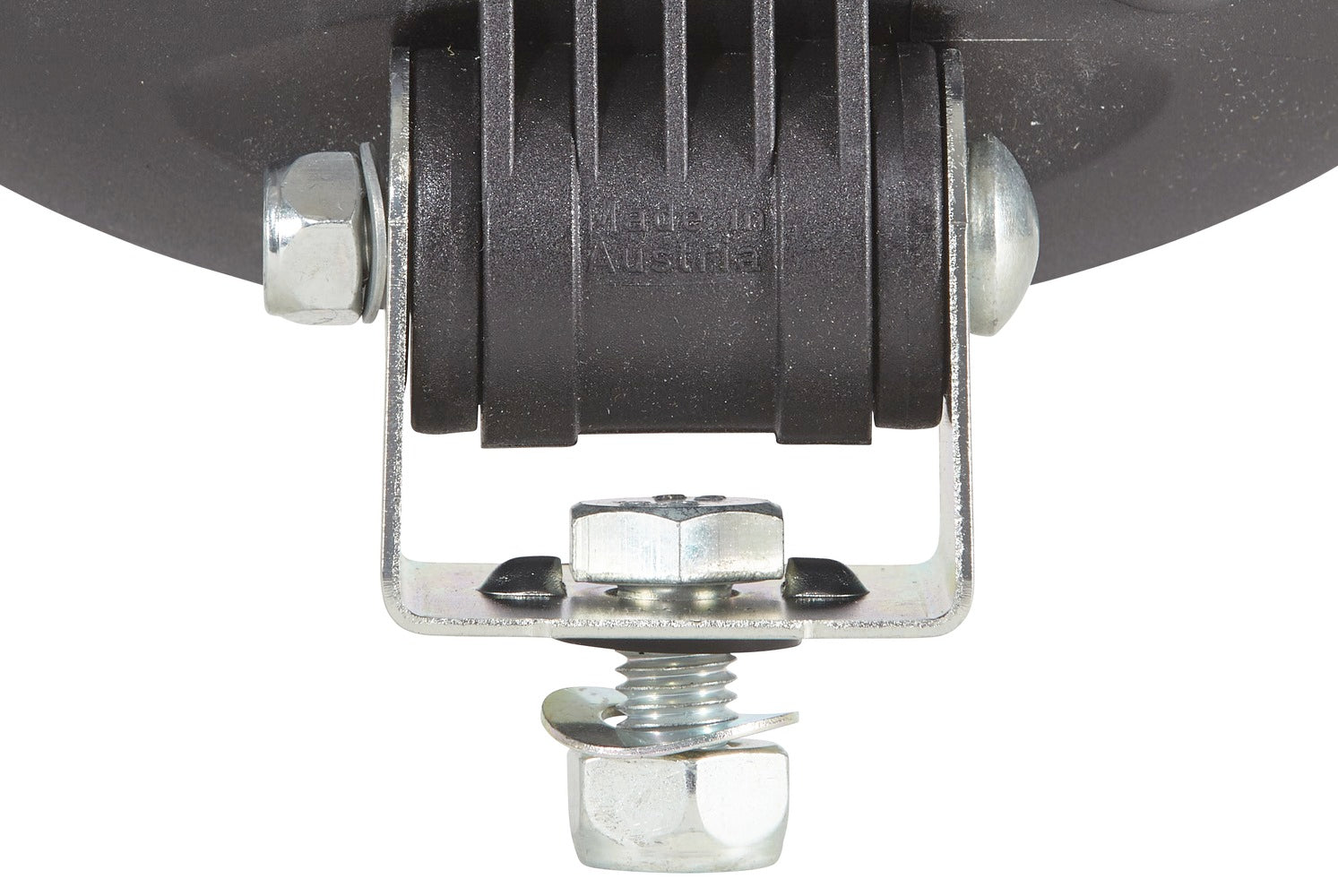

Fastening Type: Vertical / Swivelling Mounting Bracket
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 100 mm
Width: 160 mm
Depth: 78 mm
Light Distribution: Short-Range Illumination
Plug: Blade Terminal
Prot.type (IP Code): IP5K4K
Power consumption: 70 W
Supplementary Article/Supplementary Info 2: with rubber grommet / without bulbs / with screw
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AEBI 1175465-7; DAF 1529600; MASSEY FERGUSON 3786 668 M91; MASSEY FERGUSON 3786668M93; MASSEY FERGUSON 3788699M93; VALMET 3 786 668 M91; VALMET 3 786 668 M93; VALMET 3 788 699 M93
