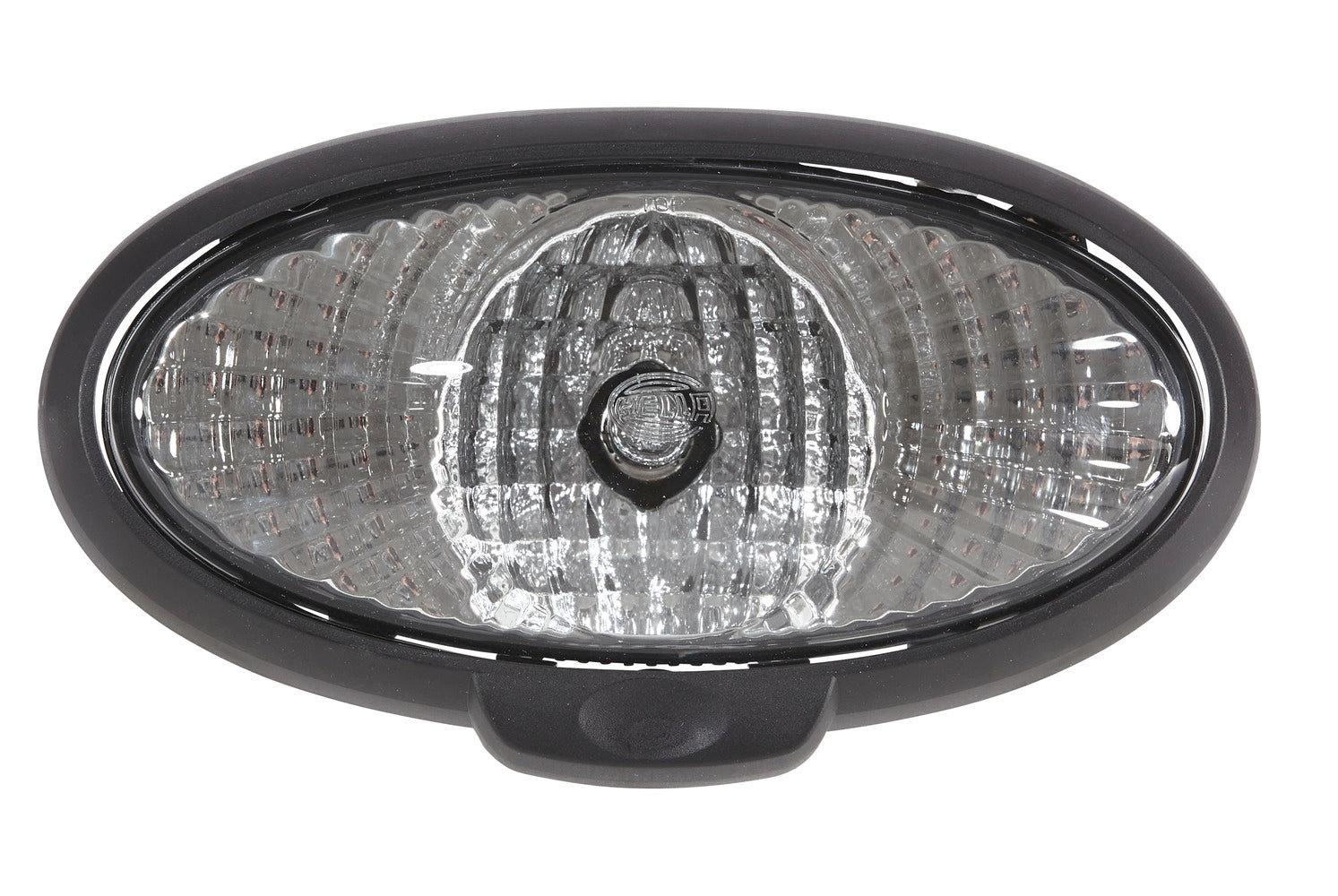

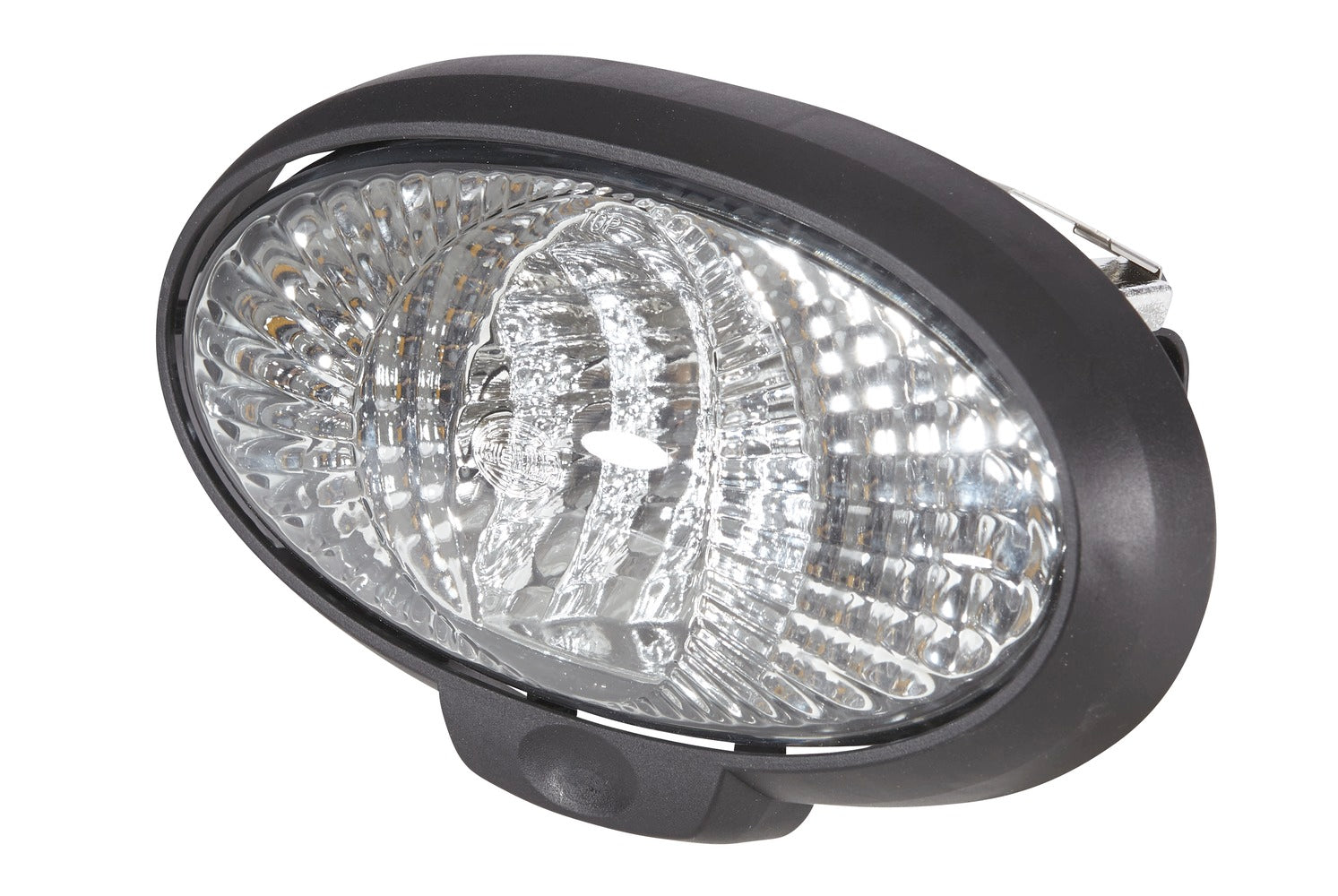

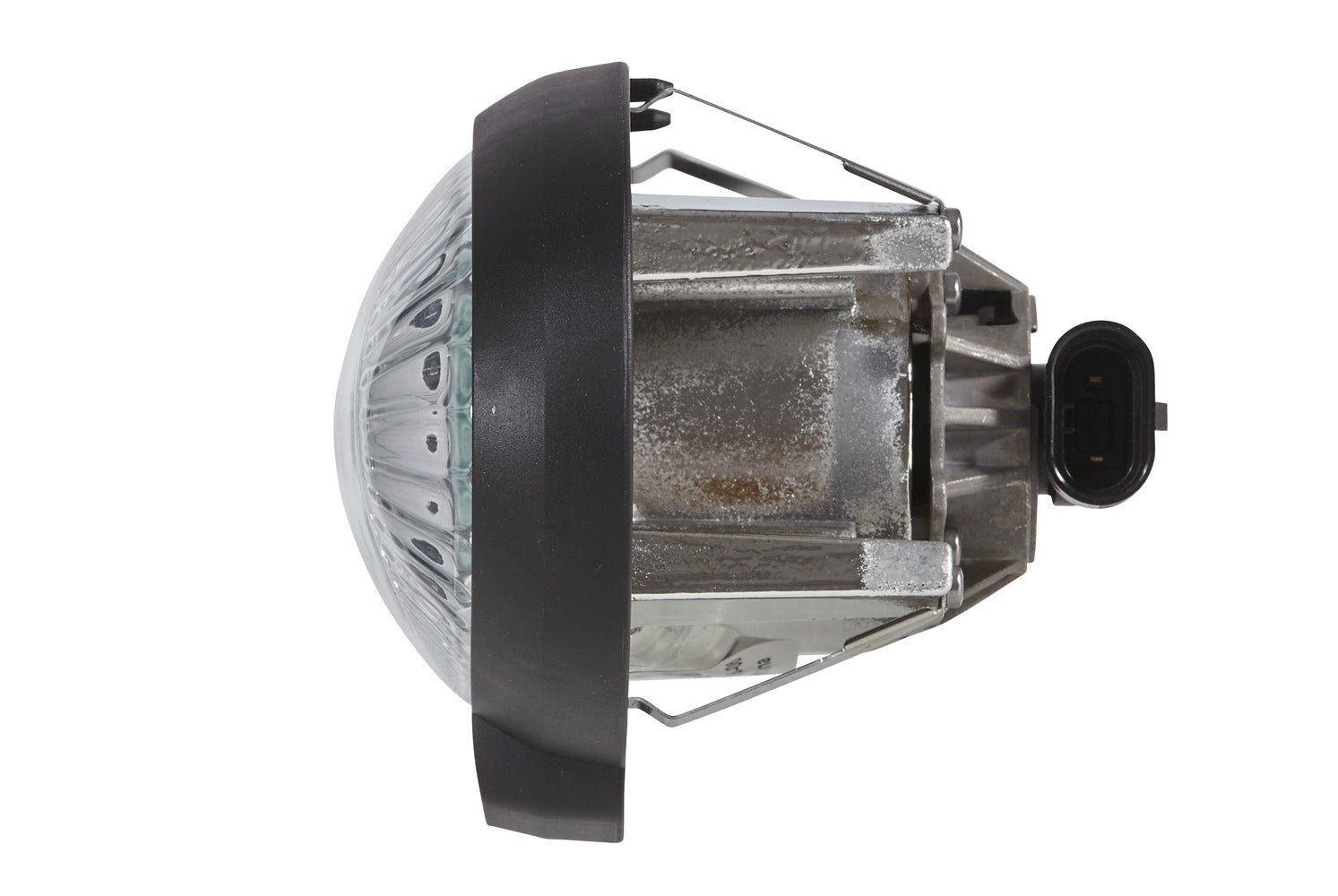

HELLA Halogen-Worklight - Oval 90 - 12V 1GB996186-061

Halogen-Worklight - Oval 90 - 12V - Fitting/Screw Connection - Four-point attachment - Short-Range Illumination - Plug: Protected contact plug

The Oval 90 from HELLA is a compact worklight with a modern, attractive design. The product range of the Oval 90 worklights includes halogen and xenon versions. The modular series is expanded with the Oval 90 LED to include efficient LED technology. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. Thanks to its powerful light output, the Oval 90 LED can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 28 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 90 LED can be mounted either upright (0°) or suspended (180°). The light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklights' black housing is made of aluminium and has cooling fins ensuring the necessary heat dissipation of the 10 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited. The integrated electronics are protected against reverse polarity and equipped with an LED fault bypass.

• It impresses with its stylish clear glass design and withstands the highest mechanical stresses, especially due to the tempered glass diffuser in combination with the impact-resistant housing.
• The light is evenly distributed in the close working area by a specially developed multi-facetted reflector.
• The luminous flux of the HB3 incandescent lamp is more than 1,860 lumen.

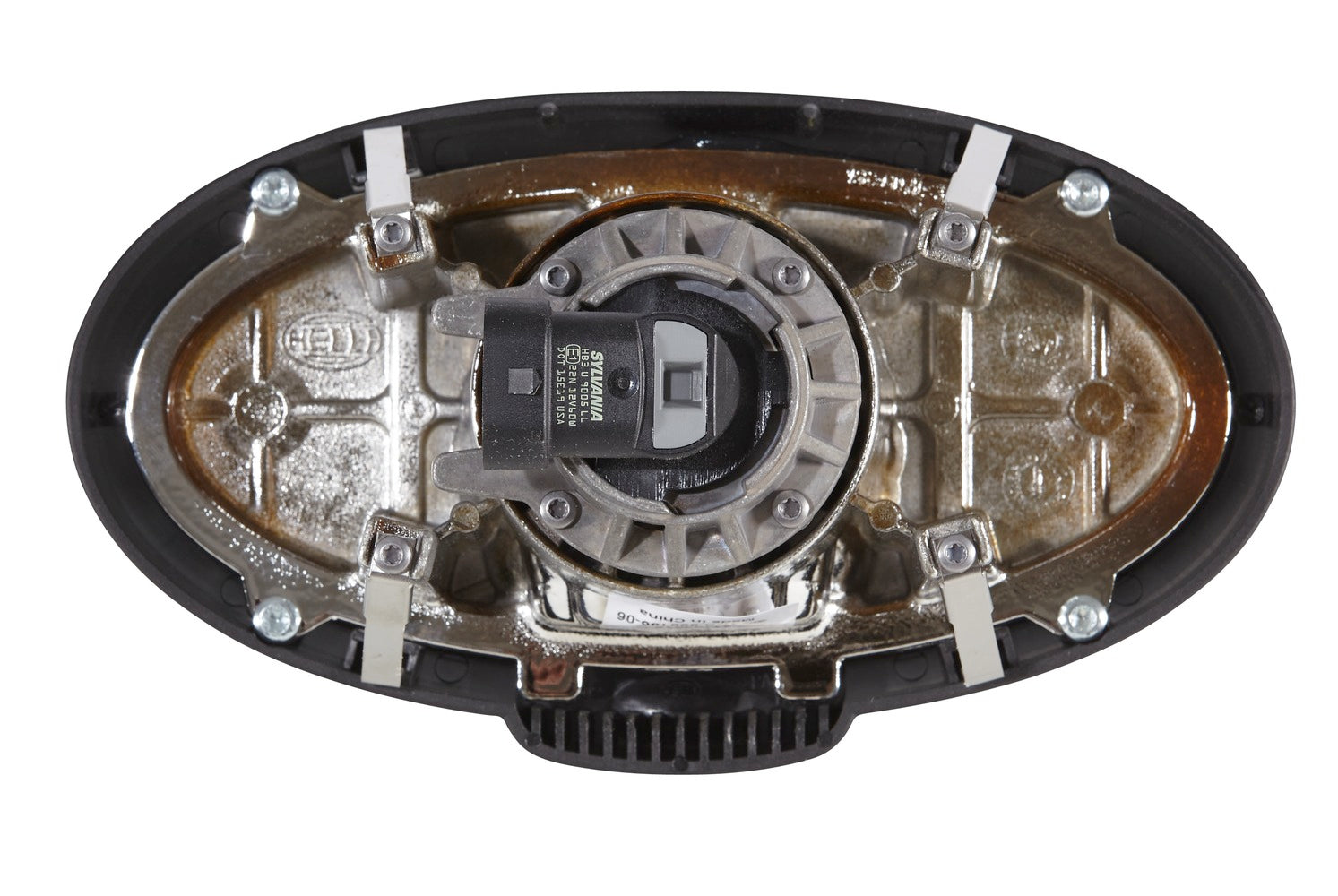

• The ingenious design of the housing makes it easy to change the bulb without tools and protects against dust and splash water.
• Lamp Type: HB3 - Power consumption: 13W - Colour Temperature: 2900K
• Patterned diffusing lens
• Prot.type (IP Code): IP6K9K

Item Attributes:
Mounting Type: Fitting / Screw Connection
Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: HB3
Voltage: 12 V
Height: 107 mm
Width: 190 mm
Depth: 116 mm
Light Distribution: Short-Range Illumination

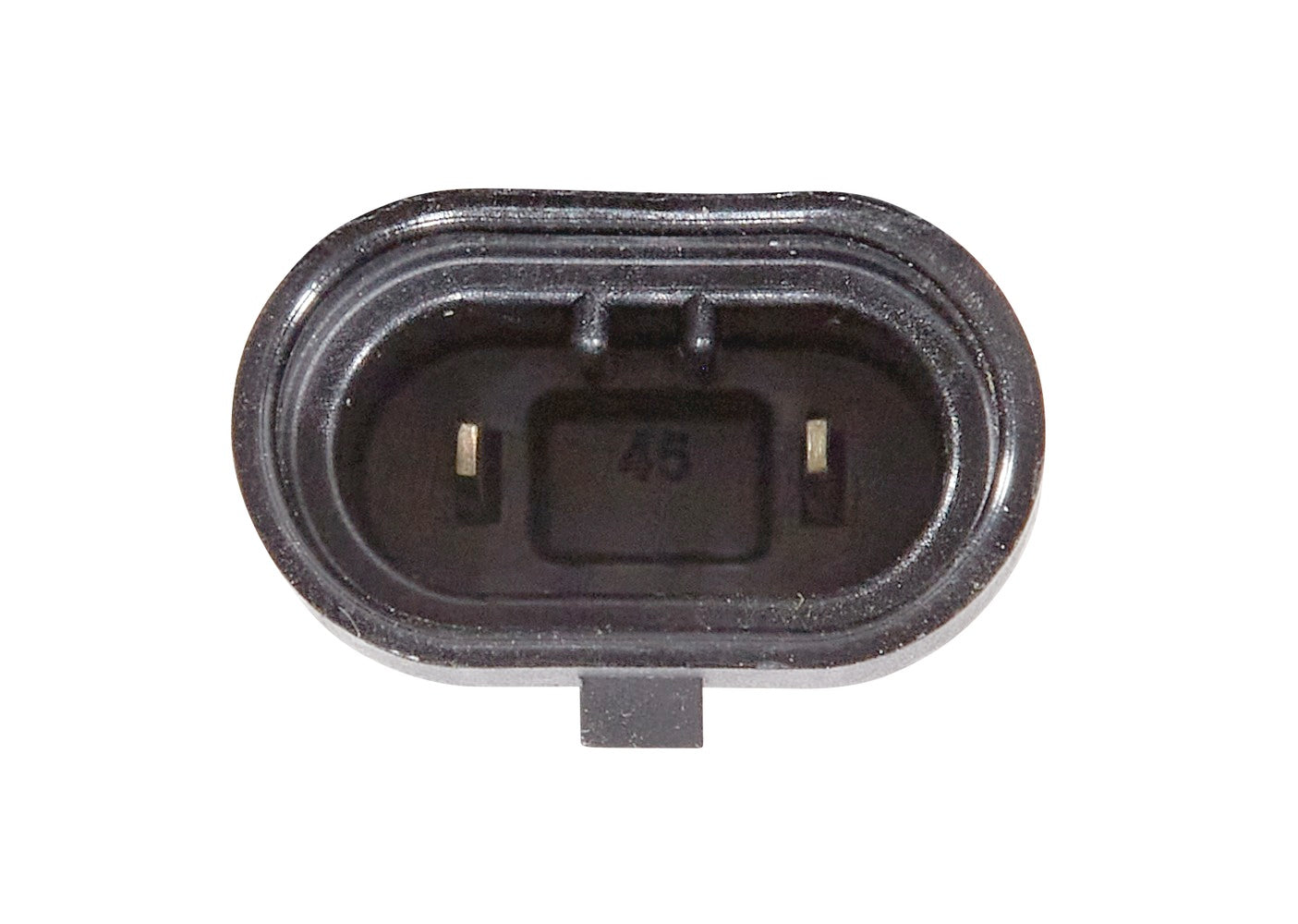

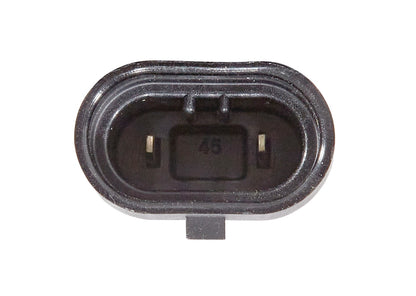

Plug: Protected contact plug
Prot.type (IP Code): IP6K9K
Colour Temperature: 2900 K
Power consumption: 13 W
Supplementary Article/Supplementary Info 2: with bulbs / with clamp
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: JOHN DEERE RE 26 9636; JOHN DEERE RE 26 9637
