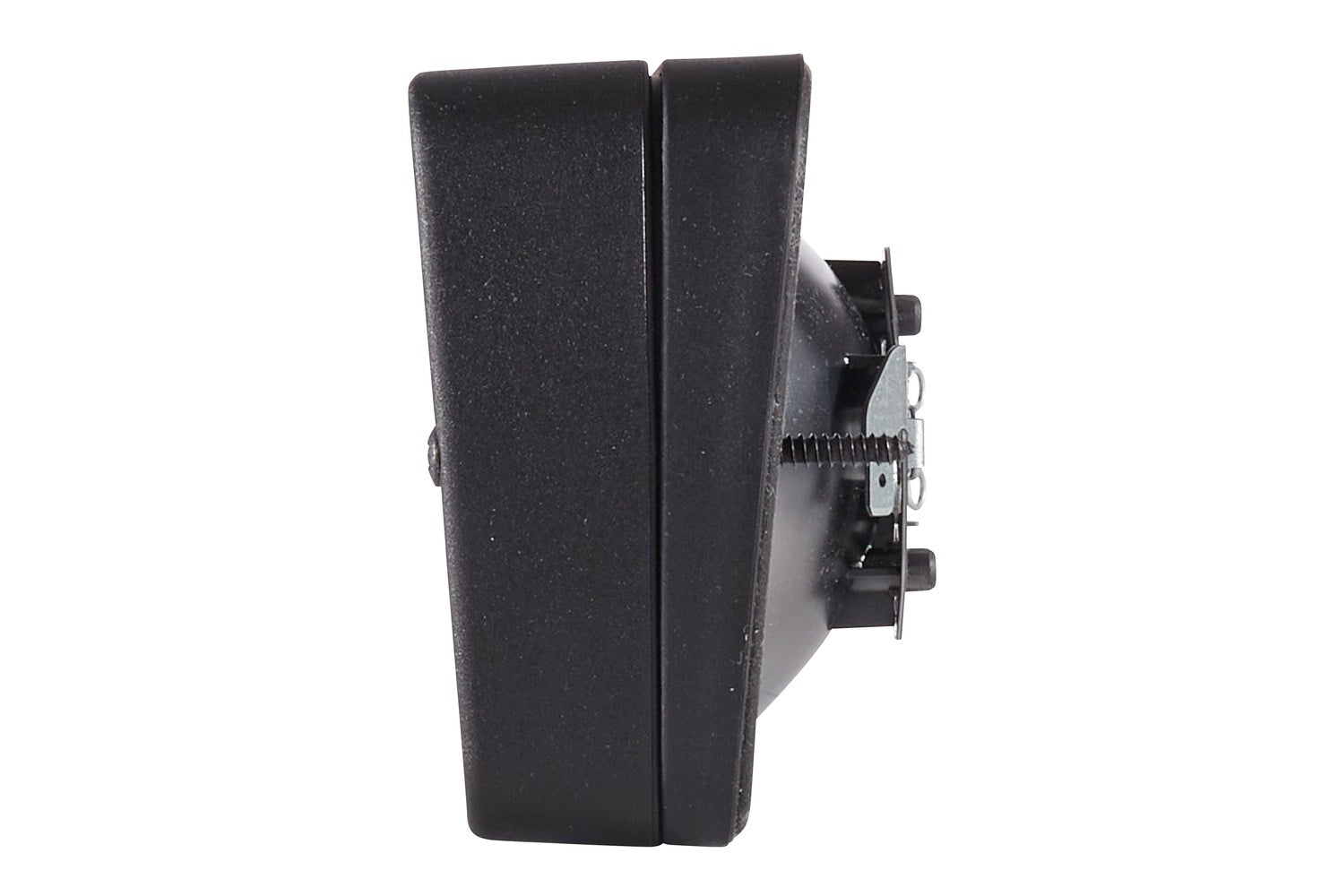

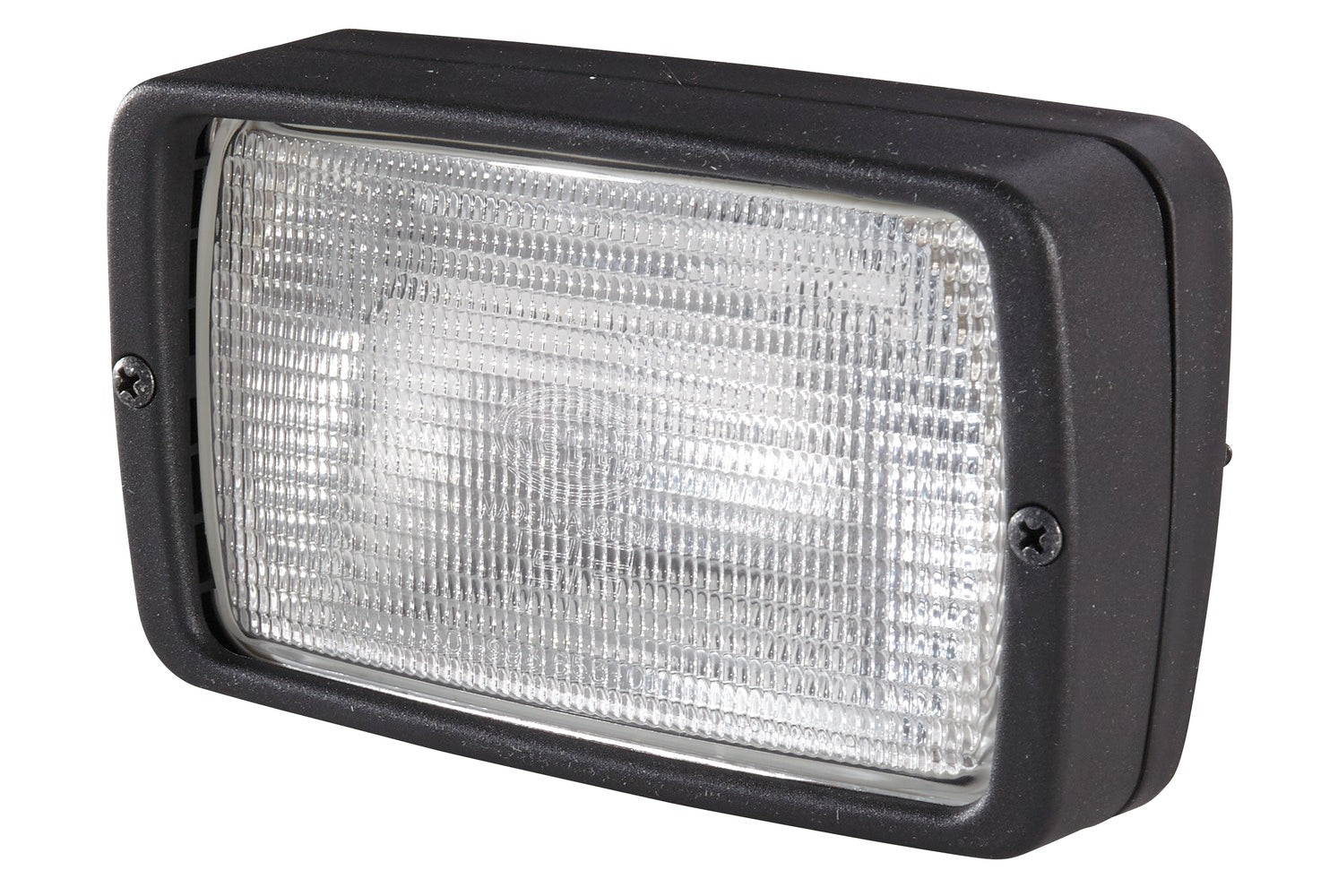

HELLA Halogen-Worklight - Picador 6082 - 12/24V 1GA996082-001

Halogen-Worklight - Picador 6082 - 12/24V - Screw Connection/Fitting - 2-point attachment - Short-Range Illumination - Plug: open cable ends

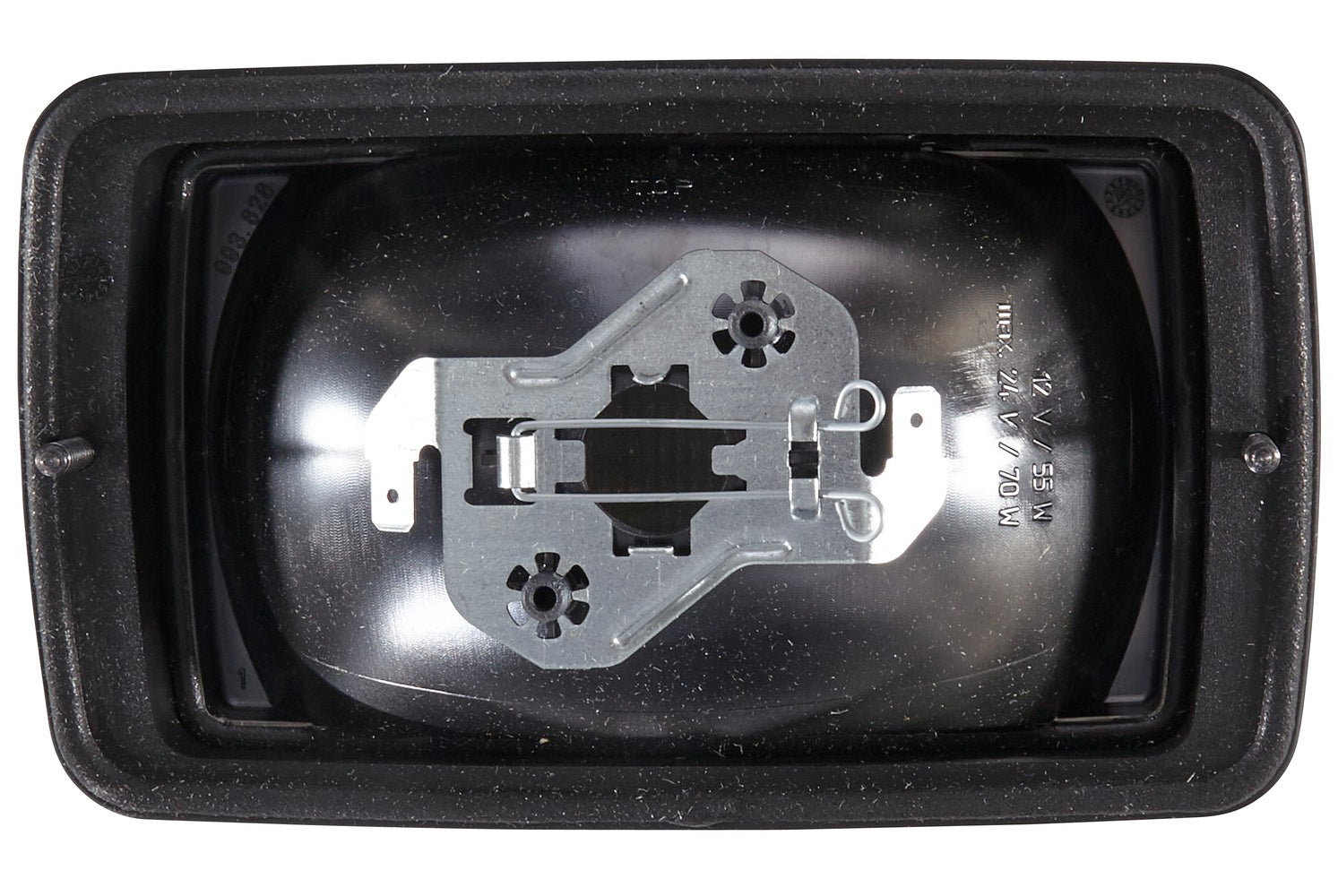

The reflector of the worklight is based on free-form technology. This, in conjunction with a structured glass diffuser panel, ensures intensive illumination of the working area at close range. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic. To protect the glass diffusing panel, the housing is provided with a protruding rim at its front. Due to its compact external dimensions, the Picador FF can be mounted in most places. Thanks to the lateral mounting foot, the Picador FF 1GA 006 875-001 is suitable for mounting on vertical car body surfaces. The swivel joint makes it easy to align the worklight so that the working area can be optimally illuminated. A central foot connection is intended for both upright and suspended mounting (by rotating the spotlight insert) on horizontal surfaces. The cable feed-through for the power connection is via a grommet.

• The reflector is based on open space technology. In combination with a structured glass diffuser, this ensures intensive illumination of the working area at close range.
• The housing of this robust worklight is made of acid and corrosion resistant, glass fibre reinforced plastic.
• To protect the glass diffusing panel, the housing is provided with a protruding edge on its front side.
• Thanks to its compact external dimensions, the Picador FF can be installed in most places.
• The swivel joint makes it easy to align the worklight so that the working area can be optimally illuminated.
• Lamp Type: H3 - Power consumption: 35/70W

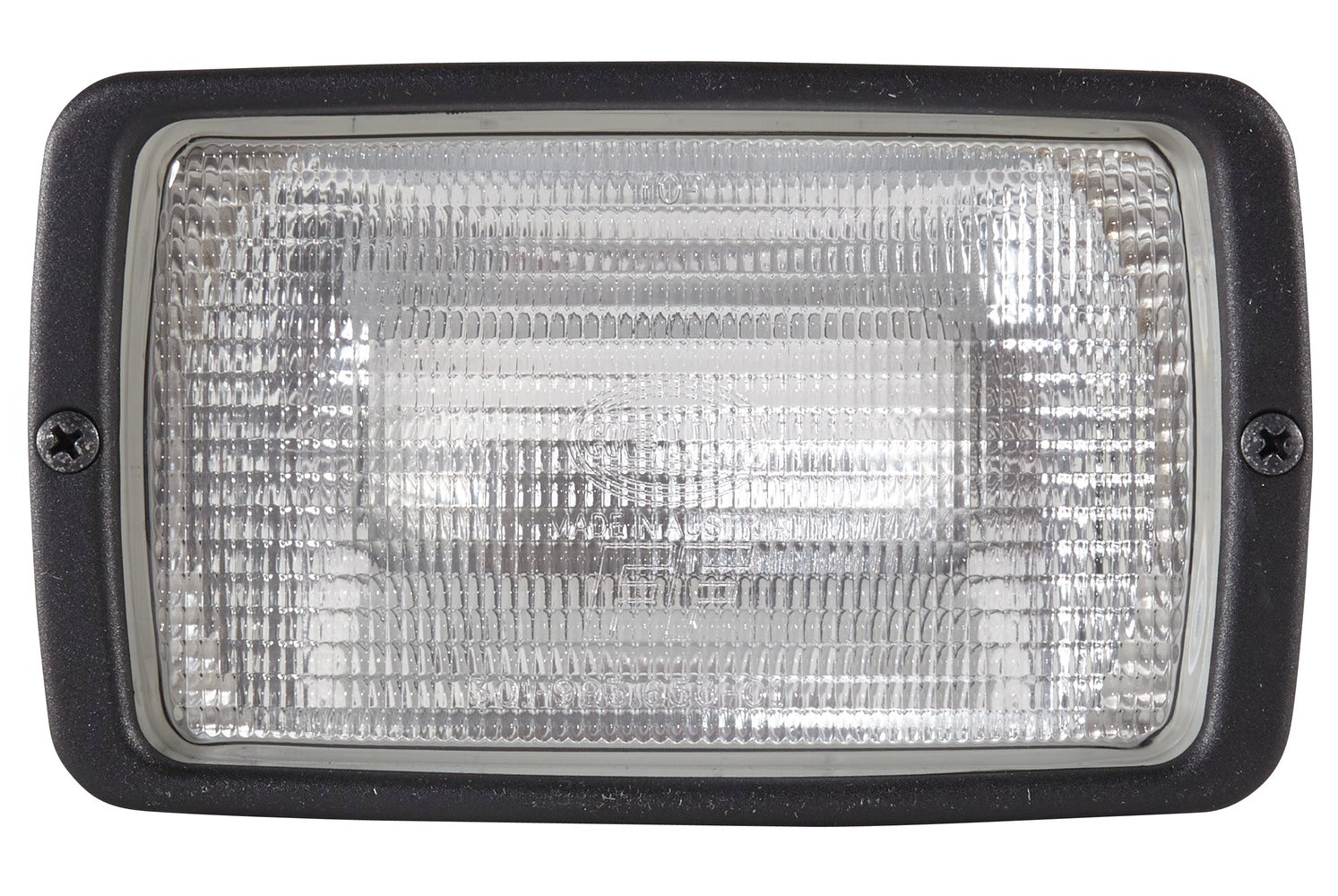

• Patterned diffusing lens

Item Attributes:
Mounting Type: Screw Connection / Fitting
Fastening Type: 2-point attachment
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 94 mm
Width: 155 mm
Depth: 45 mm
Light Distribution: Short-Range Illumination
Plug: open cable ends
Prot.type (IP Code): IP5K4K
Power consumption: 70 W / 35 W
Supplementary Article/Supplementary Info 2: without bulbs / with bolts/screws
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: CLAAS 11726420; JCB 700/31800; LIEBHERR 6 203 044; REISCH 5011429; ZIEGLER 1013080
