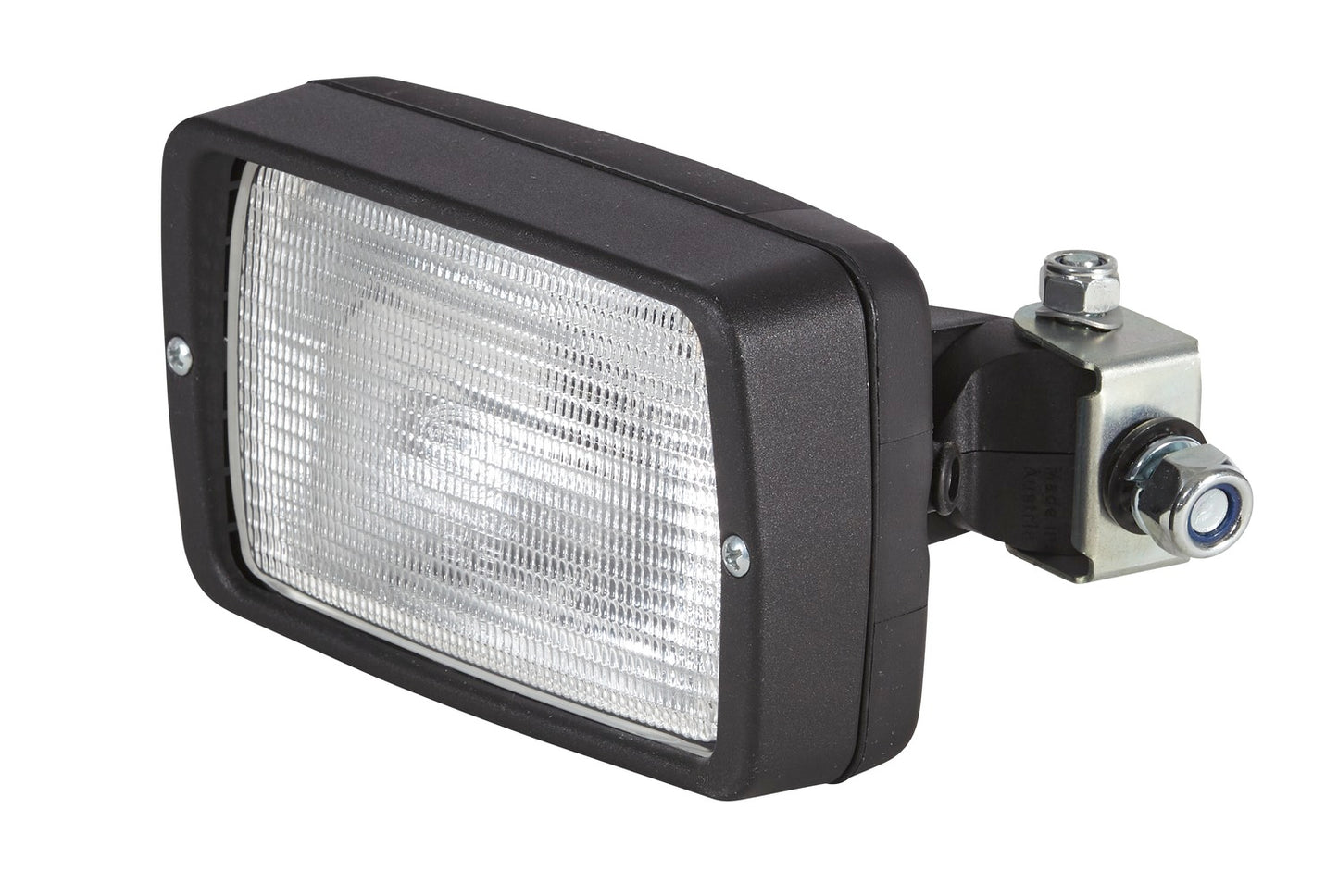

HELLA Halogen-Worklight - Picador 6875 - 24/12V 1GA006875-001

Halogen-Worklight - Picador 6875 - 24/12V - mounting/Bolted - for horizontal fastening - Short-Range Illumination - Plug: Blade Terminal

The reflector of the worklight is based on free-form technology. This, in conjunction with a structured glass diffuser panel, ensures intensive illumination of the working area at close range. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic. To protect the glass diffusing panel, the housing is provided with a protruding rim at its front. Due to its compact external dimensions, the Picador FF can be mounted in most places. Thanks to the lateral mounting foot, the Picador FF 1GA 006 875-001 is suitable for mounting on vertical car body surfaces. The swivel joint makes it easy to align the worklight so that the working area can be optimally illuminated. A central foot connection is intended for both upright and suspended mounting (by rotating the spotlight insert) on horizontal surfaces. The cable feed-through for the power connection is via a grommet.

• The reflector is based on open space technology. In combination with a structured glass diffuser, this ensures intensive illumination of the working area at close range.
• The housing of this robust worklight is made of acid and corrosion resistant, glass fibre reinforced plastic.
• To protect the glass diffusing panel, the housing is provided with a protruding edge on its front side.
• Thanks to its compact external dimensions, the Picador FF can be installed in most places.

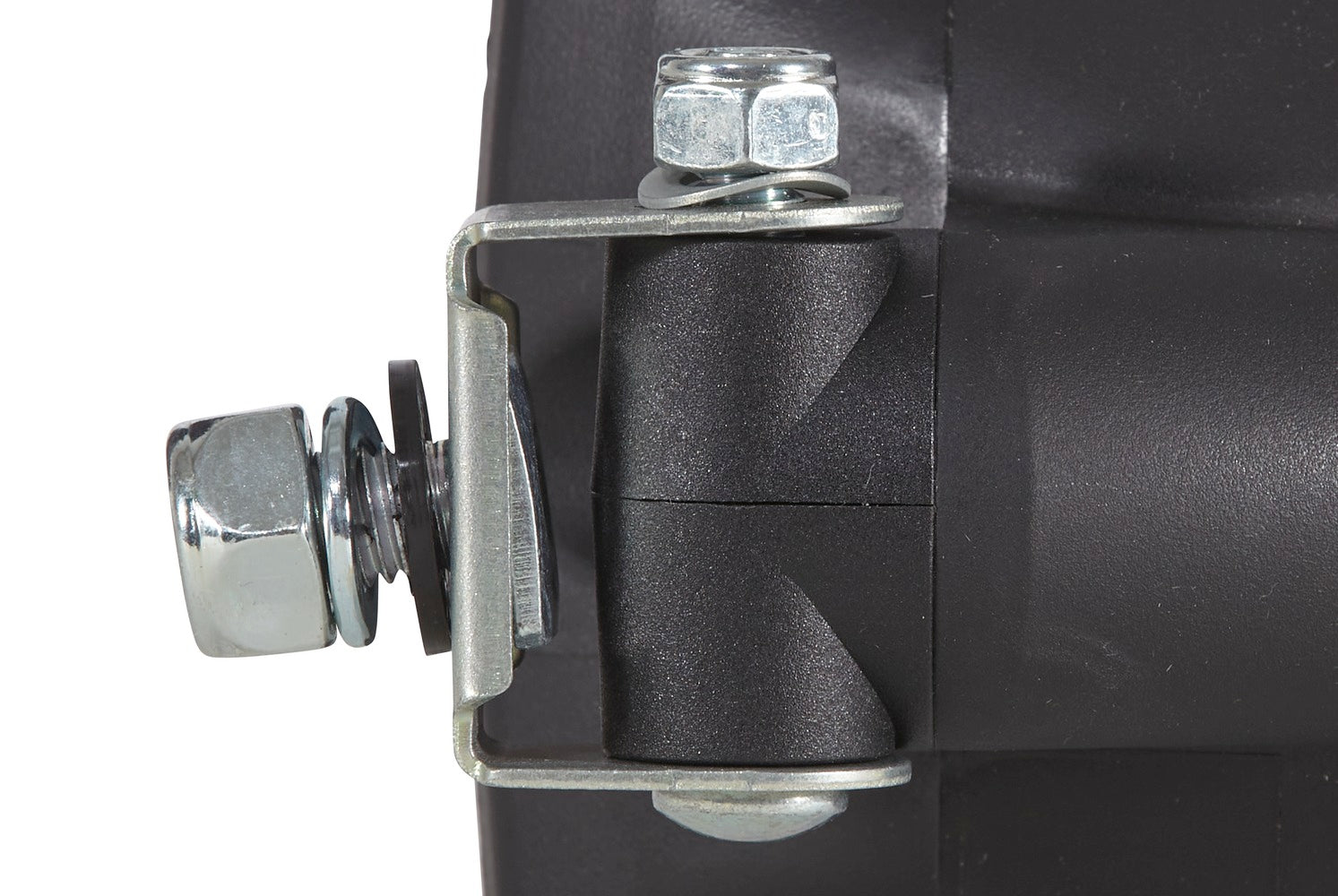

• The swivel joint makes it easy to align the worklight so that the working area can be optimally illuminated.
• Lamp Type: H3 - Power consumption: 35/70W
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: for horizontal fastening
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 94 mm
Width: 154 mm
Depth: 114 mm
Light Distribution: Short-Range Illumination
Plug: Blade Terminal
Prot.type (IP Code): IP5K4K
Power consumption: 70 W / 35 W
Supplementary Article/Supplementary Info 2: without bulbs
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AEBI 300.6137; ASTRA 60230007; CASE IH 5 153085; CATERPILLAR 120-6775; CATERPILLAR L04002; DAF 1528487; DRONNINGBORG 4392669; JCB 700/42500; JCB 700/42600; JCB 700/42700; JCB 700/42800; KRAMER 56518; LIEBHERR 6 202 683; LINDNER 3201786; MANITOU 223595; MANITOU 223596; MASSEY FERGUSON 4392669; MASSEY FERGUSON 56230; MASSEY FERGUSON U.56230; ROSENBAUER 951555; VALMET 31636910; VALMET 32527810; VALMET 33099700; VOLVO 14061700
