HELLA Halogen-Worklight - Picador 6876 - 12/24V 1GA006876-001

Halogen-Worklight - Picador 6876 - 12/24V - mounting/Bolted - Vertical/Swivelling Mounting Bracket - Short-Range Illumination - Plug: Blade Terminal

The reflector of the worklight is based on free-form technology. This, in conjunction with a structured glass diffuser panel, ensures intensive illumination of the working area at close range. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic. To protect the glass diffusing panel, the housing is provided with a protruding rim at its front. Due to its compact external dimensions, the Picador FF can be mounted in most places. Thanks to the lateral mounting foot, the Picador FF 1GA 006 875-001 is suitable for mounting on vertical car body surfaces. The swivel joint makes it easy to align the worklight so that the working area can be optimally illuminated. A central foot connection is intended for both upright and suspended mounting (by rotating the spotlight insert) on horizontal surfaces. The cable feed-through for the power connection is via a grommet.

• The reflector is based on open space technology. In combination with a structured glass diffuser, this ensures intensive illumination of the working area at close range.
• The housing of this robust worklight is made of acid and corrosion resistant, glass fibre reinforced plastic.
• To protect the glass diffusing panel, the housing is provided with a protruding edge on its front side.
• Thanks to its compact external dimensions, the Picador FF can be installed in most places.

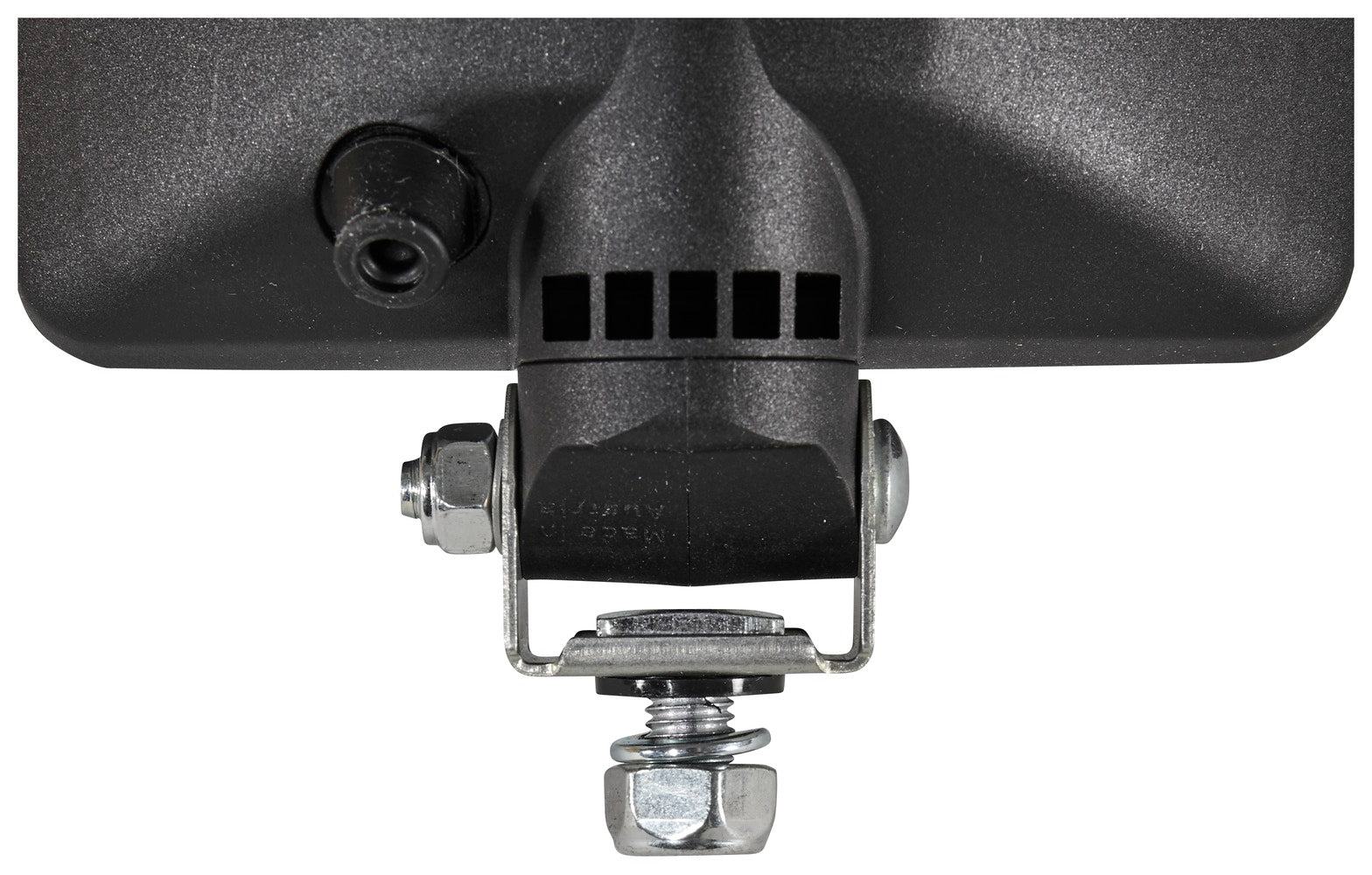

• The swivel joint makes it easy to align the worklight so that the working area can be optimally illuminated.
• Lamp Type: H3 - Power consumption: 35/70W
• Patterned diffusing lens

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: Swivelling Mounting Bracket / Vertical
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 128 mm
Width: 154 mm
Depth: 77 mm
Light Distribution: Short-Range Illumination
Plug: Blade Terminal
Prot.type (IP Code): IP5K4K
Power consumption: 70 W / 35 W
Supplementary Article/Supplementary Info 2: without bulbs
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AGCO X830 160 101 130; AGRIFAC 7788678; AUWÄRTER 11025260; AUWÄRTER 14096.010; BOMAG 057 551 68; CASE IH 2928271; DAF 867446; FENDT X 830 160 101 130; GOLDHOFER 051205200; HYSTER 1356335; HYSTER 1483739; JOHN DEERE AA 54 055 A; KEMPF 4007011; KRAMER 56513; KRAMER 58454; KRONE 5814082/0; LANGENDORF 1084177; LANGENDORF 1131955; LIEBHERR 2 100 803; LIEBHERR 6 071 445 08; MAN 85.25103.6001; MASSEY FERGUSON 3617 494 M91; MASSEY FERGUSON 3714 399 M92; MASSEY FERGUSON 3788 157 M91; MASSEY FERGUSON 4 272 81M 91; MASSEY FERGUSON 4 272 83M 91; MASSEY FERGUSON 4272 781 M91; MASSEY FERGUSON 4272 783 M91; MASSEY FERGUSON 56231; MERCEDES-BENZ 662 544 01 47; MERCEDES-BENZ A 662 544 01 47; NEOPLAN 1102 526 0; NOOTEBOOM 0225424; O&K 2928271; REISCH 5011428; RENDERS 99700237; ROSENBAUER 529287; ROSENBAUER 951556; SANY B241100000056; SCANIA 1906627; SCHANZLIN 2060044; SOMMER 2800049001; SPIERINGS 1032607; STEYR 8.525.10.360.01; VALMET 3 617 494 M91; VALMET 3 714 399 M92; VALMET 3 788 157 M91; VALMET 32527810; VALMET 33099700; VALMET 34203500; VALMET 4 272 781 M91; VALMET 4 272 783 M91; VOLVO 2801243; VOLVO ZM2801243; YALE 1356335; ZOOMLION 1020402072
