HELLA Halogen-Worklight - Torero 5760 - 12/24V 1G3005760-001

Halogen-Worklight - Torero 5760 - 12/24V - mounting/Bolted - Vertical/Swivelling Mounting Bracket - Long-range illumination - Plug: Blade Terminal

Powerful at close range, or for long-range illumination. Lighting technology: Together with specially developed lens optics, the parabolic reflector allows homogeneous close-range lighting of the working area, or long-range illumination. An H3 bulb is used as the light source (not included with the light). As a result the worklight can be operated with both 12V and 24V vehicleelectrical systems. Design: The black housing of this worklight is made of plastic. To protect the glass lens, the housing has a raised edge at the front. The Torero is suitable both for pendant and upright mounting, as well as for side-mounting by turning the light insert. The cable passage for power connection runs via a grommet. Depending on the version, the Torero worklight offers additional advantages such as integrated rotary switch, protective grille or handle.

• Together with a specially developed diffuser optic, the parabolic reflector enables homogeneous illumination of the working area at close or long-range.
• The black housing of this worklight is made of plastic.
• To protect the glass diffusing panel, the housing is provided with a protruding edge on its front side.
• The torero is suitable for hanging and standing mounting, as well as for side mounting by turning the headlamp insert.
• Lamp Type: H3 - Power consumption: 35/70W
• Patterned diffusing lens
• Prot.type (IP Code): IP5K4K

Item Attributes:
Mounting Type: mounting / Bolted

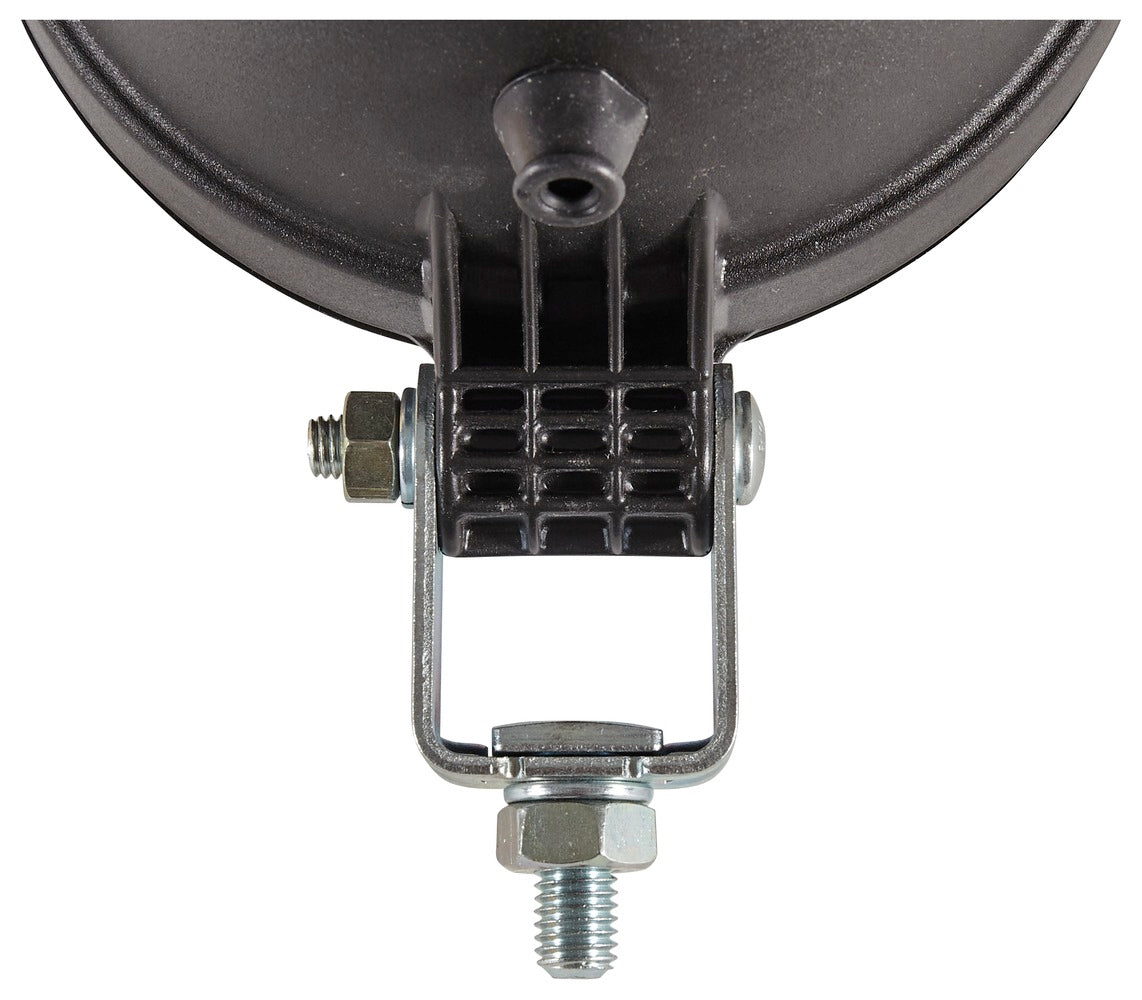

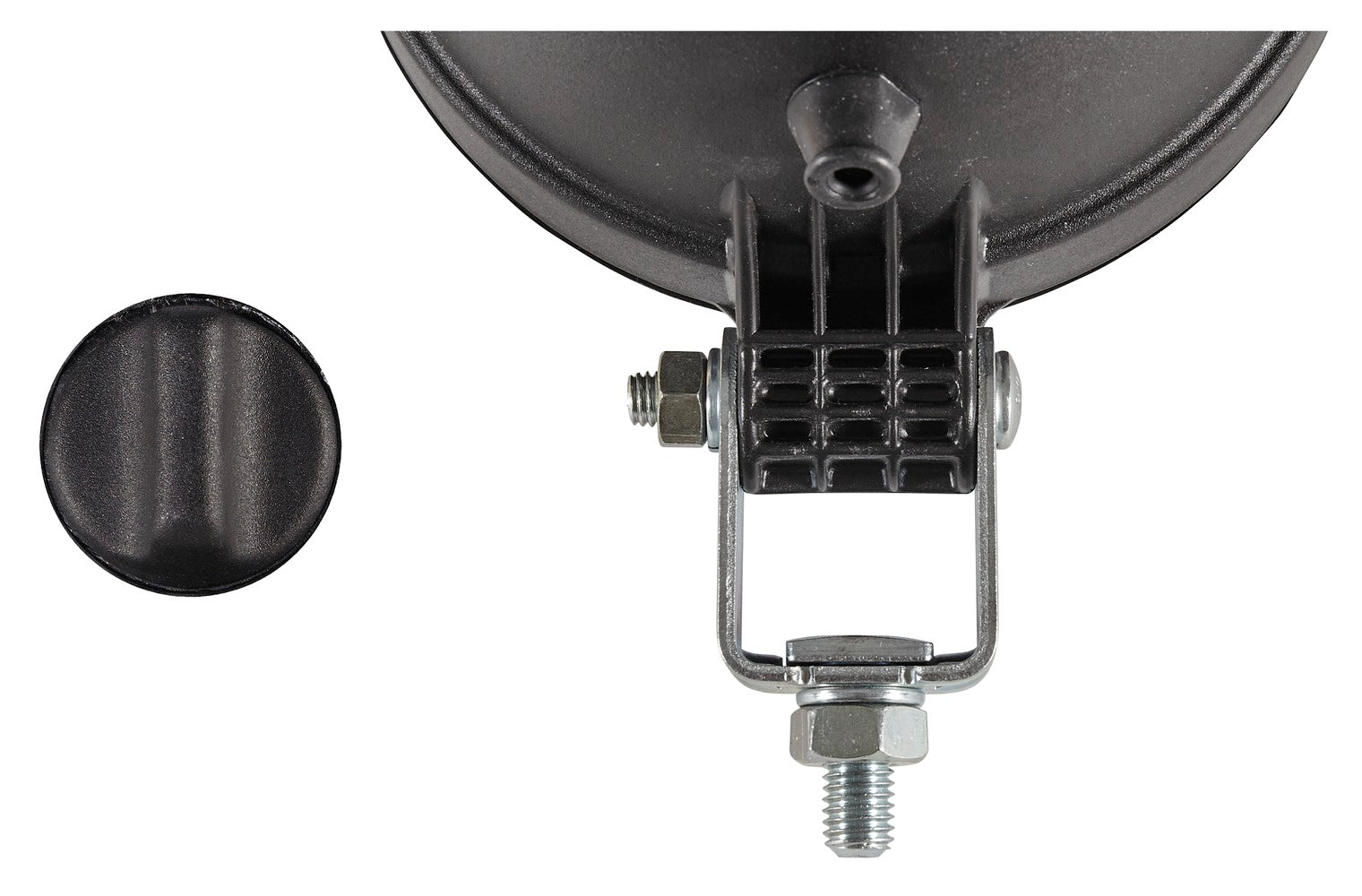

Fastening Type: Swivelling Mounting Bracket / Vertical
Light Design: Halogen
Lamp Type: H3
Voltage: 24 V / 12 V
Height: 239 mm
Width: 152 mm
Depth: 120 mm
Light Distribution: Long-range illumination
Plug: Blade Terminal
Prot.type (IP Code): IP5K4K
Power consumption: 35 W / 70 W
Supplementary Article/Supplementary Info 2: without bulbs / with handle
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AEBI 1097733-9; AGCO D28761343; CASE IH 3 217309 R92; CLAAS 065 829 50; DRONNINGBORG 28761343; FAUN 7005-086; FAUN 9970-7005086; FELDBINDER 1068243; FENDT 28 761 343; FENDT D 287 613 43; IVECO 4235 3233; JOHN DEERE AL 65 268; JOHN DEERE AZ 62 554; JUNGHEINRICH 002587; JUNGHEINRICH 14718660; LIEBHERR 6 001 202; MASSEY FERGUSON 2 876 134 3; REFORM 930129; ROSENBAUER 968102; ROSENBAUER M5836-964034; SANY B241100000124; SCHMITZ CARGOBULL 1-FZELEK0200; SPERRY NEW HOLLAND 421030; STILL 015214; STILL 407288; STILL 526282; VALPADANA 3217309 R92; VÖGELE 3515.15.5036 N; ZOOMLION 1020401029
