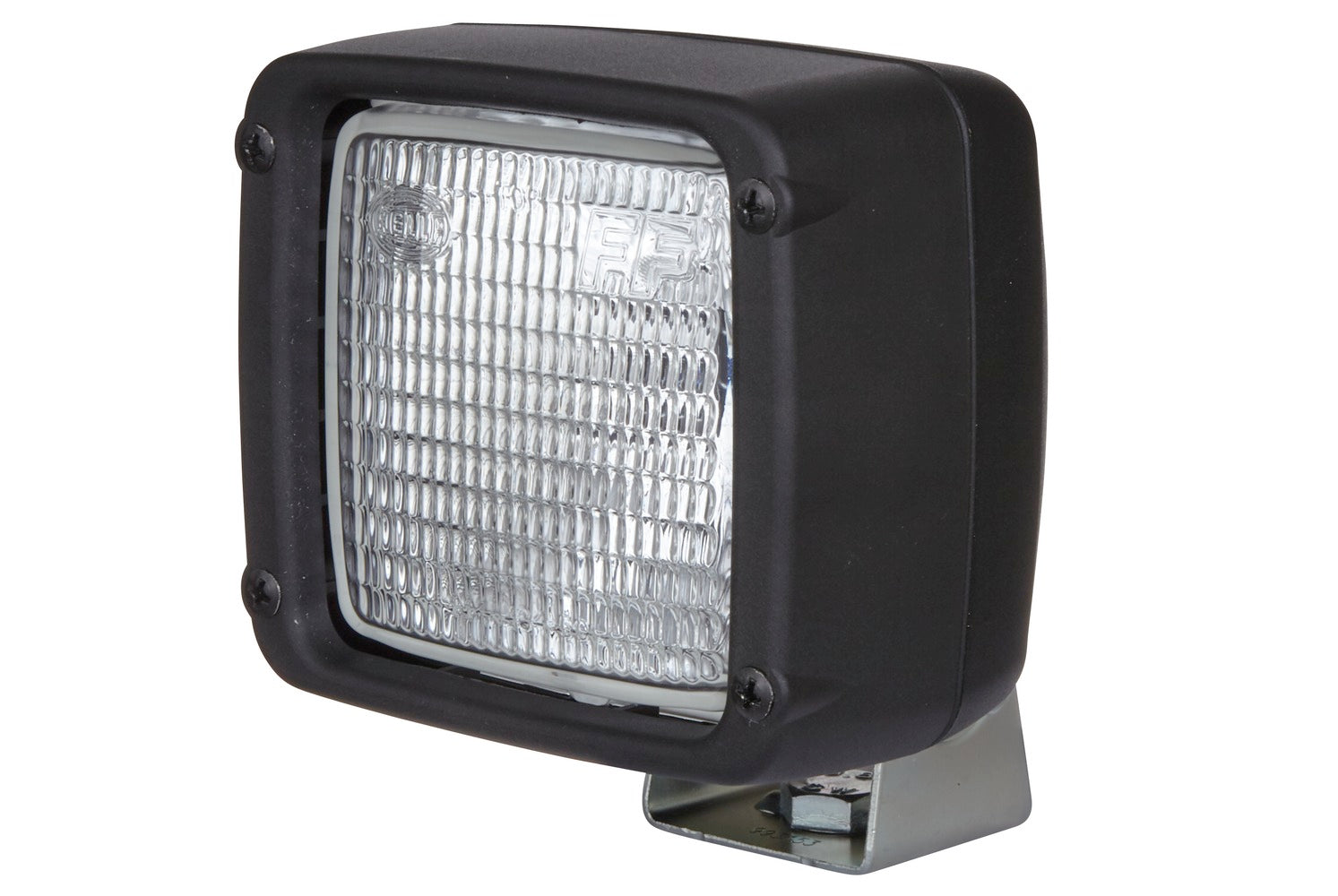

HELLA Halogen-Worklight - Ultra Beam - 12/24V 1GA007506-001

Halogen-Worklight - Ultra Beam - 12/24V - Bolted/mounting - Vertical/Swivelling Mounting Bracket - Short-Range Illumination - Plug: AMP - Quantity: 1

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.

• The aluminium reflector of the worklight is based on free-form technology.
• Despite its compact dimensions, the reflector ensures excellent lighting performance. An H3 bulb is used as the light source.
• The headlamp insert can be rotated. This makes the unit suitable for upright and suspended mounting.
• The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.
• The housing is provided with a protruding edge to protect the diffusing lens. Thanks to its compact dimensions, the worklight can be used universally.
• Lamp Type: H3 - Power consumption: 55/70W

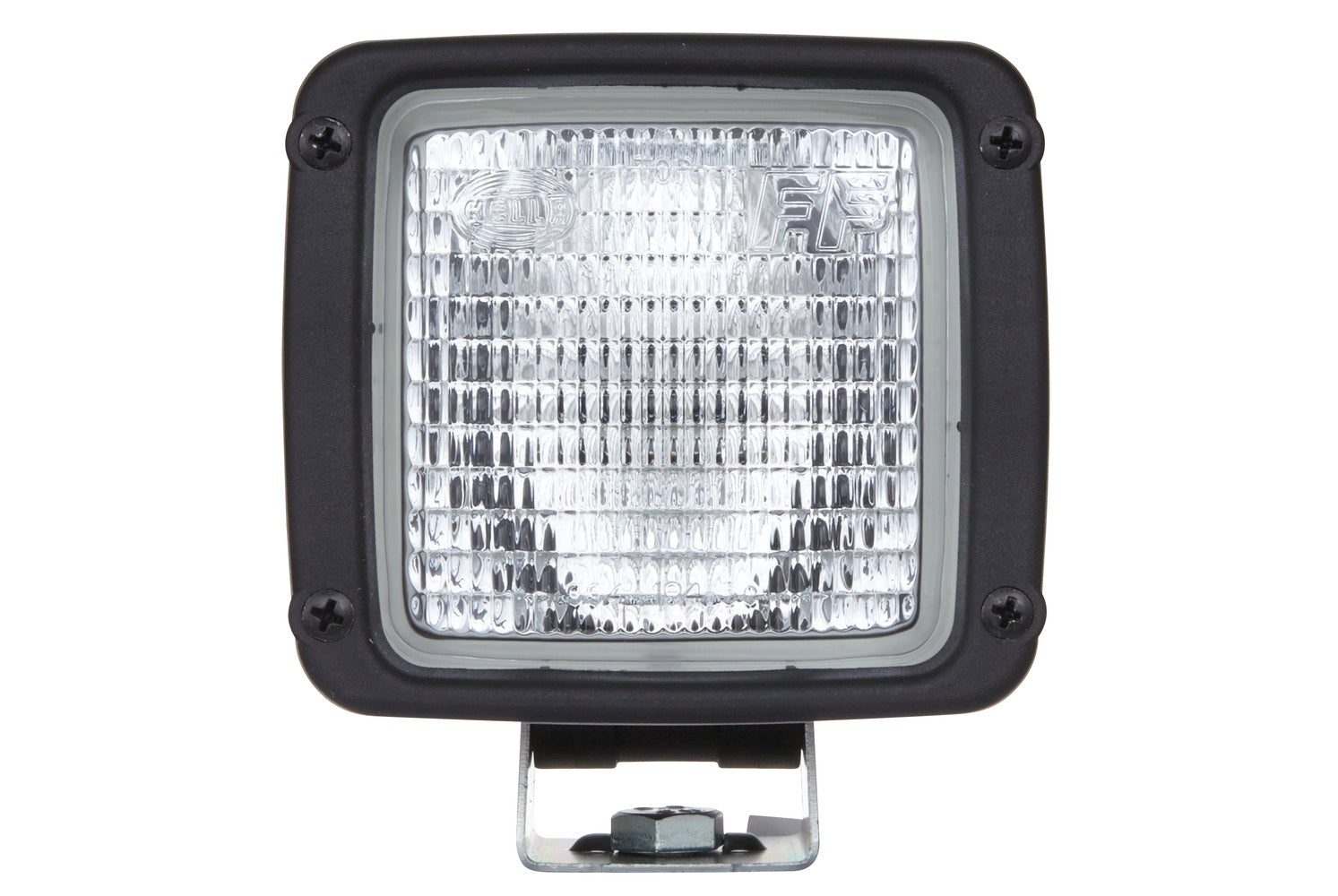

• Patterned diffusing lens

Item Attributes:
Mounting Type: Bolted / mounting

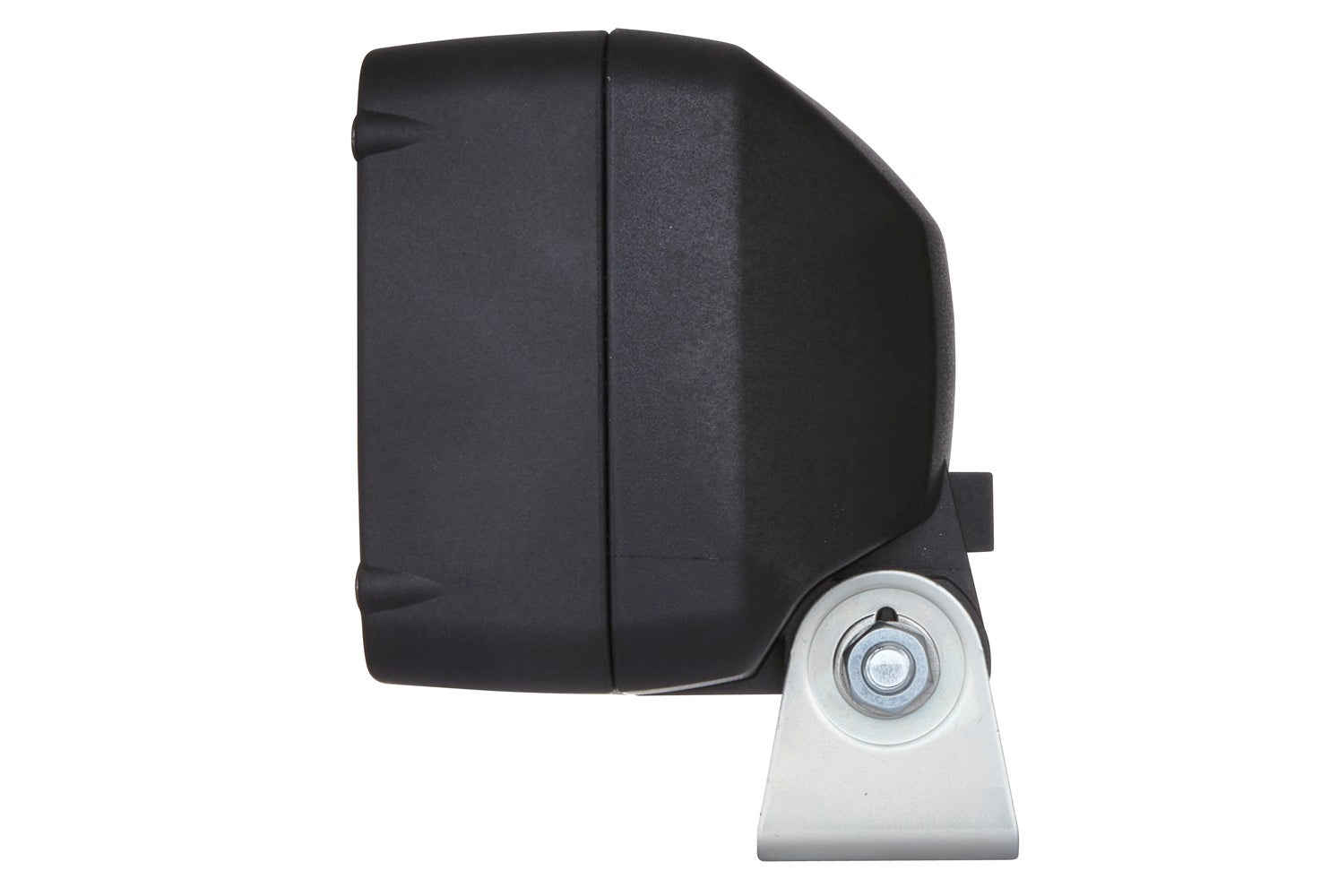

Fastening Type: Swivelling Mounting Bracket / Vertical
Lamp Type: H3
Light Design: Halogen
Voltage: 24 V / 12 V
Power consumption: 55 W / 70 W
Width: 112 mm
Height: 127 mm
Depth: 97 mm
Diffusing Lens Material: Glass

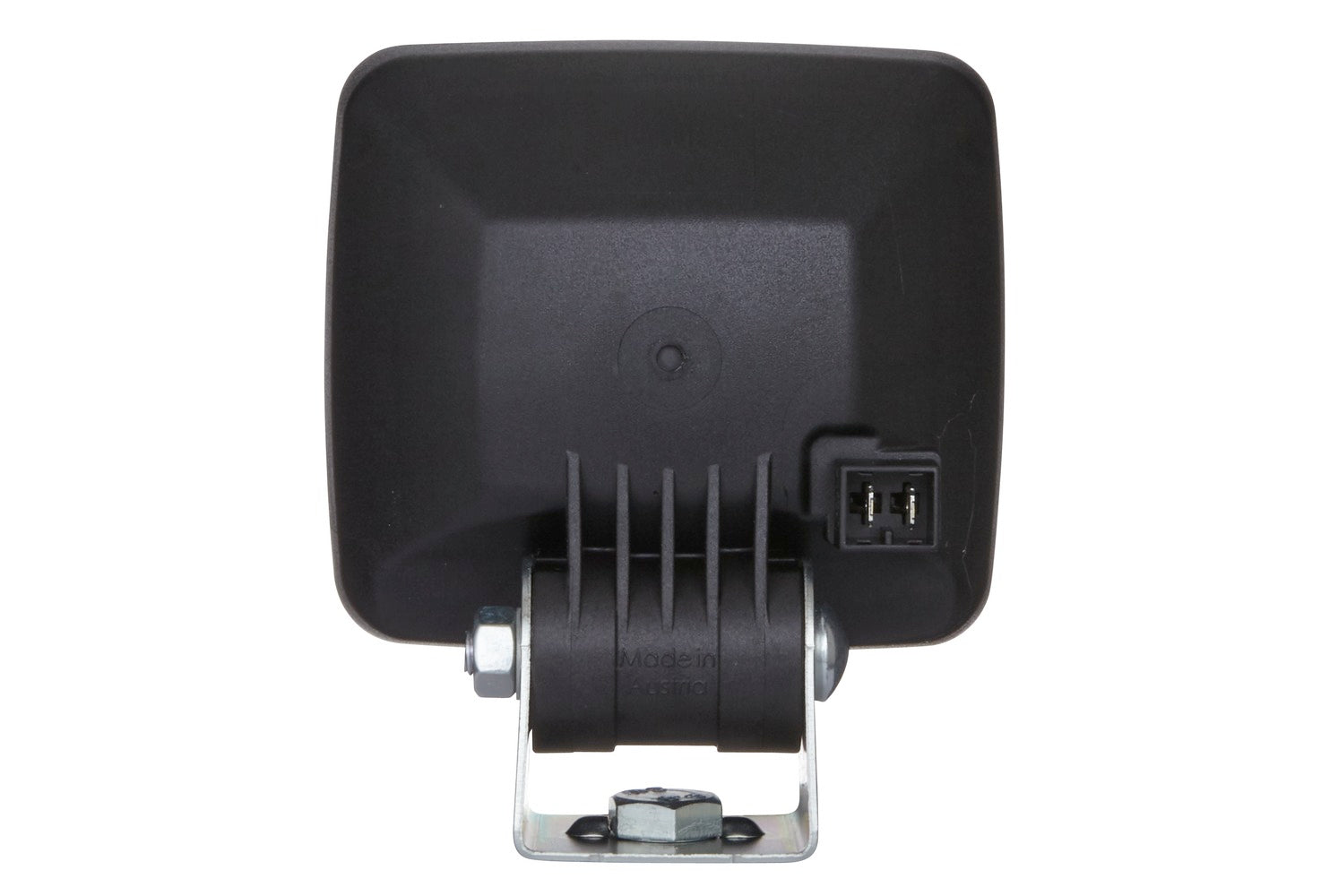

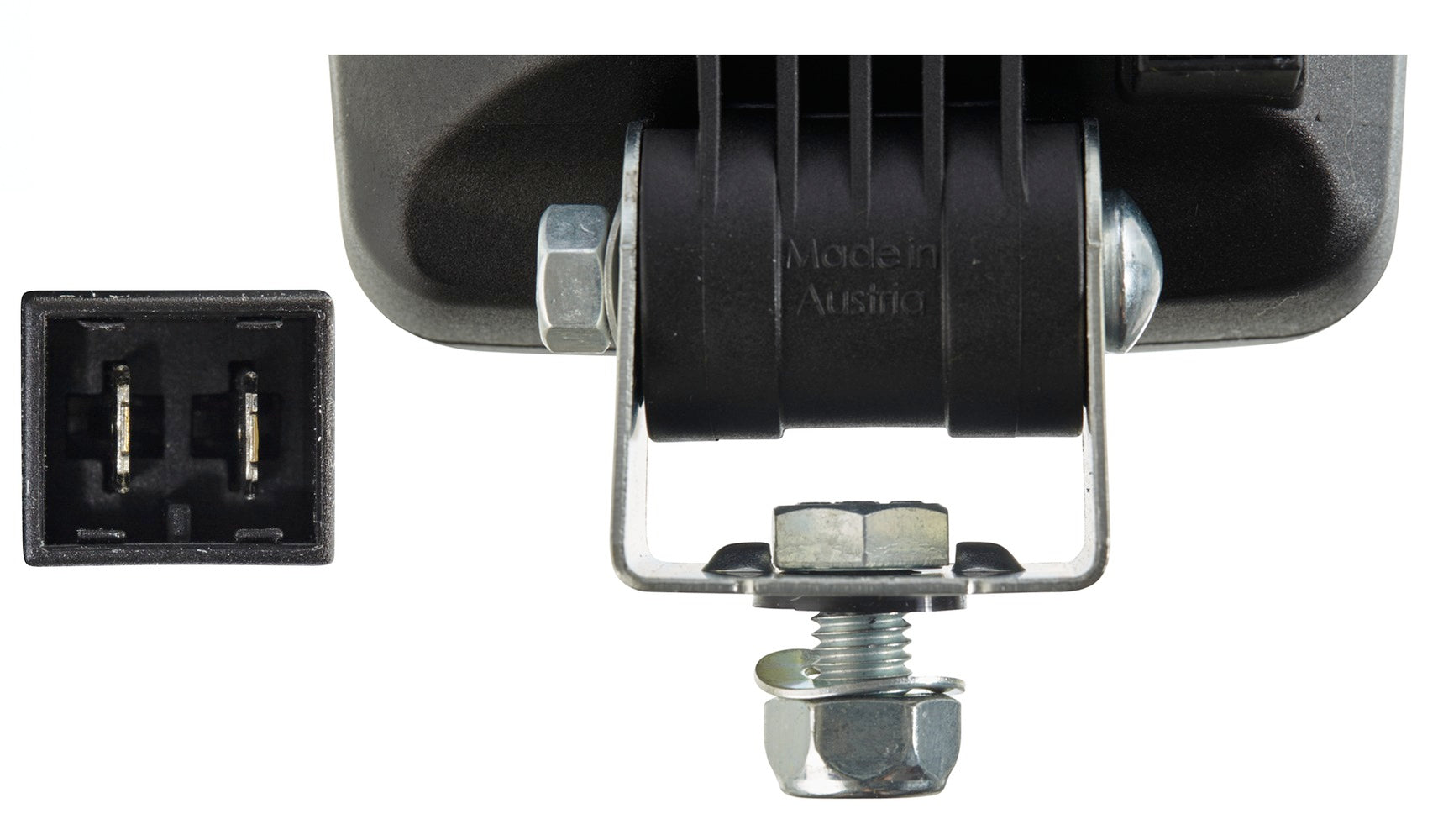

Plug: AMP
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Type: Patterned diffusing lens
Prot.type (IP Code): IP6K9K
Quantity: 1
Light Distribution: Short-Range Illumination
Registration Type: ADR/GGVS
Supplementary Article/Supplementary Info 2: without cable / without bulbs
Assembly by qualified personnel required!

OE references: AGRIFAC 7788682; AHLMANN 0029959; AHLMANN 4109323A; ATLAS COPCO 1089.9306.02; BUCHER 622048A; CASE IH 0 605315 16; CATERPILLAR 00137330; CATERPILLAR 00137350; CLAAS 001 373 50; CLAAS 013 733 0; DAF 1529598; DAF 867450; DEMAG 00293212; DEUTZ-FAHR 011 6046038; DEUTZ-FAHR 044 11937.4; DEUTZ-FAHR 044 24195.4; DEUTZ-FAHR 044 25599.4; DEUTZ-FAHR 160 46038; DEUTZ-FAHR 280 392950; DEUTZ-FAHR 280 39295010; DEUTZ-FAHR 280 392960; DOLL 7028317; FAUN 7482 62; FAYMONVILLE 7792; FELDBINDER 066244; FUCHS 5350661225; HAMM 1272209; HITACHI 389121-53150; HOLDER 023683; HÜFFERMANN 2-EL0019-0600; HYSTER 1646407; HYUNDAI 21N6-DA0580; HYUNDAI (CNJ) 21N6-DA0580; IKARUS 700.04 0093-293; IKARUS 70004-93293; JCB 700/38800; JCB 700/43900; JCB 700/50022; JCB 700/50091; JCB 700/50102; JOHN DEERE AZ 55 467; JOHN DEERE F0 38 788; JUNGHEINRICH 05035227; JUNGHEINRICH 50051471; JUNGHEINRICH 51134940; KAMAG 80333485; KÄSSBOHRER 8-955-000-117; KÖGEL 333485; KÖGEL 80333485; KRAMER 1404500; KRONE 0924635/0; KRONE 0924635/1; KRONE 5815436; KRONE 5815436/0; LANGENDORF 1084179; LIEBHERR 6 071 083 05; LINDE 000 974 04 23; LINDE 000 974 04 43; LINDE 000 974 04 49; LINDE 608458; LINDE 95353204; MANITOU 4109323A; MASSEY FERGUSON 4291408M92; MASSEY FERGUSON 4291409M91; MERCEDES-BENZ 000 482 57 04; MERCEDES-BENZ A 000 482 57 04; MERCEDES-BENZ A 00Q 482 57 04 ; MERCEDES-BENZ A QEV 111 AC AC KM; MERCEDES-BENZ Q482 5704; MERCEDES-BENZ QEV111ACACKM; NÄRKO 2172104550; PAUS 512678; REFORM H093000390; ROSENBAUER 757324; ROSENBAUER M1149-981000; SAME 16046038; SAME ABCD; SANY B241100000052; SCANIA 1906629; SCANIA 1906630; SCHWARZMÜLLER 40481; SOMMER 2800871001; STEINBOCK 050 35227; STILL 000 974 04 49; STILL 0174907; STILL 527885; STILL 608458; STILL 95353204; STILL 9740423; STILL 9740443; TEREX 00293212; TEREX 5350661225; TEREX 94700293212; TIMBERJACK F038788; TOYOTA 0050178; TOYOTA 56660-FSF94-71; VALMET 3420300; VALMET 3420330; VALMET 34203300; VALMET 4 291 408 M92; VALMET 4 291 409 M91; VAN HOOL 10704299; VOLVO 2907377; ZIEGLER 186247
