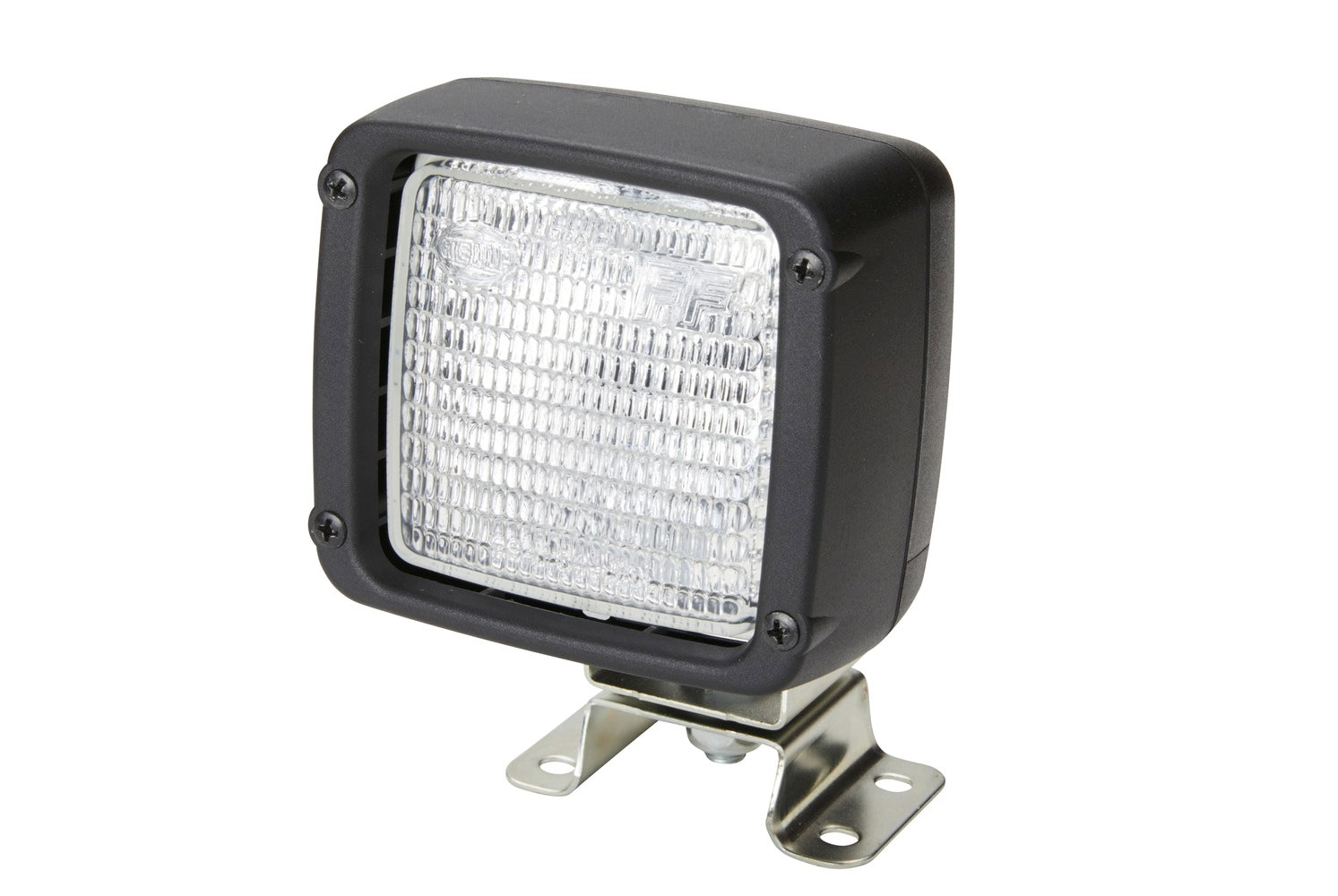

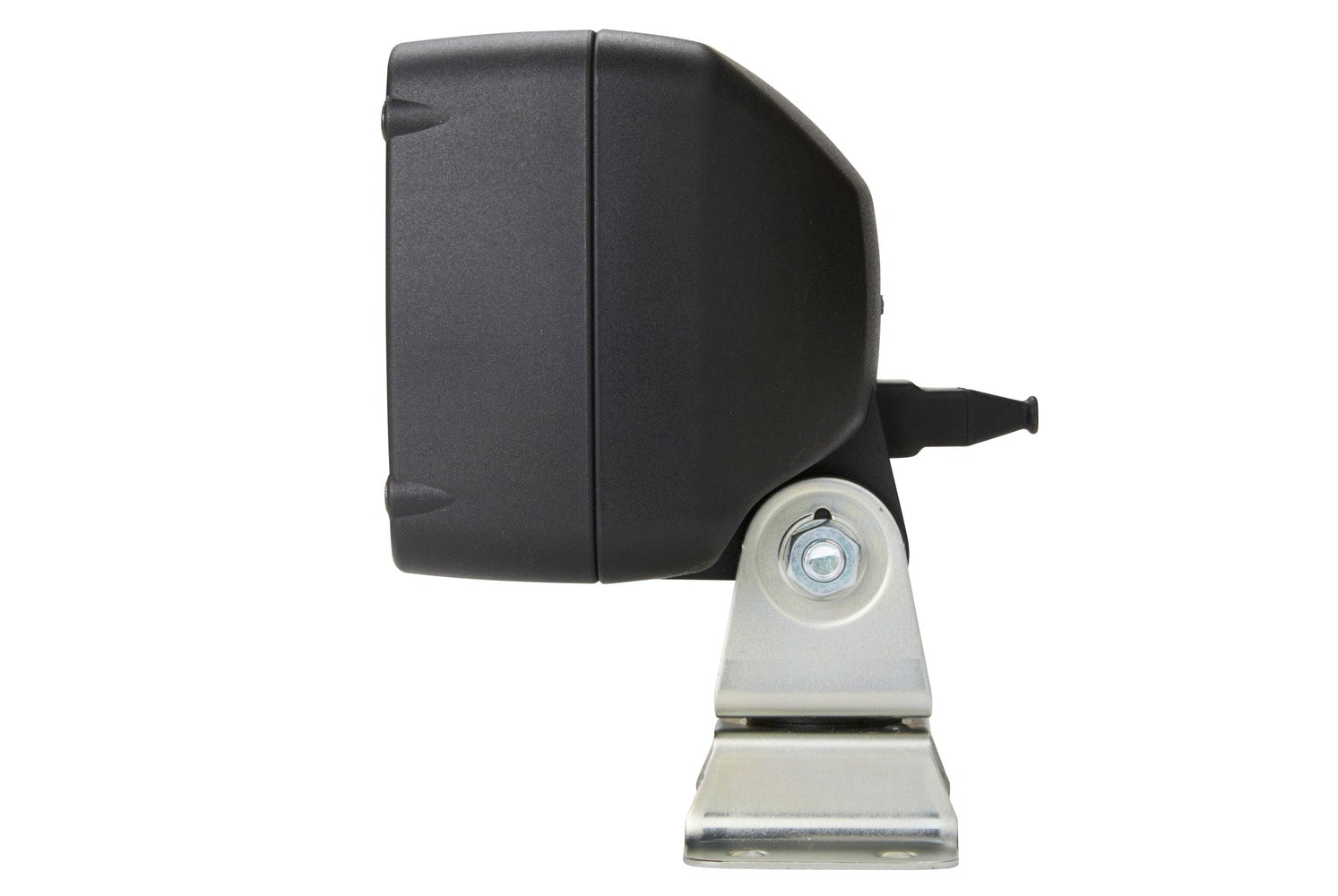

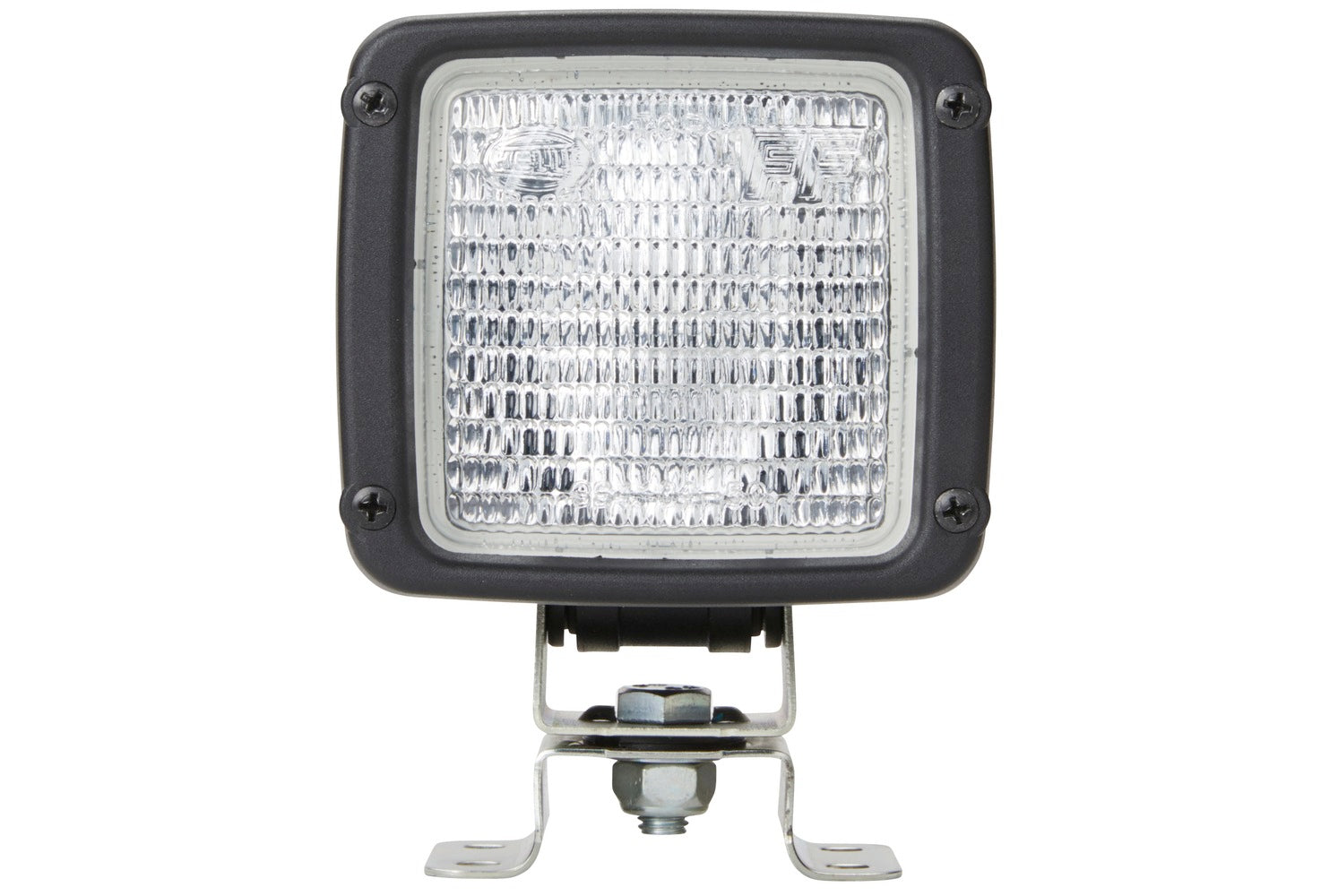

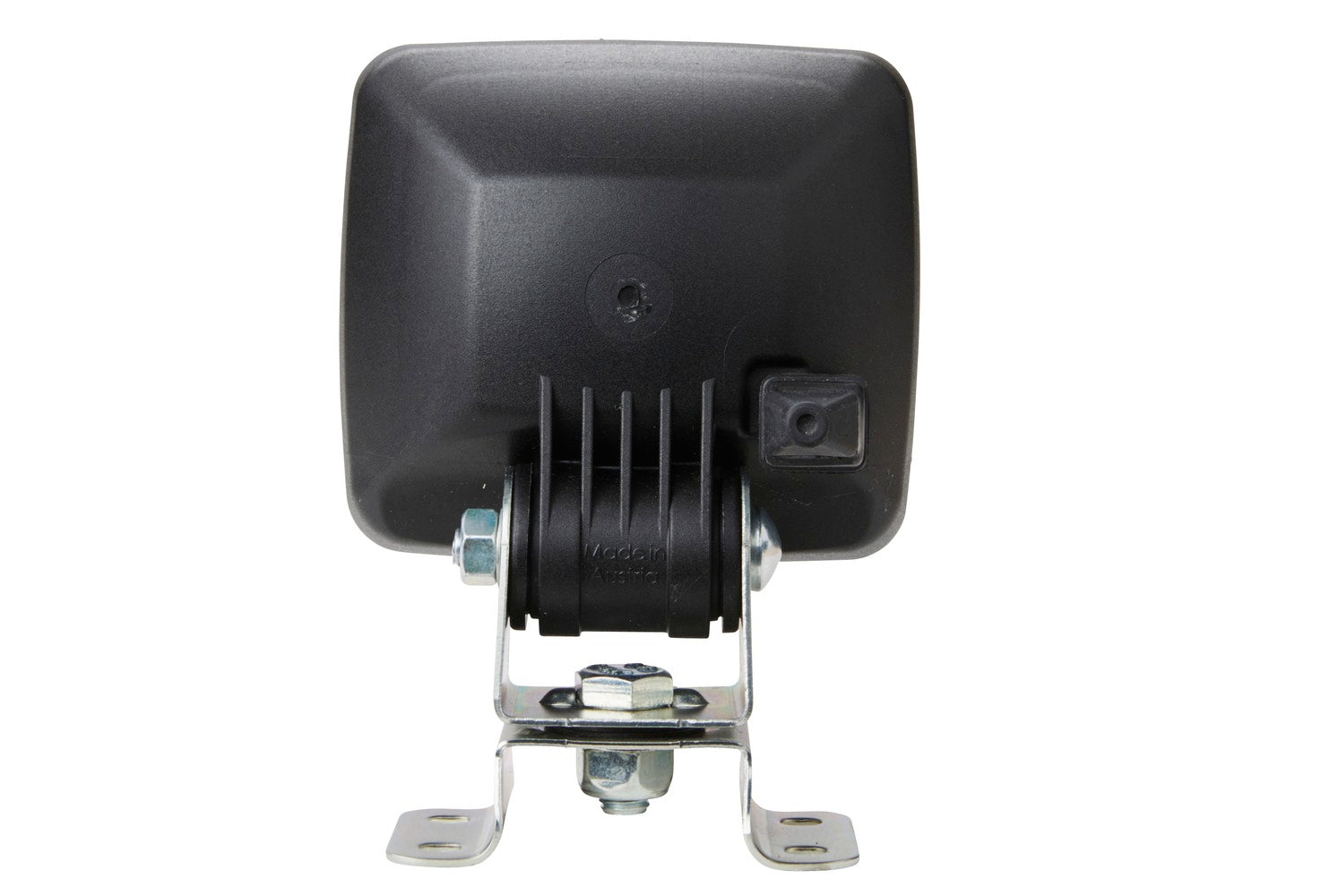

HELLA Halogen-Worklight - Ultra Beam - 12/24V 1GA007506-011

Halogen-Worklight - Ultra Beam - 12/24V - mounting/Screw Connection - Four-point attachment - Ground Illumination - Plug: AMP

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.

• The aluminium reflector of the worklight is based on free-form technology.
• Despite its compact dimensions, the reflector ensures excellent lighting performance. An H3 bulb is used as the light source.
• The headlamp insert can be rotated. This makes the unit suitable for upright and suspended mounting.
• The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.
• The housing is provided with a protruding edge to protect the diffusing lens. Thanks to its compact dimensions, the worklight can be used universally.
• Lamp Type: H3
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Screw Connection
Fastening Type: Four-point attachment
Lamp Type: H3
Light Design: Halogen
Voltage: 24 V / 12 V
Width: 112 mm
Height: 152 mm
Depth: 97 mm
Diffusing Lens Material: Glass

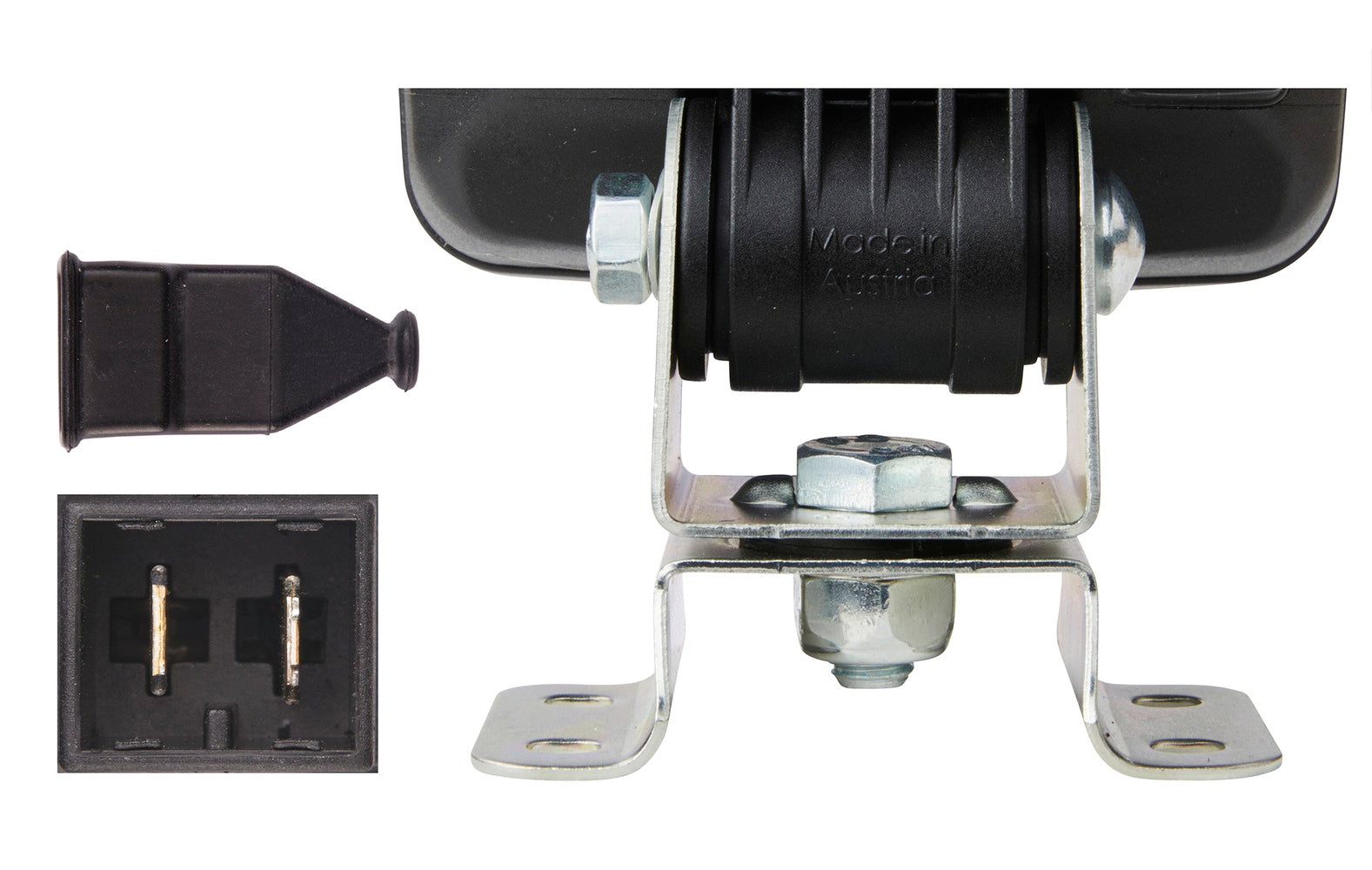

Plug: AMP
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Type: Patterned diffusing lens
Prot.type (IP Code): IP6K4K / IP6K9K
Light Distribution: Ground Illumination
Registration Type: ADR/GGVS
Supplementary Article/Supplementary Info 2: without bulbs / without cable
Assembly by qualified personnel required!

OE references: AEBI 1237365-6; AEBI 18-3410550; AEBI 327283-7; ATLAS COPCO 5350.661.215; AUDI KDWHLO9132; BUCHER 622048; DAF 1335901; DOOSAN 79908; DRONNINGBORG 26747974; FAUN 5243-536; FELDBINDER 063504; FRUEHAUF L-SX0311-002; HITACHI 396121-53130; HOLMER 1019016186; IVECO 500258460; JOHN DEERE F0 38 788; JUNGHEINRICH 14739480; KÄSSBOHRER 7.517.127.000; KÄSSBOHRER 7.517.127.000.0; KEMPF 4402003; KÖGEL 70026636; KRAUSS-MAFFEI 17351630N0000; KRONE 0924635/0; LIEBHERR 1 001 442 3; LIEBHERR 7 412 253; LIEBHERR 7 412 253 03; LINDE 95353285; LINDNER 3004850; MAFI 000,580,0039; MANITOU 153251; REFORM 900530177; ROSENBAUER 074696; SCANIA 1021070; SCANIA 17506011; SCANIA 1906631; SCANIA 20223884; SCHAEFF 5350661215; SCHWARZMÜLLER 43572; SOLARIS 4533-005265-00; STEYR 7.581.85.001; STILL 95353285; STILL 999039; TEREX 5350661215; TEREX 5350661227; TIMBERJACK F038788; VAN HOOL 10937210; VDL 03980; VDL 04412; VDL 10937210; VOLVO 2804482; VW A 37 - 3140; VW KDWHLO9132; YANMAR 5350661227; ZIEGLER 178994
