HELLA Halogen-Worklight - Ultra Beam - 12/24V 1GA007506-391

Halogen-Worklight - Ultra Beam - 12/24V - mounting/Bolted - Vertical/Swivelling Mounting Bracket - Short-Range Illumination - Plug: DEUTSCH plug

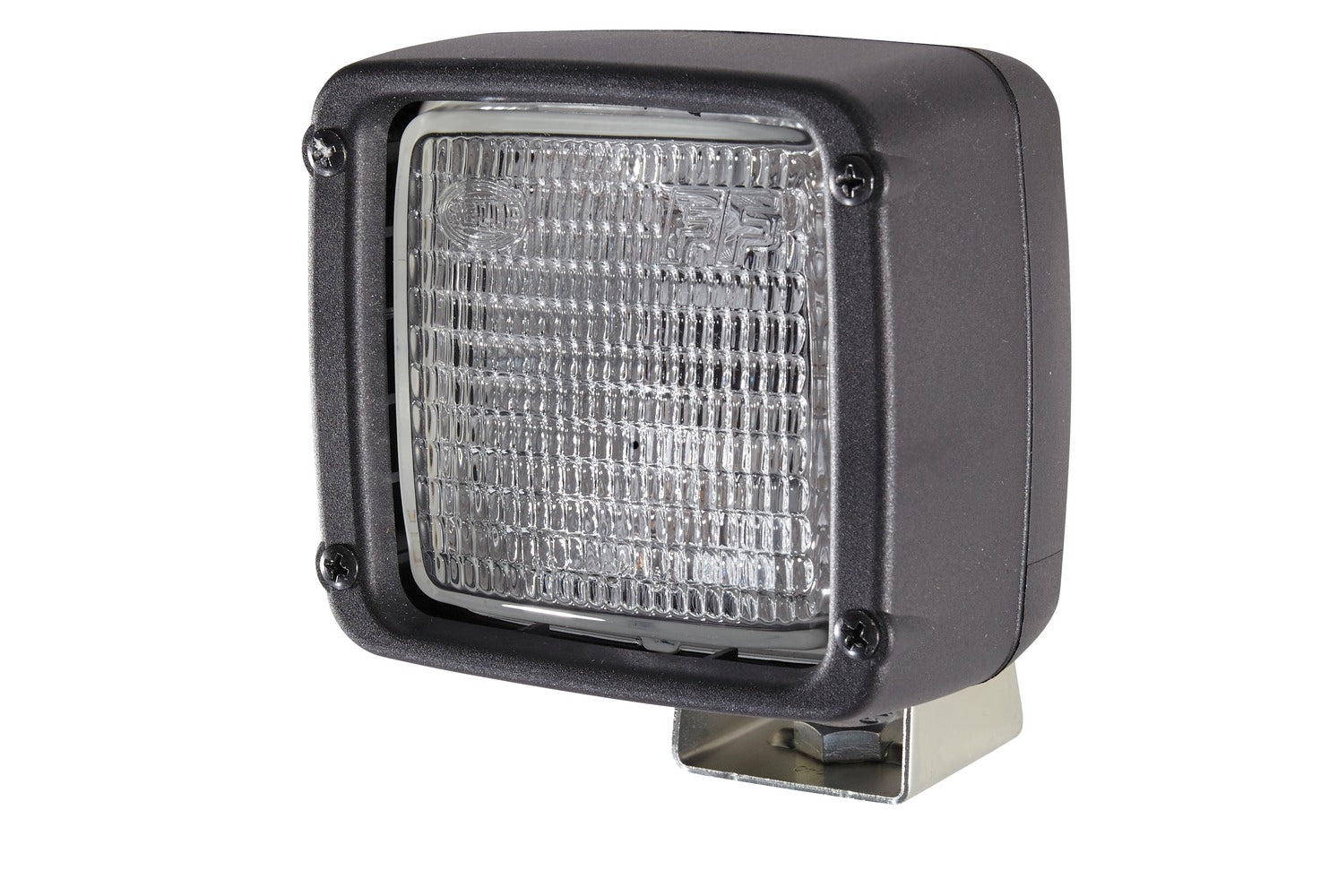

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.

• The aluminium reflector of the worklight is based on free-form technology.
• Despite its compact dimensions, the reflector ensures excellent lighting performance. An H3 bulb is used as the light source.
• The headlamp insert can be rotated. This makes the unit suitable for upright and suspended mounting.
• The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.
• The housing is provided with a protruding edge to protect the diffusing lens. Thanks to its compact dimensions, the worklight can be used universally.
• Lamp Type: H3 - Power consumption: 55/70W
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: Swivelling Mounting Bracket / Vertical
Light Design: Halogen
Lamp Type: H3
Voltage: 24 V / 12 V
Height: 127 mm
Width: 112 mm
Depth: 97 mm
Light Distribution: Short-Range Illumination

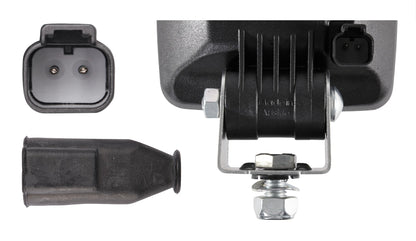

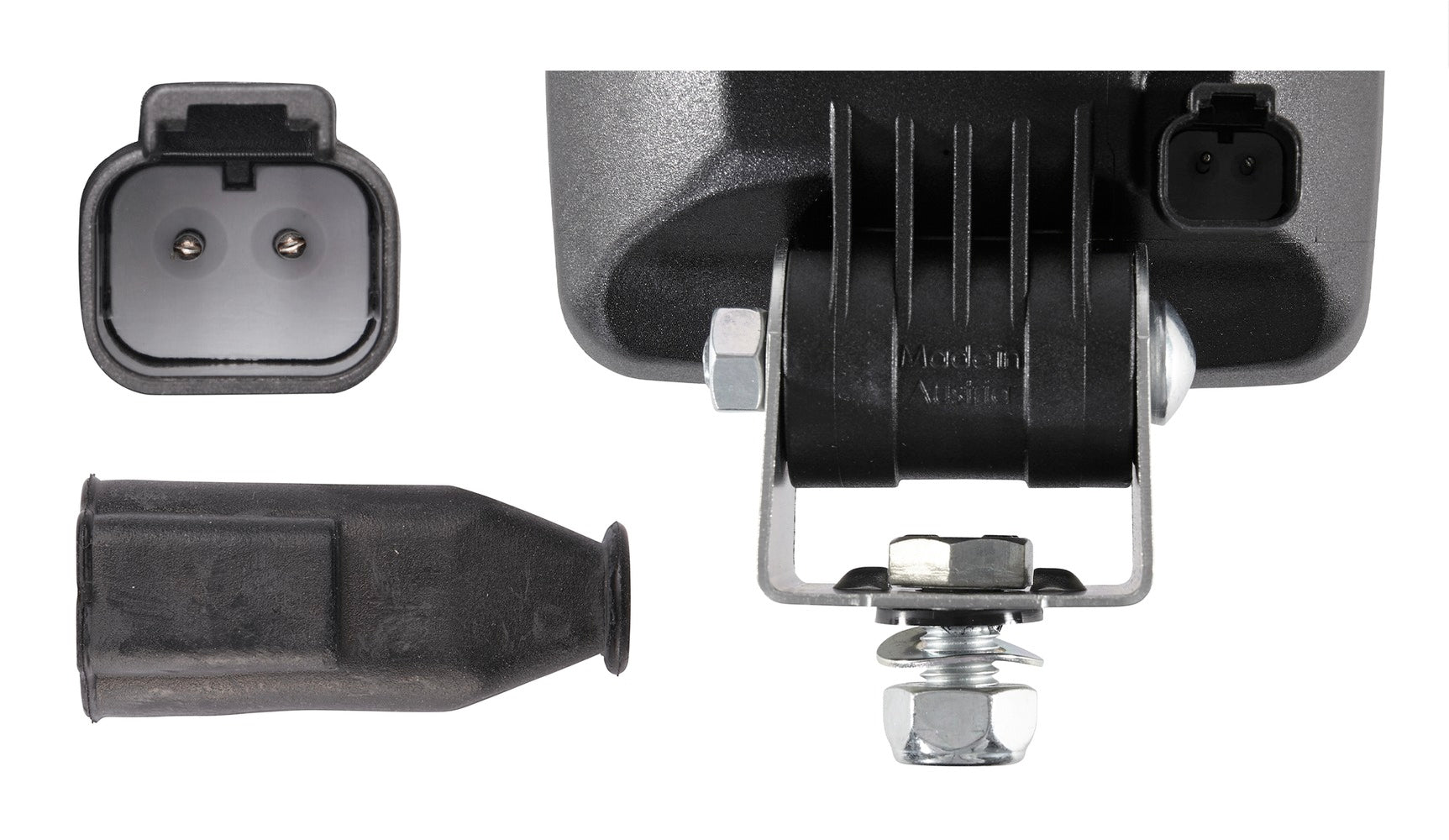

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K
Power consumption: 55 W / 70 W
Supplementary Article/Supplementary Info 2: without bulbs / without cable
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AGCO ST117192; DEMAG 17419312; JCB 700/50029; JCB 700/50063; JOHN DEERE AZ 55 467; LIEBHERR 3 730 300; LIEBHERR 5 999 400; LIEBHERR 7 027 205; LIEBHERR 9 732 200; LINDE 000 974 04 55; LINDE 95353204; ROSENBAUER 859110; STILL 95353204; STILL 9740455; TEREX 17419312; TEREX 2037.110.0009; TEREX 94717419312
