HELLA Halogen-Worklight - Ultra Beam - 24/12V 1GA007506-021

Halogen-Worklight - Ultra Beam - 24/12V - mounting/Screw Connection - Four-point attachment - Short-Range Illumination - Plug: AMP

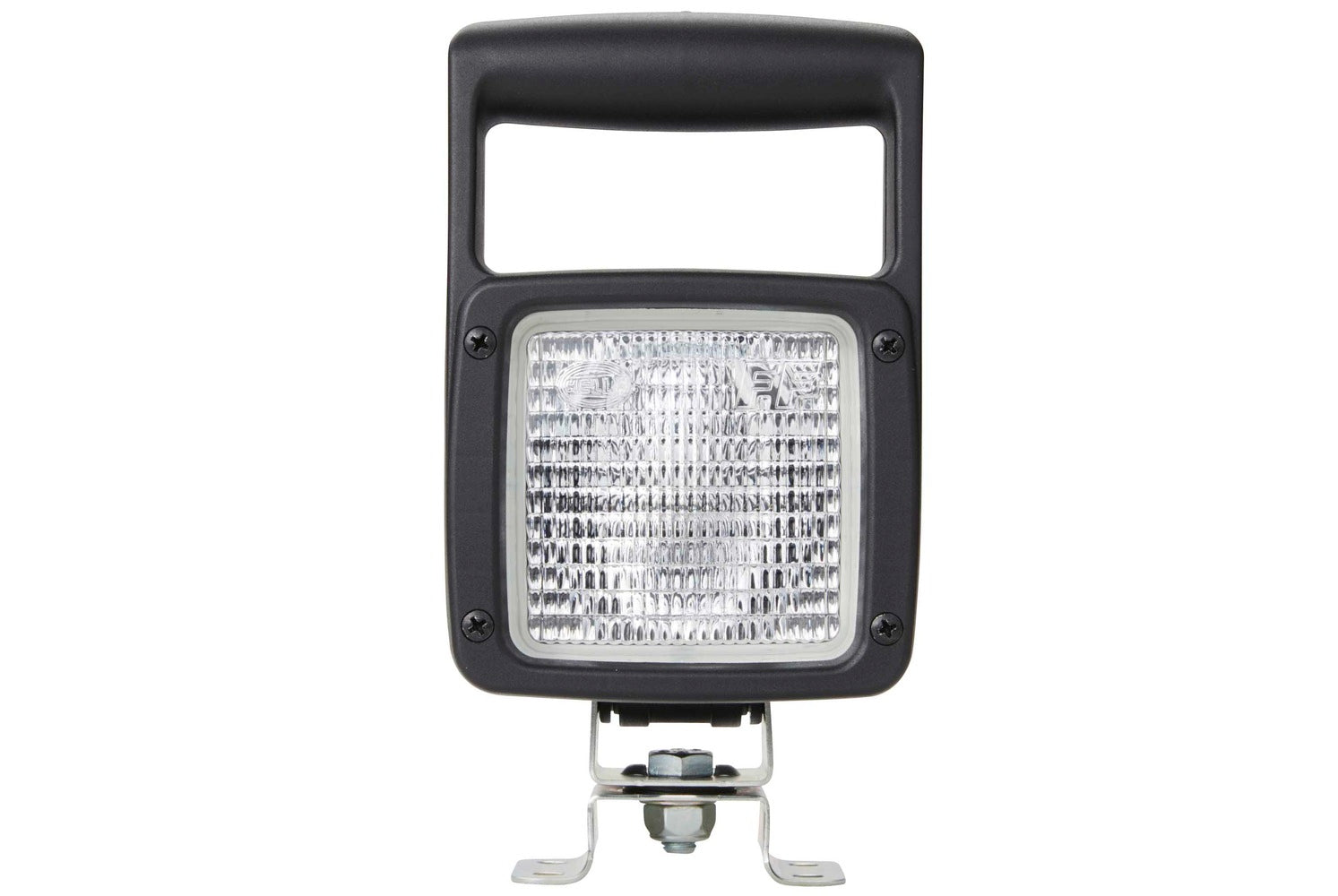

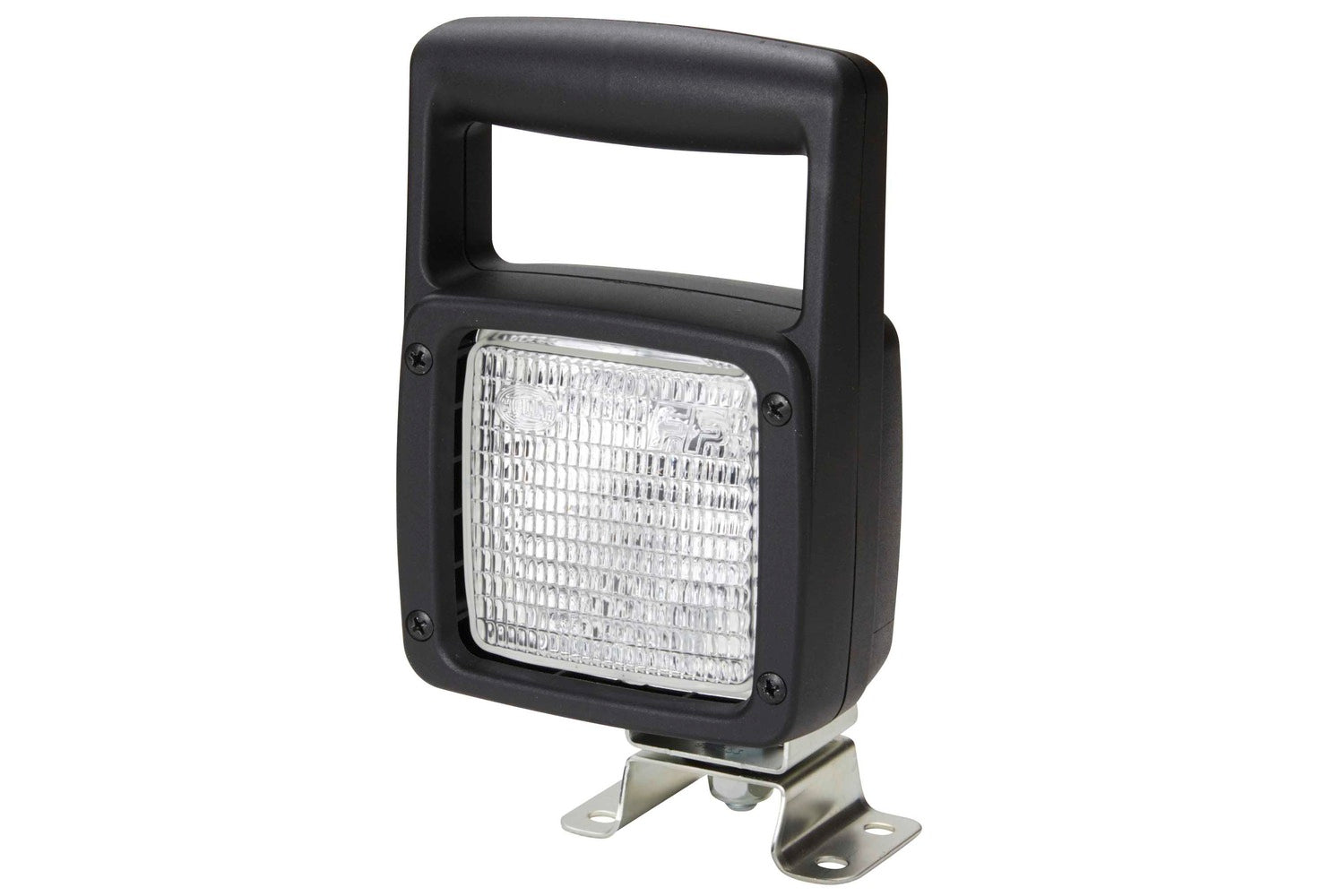

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.

• The aluminium reflector of the worklight is based on free-form technology.
• Despite its compact dimensions, the reflector ensures excellent lighting performance. An H3 bulb is used as the light source.
• The headlamp insert can be rotated. This makes the unit suitable for upright and suspended mounting.
• The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.
• The housing is provided with a protruding edge to protect the diffusing lens. Thanks to its compact dimensions, the worklight can be used universally.
• Lamp Type: H3 - Power consumption: 55/70W
• Patterned diffusing lens

Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: Four-point attachment
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 214 mm
Width: 115 mm
Depth: 97 mm
Light Distribution: Short-Range Illumination

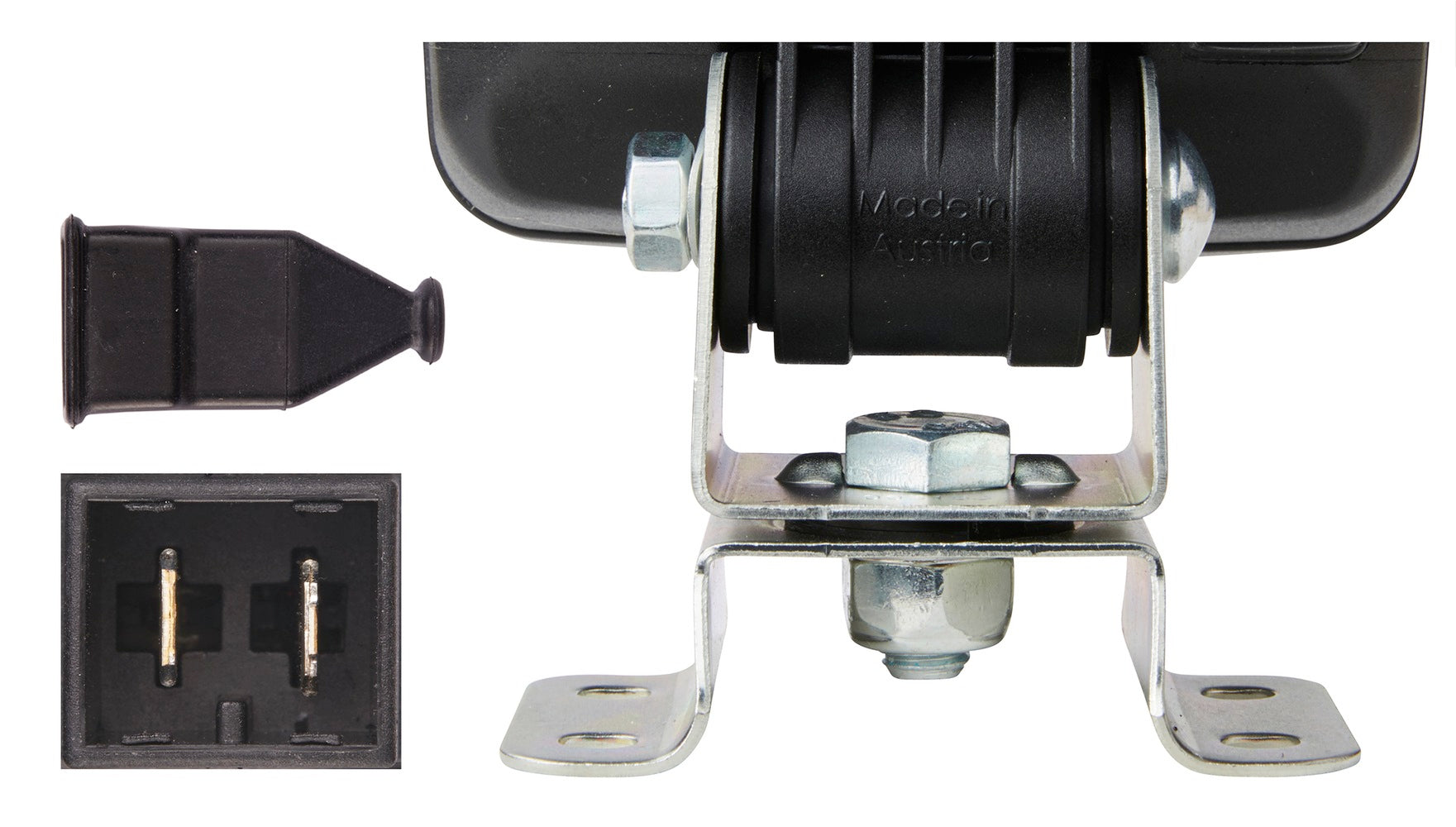

Plug: AMP
Prot.type (IP Code): IP6K9K
Power consumption: 70 W / 55 W
Supplementary Article/Supplementary Info 2: without cable / without bulbs / with handle
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AEBI 0237281-1; AMMANN 1869805; DAF 1683694; DEUTZ-FAHR 160 50113; FELDBINDER 063503; FELDBINDER 1003273; GOLDHOFER 992445; IVECO 41914894; JUNGHEINRICH 14436780; JUNGHEINRICH 16172560; LANGENDORF 1241124; LINDE 000 974 04 22; MANITOU 685082; PAUS 512691; ROSENBAUER FE0027; SAME 16050113; SCANIA 1934130; SCHMITZ CARGOBULL 444739; VOLVO 54758230
