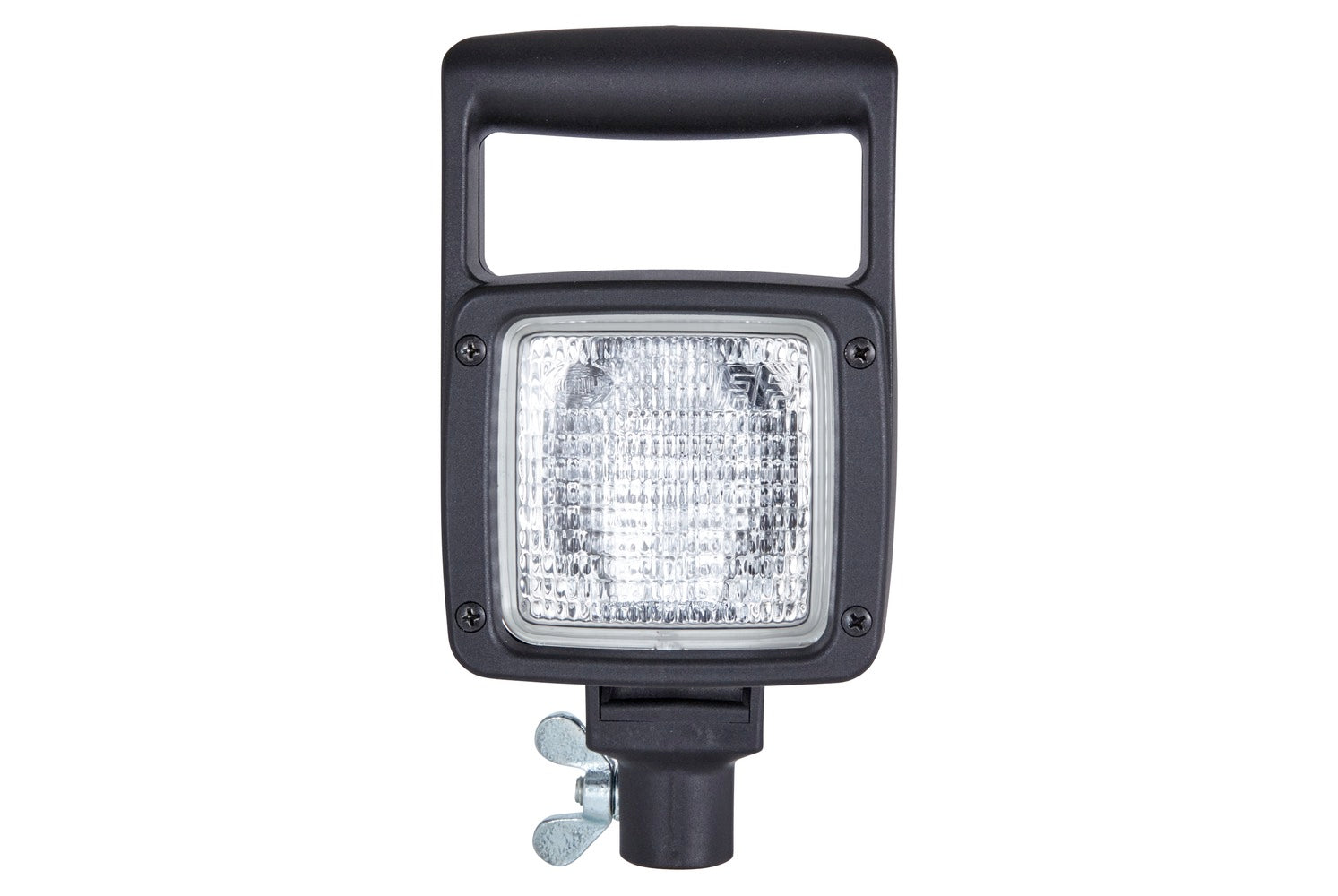

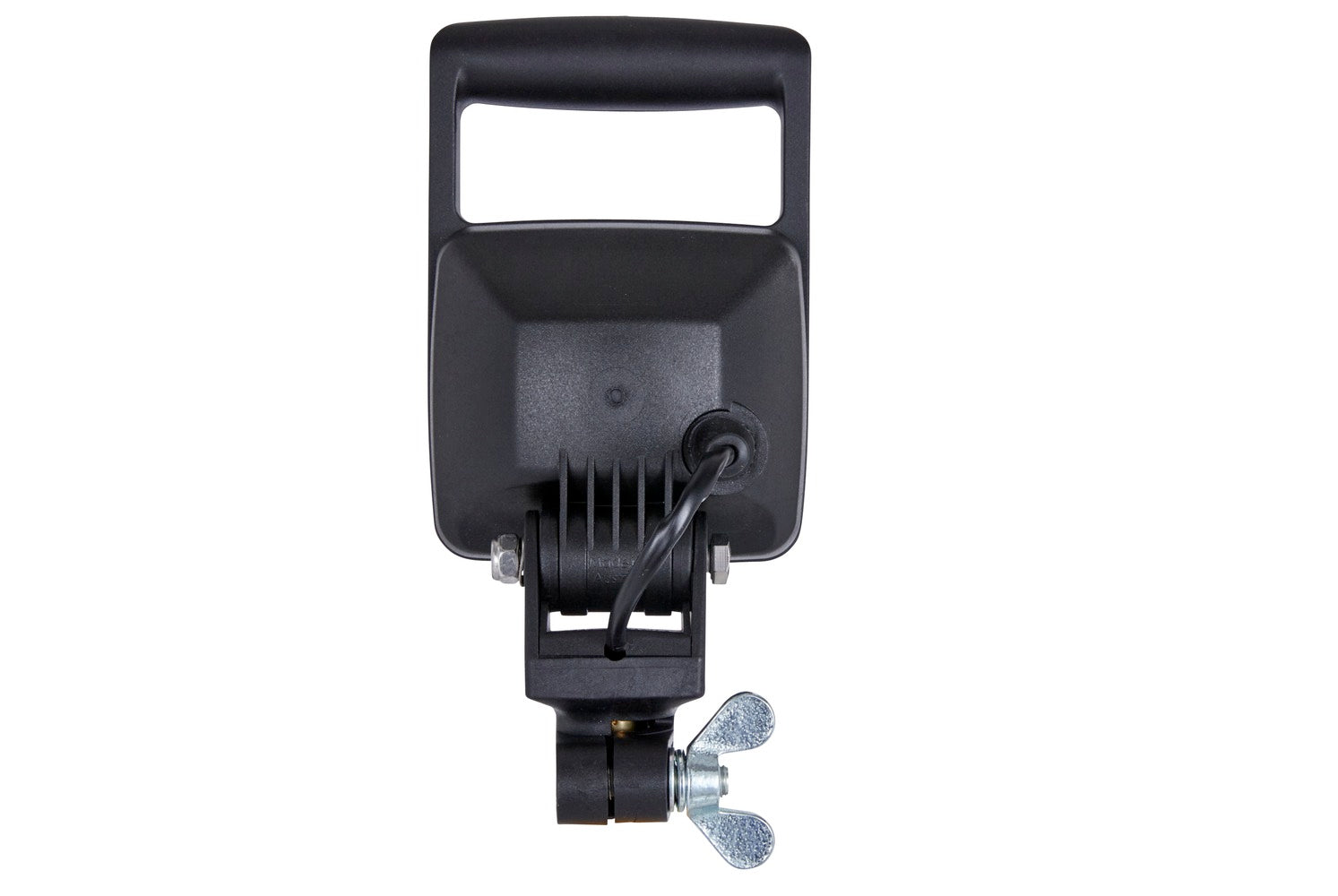

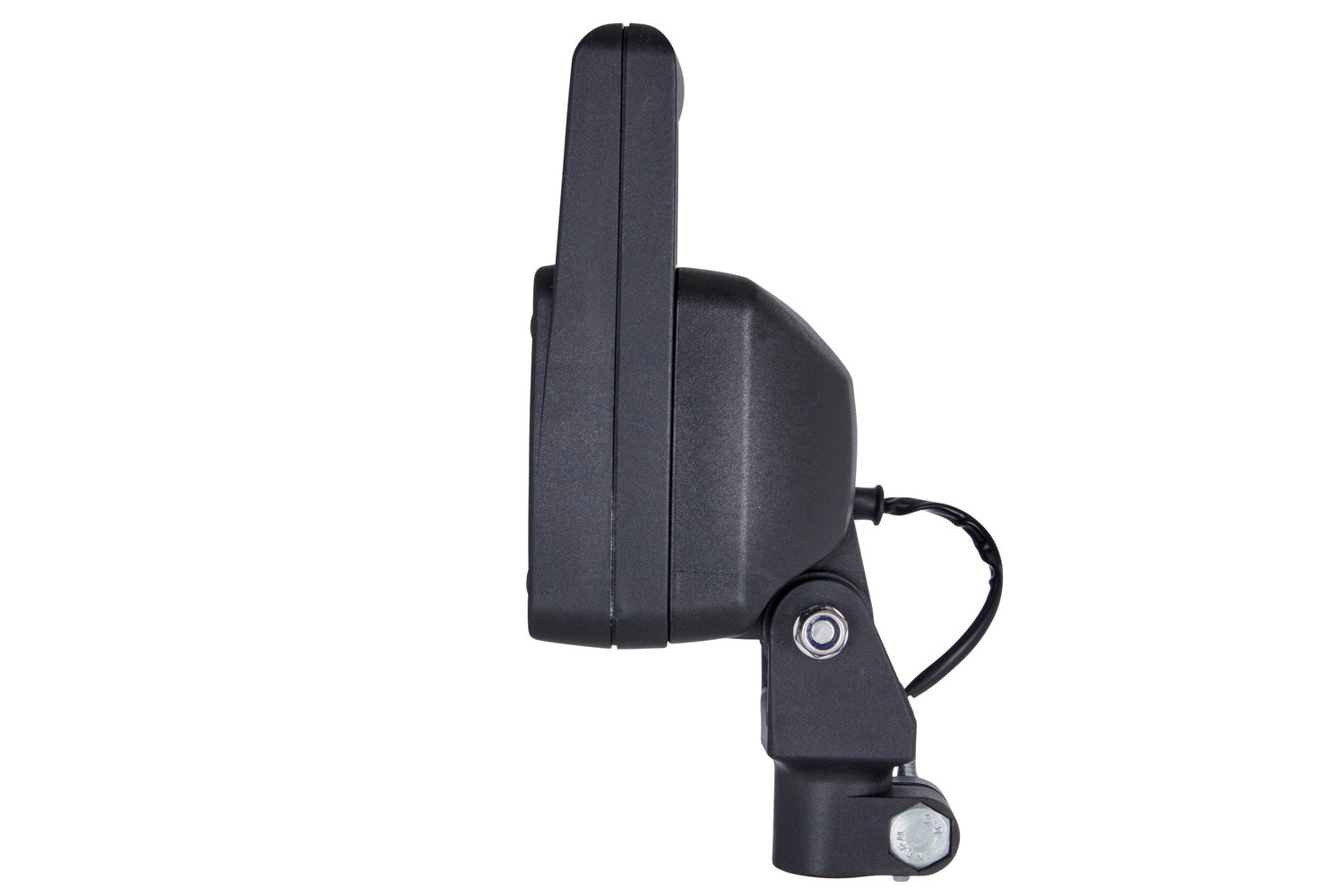

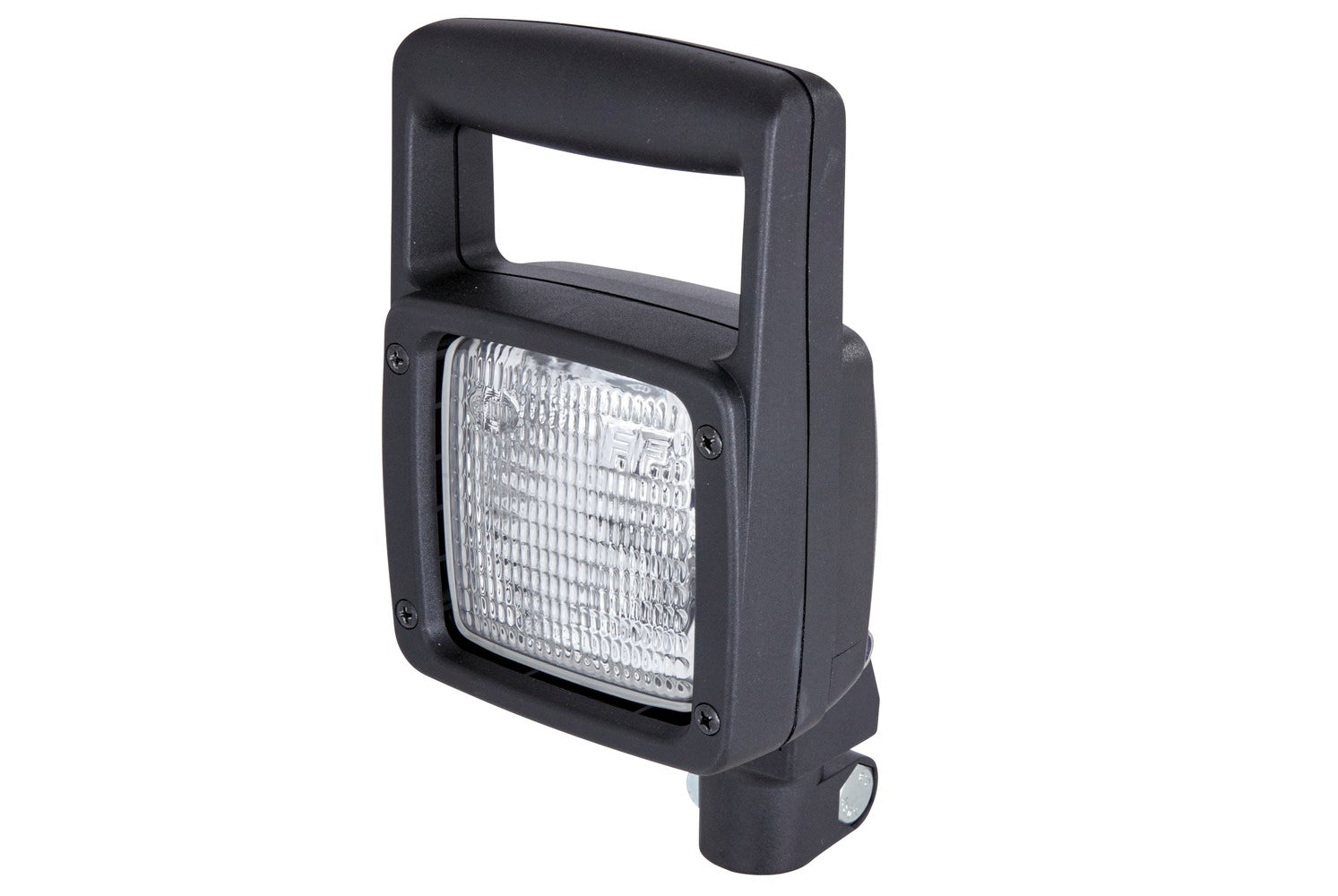

HELLA Halogen-Worklight - Ultra Beam - 24V 1GA007506-681

Halogen-Worklight - Ultra Beam - 24V - Pipe-neck/mounting - Short-Range Illumination - Plug: Female

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.

• The aluminium reflector of the worklight is based on free-form technology.
• Despite its compact dimensions, the reflector ensures excellent lighting performance. An H3 bulb is used as the light source.
• The headlamp insert can be rotated. This makes the unit suitable for upright and suspended mounting.
• The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.
• The housing is provided with a protruding edge to protect the diffusing lens. Thanks to its compact dimensions, the worklight can be used universally.
• Lamp Type: H3 - Power consumption: 55/70W
• Patterned diffusing lens

Item Attributes:

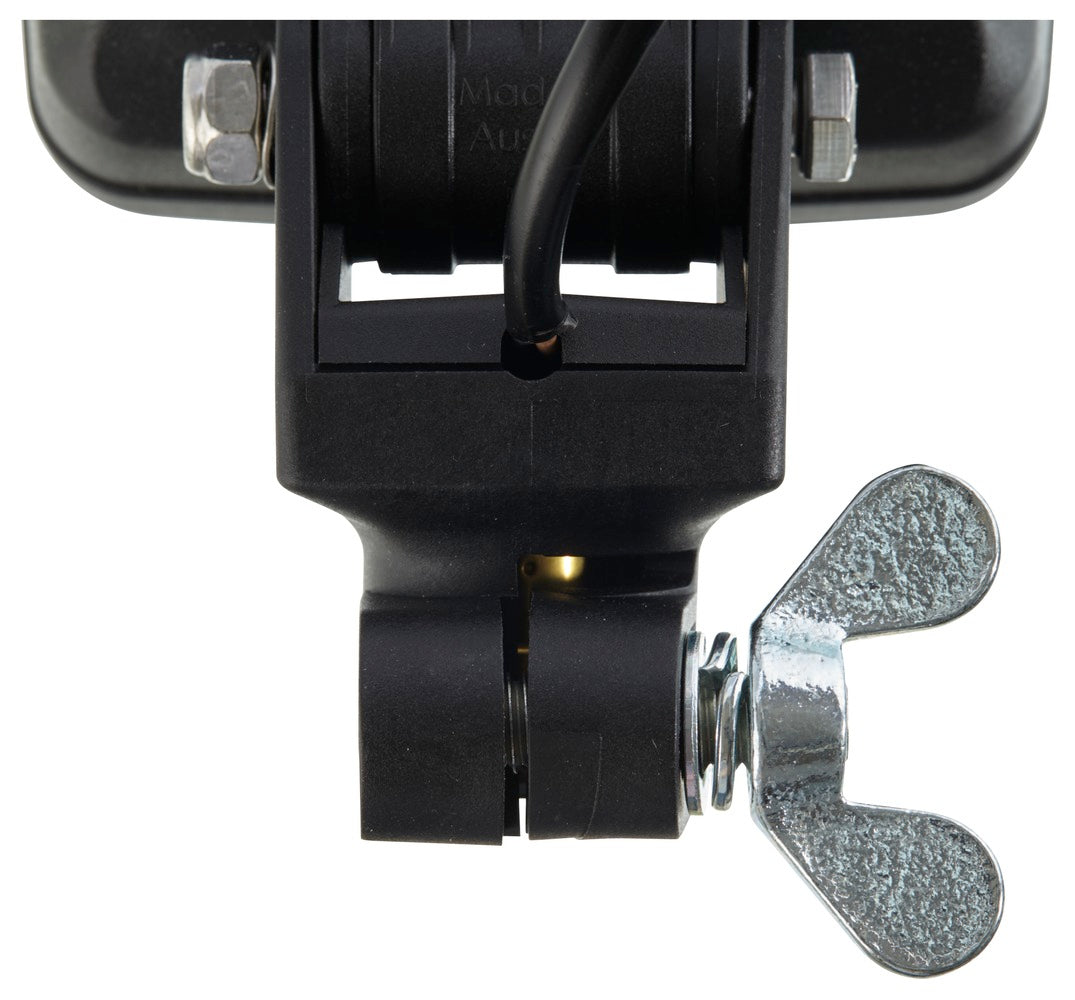

Mounting Type: Pipe-neck / mounting
Light Design: Halogen
Lamp Type: H3
Voltage: 24 V
Height: 230 mm
Width: 115 mm
Depth: 94 mm
Light Distribution: Short-Range Illumination
Plug: Female
Prot.type (IP Code): IP6K9K
Power consumption: 55 W / 70 W
Supplementary Article/Supplementary Info 2: with handle / with rubber grommet / without cable
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: BOMAG 057 512 73; CASE IH 1 40 572 0021; CASE IH 1 405 720 02; CATERPILLAR 374-4623; CATERPILLAR 374-4623G; DAF 906488; DEMAG 00053012; LIEBHERR 1 100 725 3; MANITOU 52500895; MERCEDES-BENZ 425 820 01 01; MERCEDES-BENZ A 425 820 01 01; SPERRY NEW HOLLAND 1-40-572-0021; STEYR 1 40 572 0021; WEIRO 23063
