HELLA Headlight - 12V 1SA996120-461

Headlight - 12V - yellow (amber) - Plug: AMP - right

• The M120 combination headlamp is optimised for additional use on agricultural and construction machinery thanks to its homogeneous, wide and long-range illumination of the field of vision without inherent glare.
• The reflector is made of plastic with a glued glass diffuser.
• The housing and the glass holder frame are also made of plastic with a protruding edge to protect the diffusing lens.
• A major advantage of the M120 is its symmetrical light distribution. Thanks to this, no additional version of the headlamp for left-hand traffic is required.
• The spotlight is protected against water during high-pressure/steam jet cleaning according to IP protection class IP X9K.
• Width: 150mm - Height: 212mm - Depth: 101mm - Lamp Type: H7/T4W/H3/P21W - with bulbs
• Light functions: 4 - with indicator/with high beam/with low beam/with position light

Item Attributes:
Mounting Type: mounting
Fastening Type: for vertical fastening
Lamp Type: H7 / T4W / H3 / P21W
Voltage: 12 V
Fitting Position: right
Width: 150 mm
Height: 212 mm
Depth: 101 mm
Light Function: with indicator / with position light / with high beam / with low beam
Light functions: 4
Prot.type (IP Code): IPX9K / IP5K4K
fulfils ECE standard: R113

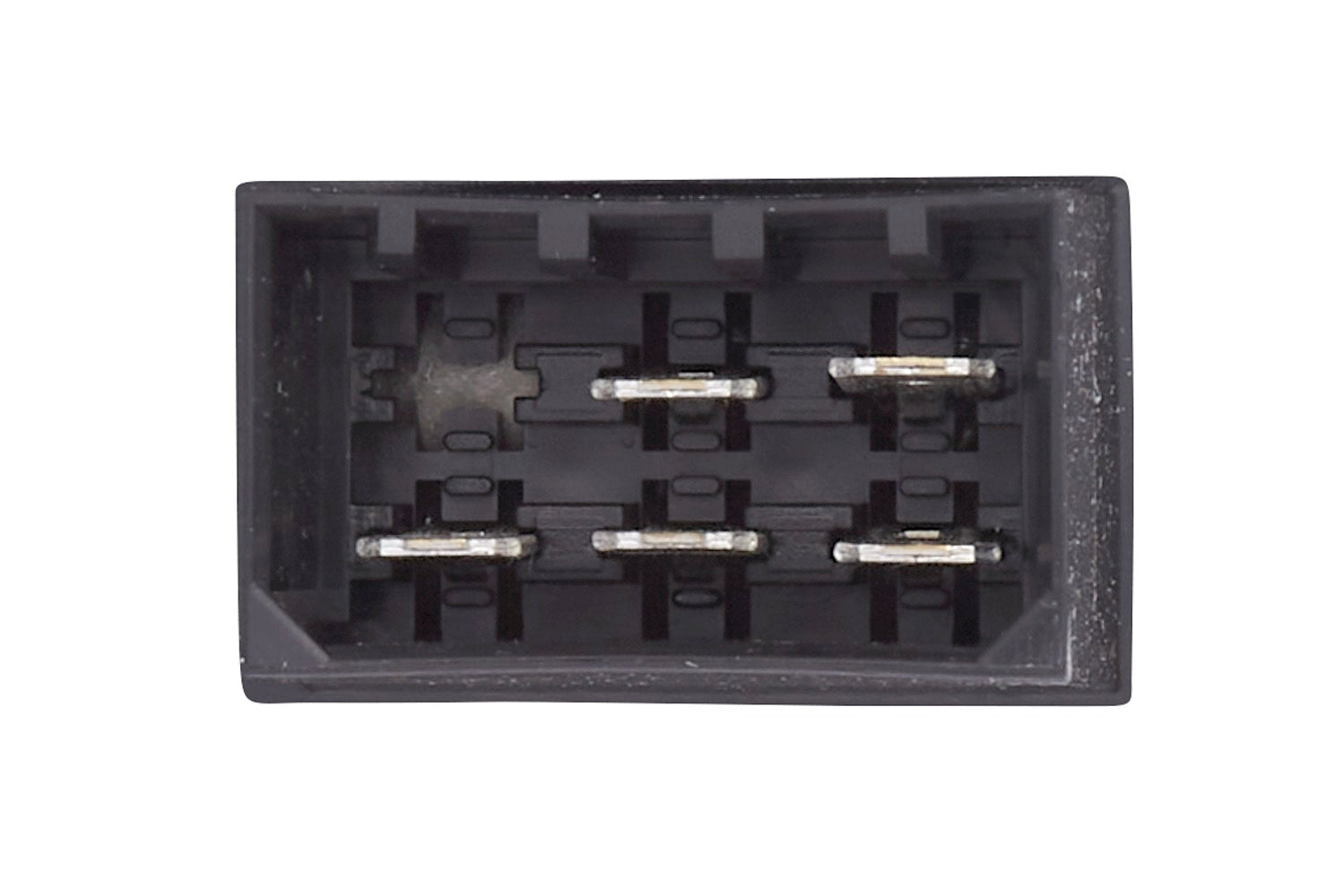

Plug: AMP
Housing Colour: black
Connector type: AMP
Lens Colour: yellow (amber)
Supplementary Article/Supplementary Info 2: with bulbs
Left-hand/Right-hand Traffic: for right-hand traffic
Assembly by qualified personnel required!

OE references: SCANIA 2767908
