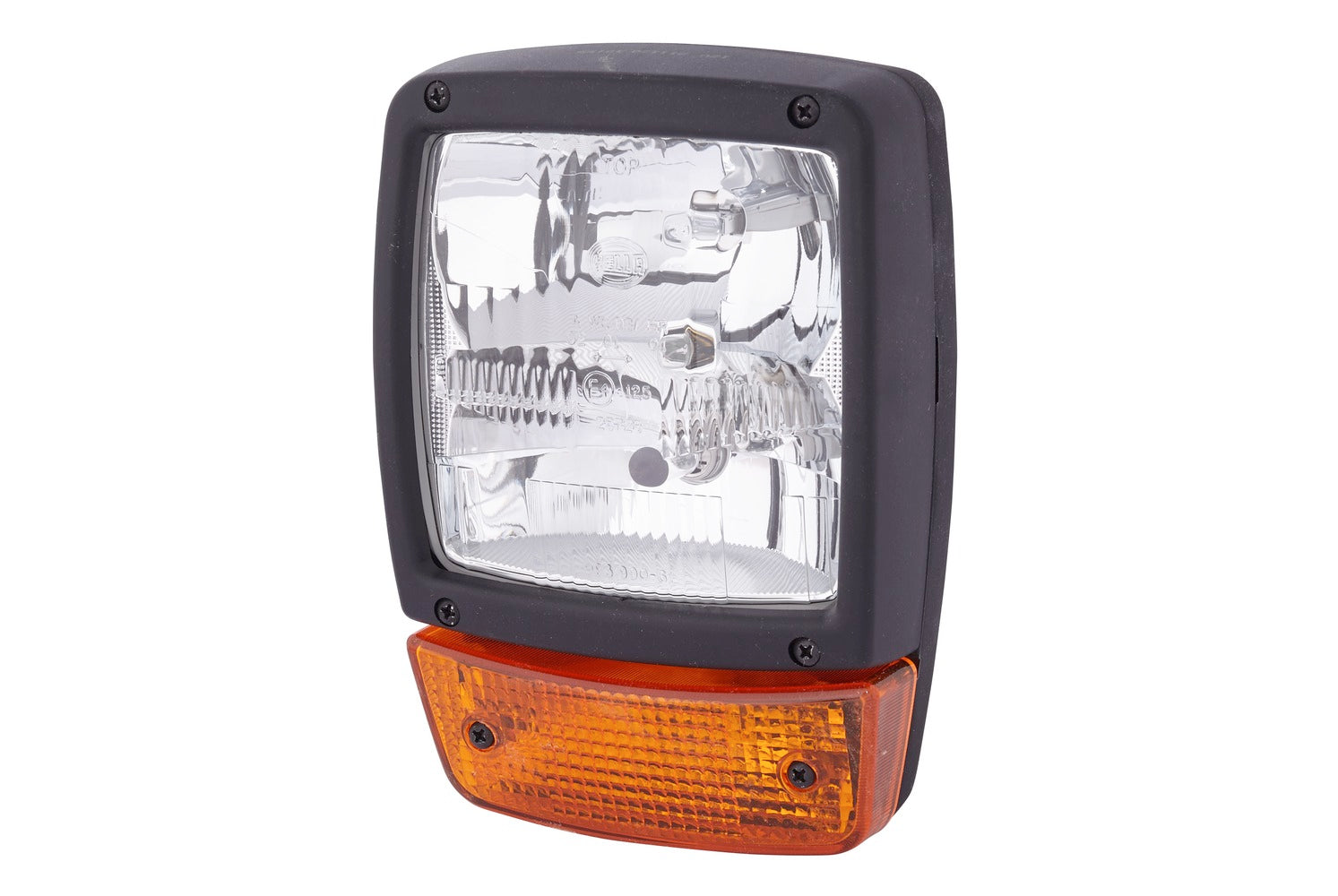

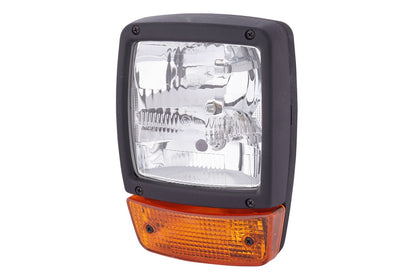

HELLA Headlight - 12V 1SA996120-471

Headlight - 12V - ECE - yellow (amber) - Plug: AMP - left/right

• The M120 combination headlamp is optimised for additional use on agricultural and construction machinery thanks to its homogeneous, wide and long-range illumination of the field of vision without inherent glare.
• The reflector is made of plastic with a glued glass diffuser.
• The housing and the glass holder frame are also made of plastic with a protruding edge to protect the diffusing lens.
• A major advantage of the M120 is its symmetrical light distribution. Thanks to this, no additional version of the headlamp for left-hand traffic is required.
• The spotlight is protected against water during high-pressure/steam jet cleaning according to IP protection class IP X9K.
• Width: 150mm - Height: 212mm - Depth: 101mm - Lamp Type: H3/H7/P21W/T4W - with bulbs
• Light functions: 4 - with low beam/with indicator/with high beam/with position light

Item Attributes:
Mounting Type: mounting
Fastening Type: for vertical fastening
Fitting Position: right / left
Lamp Type: P21W / T4W / H7 / H3
Light Function: with indicator / with high beam / with low beam / with position light
Voltage: 12 V
Width: 150 mm
Height: 212 mm
Depth: 101 mm

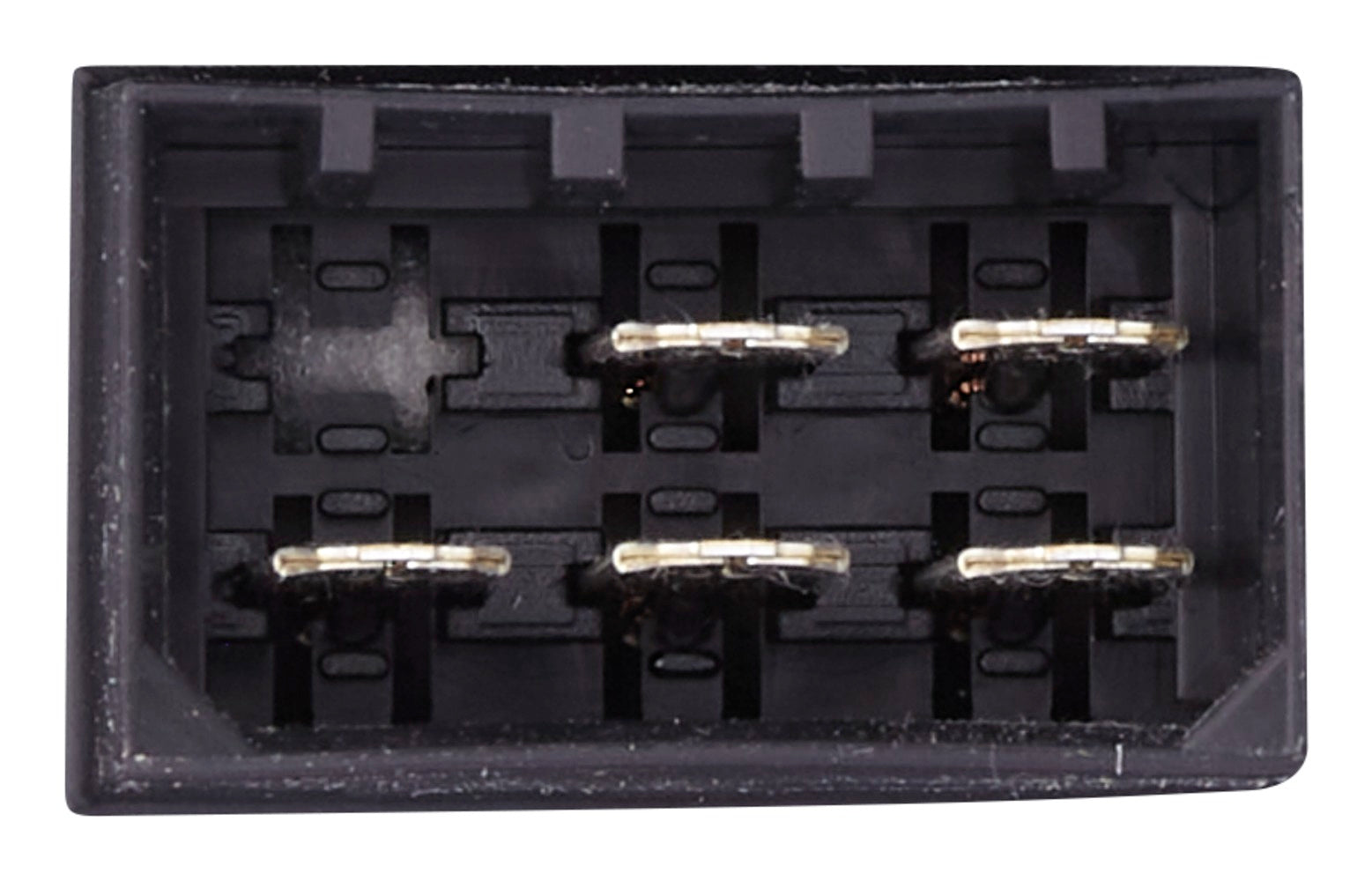

Connector type: AMP
Plug: AMP
Housing Colour: black
Lens Colour: yellow (amber)
Prot.type (IP Code): IP5K4K / IPX9K
fulfils ECE standard: R113
Light functions: 4
Registration Type: ECE
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!

OE references: GENERAL MOTORS ES244; KRAMER 1000378934; LIEBHERR 1 223 308 0; LINDE 0009740446; SCANIA SP1068207; WEIDEMANN 1000378934
