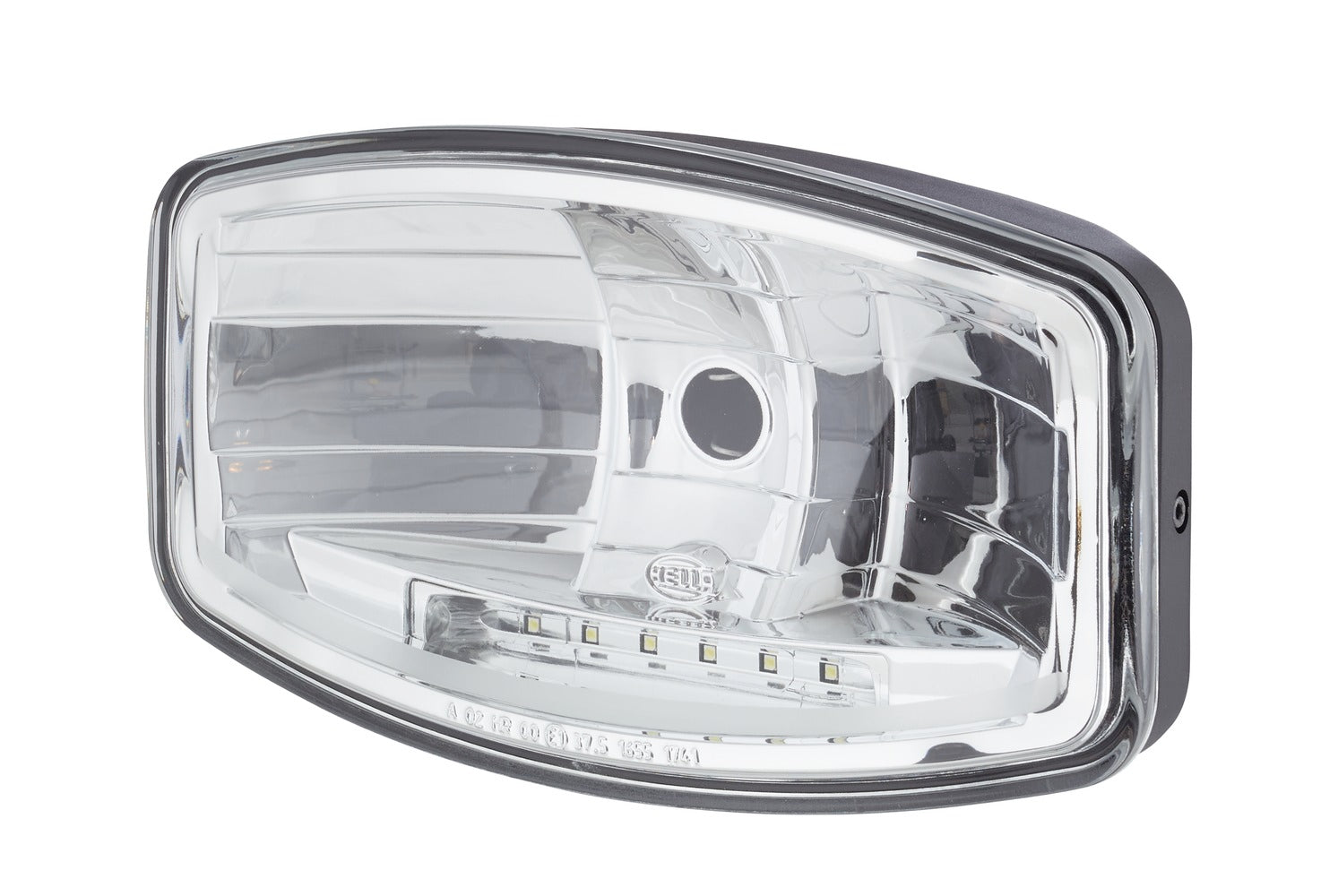

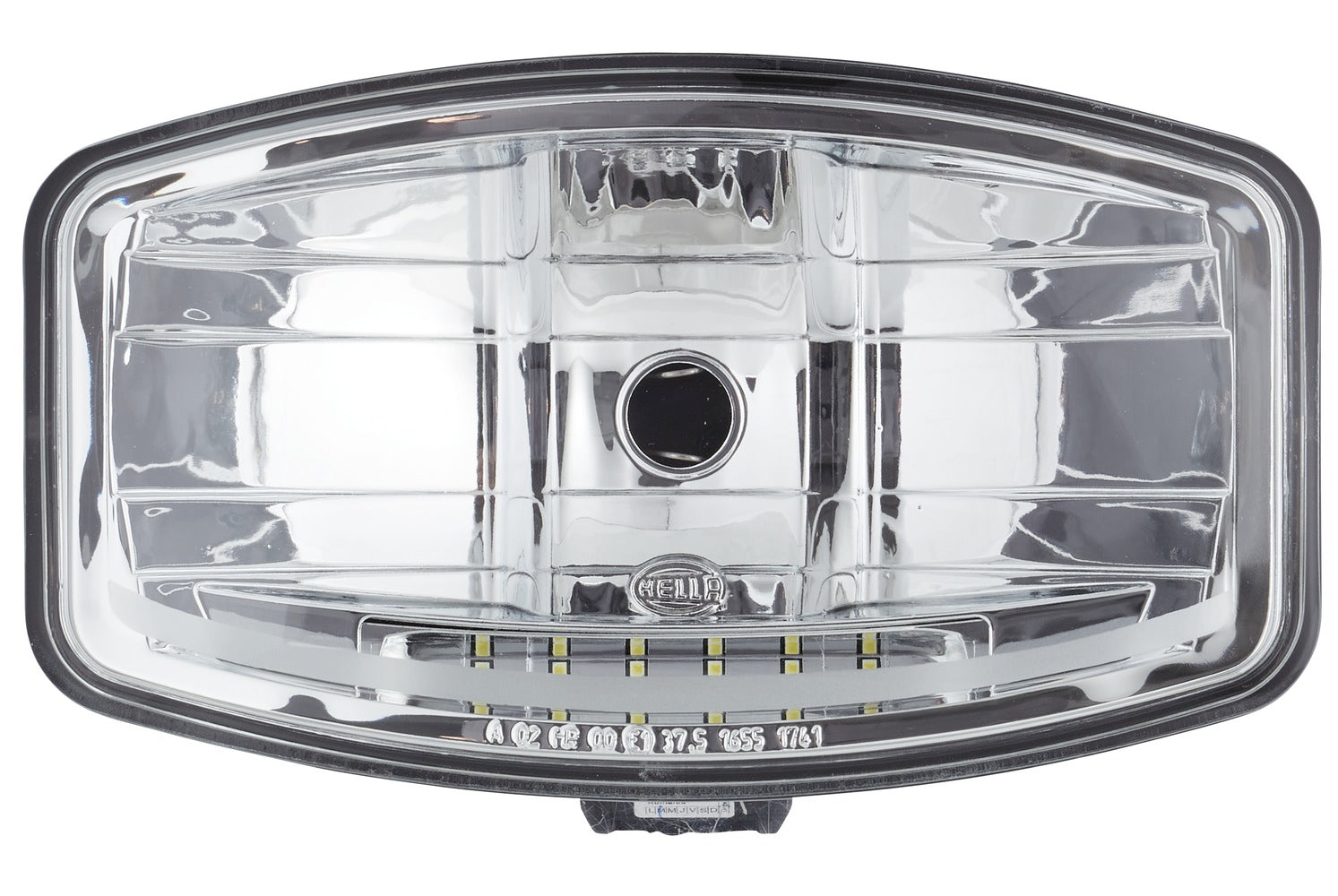

HELLA Hybrid/Halogen-Spotlight - Jumbo 320 - 24/12V - white 1FE008773-081

Hybrid/Halogen-Spotlight - Jumbo 320 - 24/12V - rectangular - ECE - Clear diffusing lens - Crystal clear - Light colour: white - right/left

The HELLA Jumbo 320: A large headlamp for large vehicles. This auxiliary headlamp not only makes an impressive impression from the outside, but also knows how to convince with its technical specifications and material properties. The housings are made of robust plastic. High-boost reflectors specially developed for the rectangular shape provide maximum light output. The variant with additional LED position light with 6 high-performance LEDs also leads to significantly improved vehicle visibility and thus offers an additional safety gain.

• H7 driving lamp with position light made of 6 high-power LEDs with bluish-white light
• High-boost reflectors specially developed for the rectangular shape offer maximum luminous efficiency

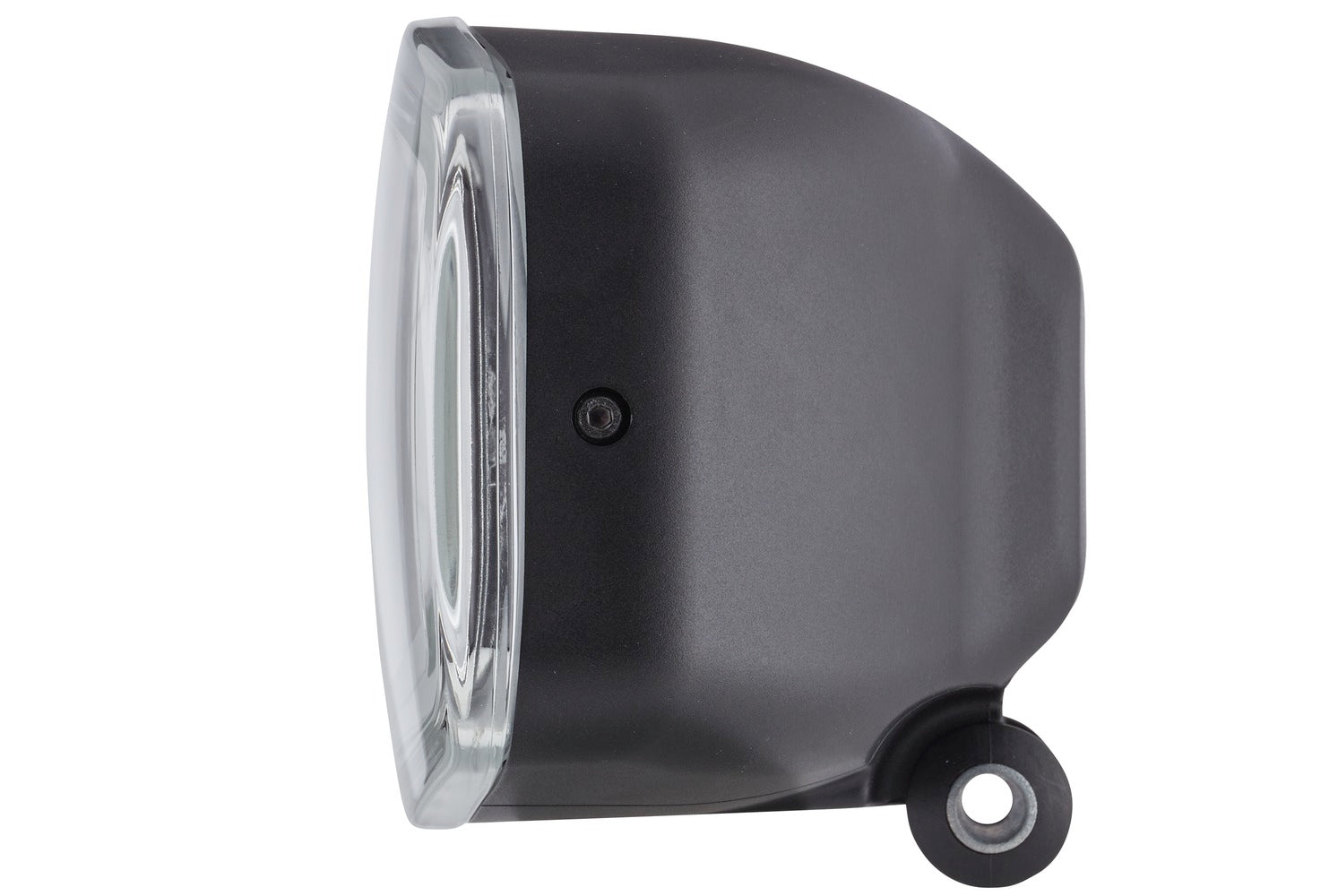

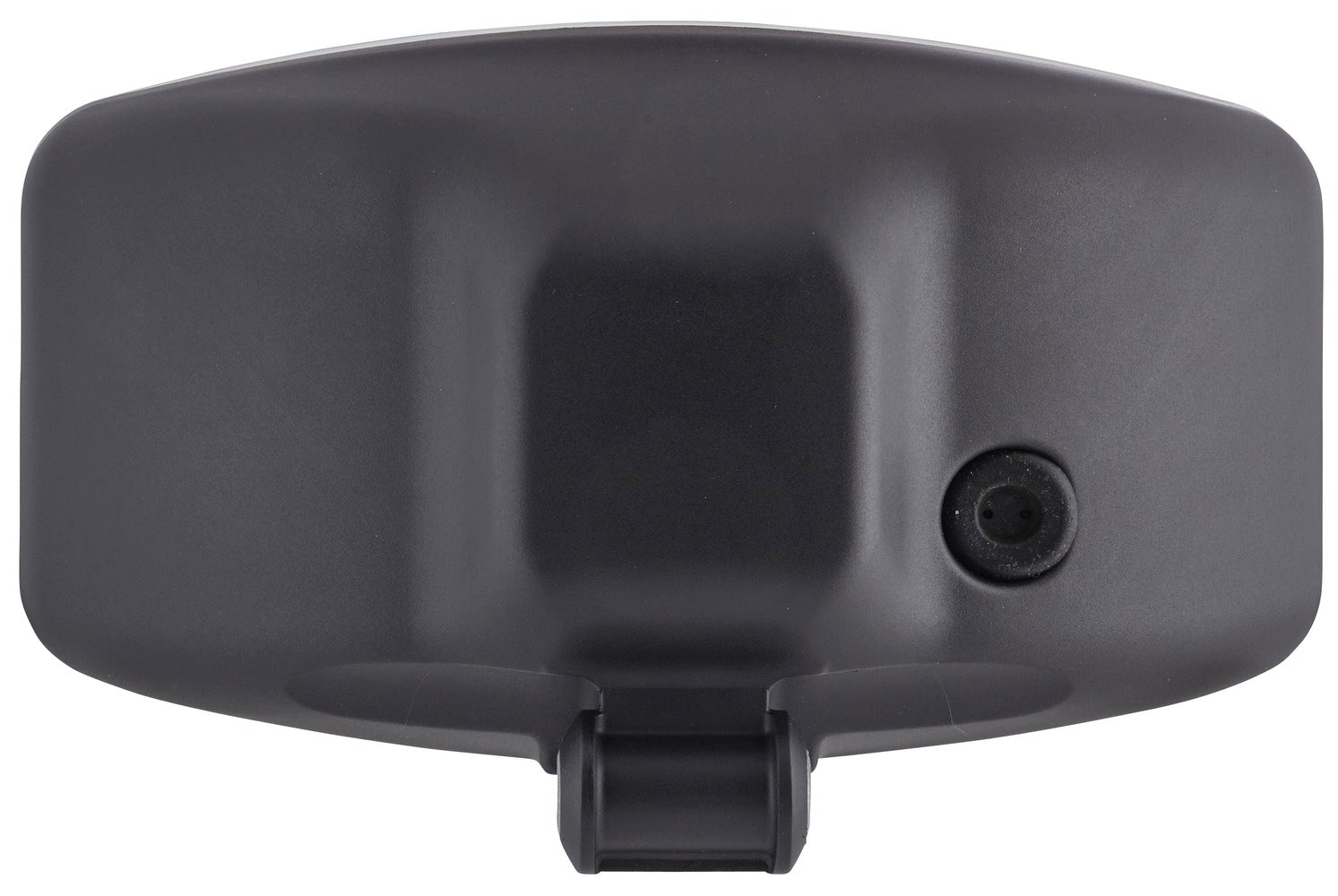

• Robust plastic housing
• Die-cast metal reflector
• Length: 141mm - Width: 247mm - Height: 141mm - Depth: 124mm - Fitting Depth: 23mm - Overall Height: 161mm - Lamp Type: LED/H7 - Number of LEDs: 6 - without bulb
• Light functions: 2 - with position light (LED)/with high beam
• Registration Type: ECE - fulfils ECE standard: R7/R112/R10

Item Attributes:
Mounting Type: Bolted

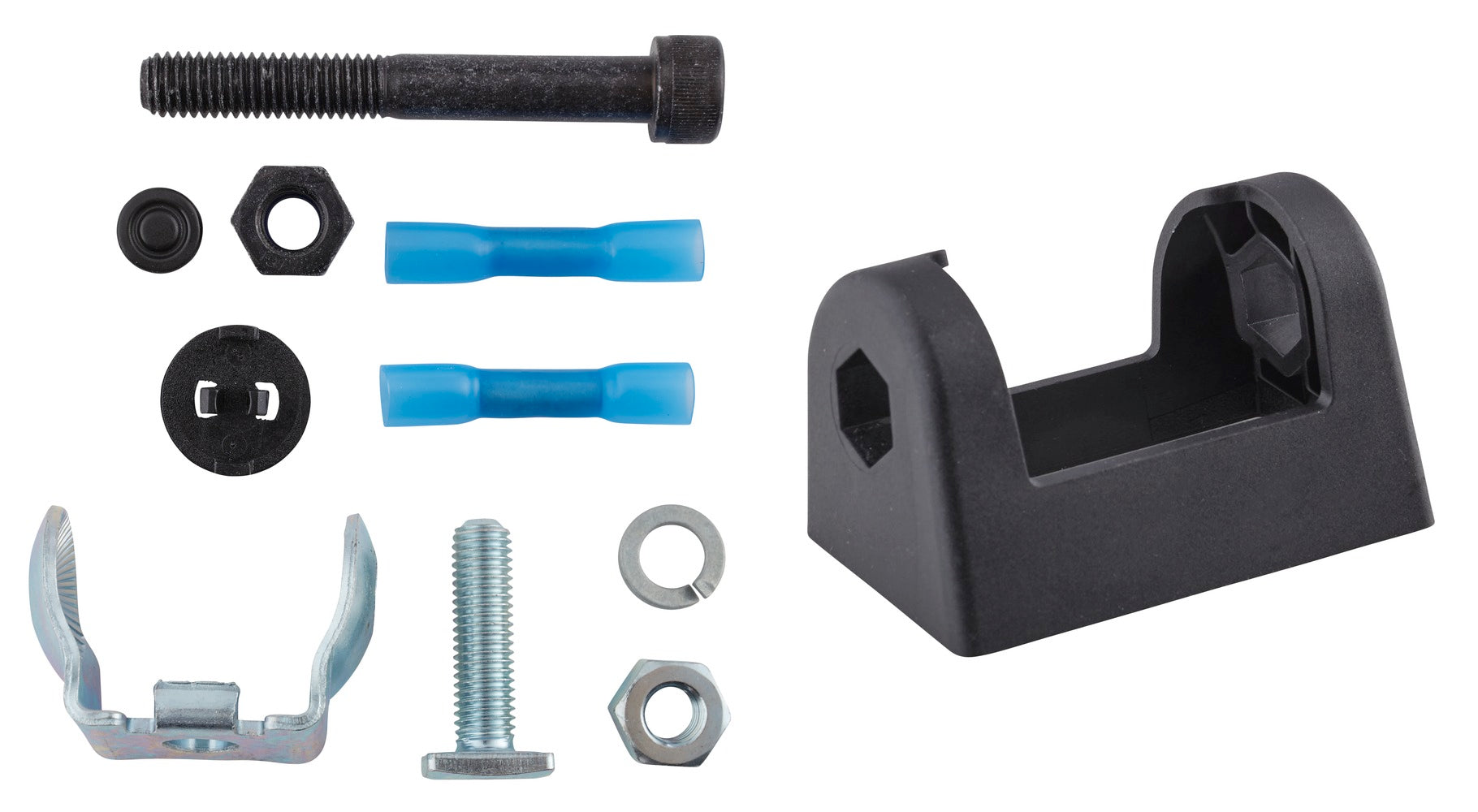

Fastening Type: Swivelling Mounting Bracket
Light Design: Hybrid / Halogen
Lamp Type: LED / H7
Voltage: 12 V / 24 V
Fitting Position: right / left
Length: 141 mm
Height: 141 mm
Overall Height: 161 mm
Width: 247 mm
Depth: 124 mm
Fitting Depth: 23 mm
Length: 6 "
Colour: chrome
Light colour: white
Light Function: with high beam / with position light (LED)
Light functions: 2
Number of LEDs: 6
Frame Colour: chrome
fulfils ECE standard: R112 / R10 / R7
Housing Colour: black
Lens Colour: Crystal clear
Shape: rectangular
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info: without bulb
Registration Type: ECE
Weight: 1145 g
SVHC: 7439-92-1; Lead
Power consumption: 55 W
Assembly by qualified personnel required!

OE references: DAF 888549; IVECO 500051175; MAN ZF252070113; SCANIA 1934120; SCANIA 20223650
