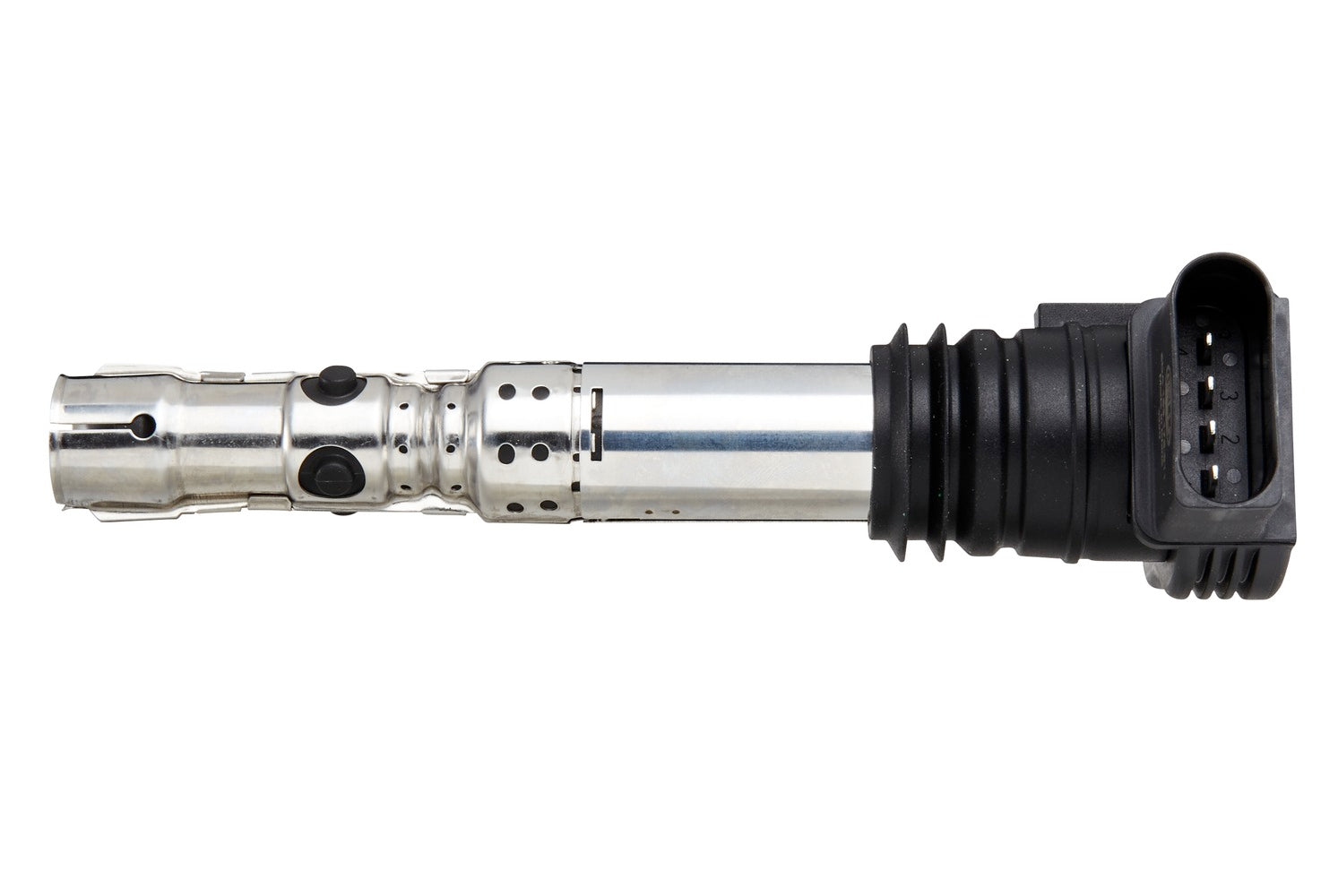

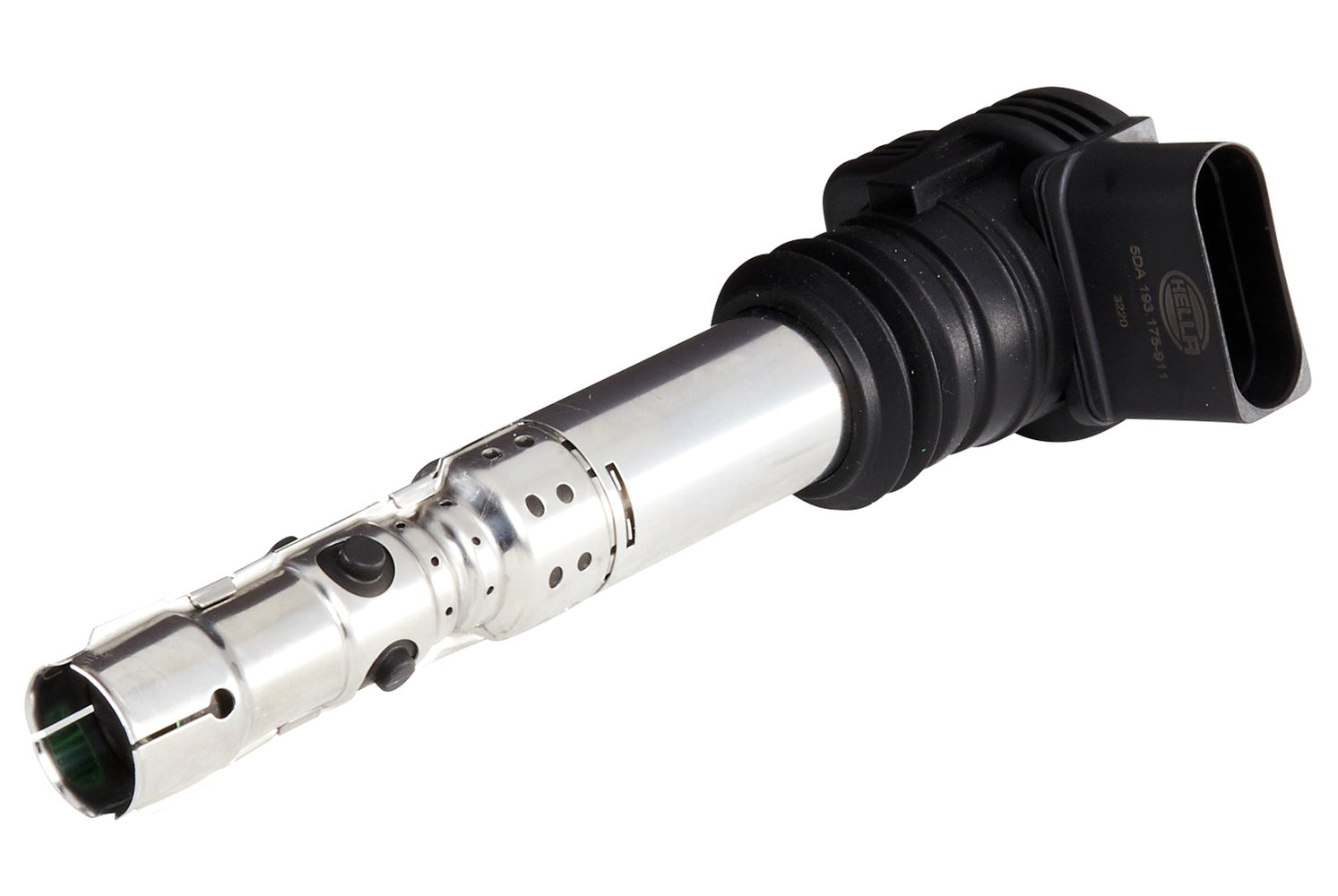

HELLA Ignition Coil - 12V - 4-pin connector - Plugged 5DA193175-911

Ignition Coil - 12V - 4-pin connector - Flush-Fitting Pencil Ignition Coils - Plugged

Ignition coils are a central component of the ignition system. They transmit a high voltage to the spark plugs where a spark is produced that ignites the mixture. The quality of the ignition coils is ensured, among other things, as a result of a high level of automation involved in the manufacturing processes, by the use of materials, by the number of winding strands and their high temperature resistance. HELLA ignition coils guarantee ignition even under extreme conditions and also electromagnetic compatibility with the magnetic field-sensitive elements of vehicle electronics (ECE R10). As a result of continuous optimisation of the product range, the frequently occurring malfunctions of commercially available ignition coils could be eliminated. And increased performance and lifetime of the HELLA range is the end result.

• fits e.g. VW Golf IV (1J1) (please check exact vehicle application)
• HELLA ignition coils deliver high-performance for reliable engine operation.
• Helps reduce exhaust emissions and ensures smoother engine performance. Offering superior performance and durability.
• HELLA ignition coils undergo rigorous tests during development and production, ensuring superior performance in any conditions.
• Requires professional installation and OE cross-reference matching.
• Replacing faulty coils can resolve issues like misfires, power loss, high fuel consumption, engine vibrations and Check engine warning light. Driving long distances with a faulty engine coil may lead to permanent internal engine damage.

Item Attributes:
Mounting Type: Plugged
Voltage: 12 V

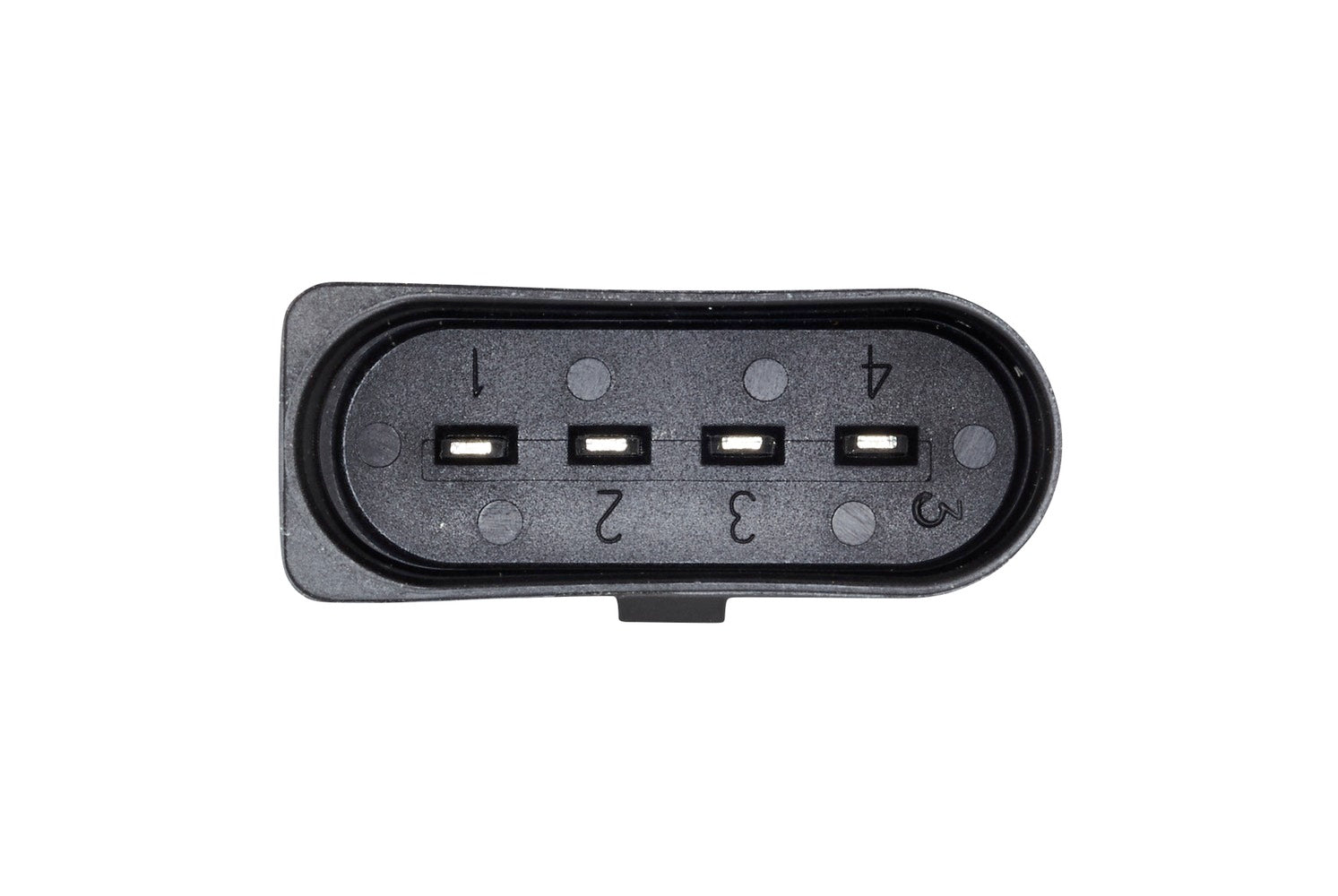

Number of pins: 4 -pin connector
Ignition Coil: Flush-Fitting Pencil Ignition Coils
Assembly by qualified personnel required!

OE references: AUDI 036905100E; AUDI 06A 905 115; AUDI 06A 905 115 A; AUDI 06A 905 115 D; AUDI 06B 905 115 D; AUDI 06B 905 115 G; AUDI 06B 905 115 J; AUDI 06B 905 115 L; AUDI 06B 905 115 M; AUDI 06B 905 115 N; AUDI 06B 905 115 P; AUDI 06B 905 115 Q; AUDI 06B905115R; SEAT 06A 905 115; SEAT 06A905115A; SEAT 06A905115D; SEAT 06B 905 115 D; SEAT 06B 905 115 L; SEAT 06B 905 115 P; SEAT 06B 905 115 R; SEAT 06B905115G; SEAT 06B905115J; SKODA 06A 905 115; SKODA 06A905115A; SKODA 06A905115D; SKODA 06B 905 115 D; SKODA 06B 905 115 N; SKODA 06B 905 115 P; SKODA 06B 905 115 R; SKODA 06B905115G; SKODA 06B905115J; SKODA 06B905115L; VW 06A 905 115; VW 06A 905 115 A; VW 06A 905 115 D; VW 06B 905 115 D; VW 06B 905 115 G; VW 06B 905 115 J; VW 06B 905 115 L; VW 06B 905 115 M; VW 06B 905 115 N; VW 06B 905 115 P; VW 06B 905 115 Q; VW 06B 905 115 R
