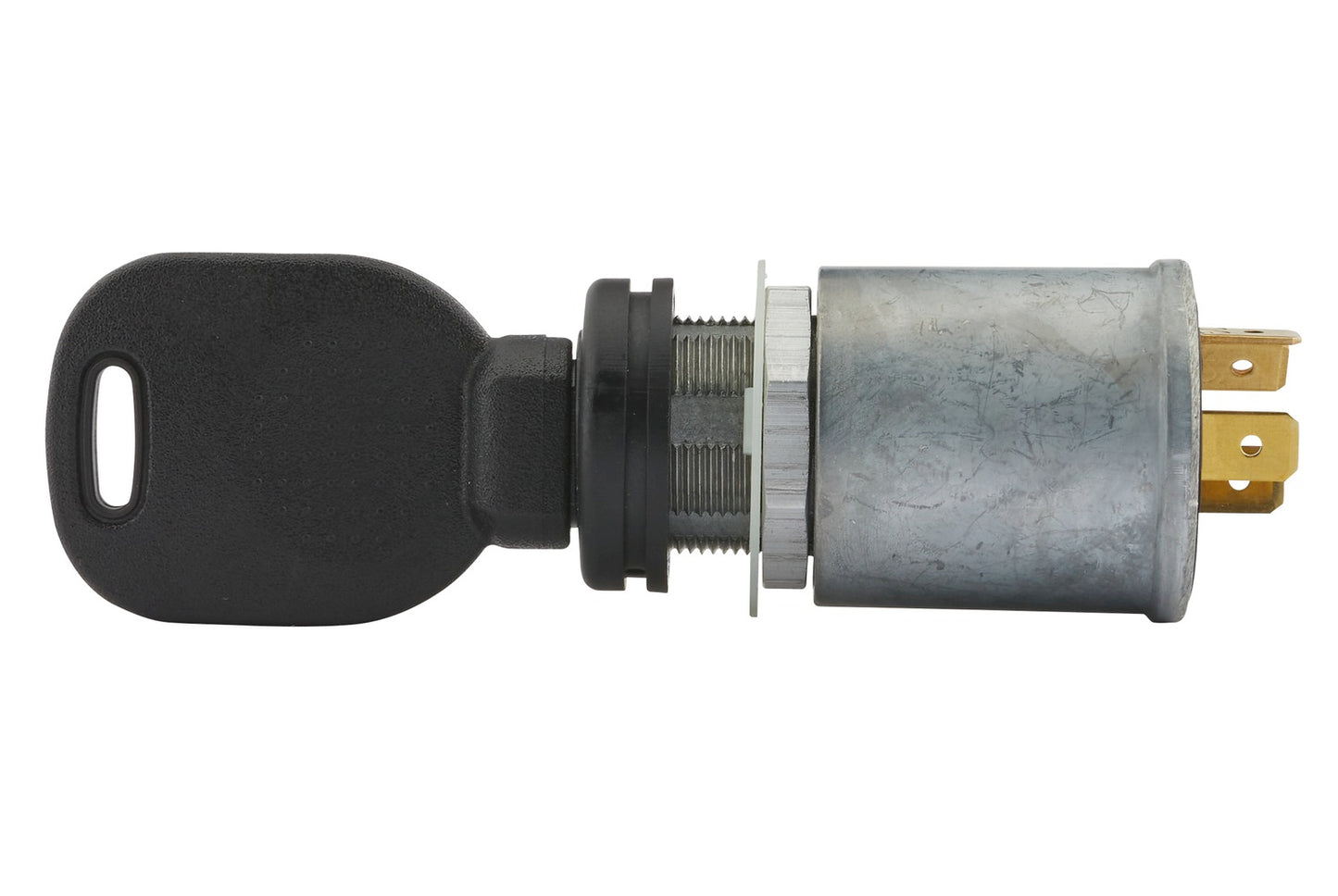

HELLA Ignition Switch - 12V 6JK007232-011

Ignition Switch - 12V

At HELLA we offer you a wide range of different switches for every function. Whether rotary switches, indicator switches, alarm switches, glow and starter switches, ignition starter switches, multi-function switches, isolators, dimmer foot switches or pushbutton and plunger switches - we have an extensive range for everything that needs to be switched on or off in vehicles. Our counters have one thing in common: The high quality!

• Ignition starter switch with start repeat interlock, IP 65 - Rotary switch with safety lock
• 4 switching positions: 0 = off, 1 = special consumer on, 2 = ignition on, 3 = starting, special consumer off

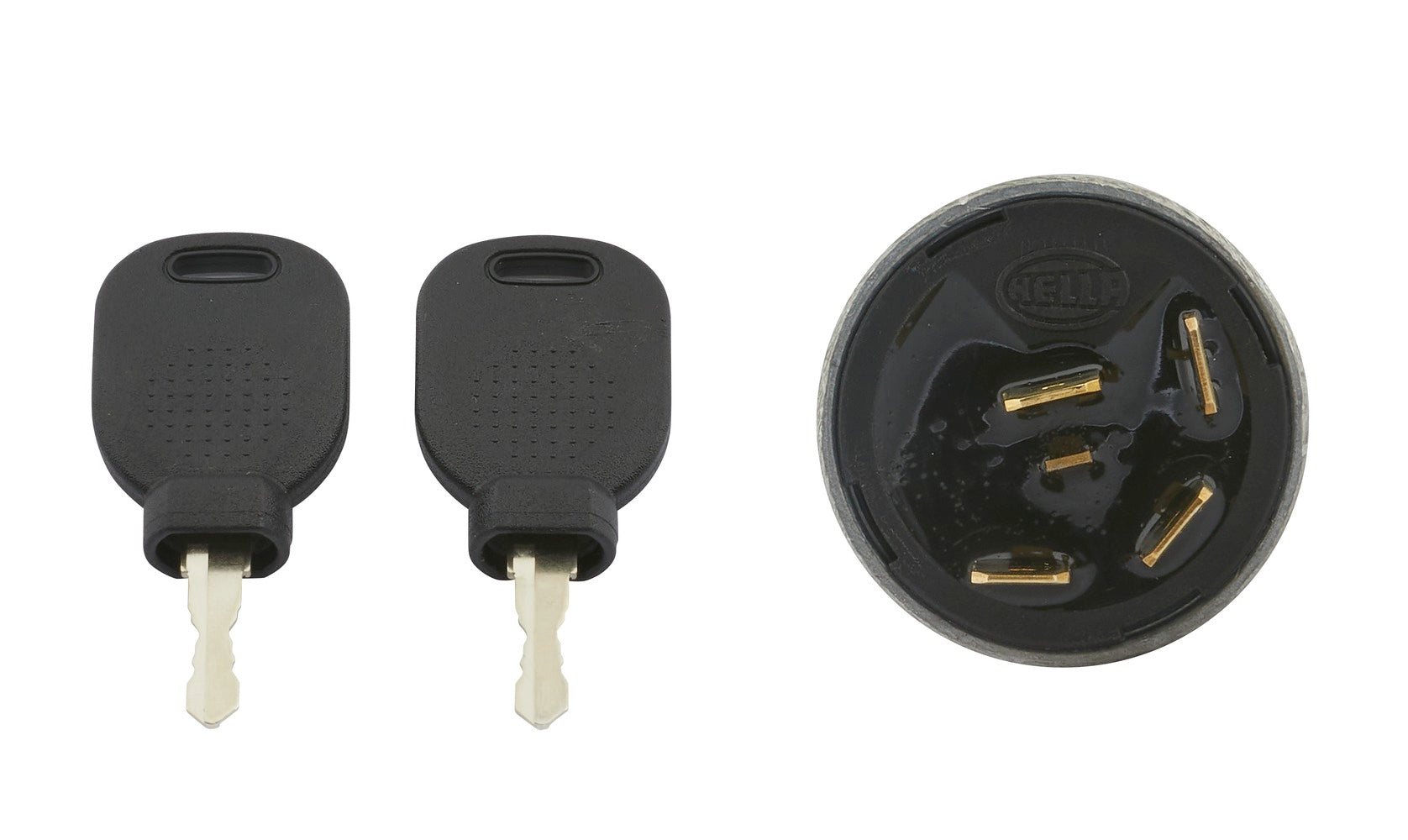

• 2 keys with plastic cap are included in the scope of delivery, can be removed in 0-position, key springs back from position 3
• Key springing back from position 3
• Load capacity at 12V: Terminal 15 = max. 25A, terminal 50 = max. 50A, terminal 75 = max. 20A.

Item Attributes:
Voltage: 12 V
Assembly by qualified personnel required!

OE references: LIEBHERR 6 066 205 05
