Description

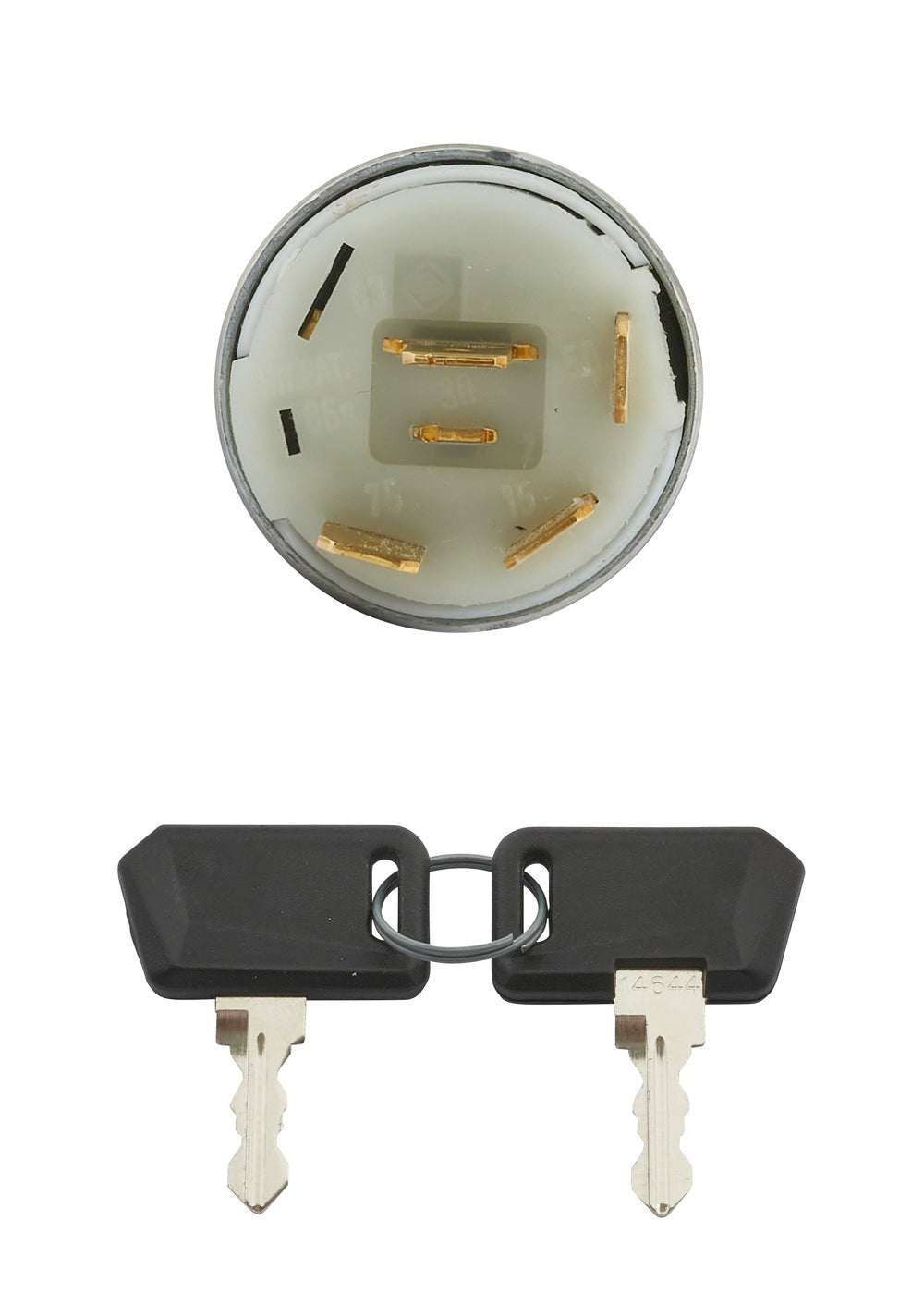

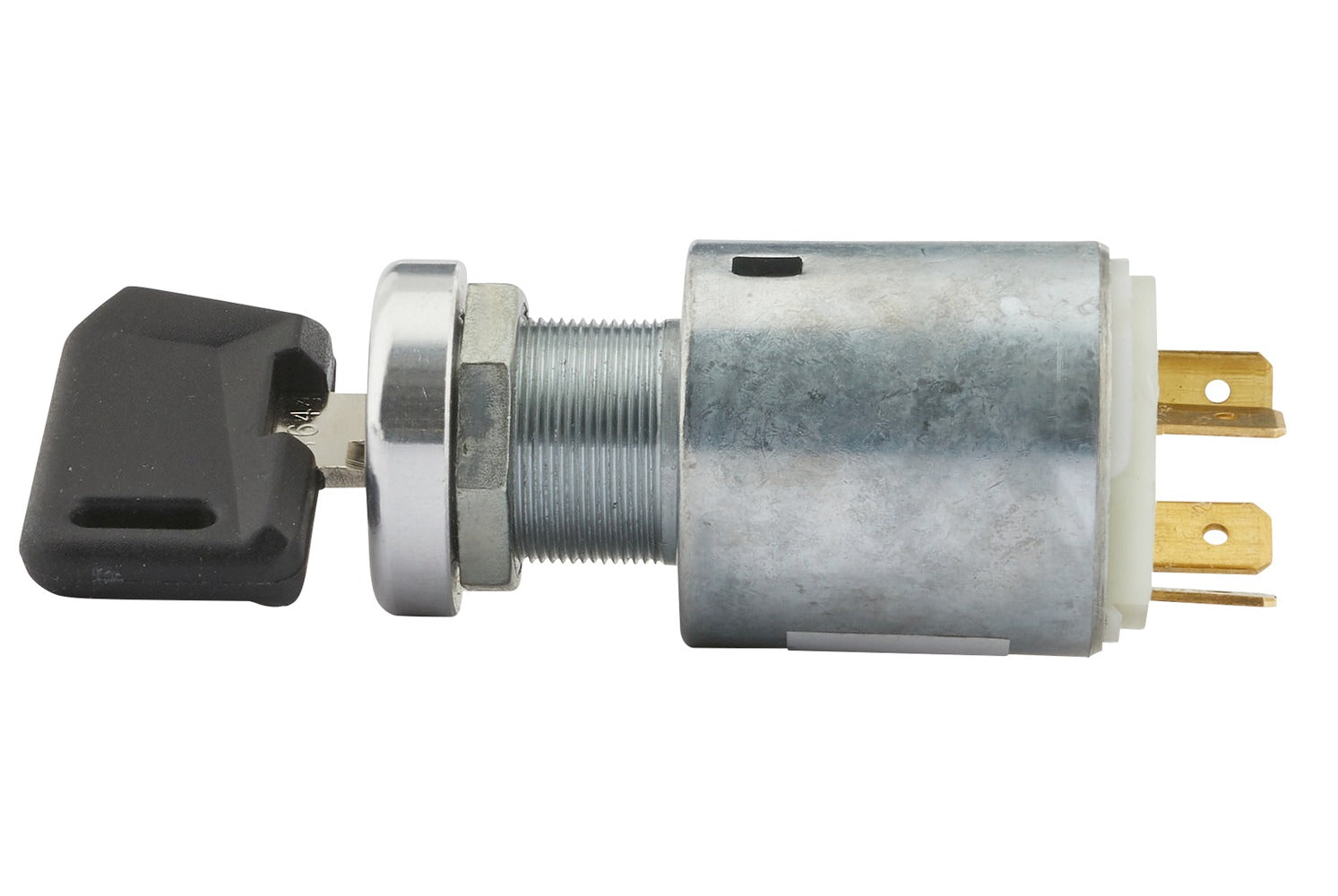

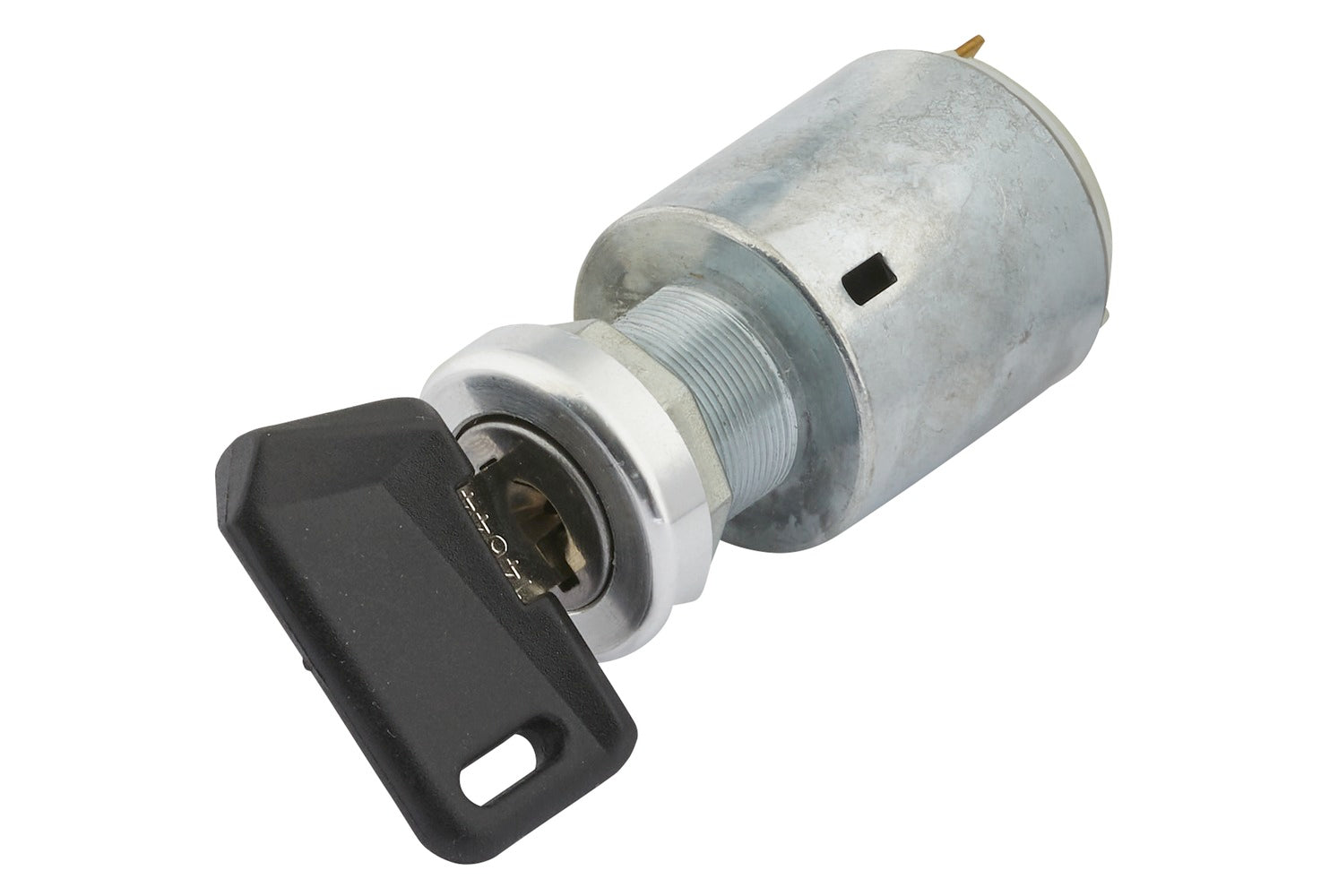

Ignition Switch
- Rotary switch with safety lock
- 2 keys with plastic cap are included in the delivery, can be removed in 0-position.
- 4 switching positions: 0 = off, 1 = special consumer on, 2 = ignition on, 3 = starting, special consumer off.
- Key springing back from position 3
- Load capacity at 12V: Terminal 15 = max. 25A, terminal 50 = max. 50A, terminal 75 = max. 20A.
Item Attributes:
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!
OE references: AEBI 97720957; DAF 867522; HOLMER 1023034996; HYUNDAI 21WD-11080; HYUNDAI (CNJ) 21WD-11080; JUNGHEINRICH 52011042; KAMAG 80369300; KRONE 0302656/0; LANGENDORF 1127038; MASSEY FERGUSON 31951; PUTZMEISTER 295760003; SAME 0.015.0485.4/04411512.4; SANY 23005112; SANY B241200000638; STEINBOCK 520 11042; VAN HOOL 10721791; VDL 10721791; VDL 20247058; VDL 40650193; WEIDEMANN 5016009095
