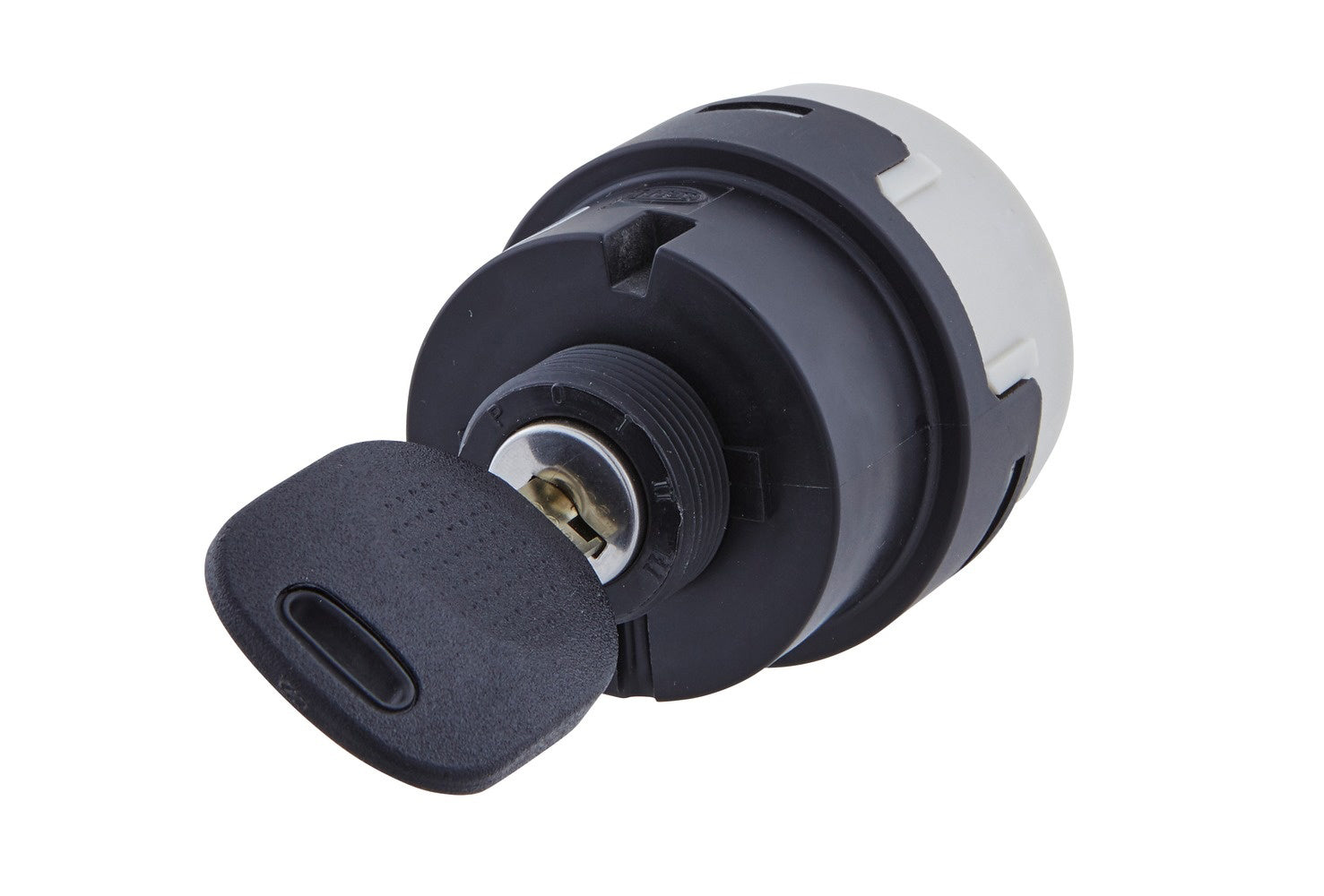

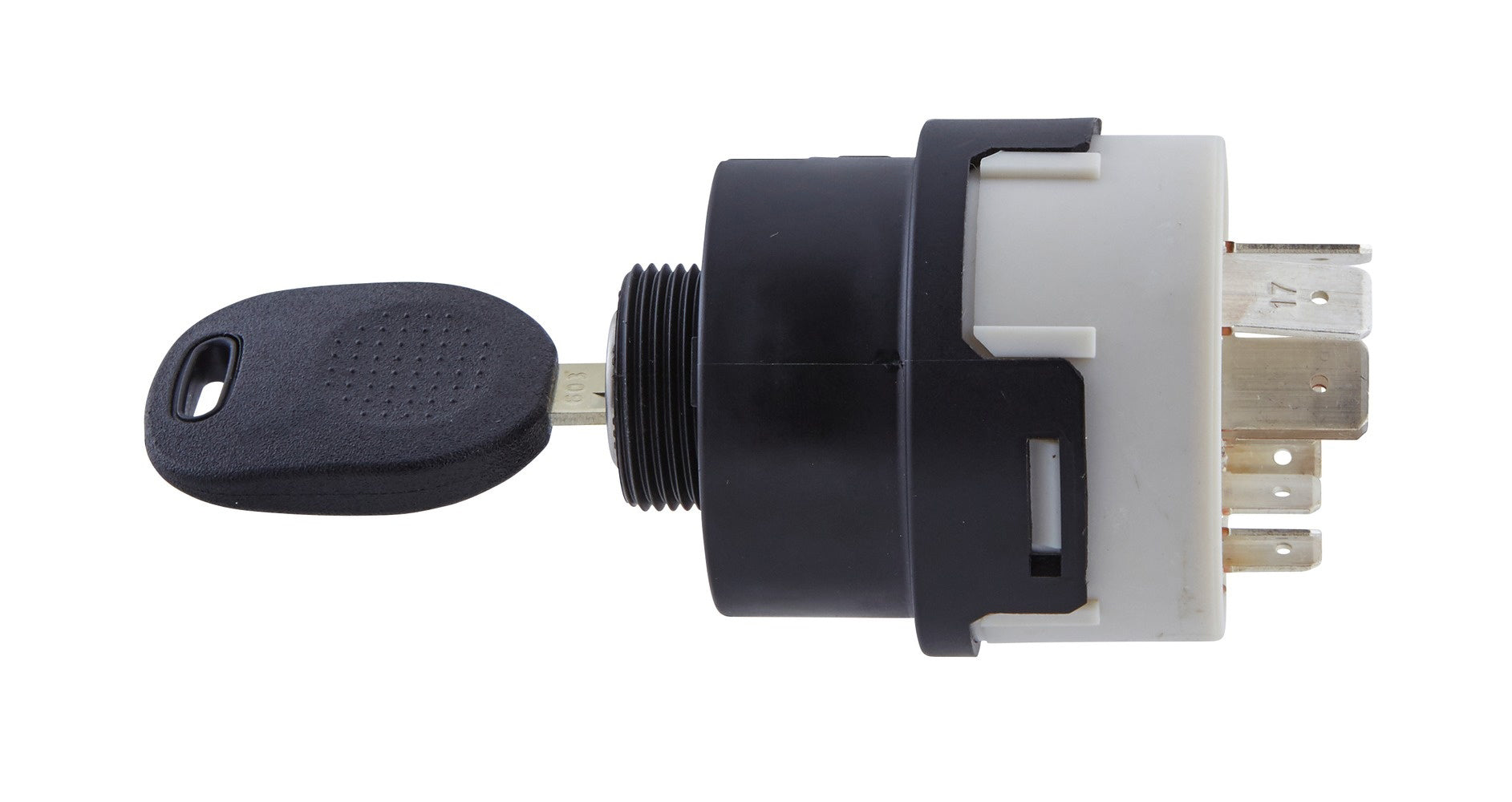

HELLA Ignition Switch - Rotary Operation - 12/24V - 10-pin connector 6JB003959-001

Ignition Switch - Rotary Operation - 12/24V - 10-pin connector - On/Off Switch/Start/Preheating

At HELLA we offer you a wide range of different switches for every function. Whether rotary switches, indicator switches, alarm switches, glow and starter switches, ignition starter switches, multi-function switches, isolators, dimmer foot switches or pushbutton and plunger switches - we have an extensive range for everything that needs to be switched on or off in vehicles. Our counters have one thing in common: The high quality!

• Glow/start switch with cover cap - Rotary switch with safety lock
• 5 switching positions: P = parking light, 0 = off, 1 = driving position, 2 = pre-glow, 3 = starting

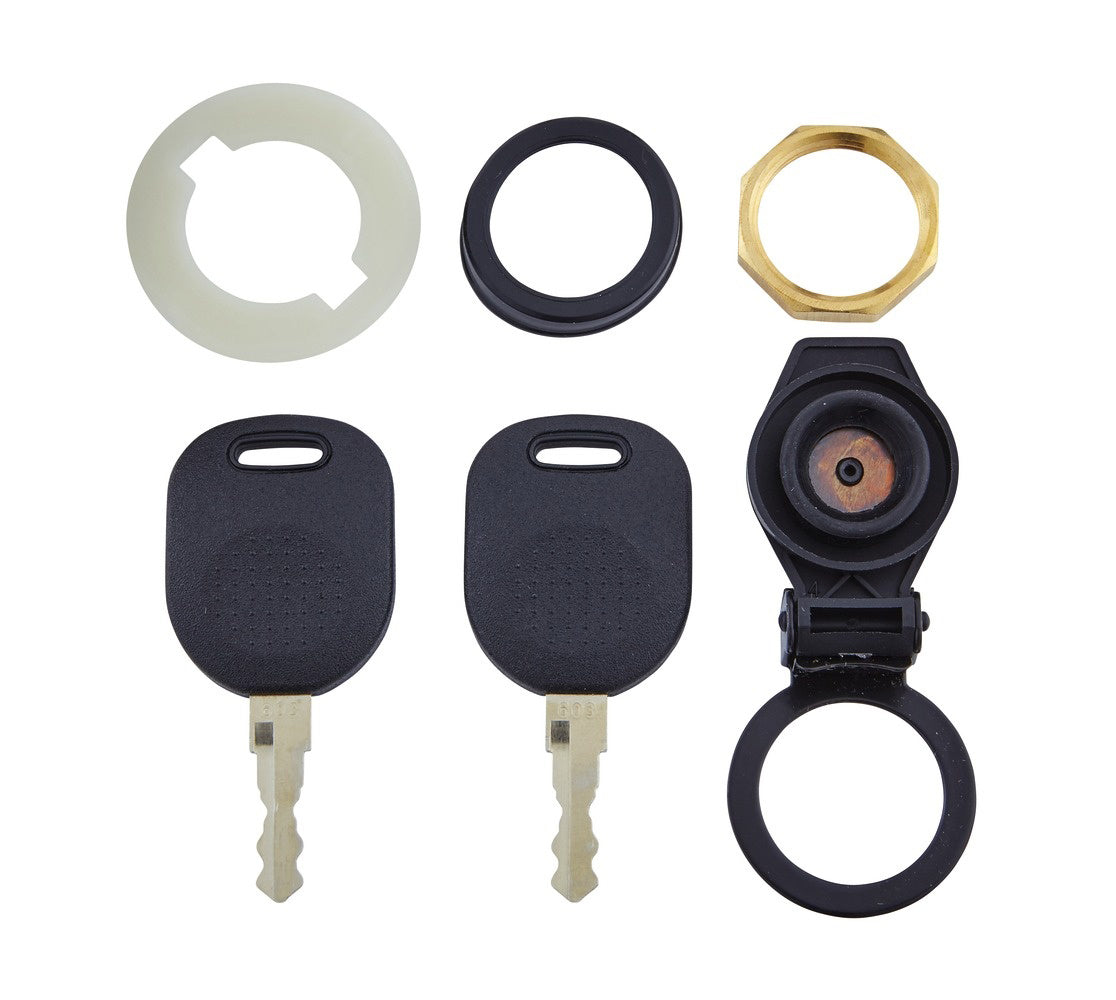

• 2 keys with plastic cap are included in the scope of delivery, can be removed in P and 0 position, key springs back from position 2 and 3
• Resilience: Clamp 30 with 58: 8A at 12V, 4A at 24V / continuous; terminal 30 with 15/54: 35A at 12V, 17.5A at 24V / continuous; terminal 30 with 19: 70A at 12V, 35A at 24V / 3.5 Min
• Resilience: Clamp 30 with 17: 70A at 12V, 35A at 24V / 3.5 min; terminal 30 with 50a: 70/18A at 12V, 40/5A at 24V / 1 Min
• with lid

Item Attributes:
Supplementary Article/Supplementary Info 2: with lid
Voltage: 24 V / 12 V
Actuation Type: Rotary Operation

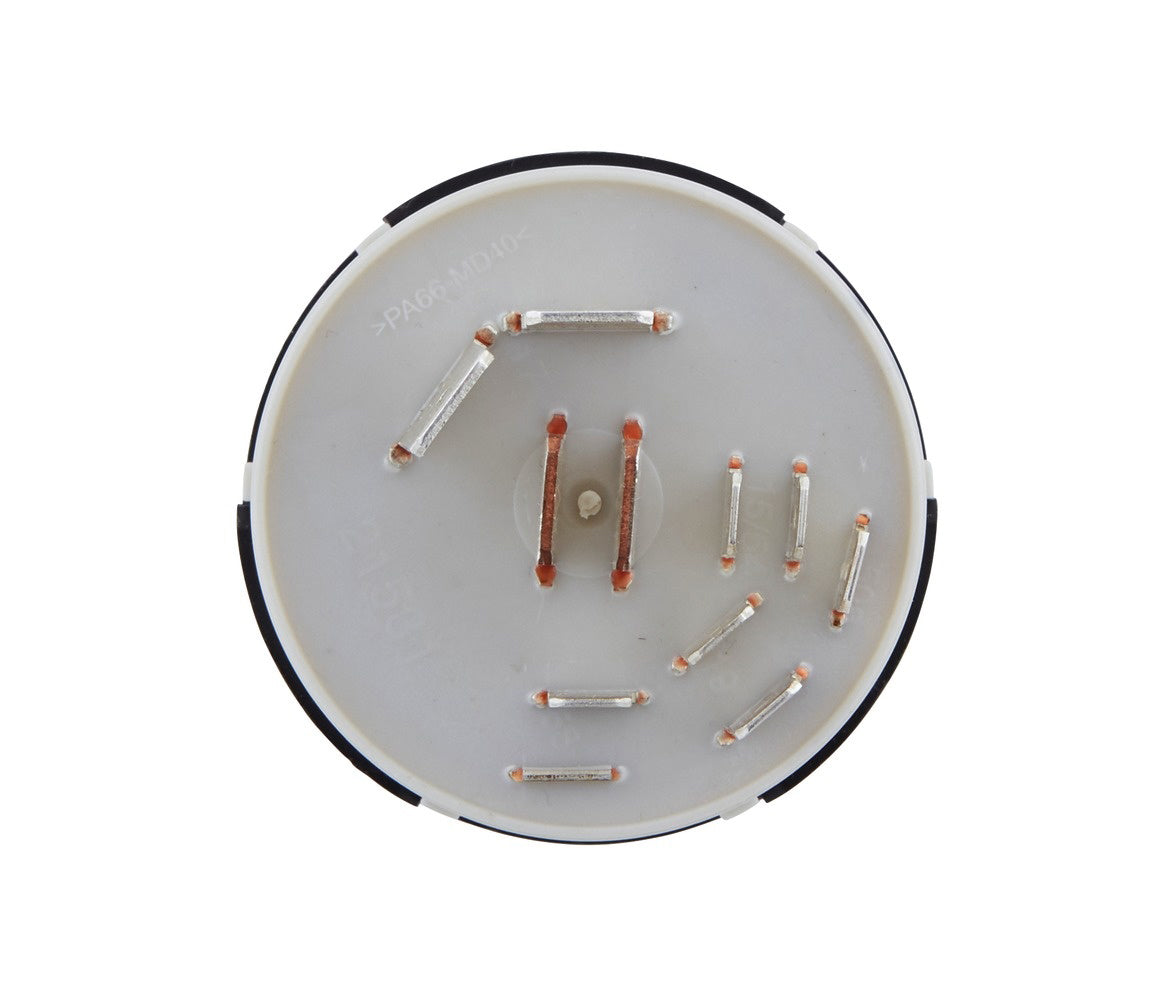

Number of pins: 10 -pin connector
Switch Function: On/Off Switch / Start / Preheating
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: ASTRA 60220029; BOBCAT 554386; BUCHER 48/70; CATERPILLAR 081-2764; DELVANO 50101909195; DEUTZ-FAHR 090 024674; DEUTZ-FAHR 215631; FELDBINDER 008767; HYDREMA 585040; IVECO 9000081343; JOHN DEERE F005316; MASSEY FERGUSON 36015; MASSEY FERGUSON U.36015; RENAULT TRUCKS 7422037913; SAME 0.900.2467.4; SISU 186-103-0022; SOLARIS 0004-124-007; SOLARIS 1089-002164-00; SOLARIS 1552-164-000; TEREX 8000-2969; VAN HOOL E905200; VDL 20187499; VDL E905200; VOLVO 11087221; ZOOMLION 1020514024
