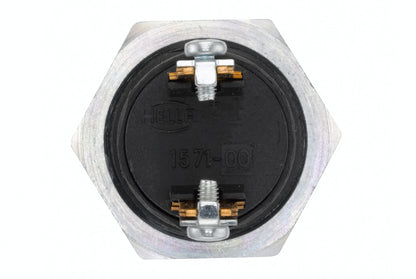

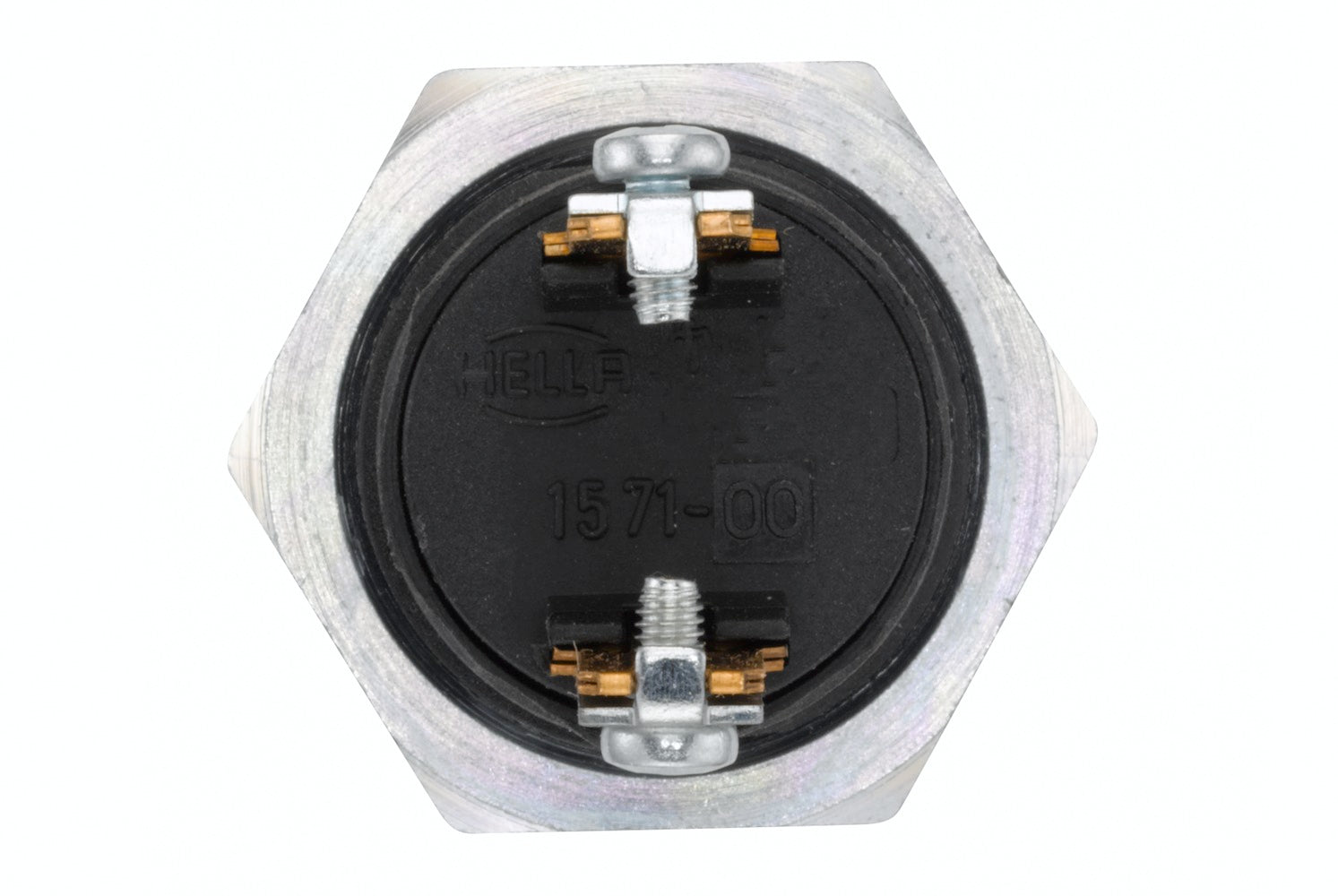

HELLA Ignition Switch - S29 - Push Actuation - Number of connectors: 2 6JF001571-001

Ignition Switch - S29 - Push Actuation - Number of connectors: 2 - Bolted - Normally Open Contact - Bore Ø: 24mm - Sheet Strength: 5mm

At HELLA we offer you a wide range of different switches for every function. Whether rotary switches, indicator switches, alarm switches, glow and starter switches, ignition starter switches, multi-function switches, isolators, dimmer foot switches or pushbutton and plunger switches - we have an extensive range for everything that needs to be switched on or off in vehicles. Our counters have one thing in common: The high quality!

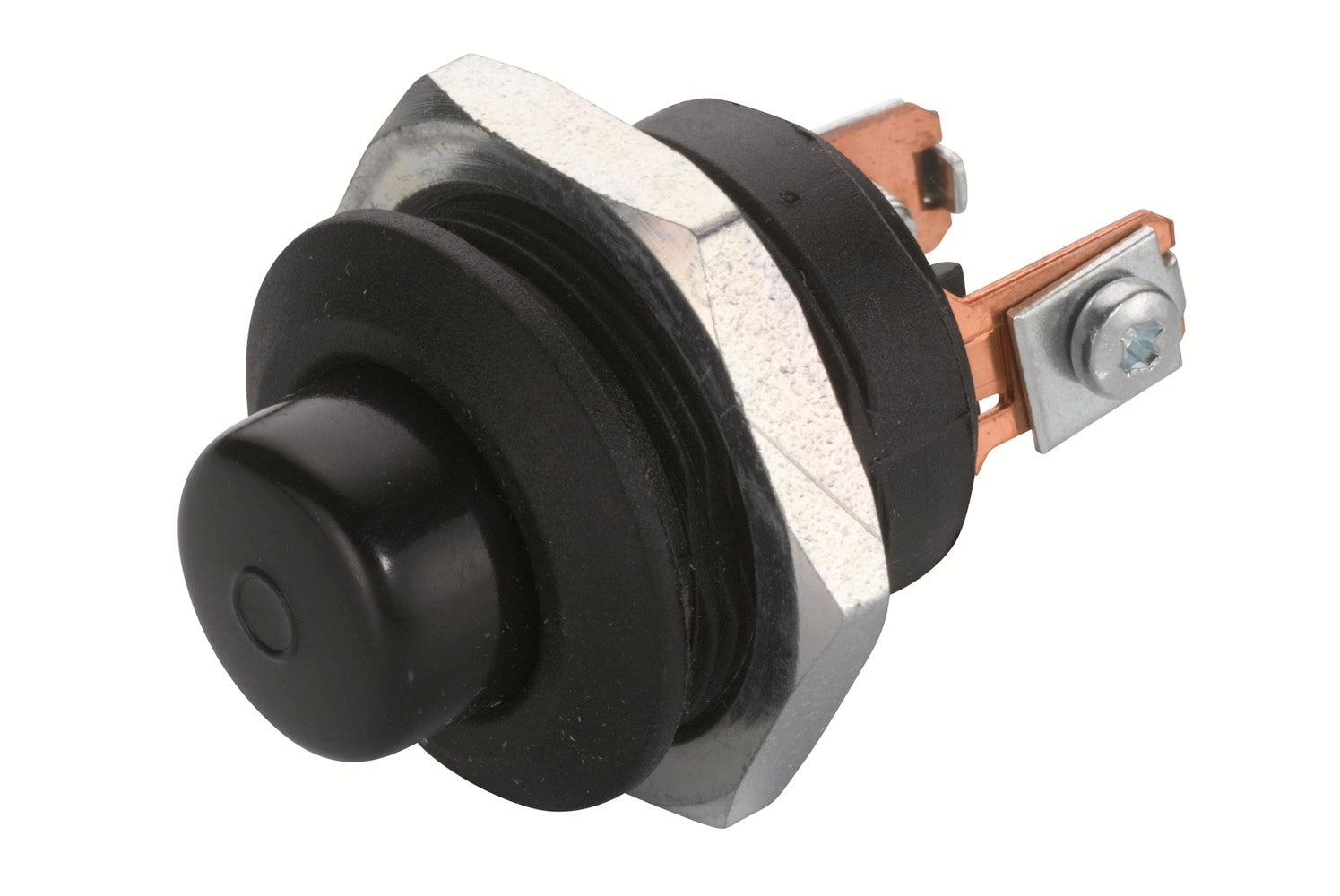

• Push-button switch for flush mounting, with black push-button

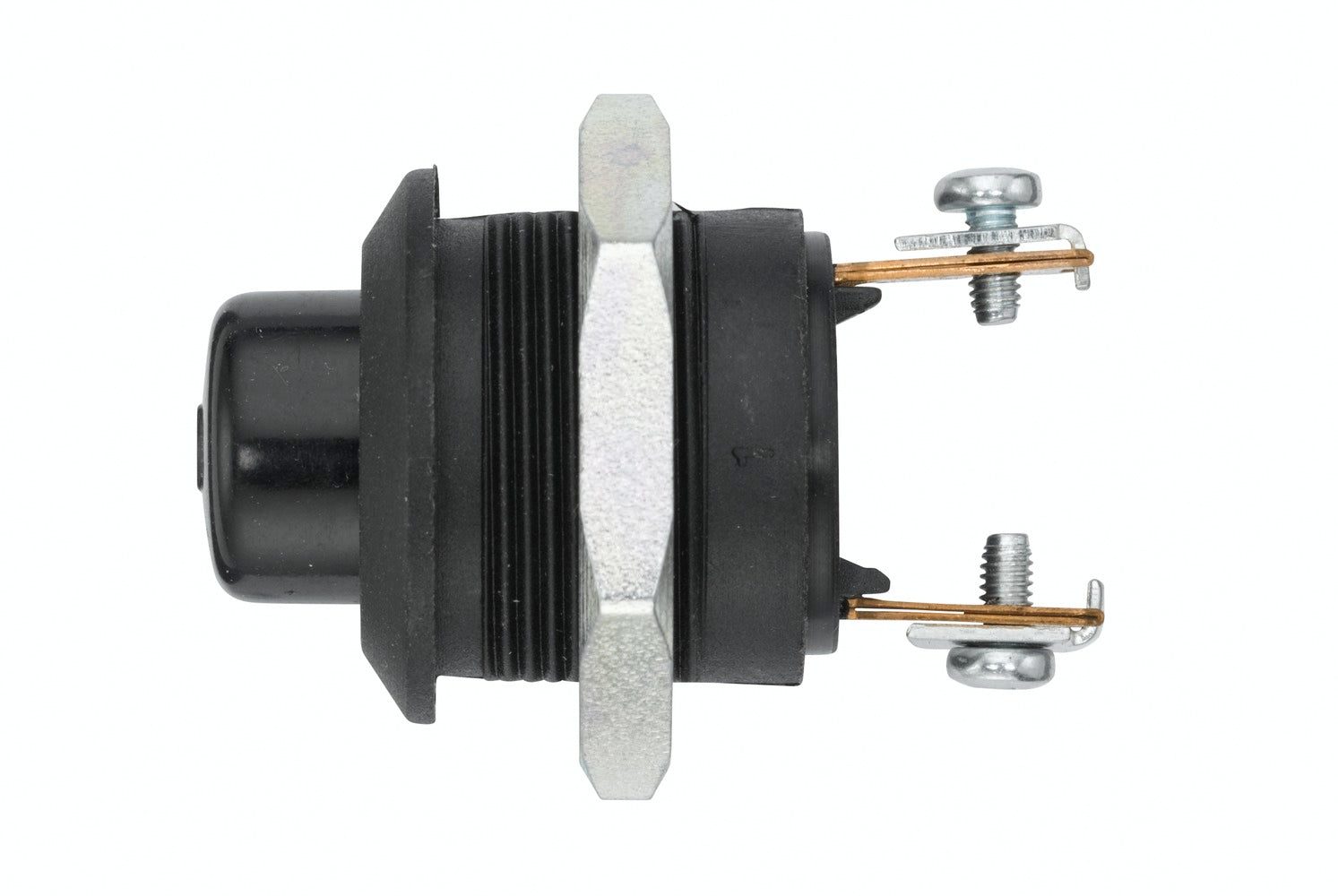

• With 2 combined screw-flat plug-in connections, for wall thickness up to max. 5 mm
• Without moisture protection
• Capacity at 12V: max. 20A Kurzzeitig - Capacity at 24V: max. 15A Kurzzeitig

Item Attributes:
Mounting Type: Bolted
Number of connectors: 2
Capacity at 12V: max. 20A Kurzzeitig
Capacity at 24V: max. 15A Kurzzeitig
Actuation Type: Push Actuation
Sheet Strength: 5 mm
Bore Ø: 24 mm
Switch Function: Normally Open Contact
Assembly by qualified personnel required!

OE references: AGRIFAC 8285090; ATLAS COPCO 0304314; AUDI KDWHLO9055A; BOMAG U-7270011; CASE IH 0014852; CATERPILLAR 14-852; DELVANO 8040146; DEMAG 51872504; DEMAG 67604640; DEUTZ-FAHR 000 9730300; FENDT Y 084 163 4; FORD 0 635 129; HOLDER 019 544; HOLDER 5011800031; IVECO 33580201; JOHN DEERE 21 89 4; JOHN DEERE 22 18 0019; KOMATSU 501 1800 031; KOMATSU Y0841 634; LIEBHERR 6 060 205 08; LINDE 000 973 03 00; MAFI 000,579,1136; MAN 81.25503-0029; MAN 90.81616-1225; O&K 0014852; OPEL V23605020; OTOKAR 83A00-36143-AA; RENDERS W710301; ROSENBAUER 352103; SANY 60209119; SOLARIS 1081-007818-00; TEREX 0304314; TEREX 5050230700; TEREX 67604640; VOLVO 20005173018; VOLVO 5173018; VW KDWHLO9055A; WEIRO 12315; YANMAR 5050230700
