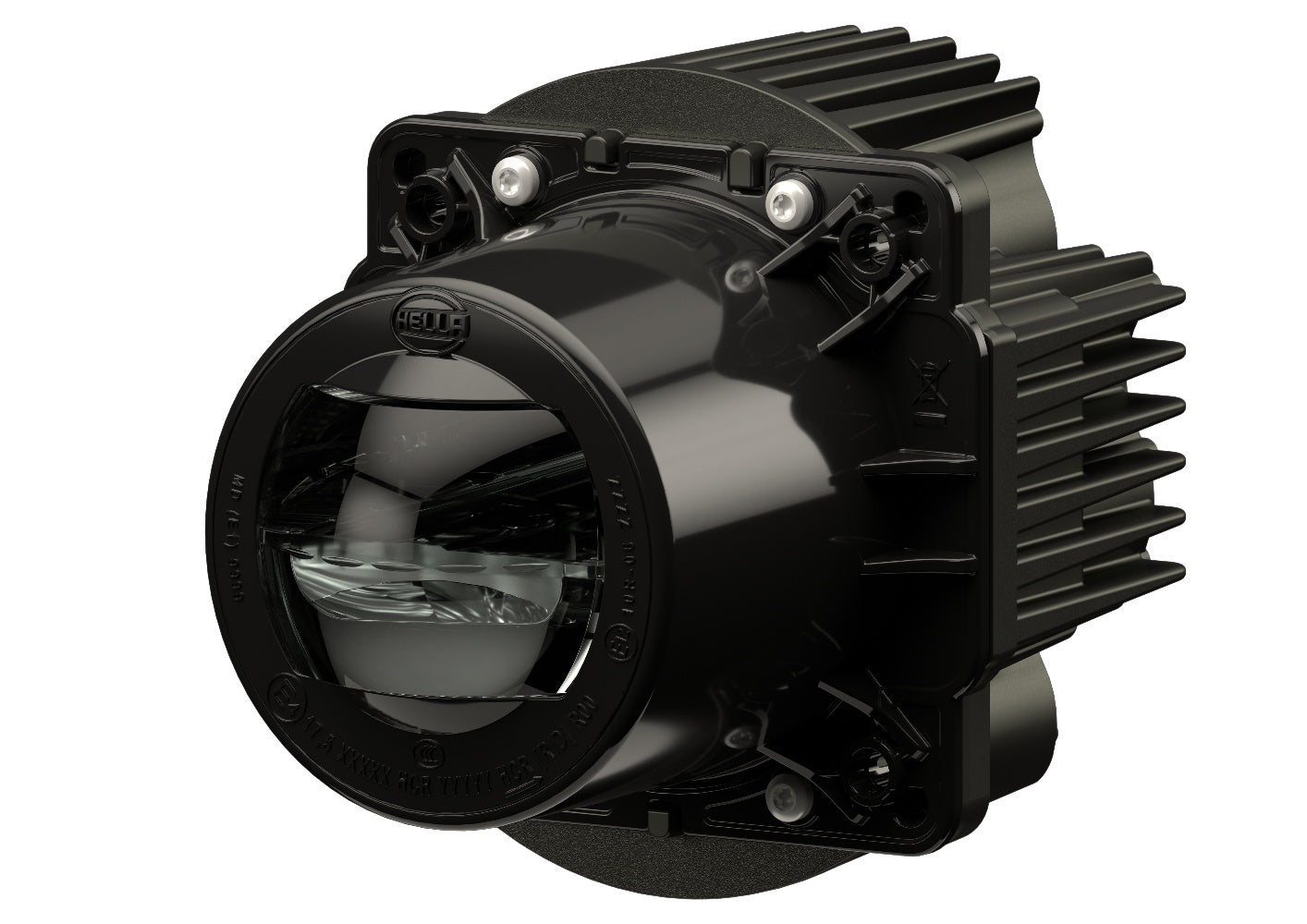

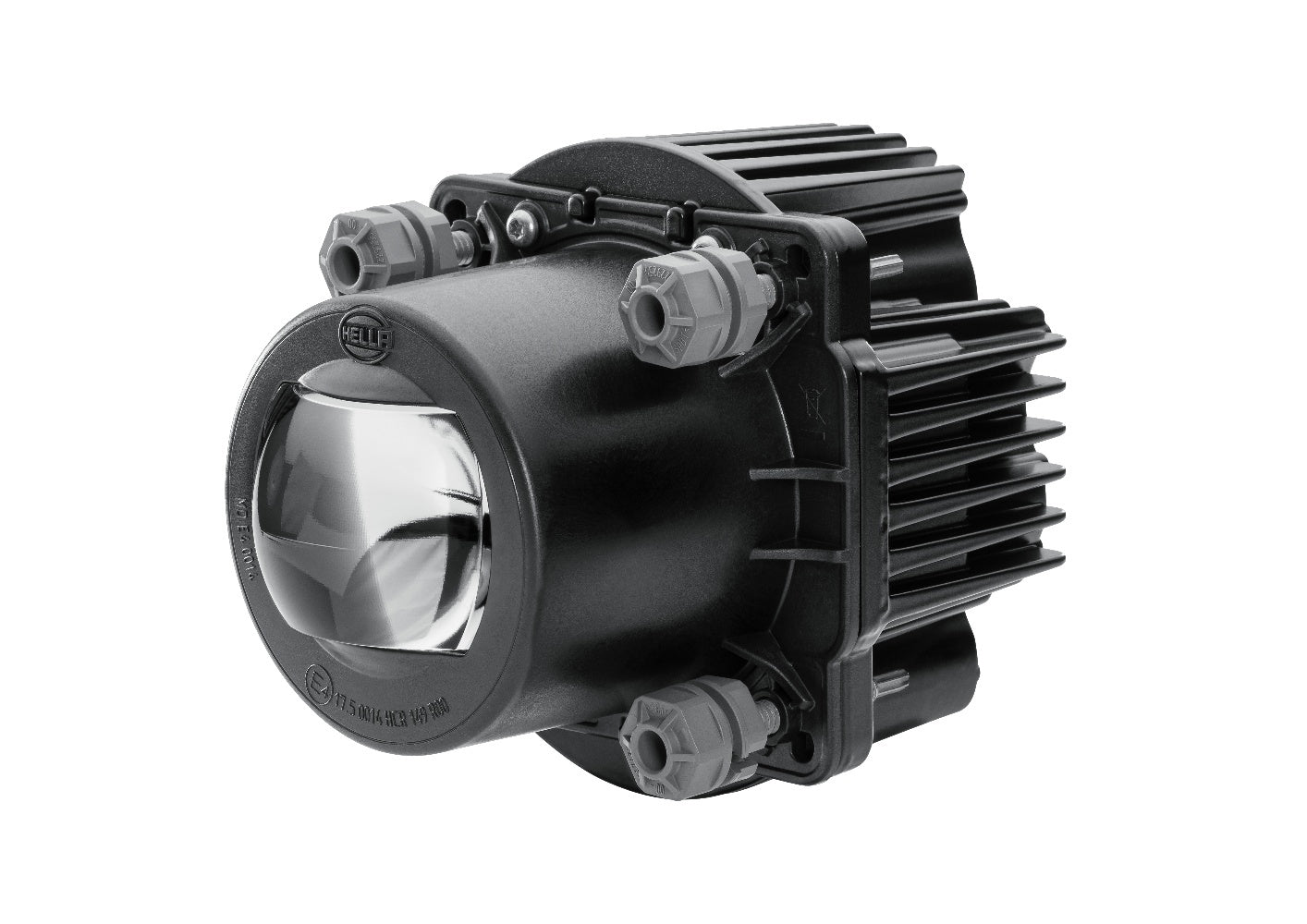

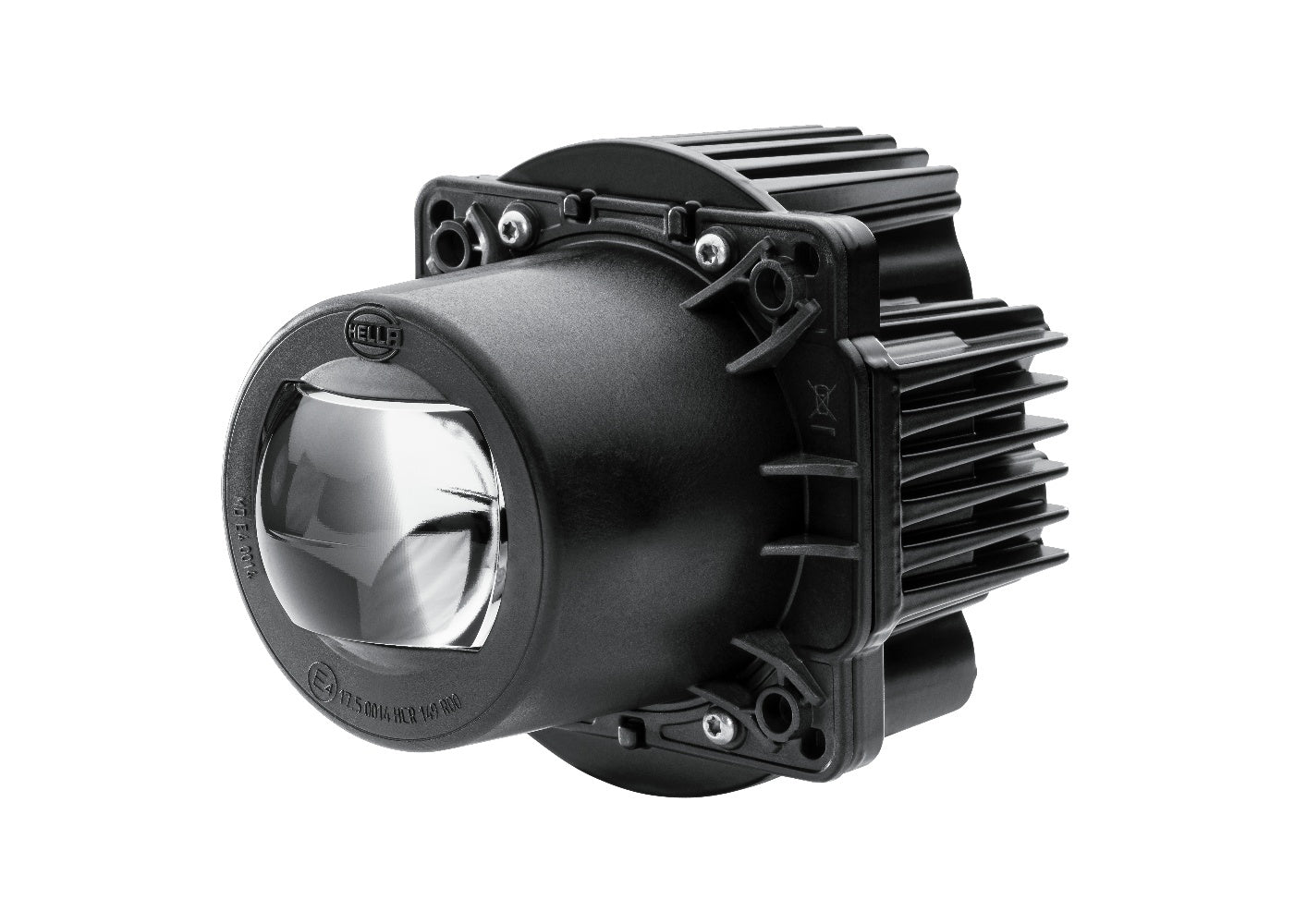

HELLA LED/DE/Asymmetric-Insert, headlight - 90mm Essential L4565 - 12/24V 1AL015318-021

LED/DE/Asymmetric-Insert, headlight - 90mm Essential L4565 - 12/24V - round - Reference number: 17.5 - SAE - Crystal clear - Plug: DEUTSCH plug - left/right - Quantity: 1

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• Excellent low beam and high beam from a single headlamp module
• Design freedom through modular system
• For the most diverse applications and maximum demands
• The die-cast aluminium housing and the robust design allow the use in rough environments and under maximum demands
• In addition to the high resistance to vibration, which makes this product ideal for use in construction machinery, the Bi-LED module with IP 67 protection class is particularly dustproof and resistant to high-pressure cleaning

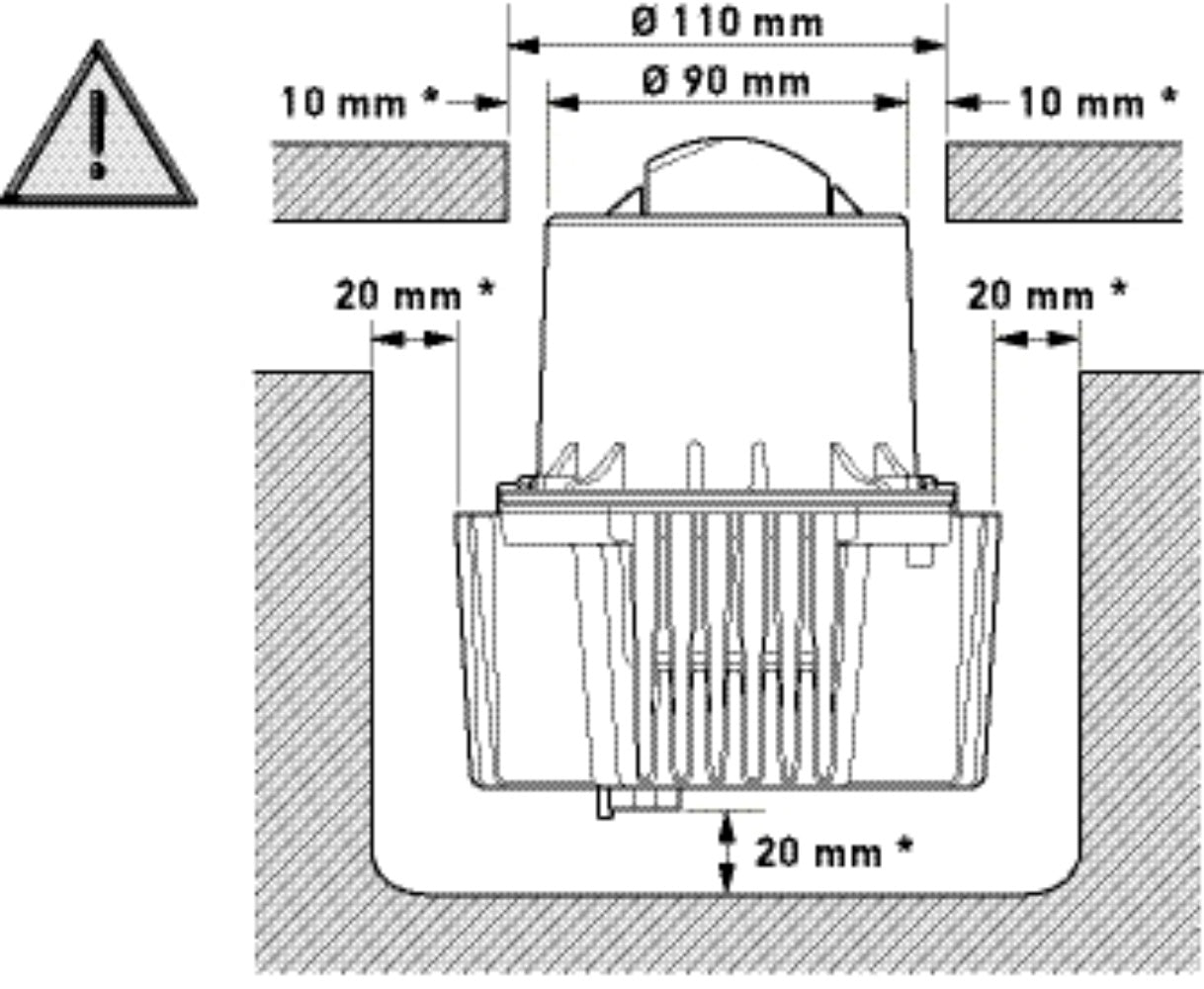

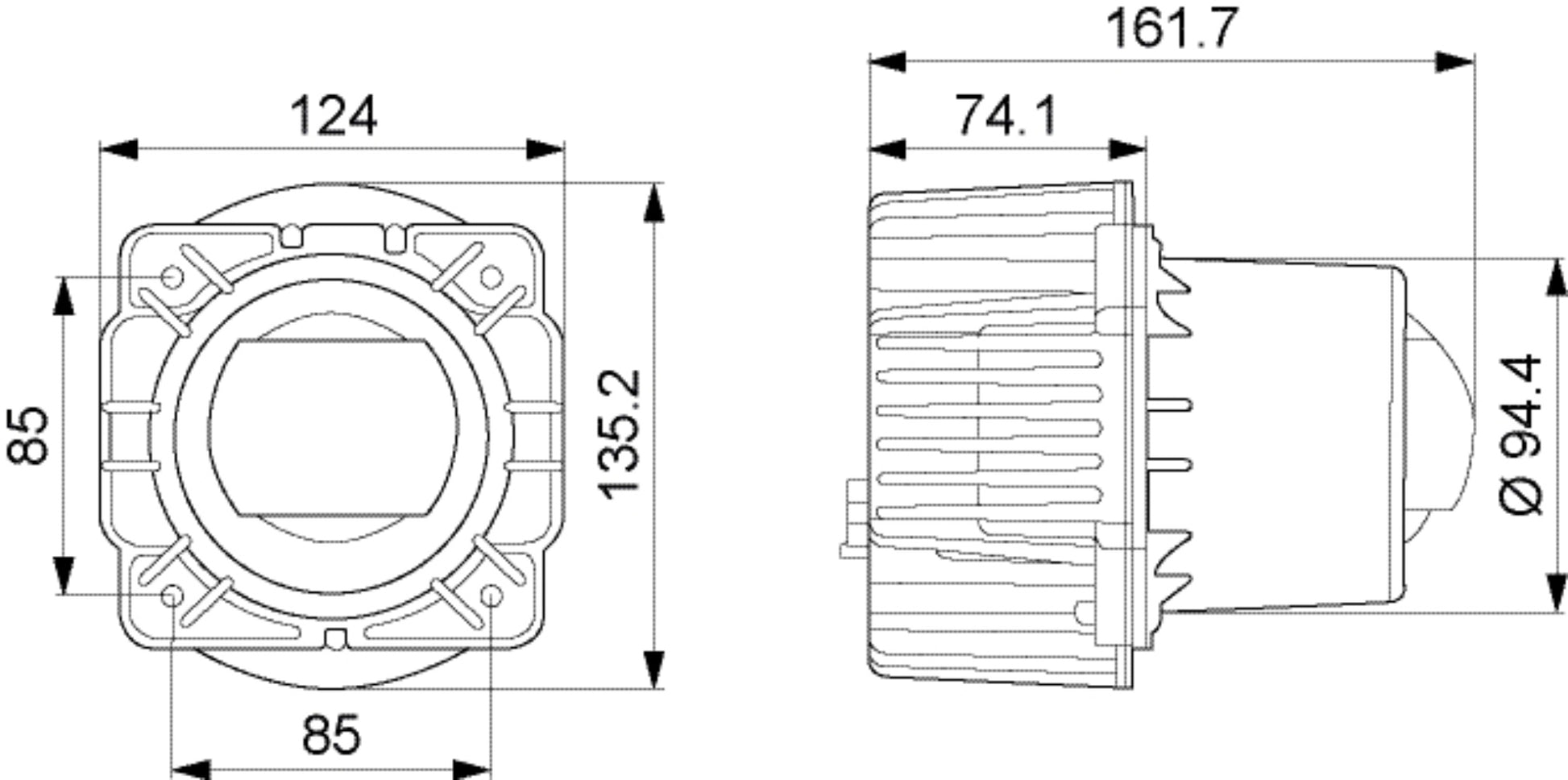

• Ø: 94mm - Length: 135mm - Width: 124mm - Height: 135mm - Depth: 74mm - Lamp Type: LED - without bulb - Electromagnetic Compatibility (EMC)

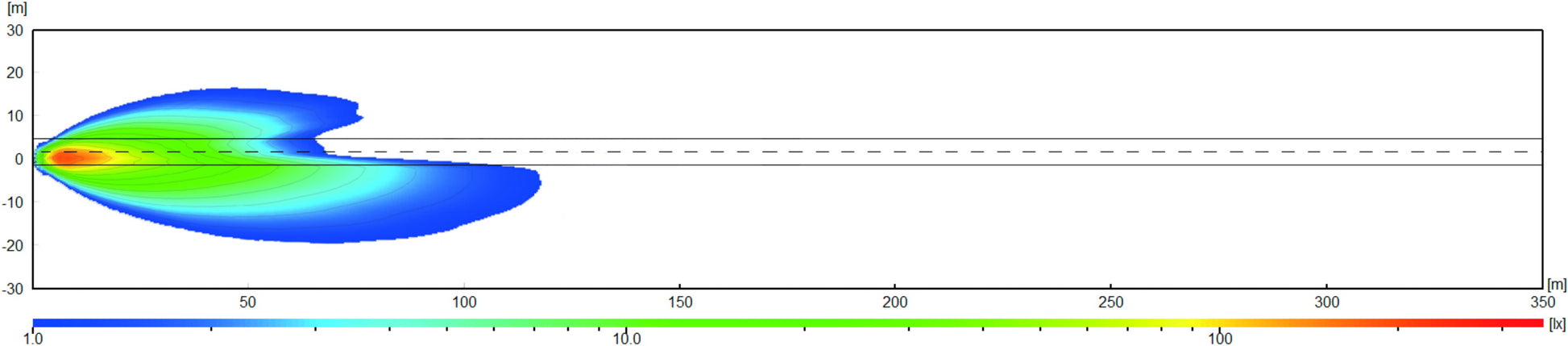

• Light functions: 2 - with high beam (LED)/with low beam (LED)

Item Attributes:
Mounting Type: Fitting / mounting

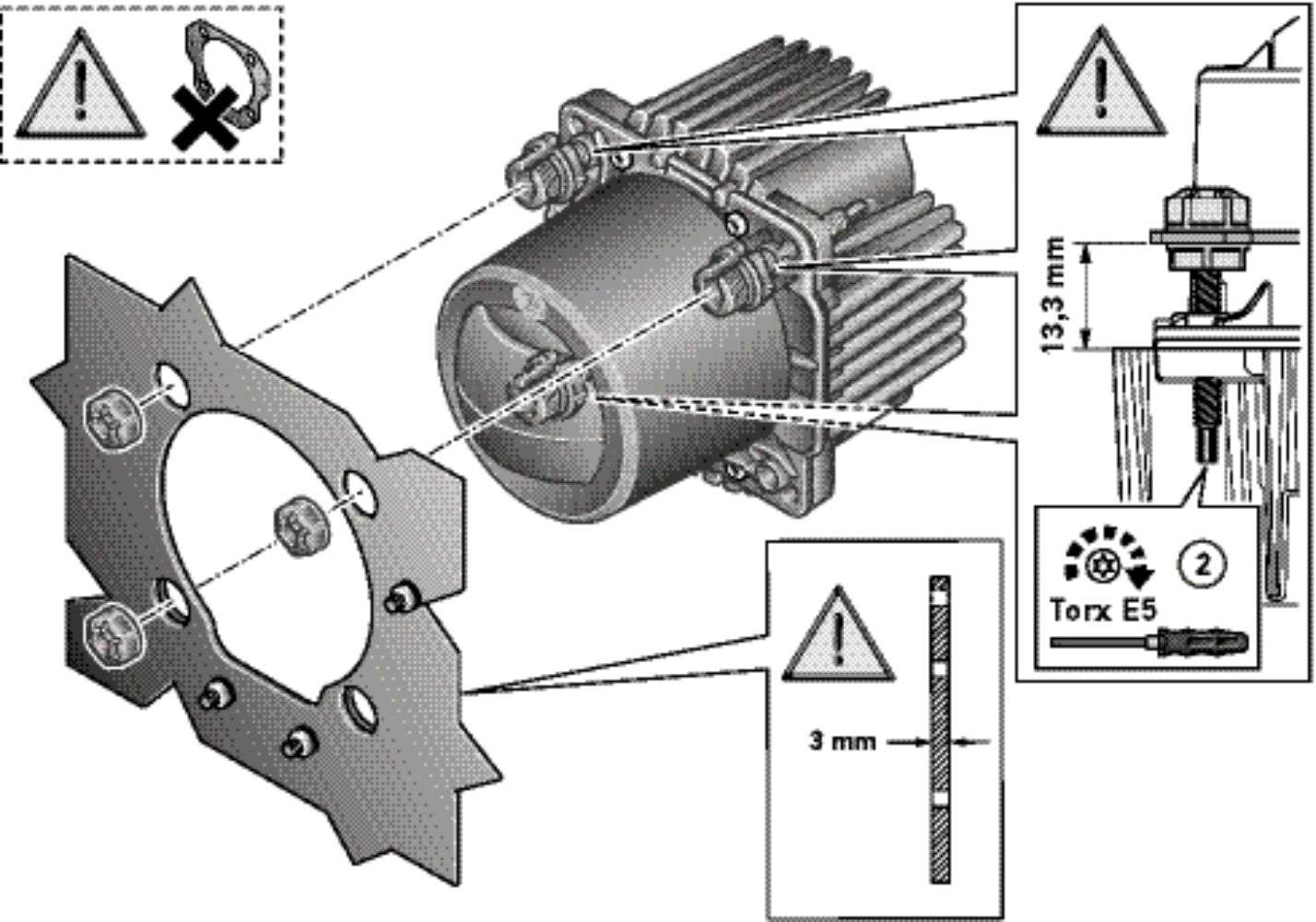

Fastening Type: Four-point attachment
Light Design: LED / Asymmetric / DE
Lamp Type: LED
Voltage: 12 V / 24 V

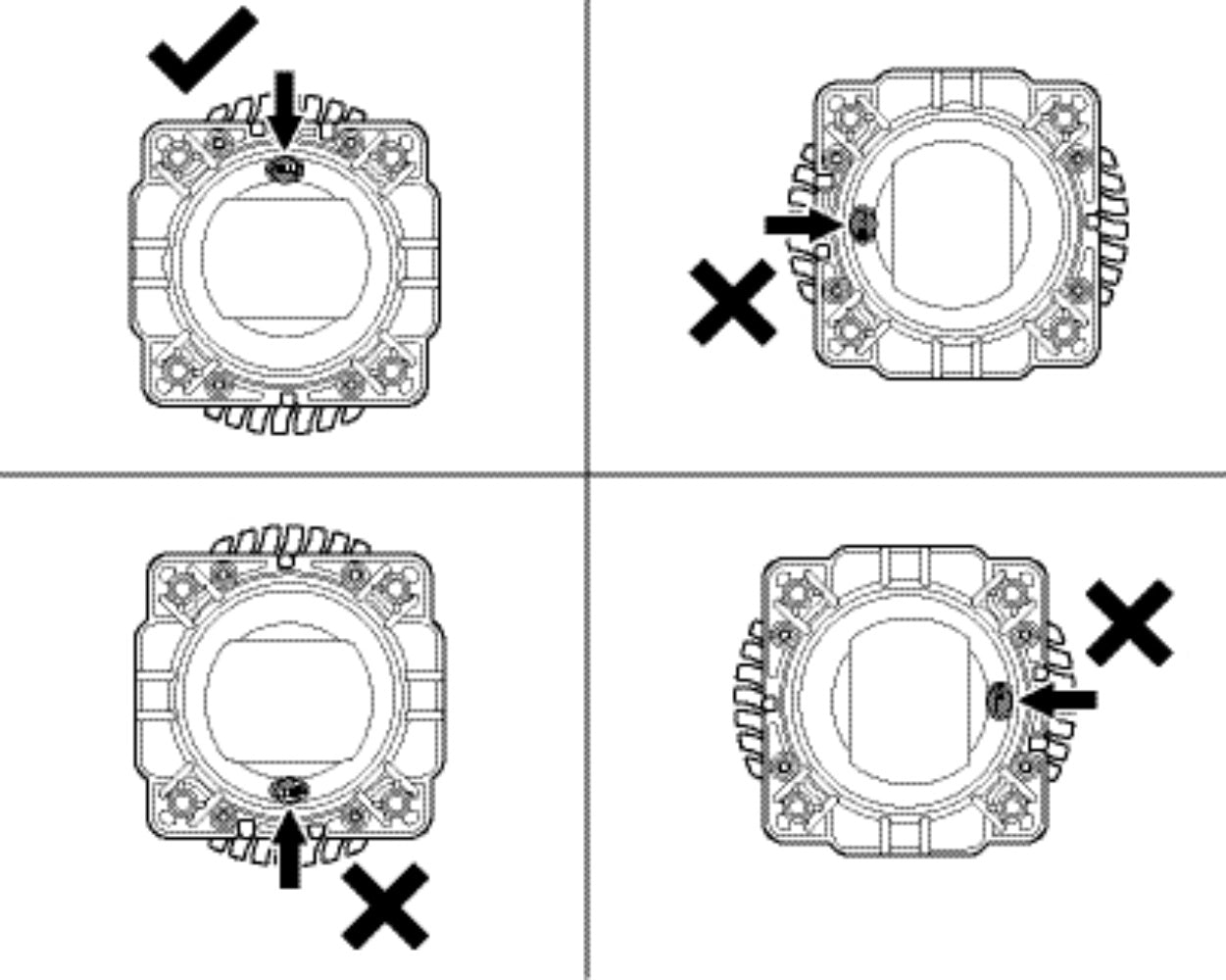

Fitting Position: left / right
Height: 135 mm
Width: 124 mm
Length: 135 mm
Depth: 74 mm
Ø: 94 mm
Light Function: with low beam (LED) / with high beam (LED)
Light functions: 2
Registration Type: SAE
fulfils ECE standard: R10

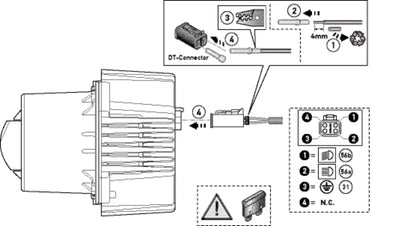

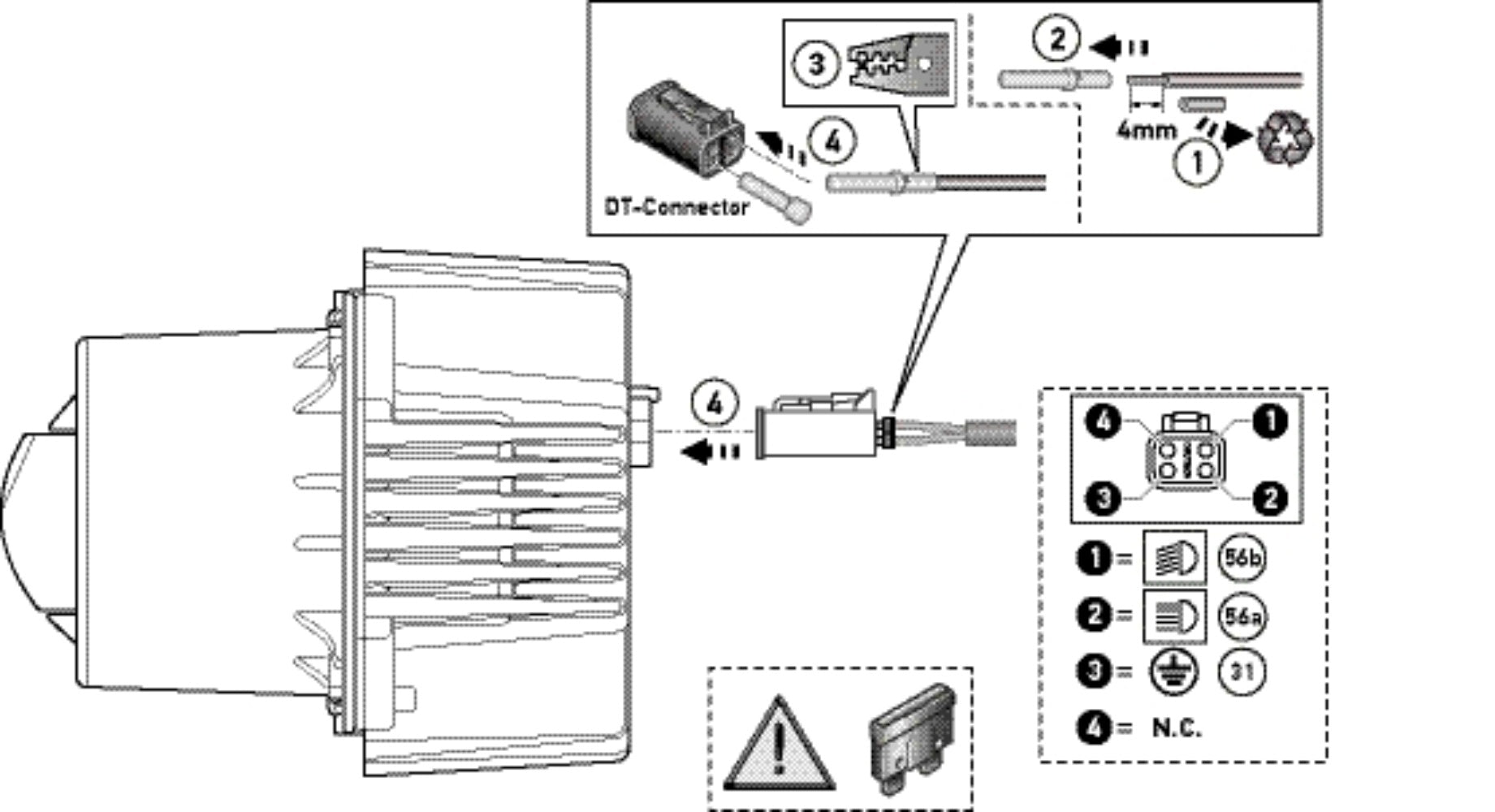

Plug: DEUTSCH plug
Reference number: 17.5
Left-hand/Right-hand Traffic: for right-hand traffic
Lens Colour: Crystal clear
Housing Colour: black
Illuminated Area: 94 mm
Shape: round
Diffusing Lens Material: Glass
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Supplementary Article/Supplementary Info: without bulb
Quantity: 1
Assembly by qualified personnel required!
