HELLA LED/DE-Headlight - 90mm Performance Bi-LED L70 - 24/12V 1BL010820-001

LED/DE-Headlight - 90mm Performance Bi-LED L70 - 24/12V - round - ECE - transparent - right/left

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• 90 mm cover lens: Made of plastic especially resistant to stone chipping. Optics-free - for direct view of the lens.
• 70 mm lens: Optic-free, made of glass, the light from the reflector is projected in the desired direction. Excellent light output and extremely homogeneous illumination with little stray light.
• Free-form reflector: Computer-calculated free-form plastic reflector focuses the light through the precision lens.

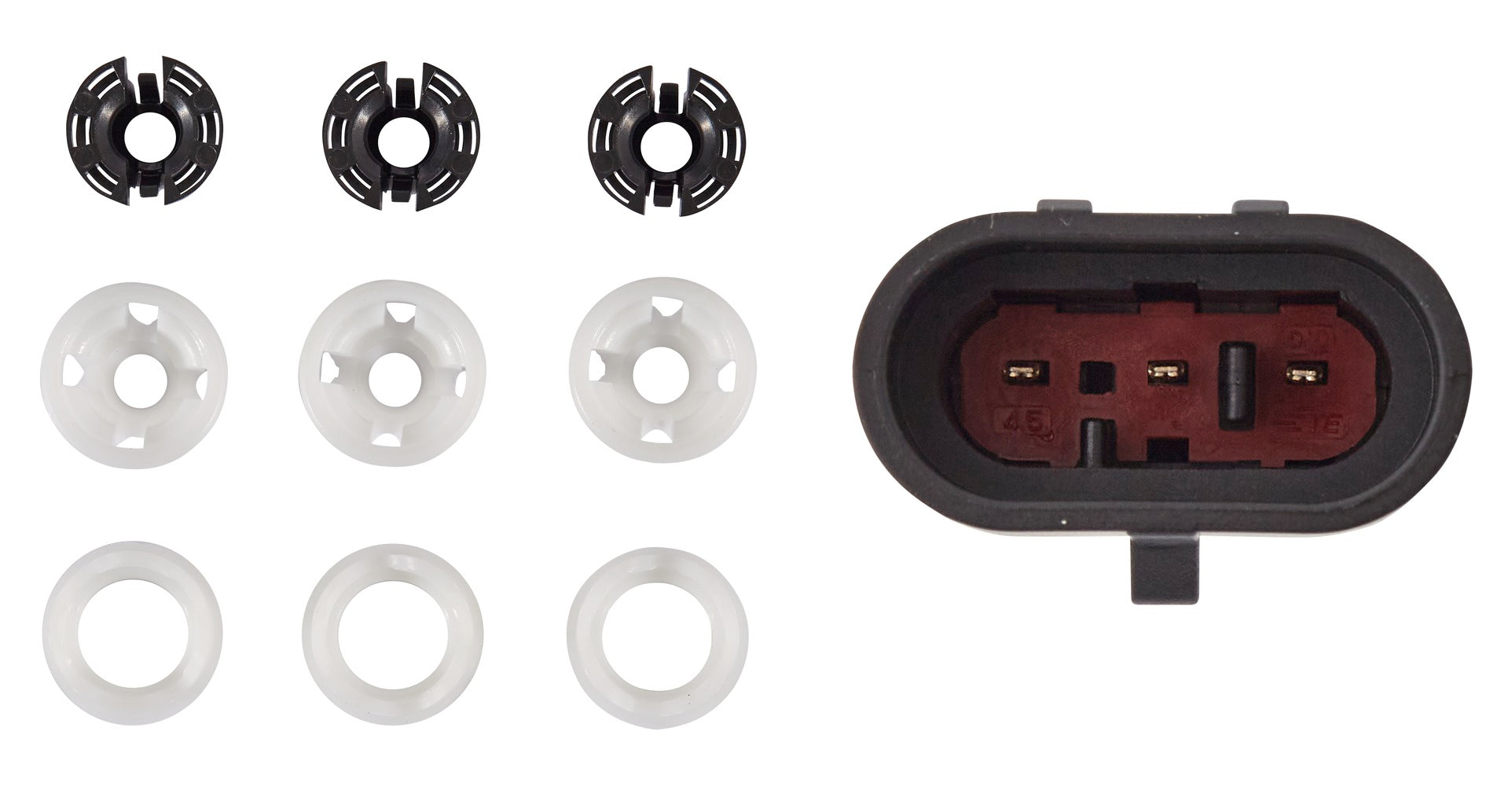

• Simple installation with 4 pre-mounted adjusting screws on the vehicle body or optionally on an additional support frame (accessory).
• Can be ideally combined with other modules of the 90 mm series.
• Width: 143mm - Height: 143mm - Depth: 182mm - Lamp Type: LED - Electromagnetic Compatibility (EMC)
• Light functions: 1 - with low beam (LED)

Item Attributes:
Mounting Type: Fitting
Lamp Type: LED
Light Design: DE / LED
Voltage: 12 V / 24 V
Fitting Position: right / left
Width: 143 mm
Height: 143 mm
Depth: 182 mm
Light Function: with low beam (LED)
Light functions: 1
Registration Type: ECE
Left-hand/Right-hand Traffic: for right-hand traffic
Shape: round
Housing Colour: black
Illuminated Area: 90 mm
Diffusing Lens Material: Plastic
Lens Colour: transparent
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!

OE references: AGRIFAC 7700229; HYMER 2346896; KNAUS R01010169; MERCEDES-BENZ 000 820 20 59; MERCEDES-BENZ A 000 820 20 59; NOGE GG00556006; NOGE GG00556006-A; SAME S2.8039.382.0; SCANIA 2123926; SOLARIS 0000-088-453; VDL 30129755; VOLVO 15432677; VOLVO 17228546; VOLVO 21772551; VOLVO 21812448; VOLVO TEL15432677; VOLVO VOE17228546; YUTONG 4101-00088
