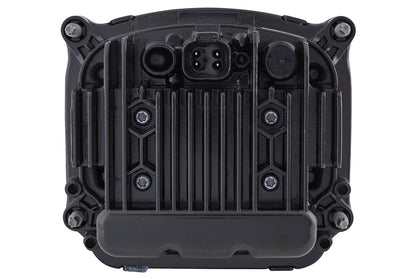

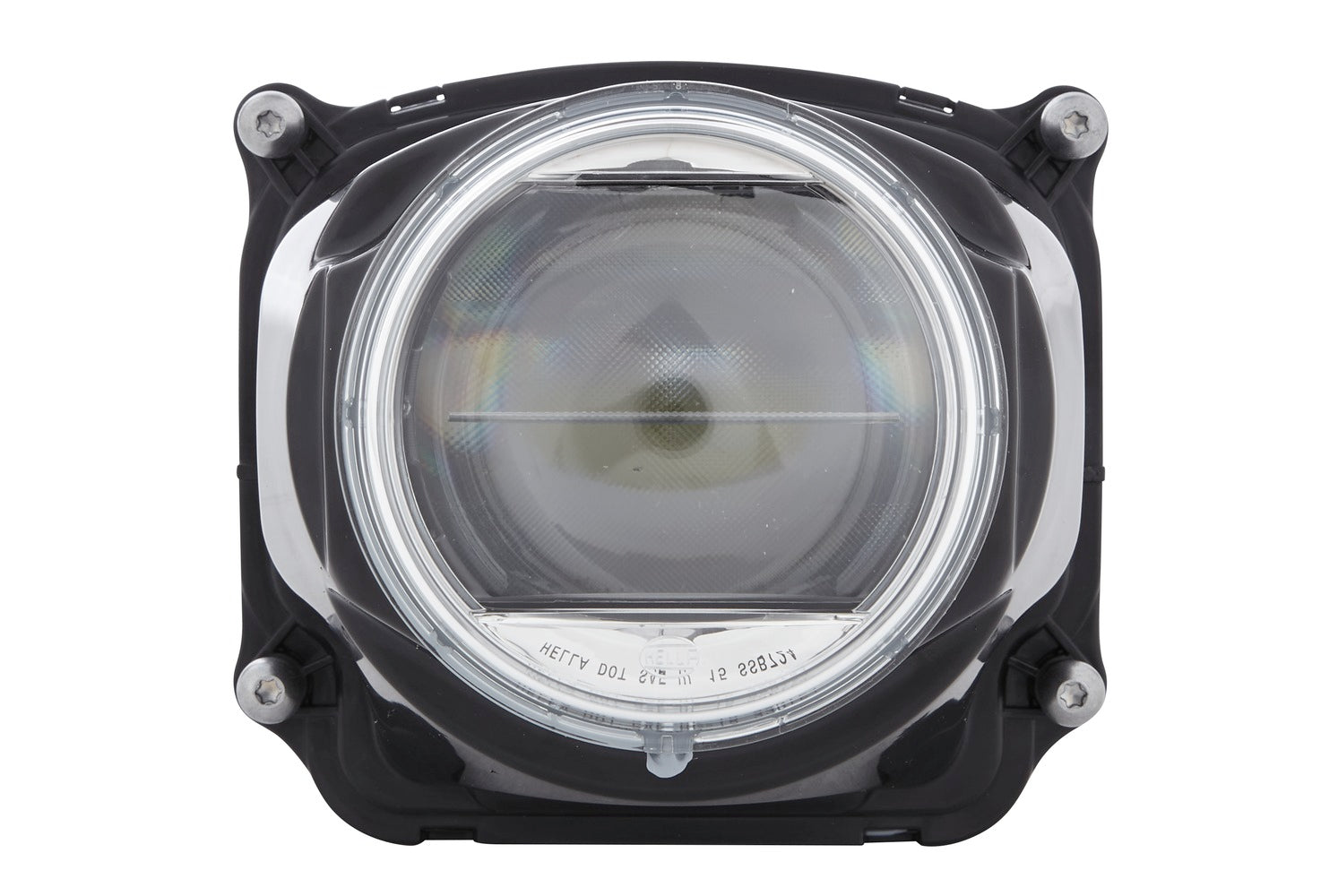

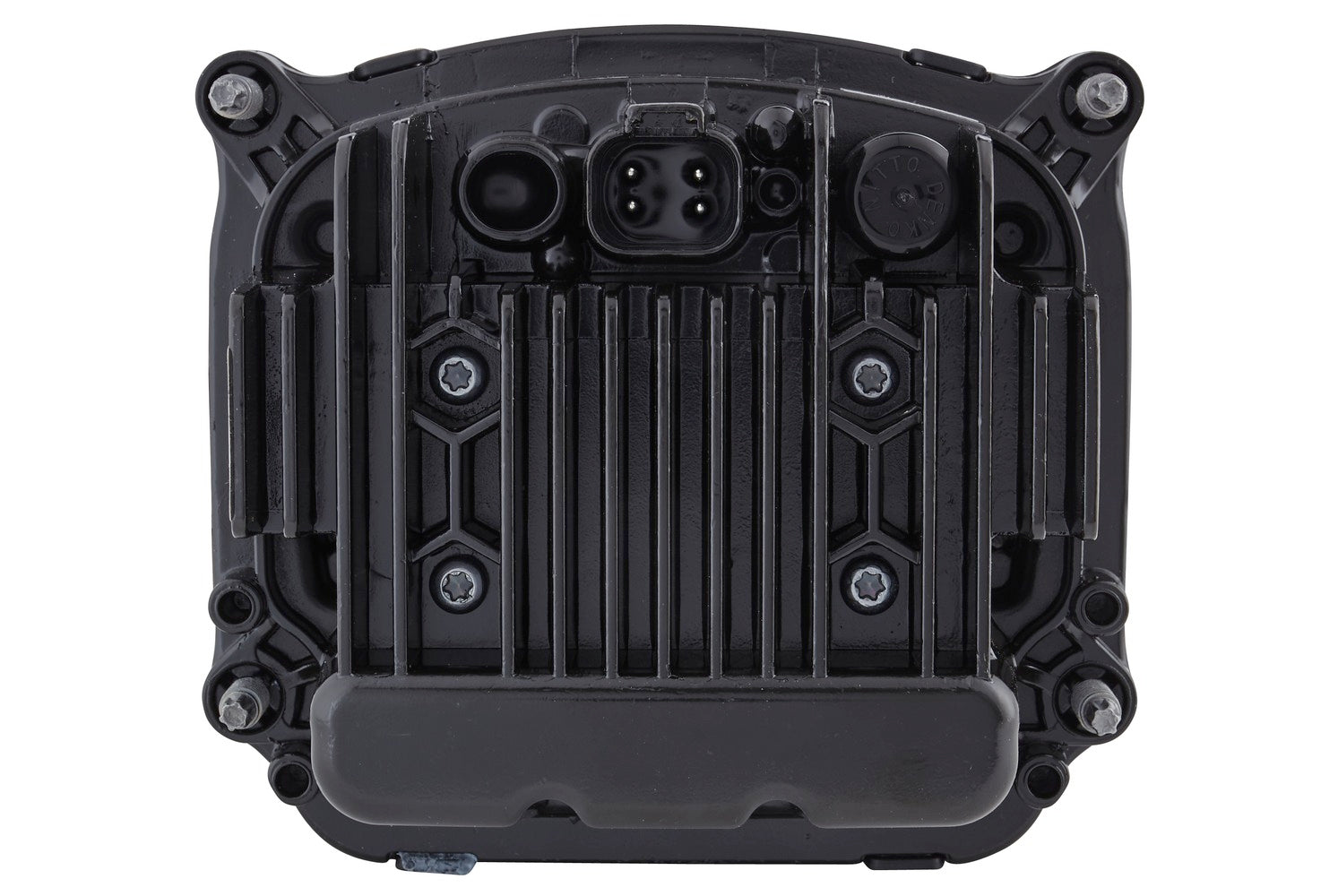

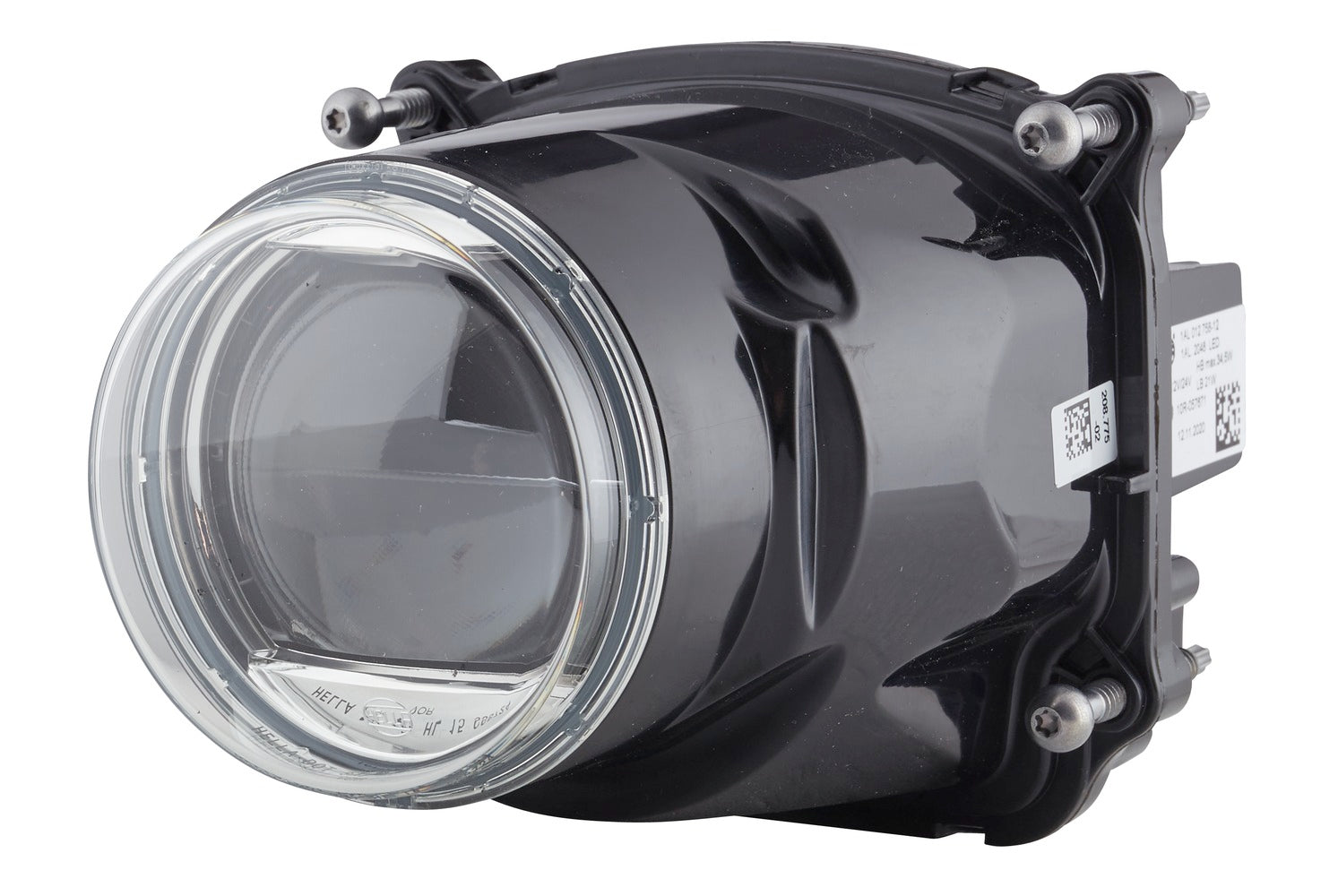

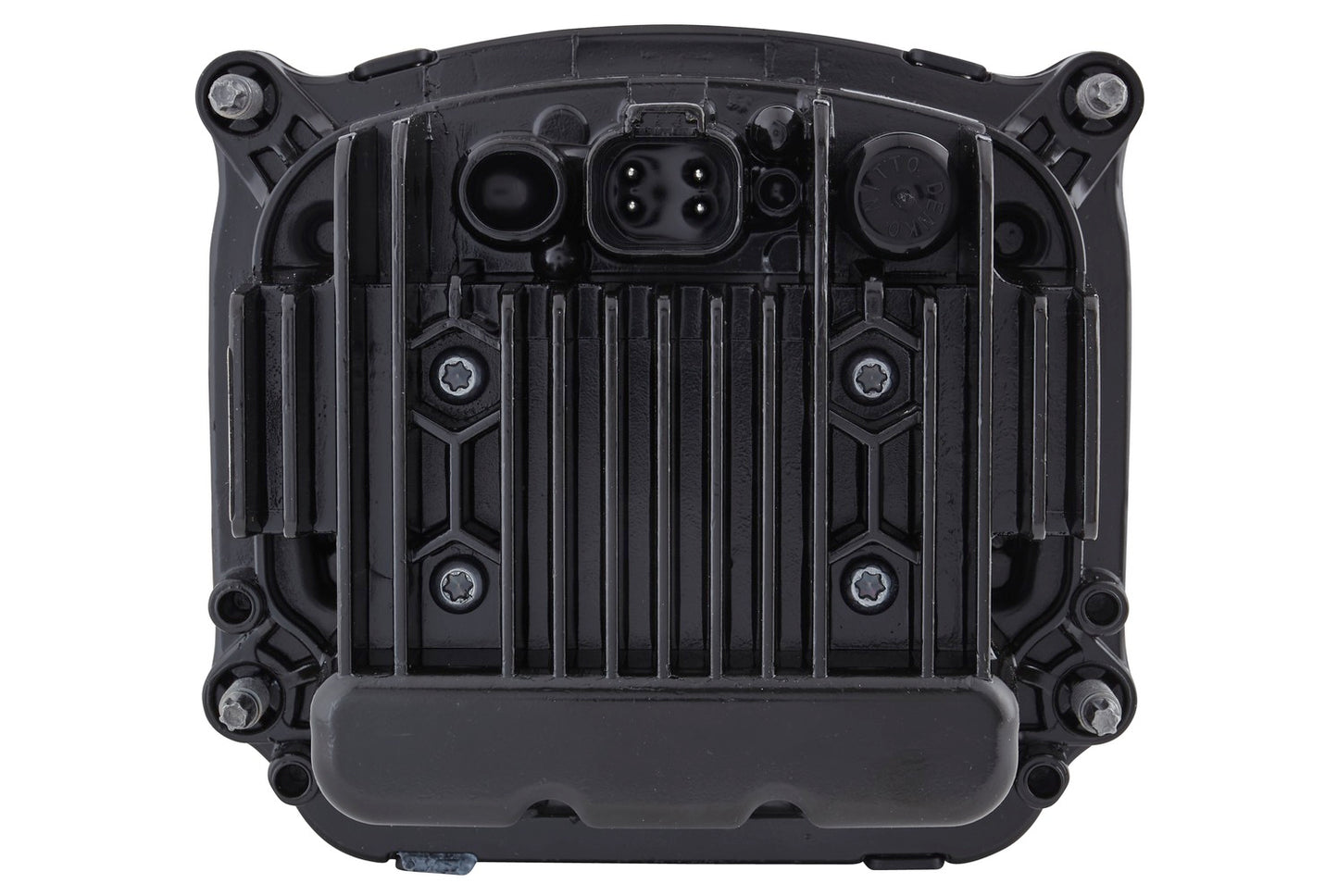

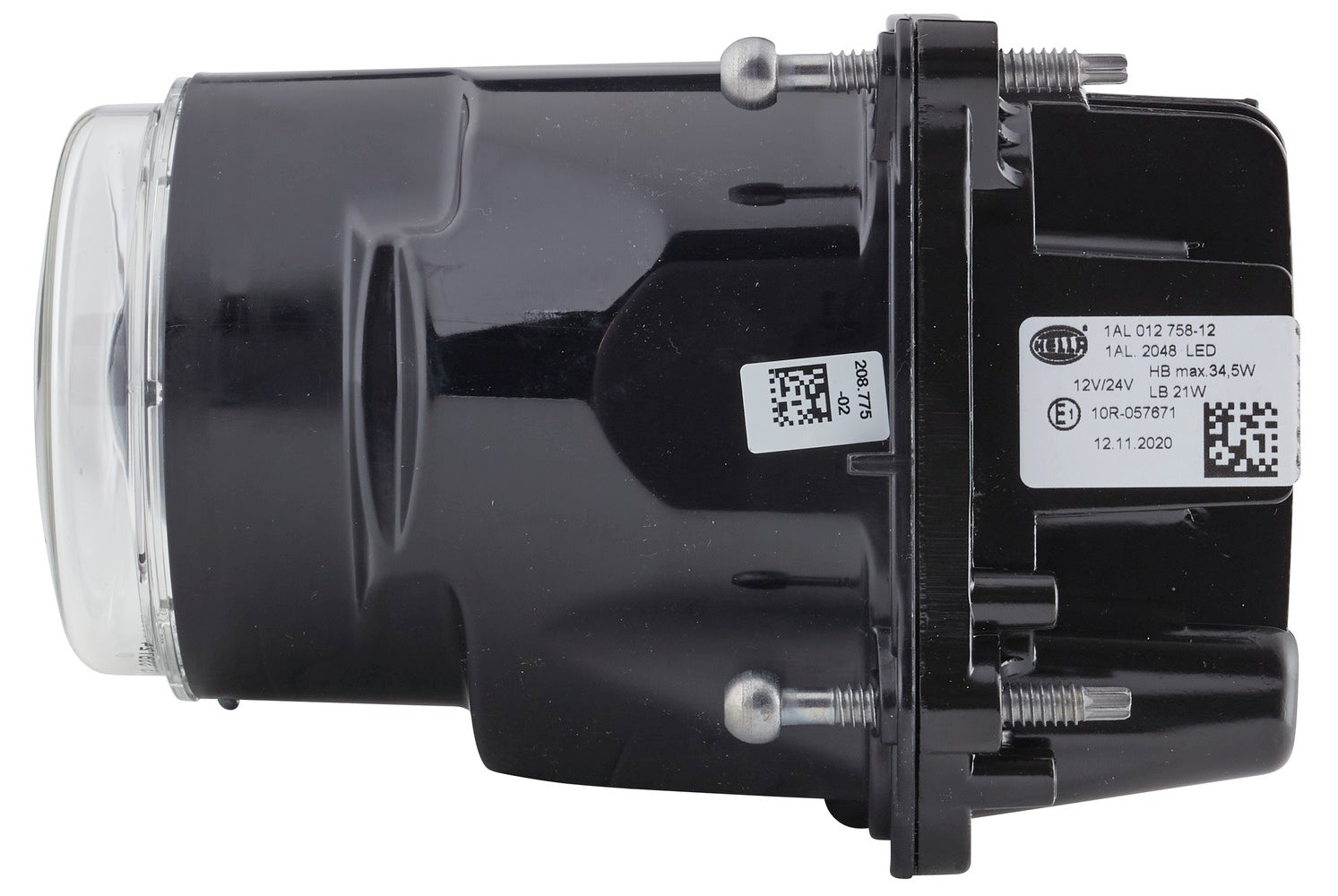

HELLA LED/DE-Insert, headlight - 90mm Performance Bi-LED L5570 - 12/24V 1AL012758-121

LED/DE-Insert, headlight - 90mm Performance Bi-LED L5570 - 12/24V - round - Crystal clear - Plug: DEUTSCH plug - Quantity: 1

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• The Bi-LED module of the 2. The second generation combines dipped and main beam light and impresses with its advanced light / electronics.
• The 55 x 70 polycarbonate lens projects light from the reflector in the desired direction without the need for optics.
• The module has a hardened plastic cover lens, it has no moving parts and is passively cooled.
• An integrated function output for failure control is inherent to the product.
• Electromagnetic compatibility (EMC) tested and EC type approval granted.
• Ø: 90mm - Width: 134mm - Height: 122mm - Depth: 179mm - Lamp Type: LED - without bulb - Electromagnetic Compatibility (EMC)
• Light functions: 2 - with high beam (LED)/with low beam (LED)

Item Attributes:
Mounting Type: Screw Connection / Fitting
Fastening Type: Four-point attachment
Light Design: DE / LED
Lamp Type: LED
Voltage: 24 V / 12 V
Height: 122 mm
Width: 134 mm
Depth: 179 mm
Ø: 90 mm
Light Function: with low beam (LED) / with high beam (LED)
Light functions: 2
fulfils ECE standard: R10 / R112

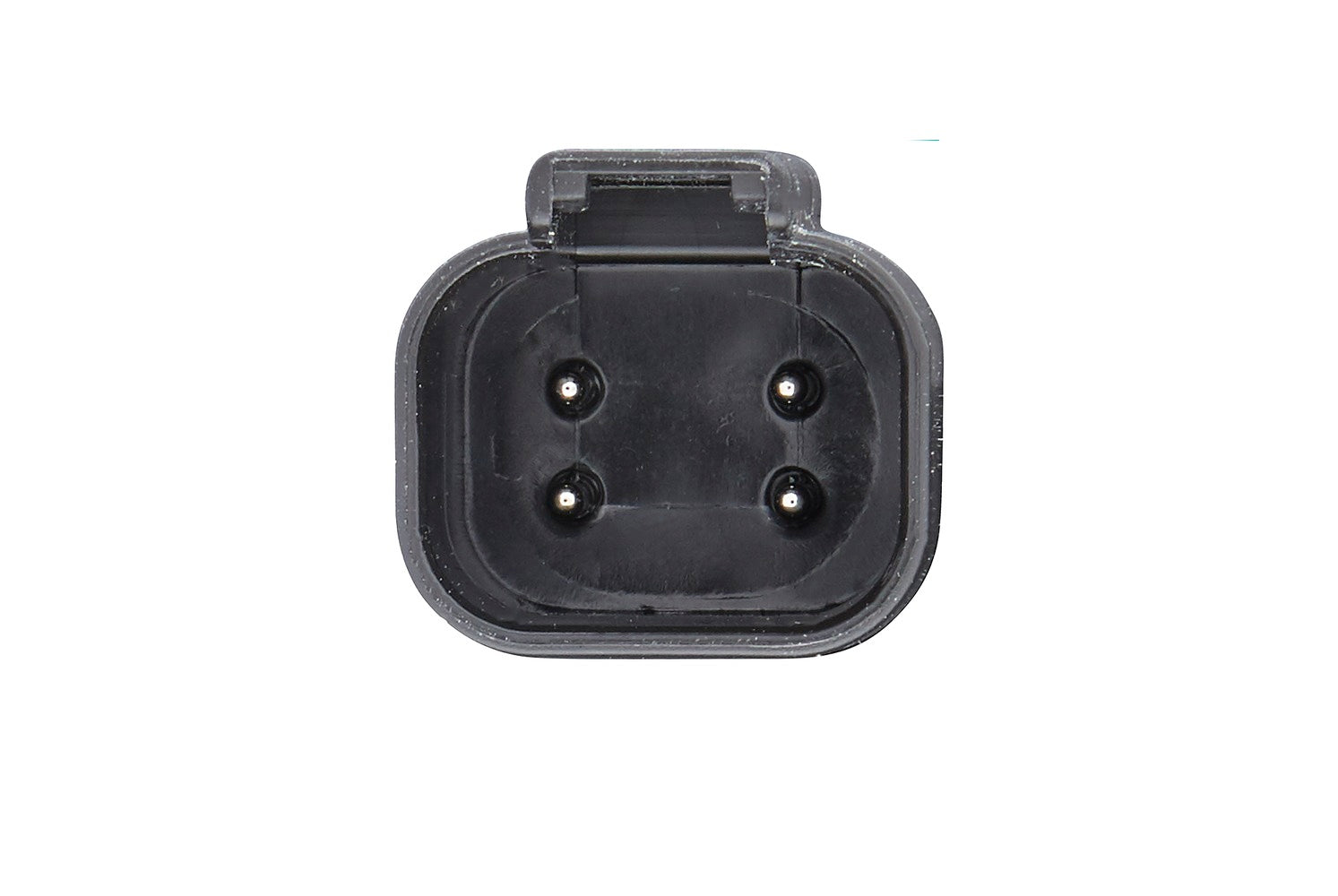

Plug: DEUTSCH plug
Left-hand/Right-hand Traffic: for right-hand traffic
Lens Colour: Crystal clear
Housing Colour: black
Illuminated Area: 122 mm
Shape: round
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Supplementary Article/Supplementary Info: without bulb
Quantity: 1
Assembly by qualified personnel required!

OE references: ALEXANDER DENNIS 76102171
