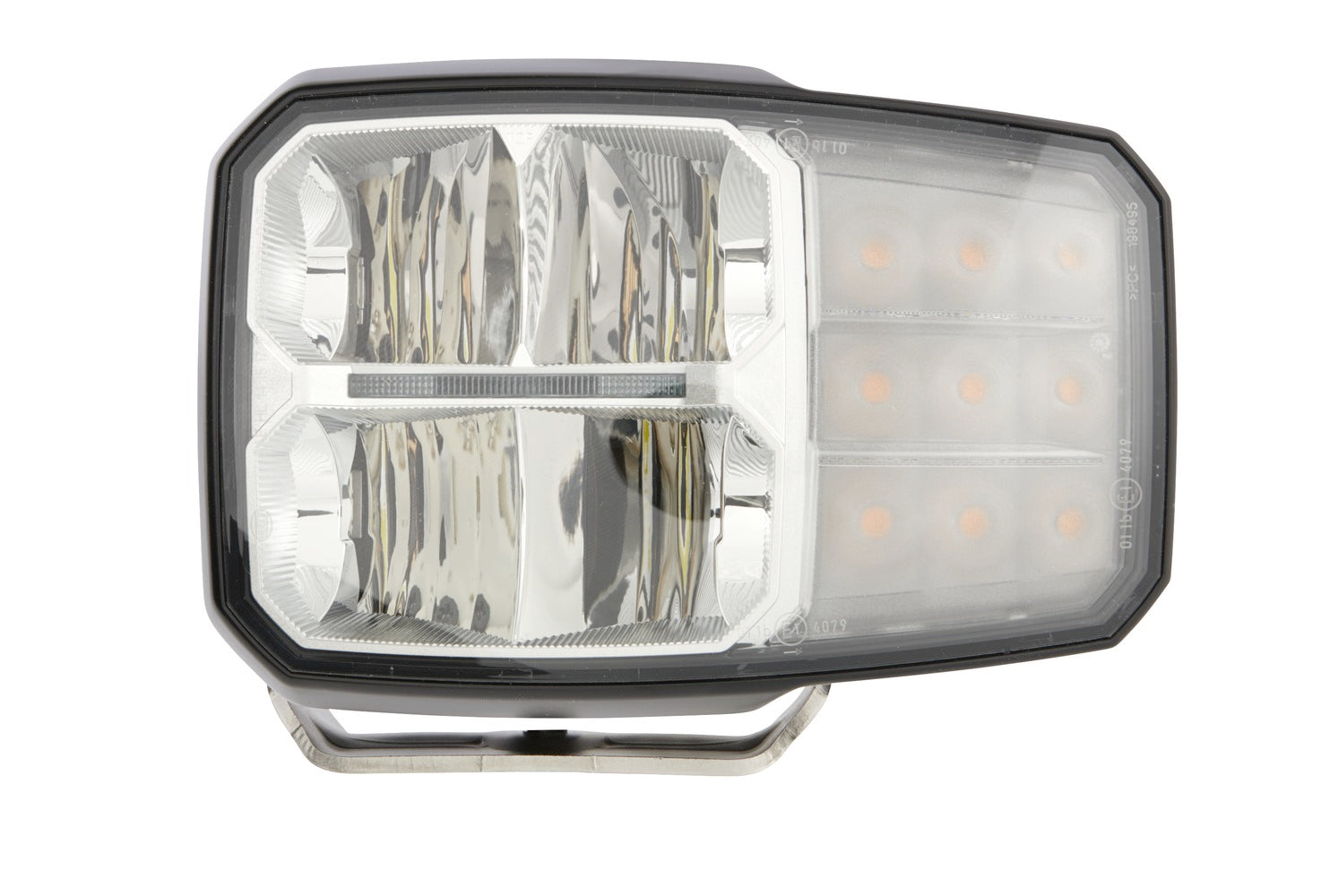

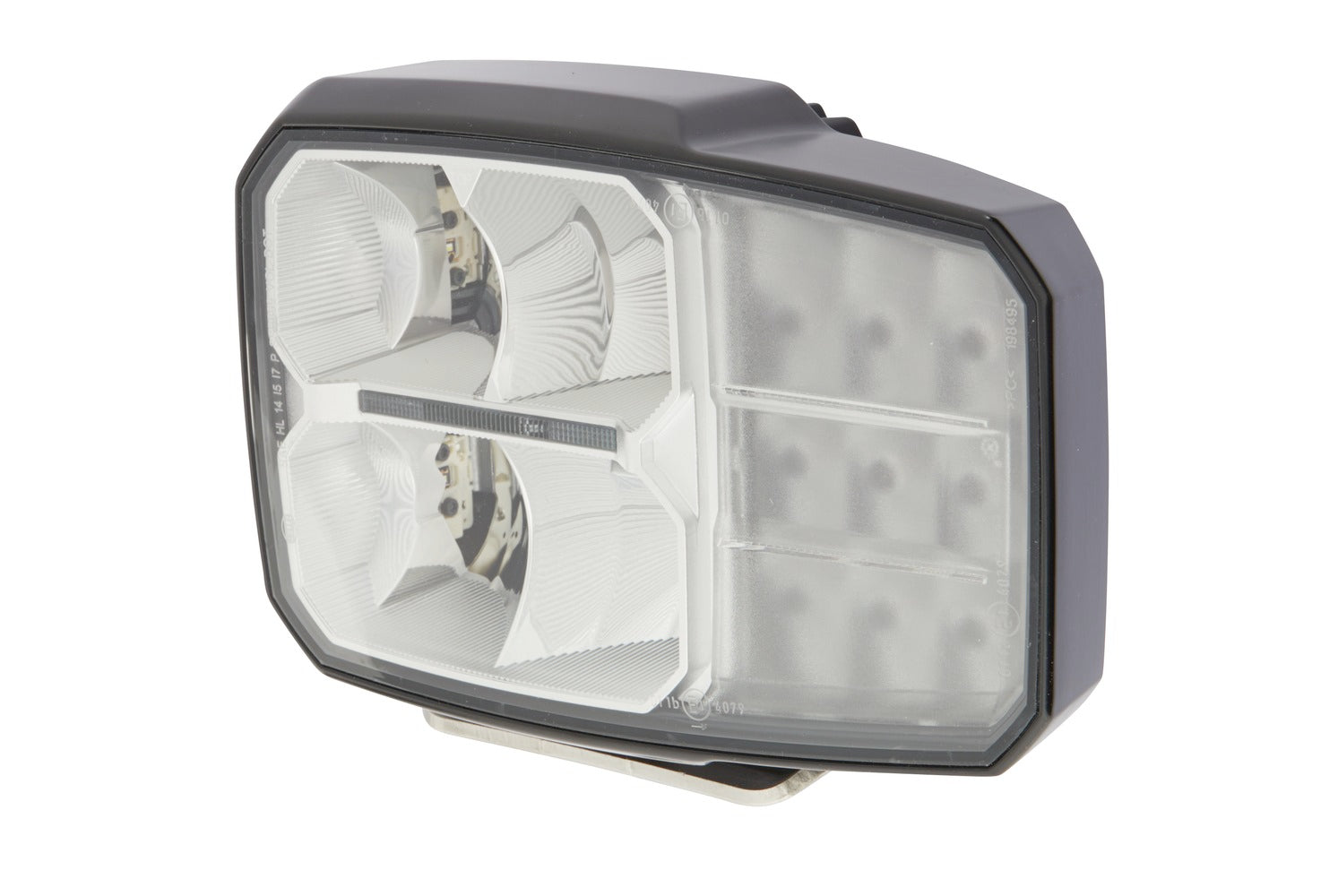

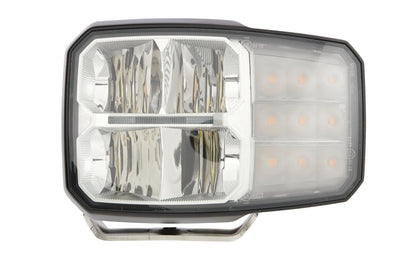

HELLA LED-Headlight - C140 - 24/12V 1EE996374-011

LED-Headlight - C140 - 24/12V - SAE/ECE - transparent - Plug: DEUTSCH plug - left

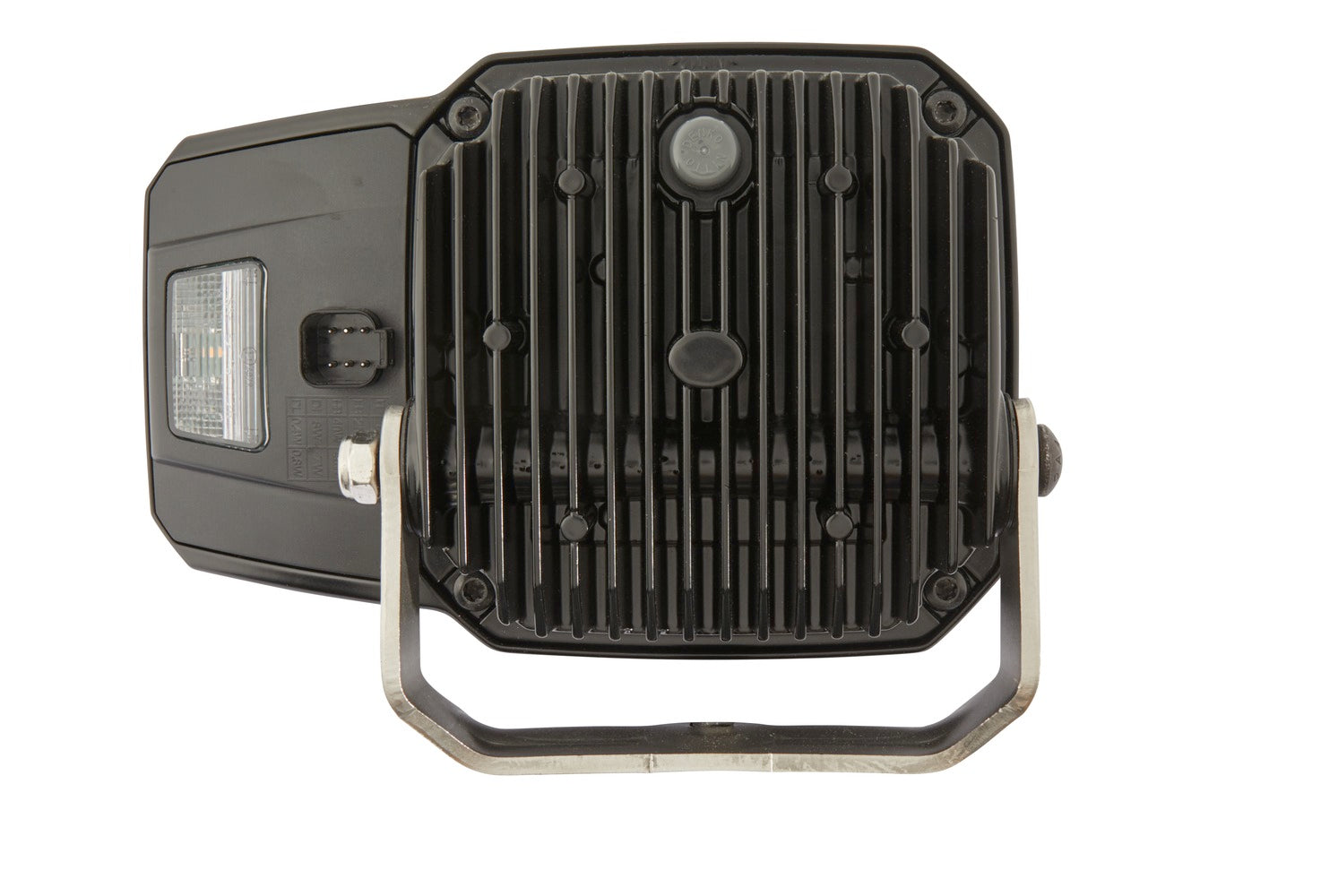

The C140 LED is the first combination headlight on the market to feature all light functions in LED technology: low beam, high beam, indicator and position light (as LED light guide). The special freeform reflector together with the LED light source produces significantly better light than headlights with halogen bulbs. With its daylight colour, the light appears far brighter to the eye and makes working at night less tiring. The housing of the C140 LED is made of aluminum and features cooling fins on its rear, which ensure heat removal from the high-power LEDs. A specially developed thermal design with temperature sensors prevents the headlight from overheating. With its robust, heavy-duty bracket and a lens made of toughened, shatterproof plastic, the headlight is particularly resistant to vibration and impact. Ideal for the tough conditions on construction vehicles (strong vibrations, dust, wetness, mechanical shock, etc.). The LED technology enables a lifetime of over 20,000 hours. The C140 LED headlight is a fully sealed, maintenance-free system: it obviates the need to replace bulbs, saving time and money for the final consumer. The low LED power consumption compared to conventional halogen headlights also saves fuel, further driving down costs. The C140 LED meets all ECE and SAE requirements and is both approvable and ideal for use almost anywhere in the world. Additional approvals are required for use in China.

• Combination main headlamp in 100% LED technology
• Excellent light distribution
• For extreme and highly demanding applications
• Width: 248mm - Height: 167mm - Depth: 114mm - Lamp Type: LED
• Light functions: 4 - with indicator/with low beam/with high beam/with position light
• Registration Type: SAE/ECE - fulfils ECE standard: R10/R112 - for right-hand traffic - Prot.type (IP Code): IP6K9K
• Housing material: Aluminium - Housing Colour: black - Diffusing Lens Material: Plastic - Lens Colour: transparent

Item Attributes:
Mounting Type: mounting
Fastening Type: Horizontal fastening
Lamp Type: LED
Light Design: LED
Voltage: 24 V / 12 V
Fitting Position: left
Width: 248 mm
Height: 167 mm
Depth: 114 mm
Light Function: with high beam / with indicator / with low beam / with position light
Light functions: 4
Prot.type (IP Code): IP6K9K
Registration Type: SAE / ECE
fulfils ECE standard: R10 / R112

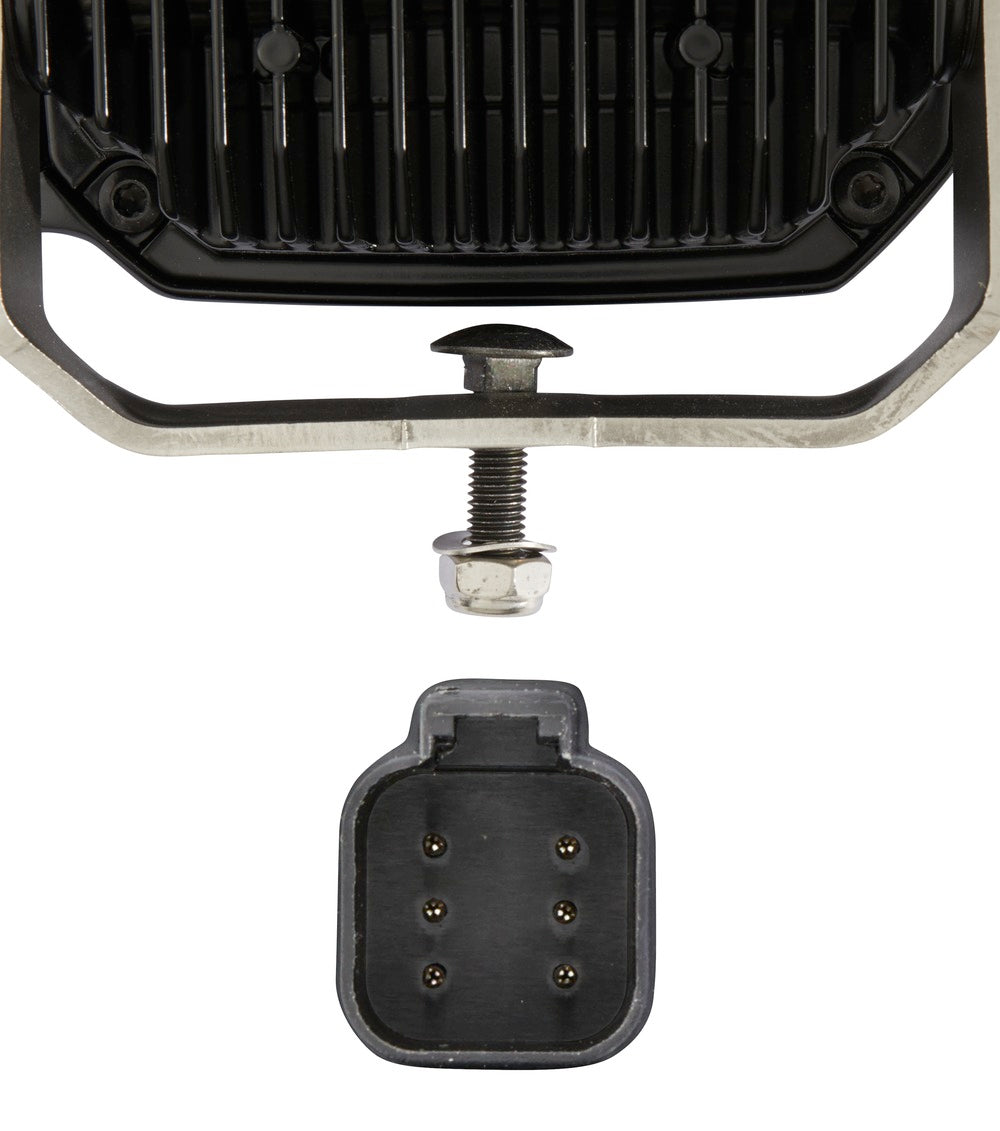

Plug: DEUTSCH plug
Left-hand/Right-hand Traffic: for right-hand traffic
Housing Colour: black
Connector type: DEUTSCH
Diffusing Lens Material: Plastic
Lens Colour: transparent
Housing material: Aluminium
Assembly by qualified personnel required!

OE references: AEBI 1240714-8; BUCHER 7655-3656; DOOSAN 301005-02417; GRIMME B94.09094; HOLDER 164514; HOLMER 1019058511; HYUNDAI 21WD-23030; HYUNDAI (CNJ) 21WD-23030; JOHN DEERE AT504137; JUNGHEINRICH 51890193; KÄSSBOHRER 7.512.325.000.0; KRAMER 1000362652; LIEBHERR 12105928; MAFI 000,580,0133; MAN U1.25103-6011; MANITOU 52713784; PAUS 564838; TATRA TW30092
