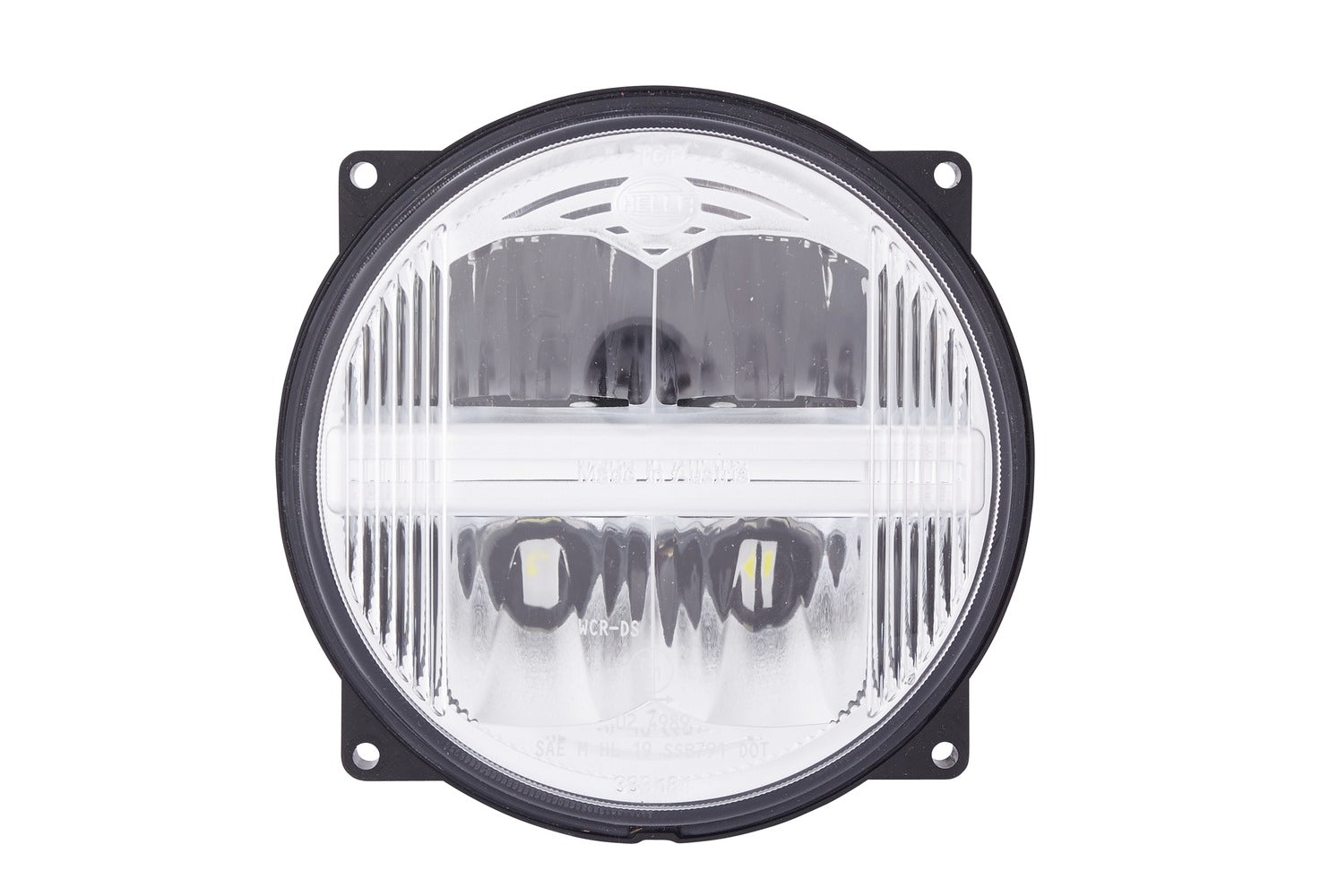

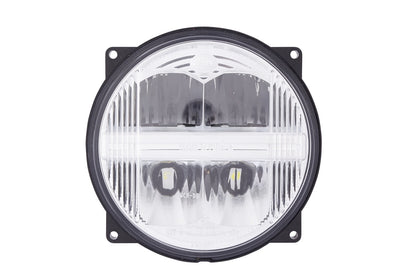

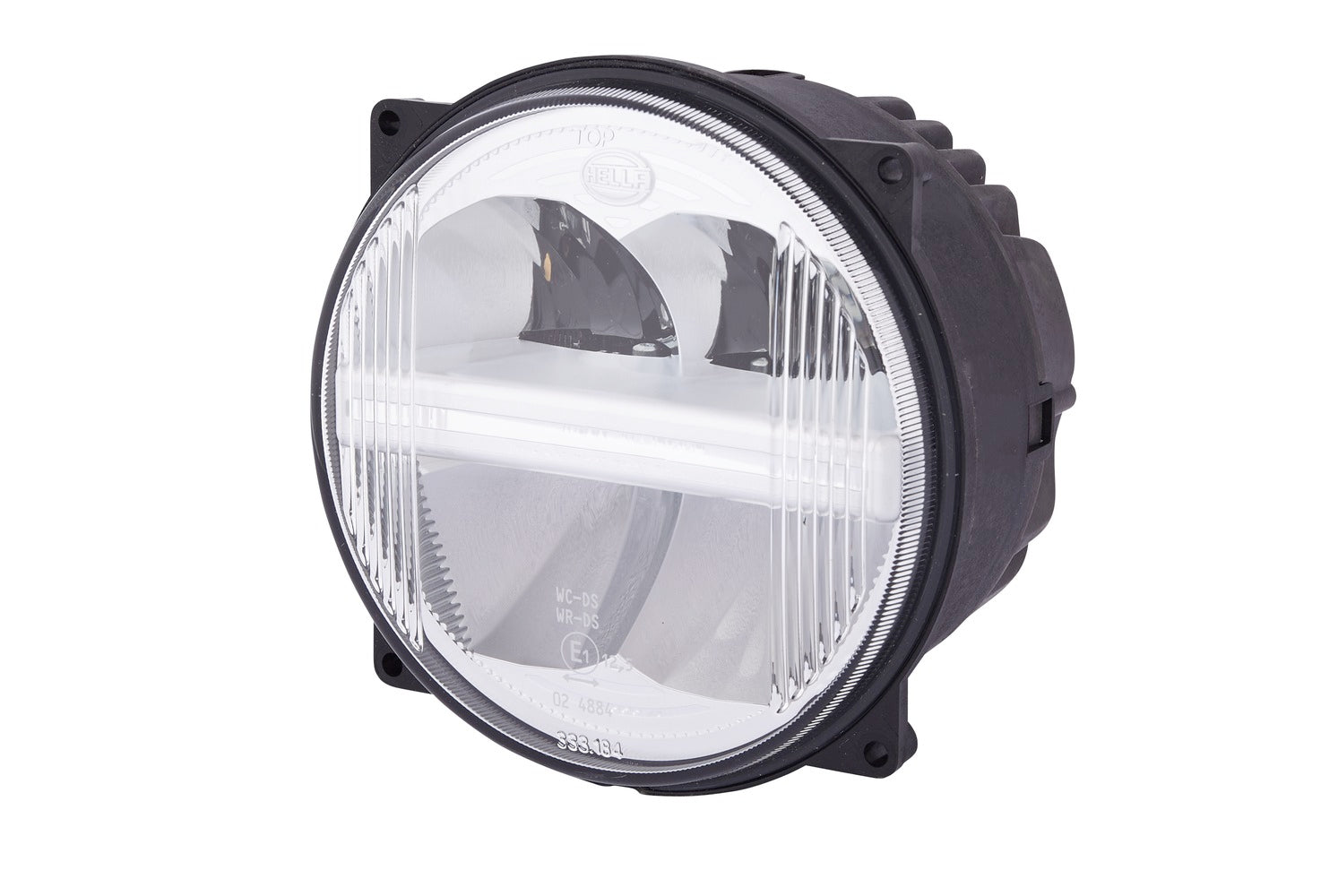

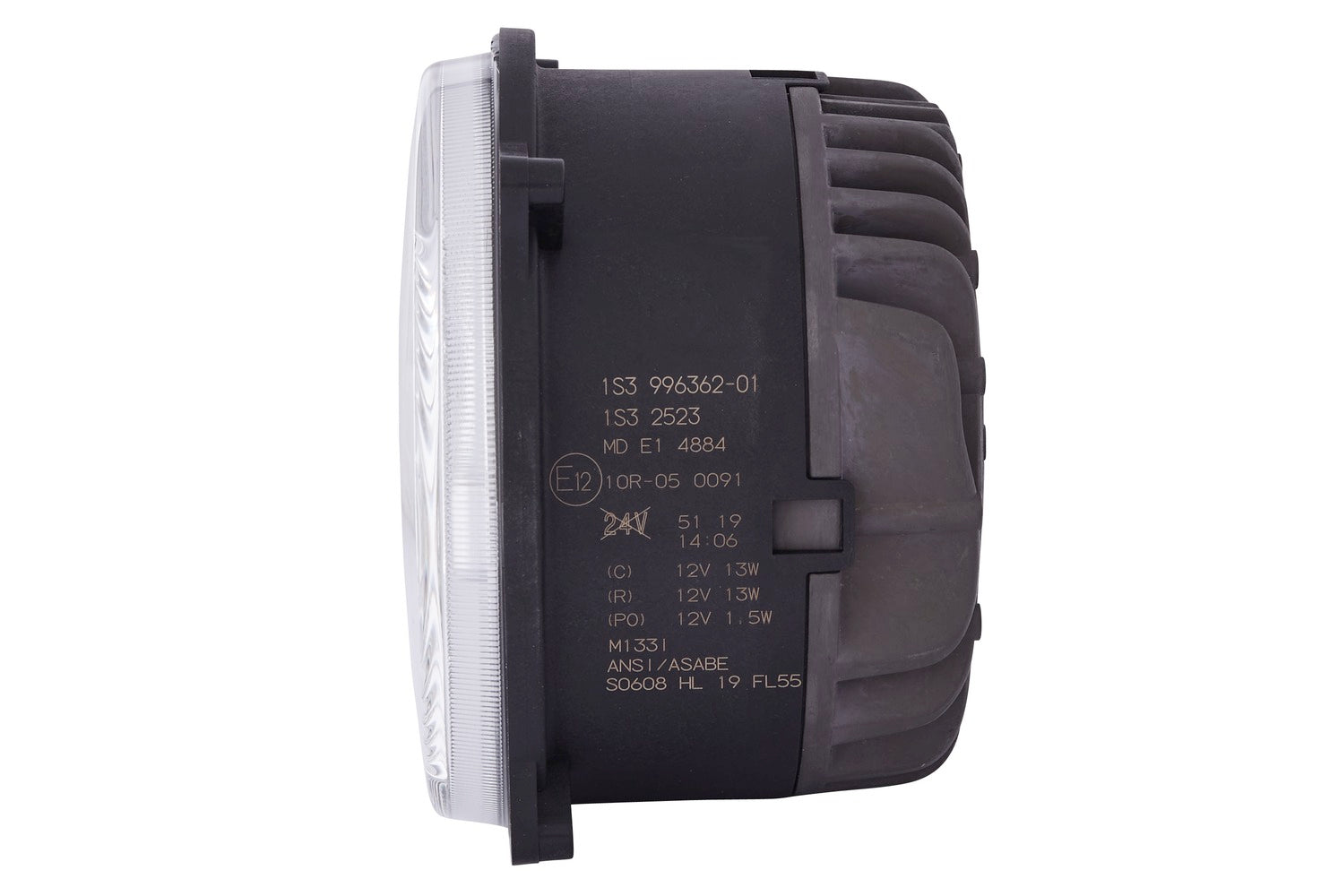

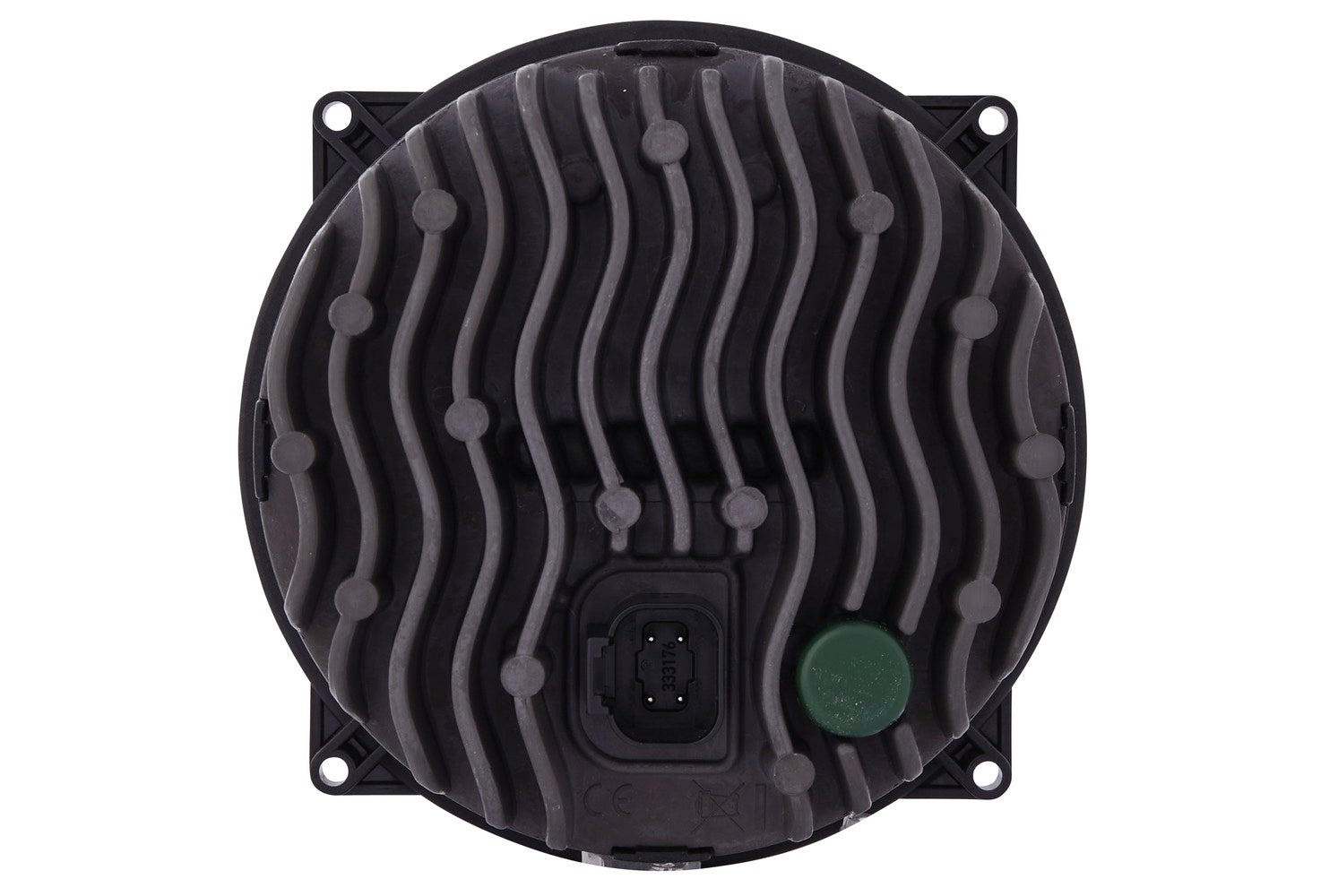

HELLA LED-Headlight - M133 - 12V 1S3996362-011

LED-Headlight - M133 - 12V - FMVSS-tested/ECE/SAE - Clear diffusing lens - transparent - Plug: DEUTSCH plug - right/left

The M133 LED main headlamp from HELLA makes it easy to switch from halogen to LED technology, especially as the low beam and high beam are combined in one housing. In addition, the headlamp is optionally available with or without position light and as a recessed or surface-mounted version. The robust aluminium housing protects the headlamps optimally and reliably against impacts and vibrations and thus withstands harsh conditions such as in the agricultural and construction machinery industry.

• As a combination headlamp of low beam and high beam, it offers the advantage of combining low beam and high beam in one housing
• The robust aluminium housing protects the headlamps optimally and reliably against shocks and vibrations.
• It can therefore withstand the harsh conditions such as those found in the agricultural and construction machinery sector.
• Width: 106mm - Height: 139mm - Depth: 98mm - Lamp Type: LED - Electromagnetic Compatibility (EMC)
• Light functions: 3 - with high beam (LED)/with low beam (LED)/with position light (LED)
• Registration Type: FMVSS-tested/ECE/SAE - fulfils ECE standard: R10/R113/R7.02 - fulfils SAE standard: J222 - for left-hand traffic/for right-hand traffic - Prot.type (IP Code): IP6K7/IP6K9K
• Diffusing Lens Material: Glass - Lens Colour: transparent

Item Attributes:
Mounting Type: Fitting
Fastening Type: Frame holder
Lamp Type: LED
Light Design: LED
Voltage: 12 V
Fitting Position: right / left
Width: 106 mm
Height: 139 mm
Depth: 98 mm
Light Function: with high beam (LED) / with position light (LED) / with low beam (LED)
Light functions: 3
Colour Temperature: 6000 K
Prot.type (IP Code): IP6K9K / IP6K7
Registration Type: ECE / FMVSS-tested / SAE
fulfils ECE standard: R10 / R7.02 / R113
fulfils SAE standard: J222

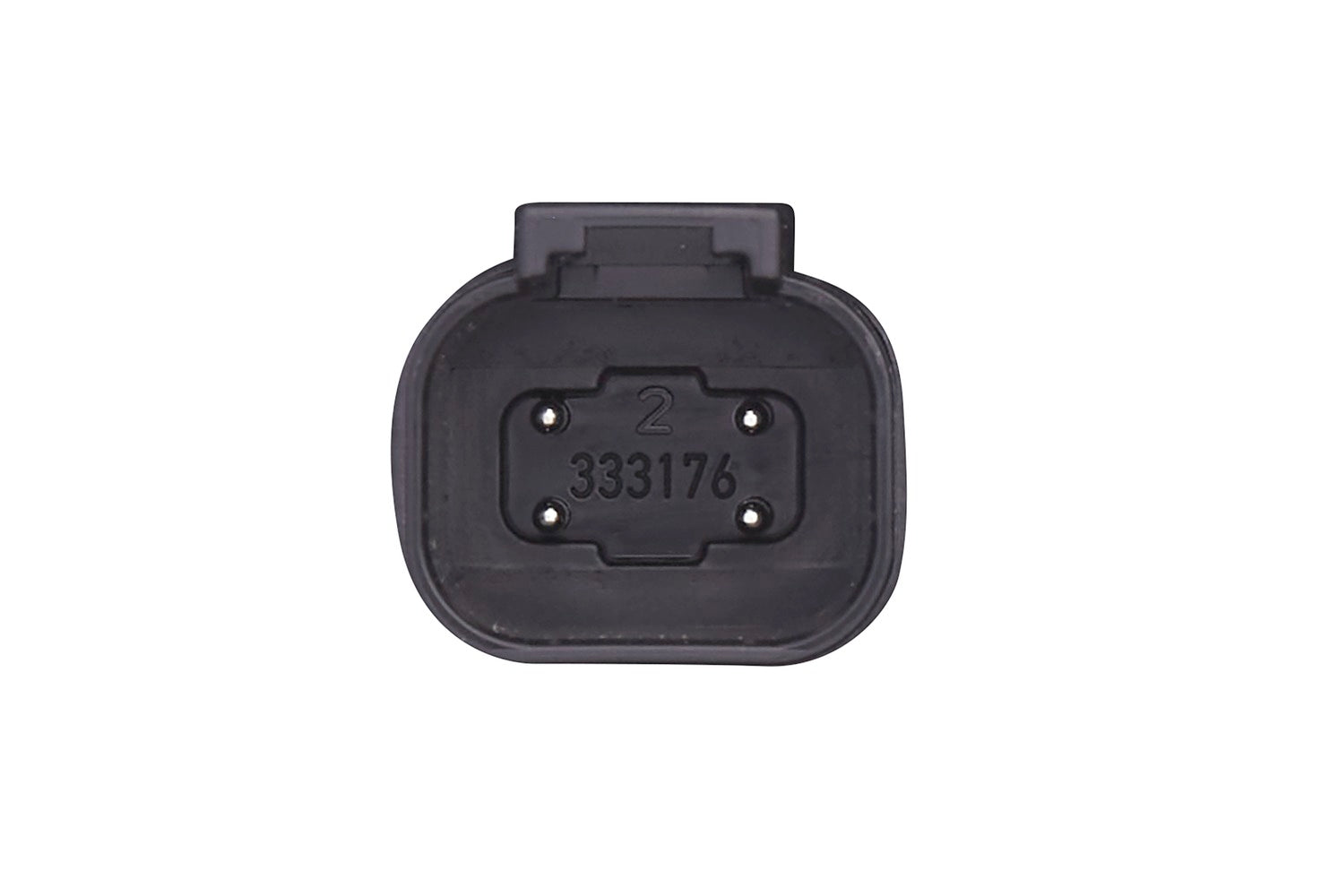

Plug: DEUTSCH plug
Left-hand/Right-hand Traffic: for right-hand traffic / for left-hand traffic
Diffusing Lens Material: Glass
Lens Colour: transparent
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Weight: 860 g
Assembly by qualified personnel required!
