Description

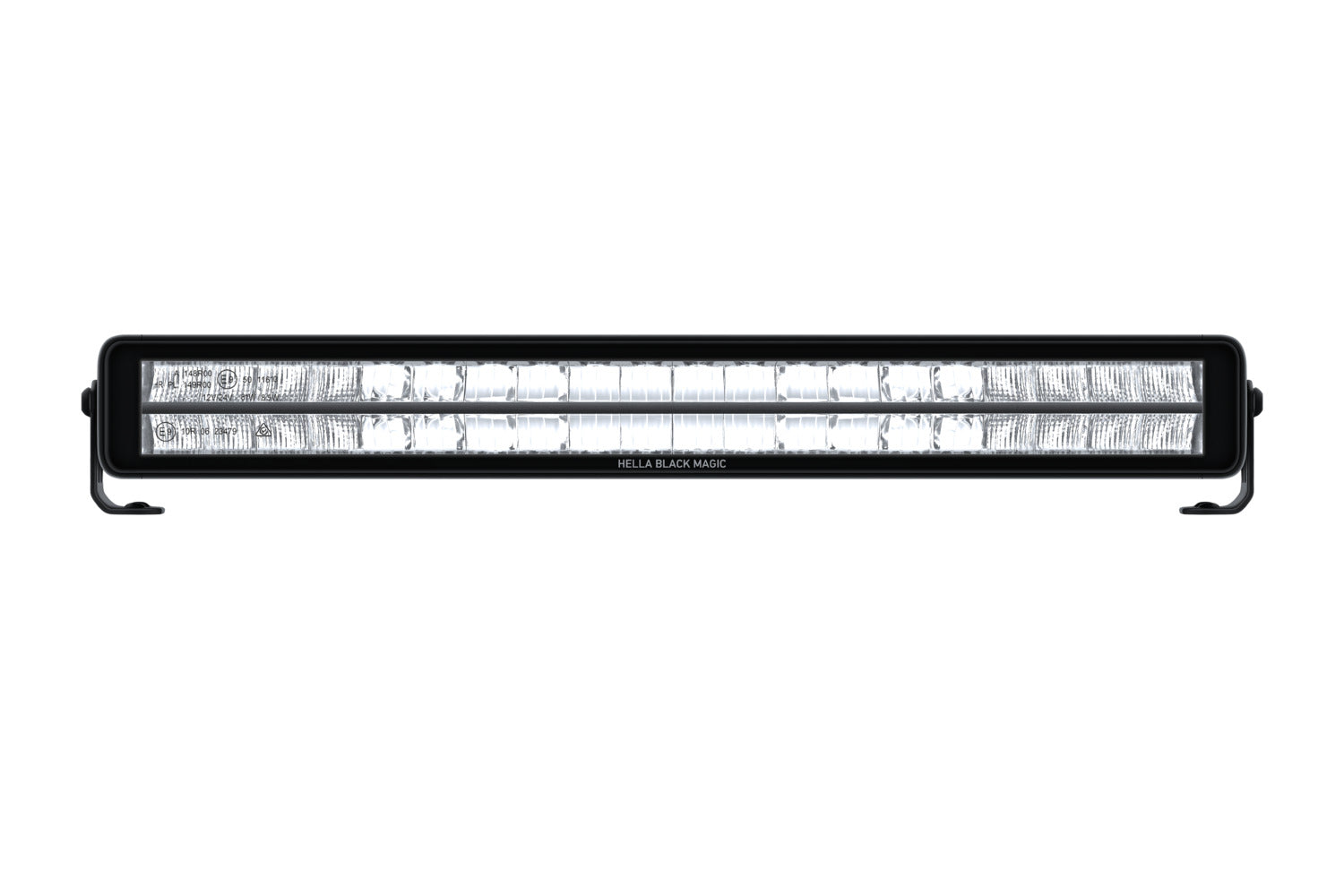

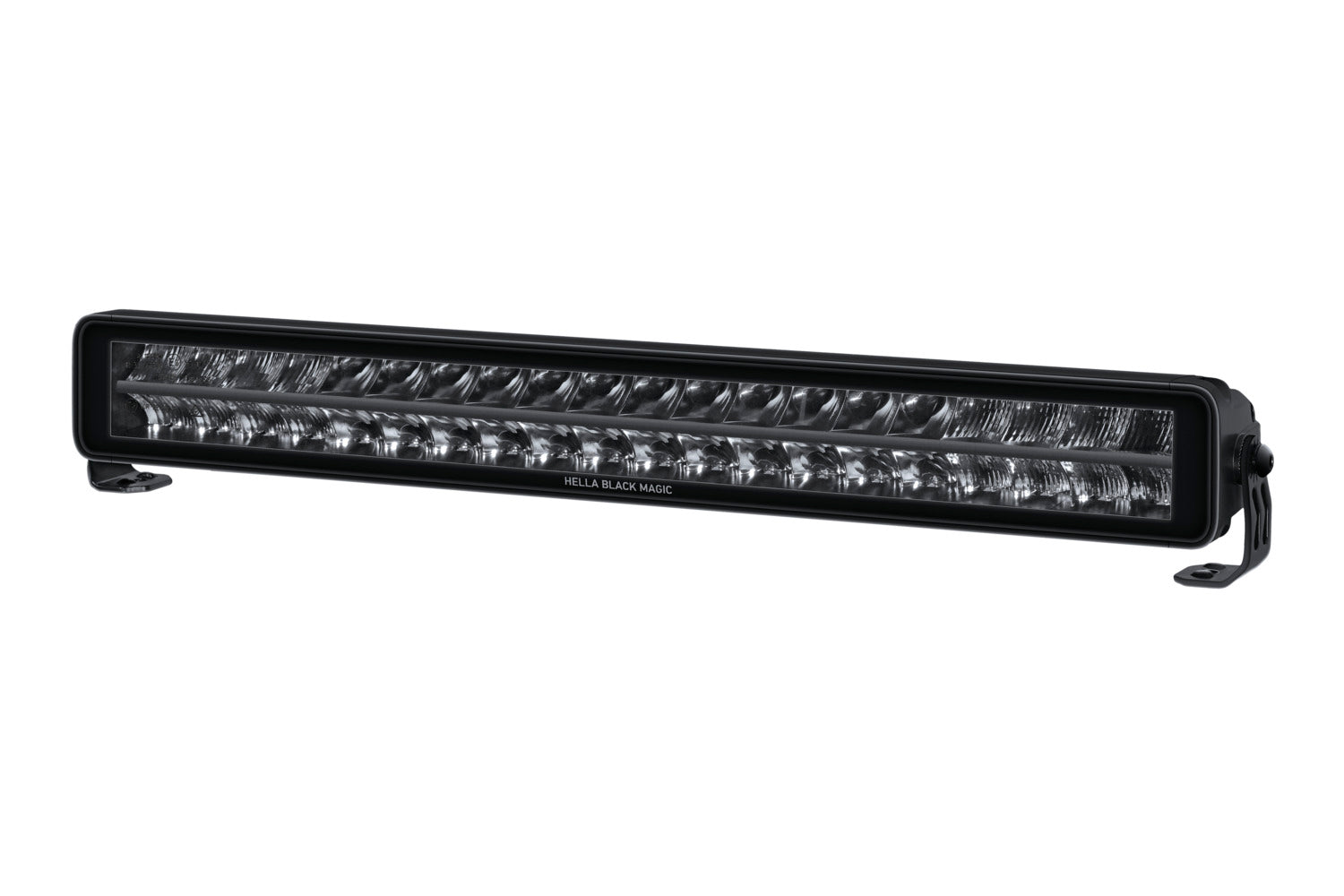

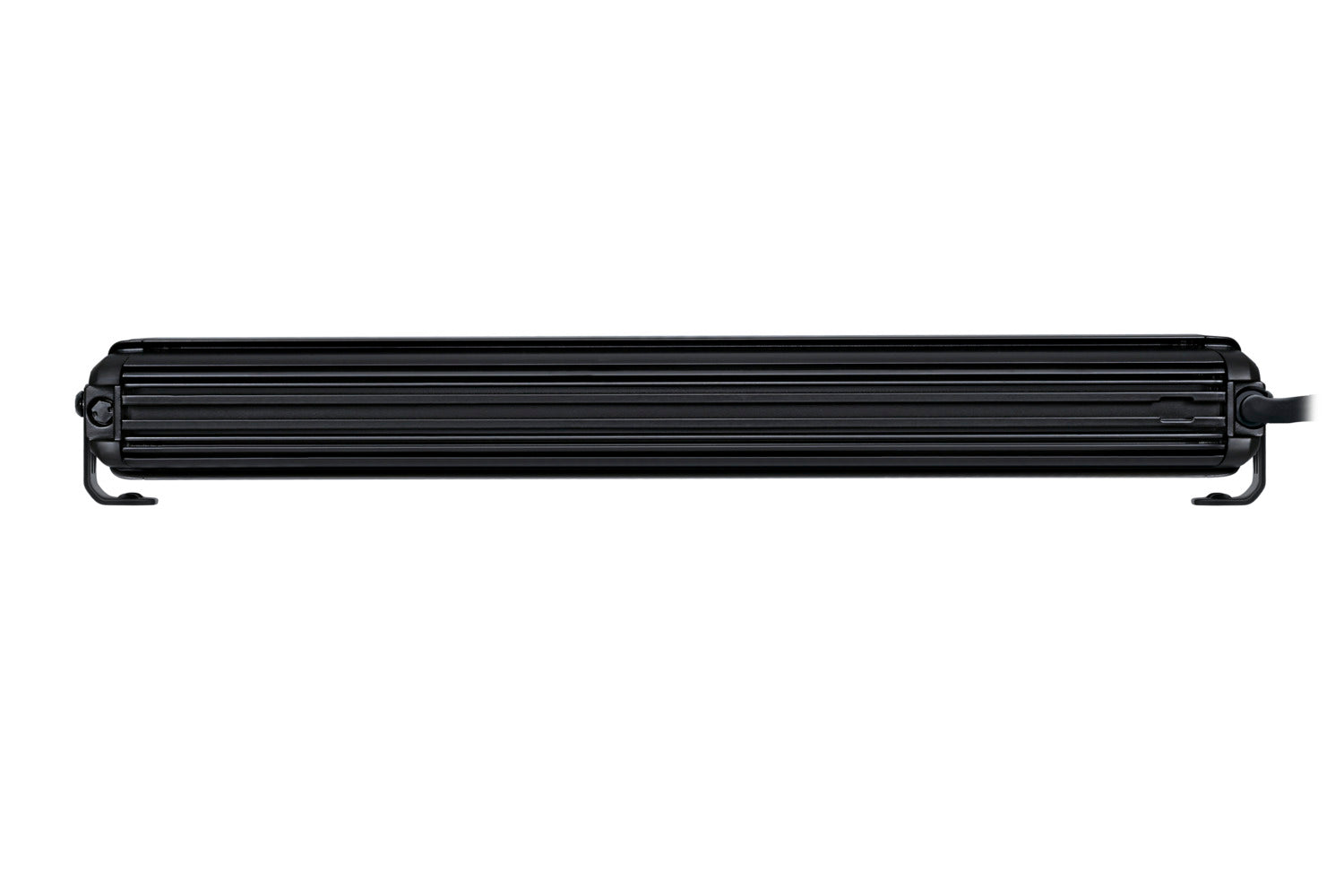

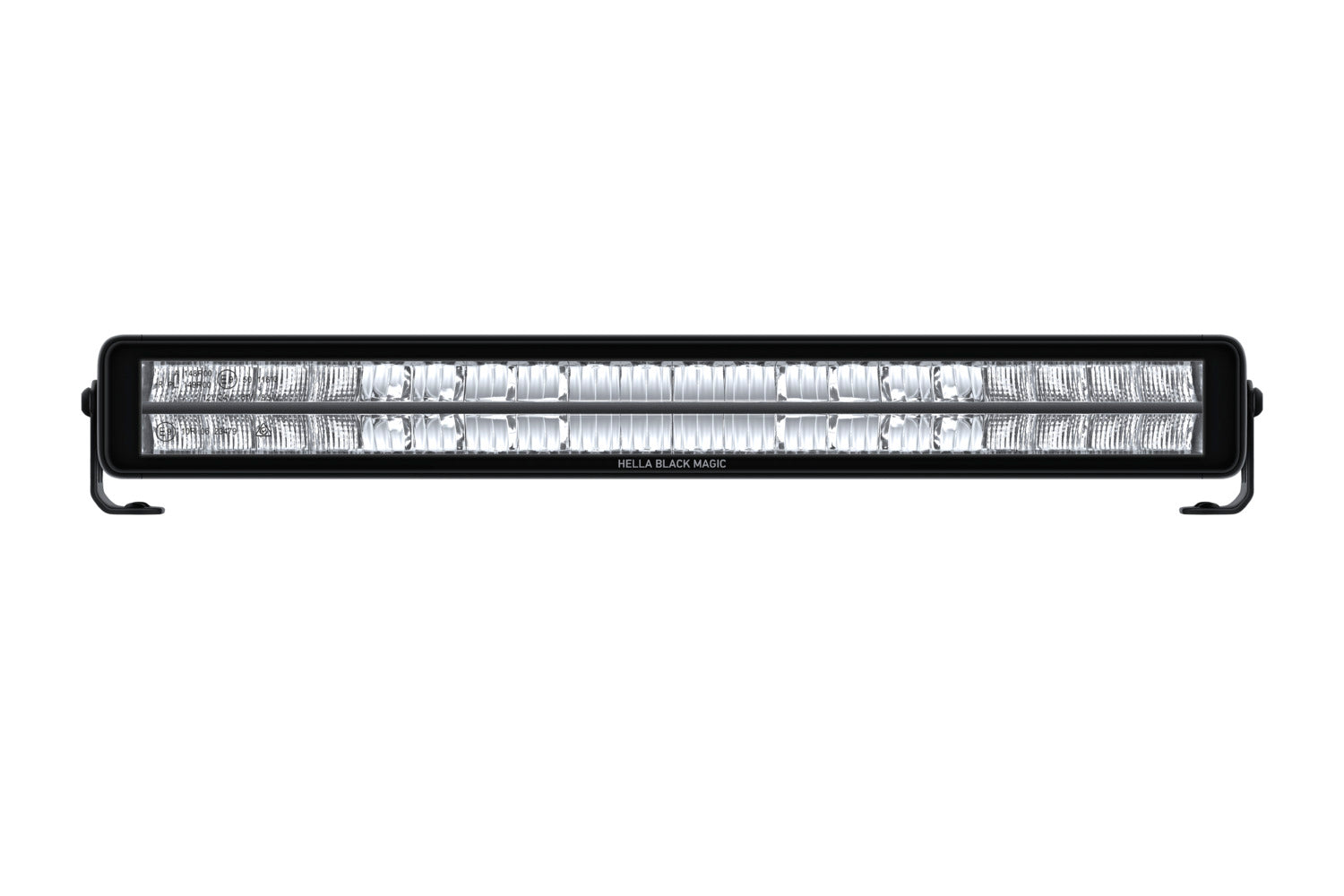

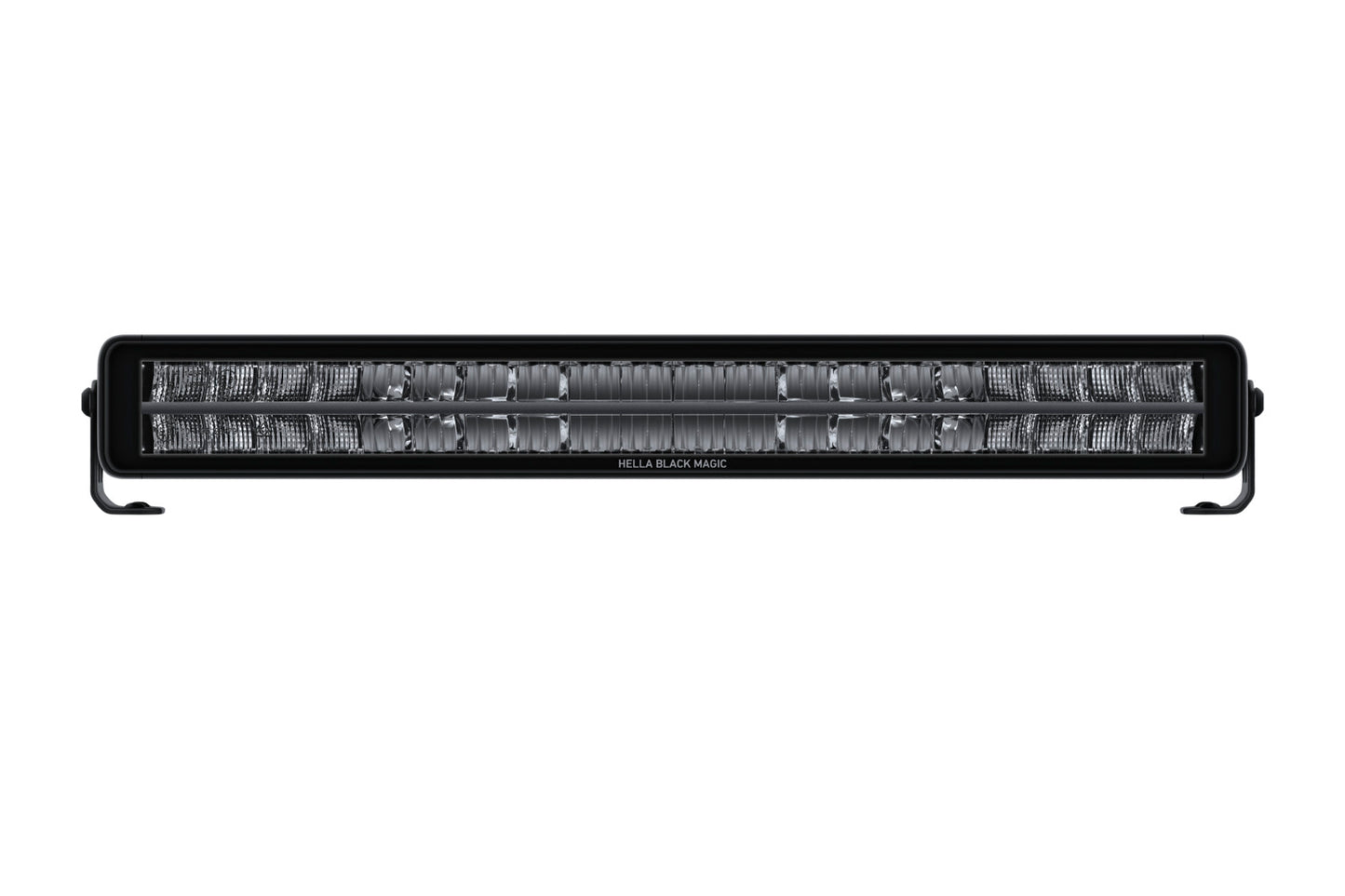

LED-Lightbar - Black Magic Edgeless Pro - 12/24V - 4870lm - slim - Reference number: 50 - ECE - Clear diffusing lens - white - Light colour: yellow (amber)/white - Cable: 2000mm - Front

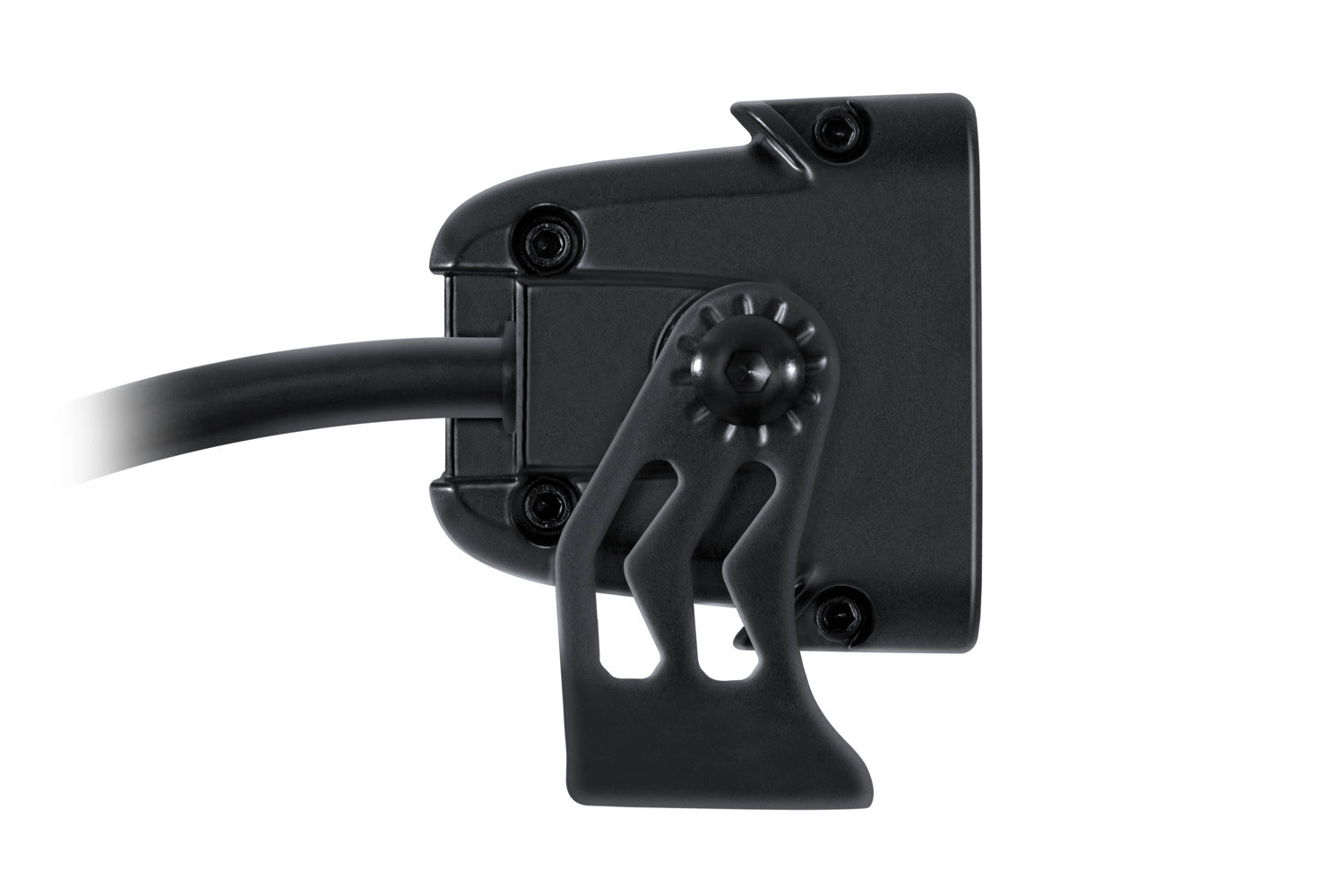

The 21.5" Black Magic Edgeless Pro Double Lightbar from HELLA impresses with its high-boost function, which ensures maximum light output. The edgeless housing with electrophoresis coating offers optimal corrosion protection and durability. The position light is available in white (ECE-R148) and amber (off-road use only), and the innovative welcome and goodbye light provides a modern and unique driving experience. This combination of functionality and design makes the 21.5˝ Black Magic Edgeless Pro Double Lightbar the perfect choice for demanding conditions. This is a driving lamp according to ECE-R149. The stable attachment is made possible by the mounting brackets on the side and back. A 2,000 mm long cable with open ends is available for connection. Please note: The amber position light is not ECE-approved: its use may be limited to off-road use outside of road traffic in accordance with local regulations.

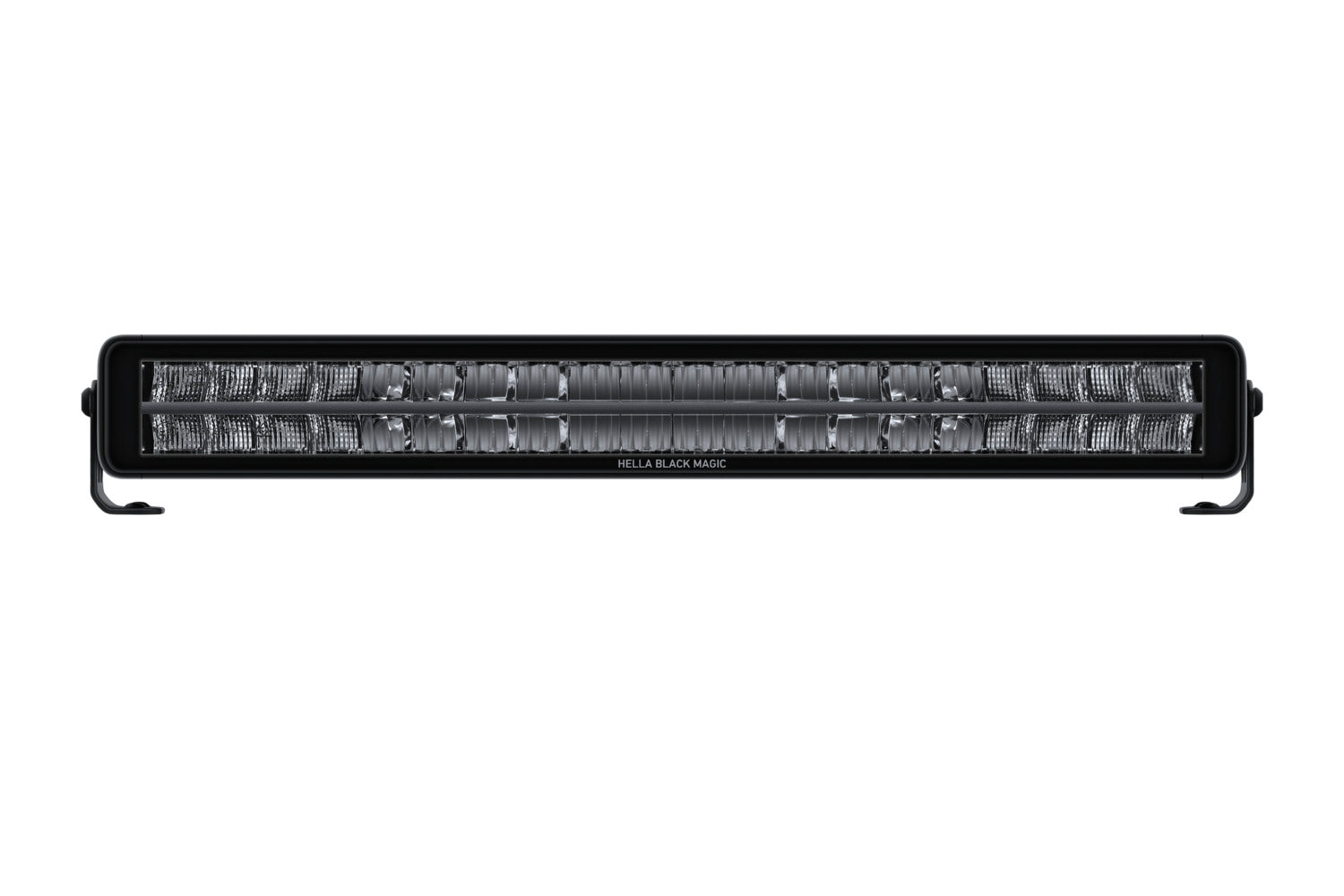

- Black Magic Edgeless Pro LED Lightbar 21.5" (ECE-Ref. 50). The high beam is approved for use on public roads (ECE approval according to ECE-R149) and offers a light output of 4,870 lumens. The high-boost mode, which can be used off-road, offers a light output of 10,246 lumens.

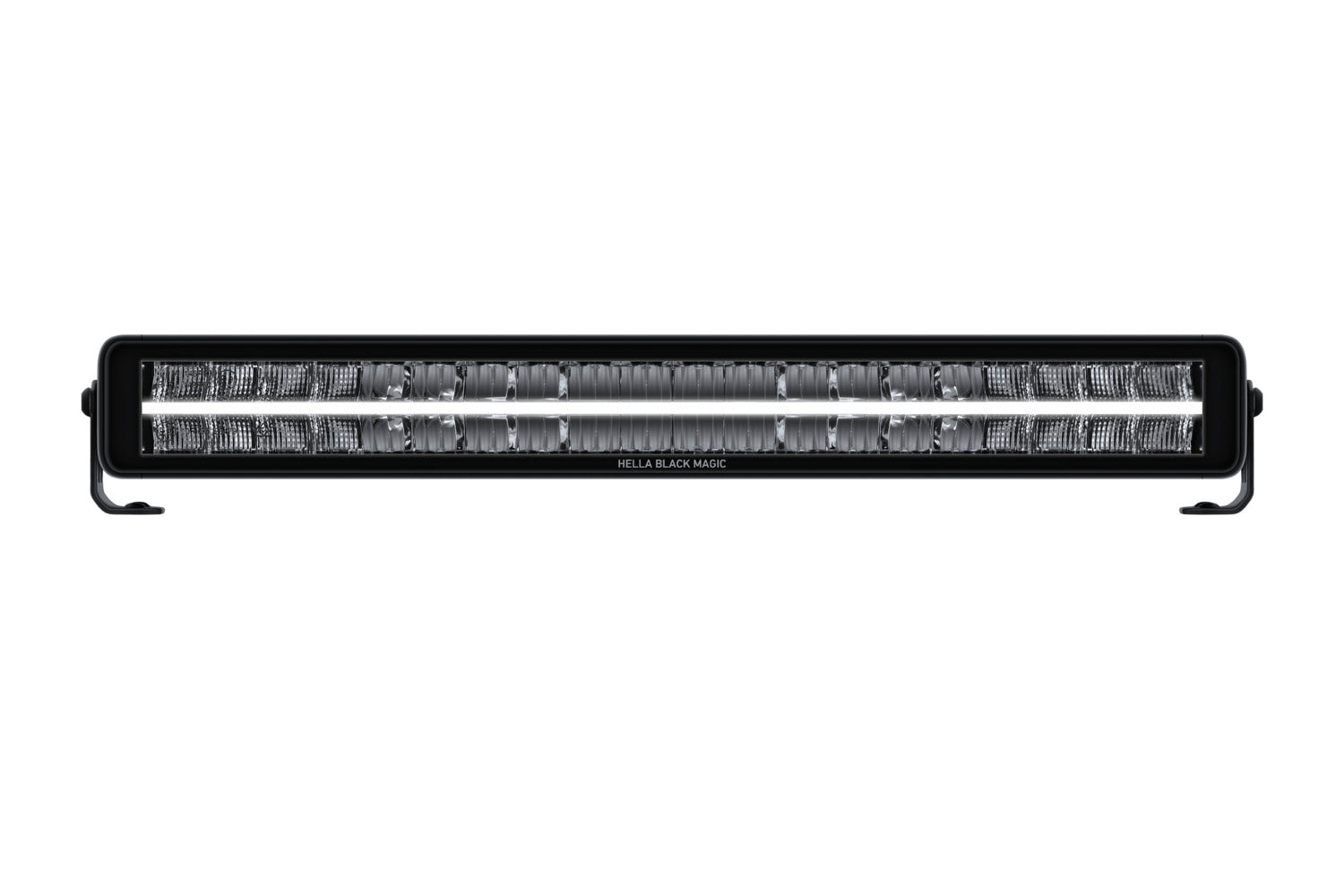

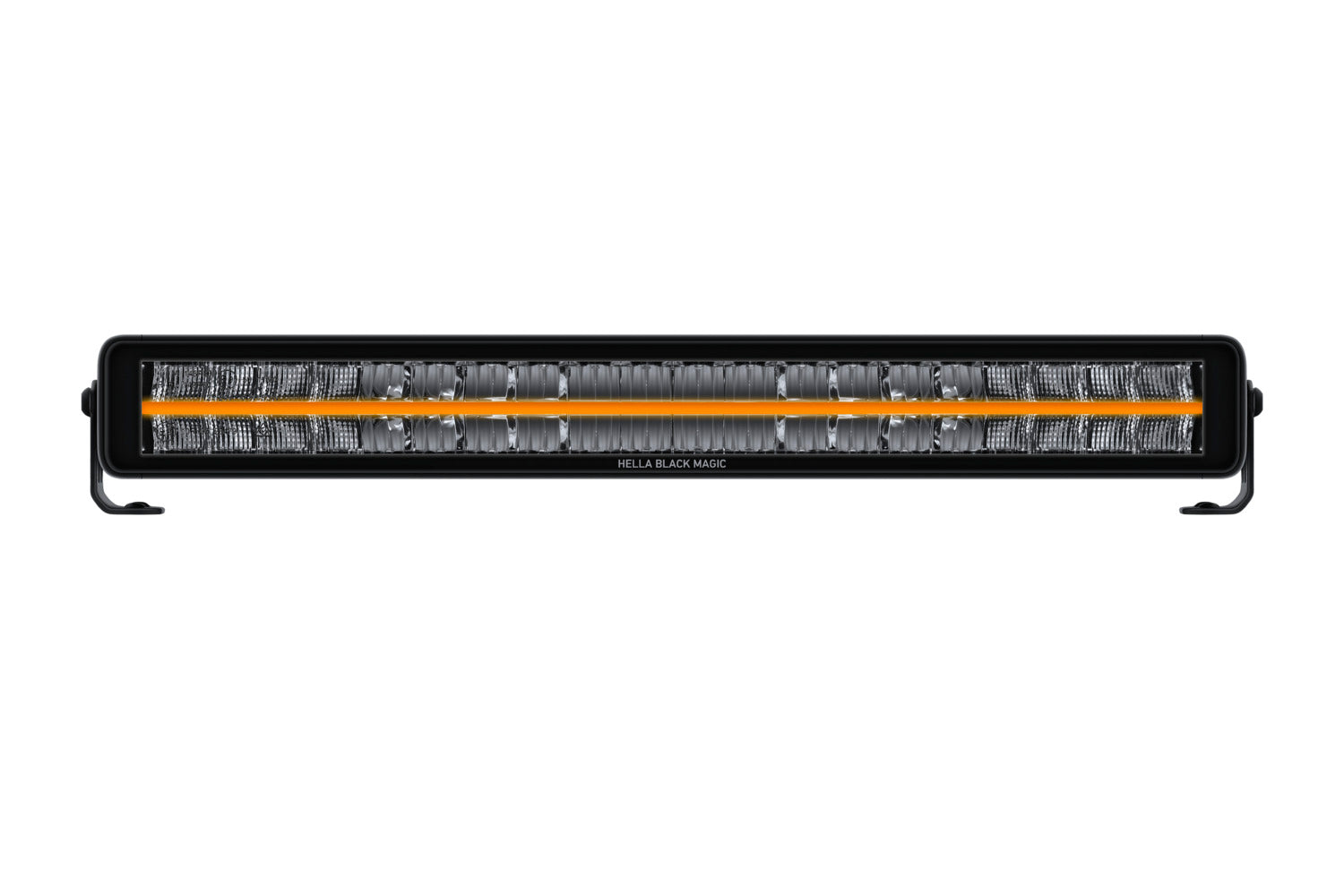

- Versatile lighting: Horizontal position light in white (ECE-R148) or amber (off-road only) and innovative welcome and goodbye light
- Robust design for extreme conditions: Edgeless lightbar housing made of electrophoresis-coated aluminium, IP68 & IP69K-compliant, water- and dustproof

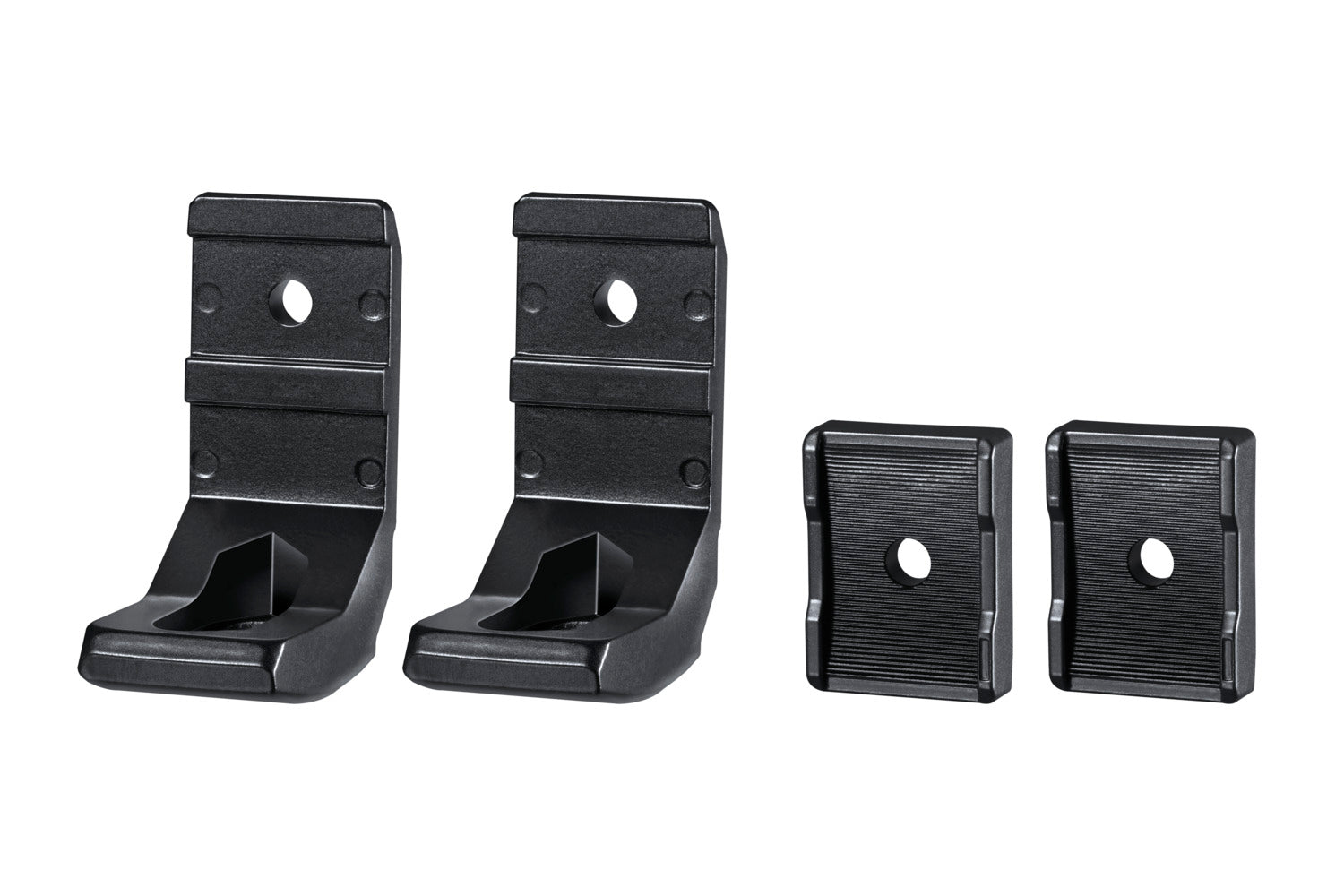

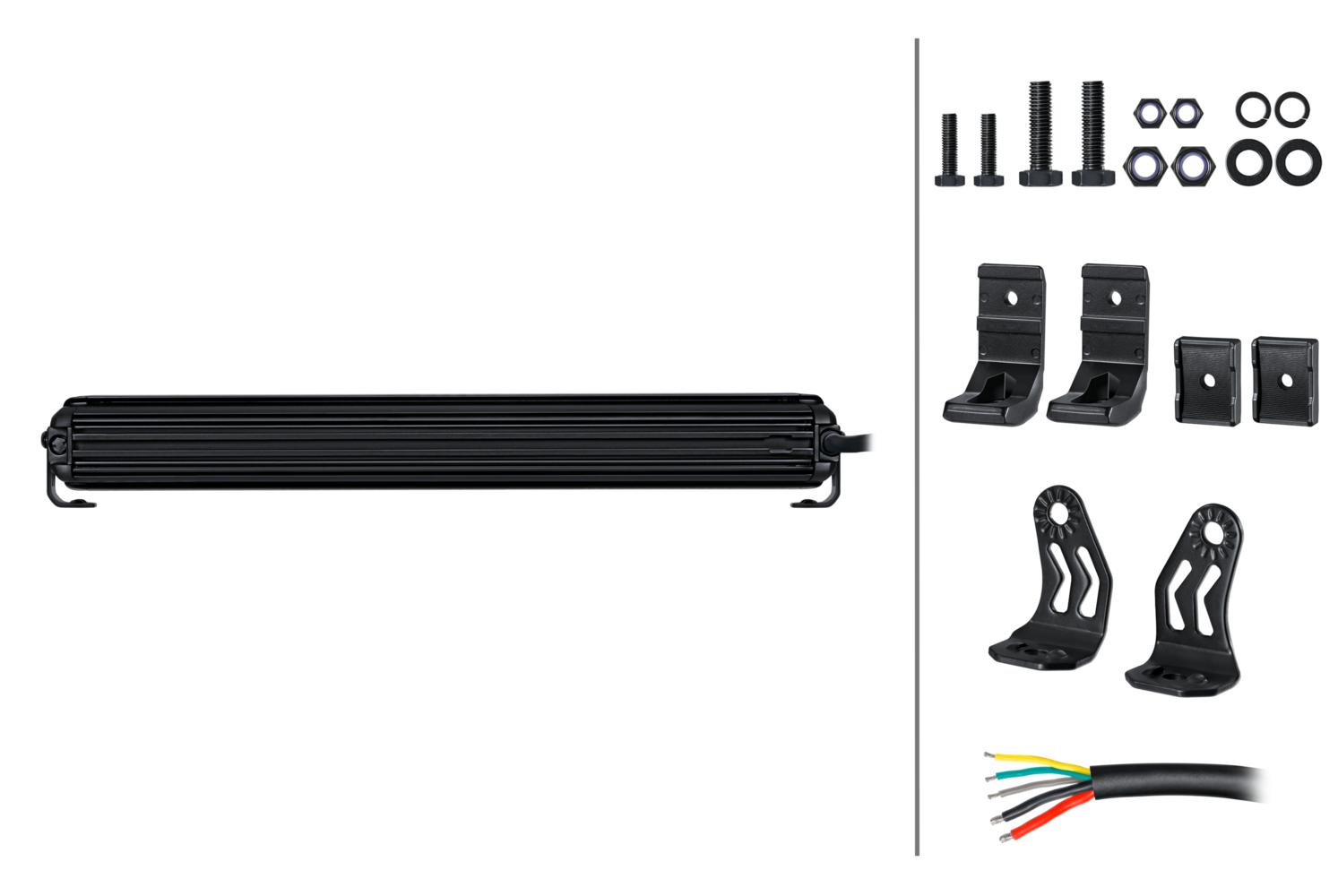

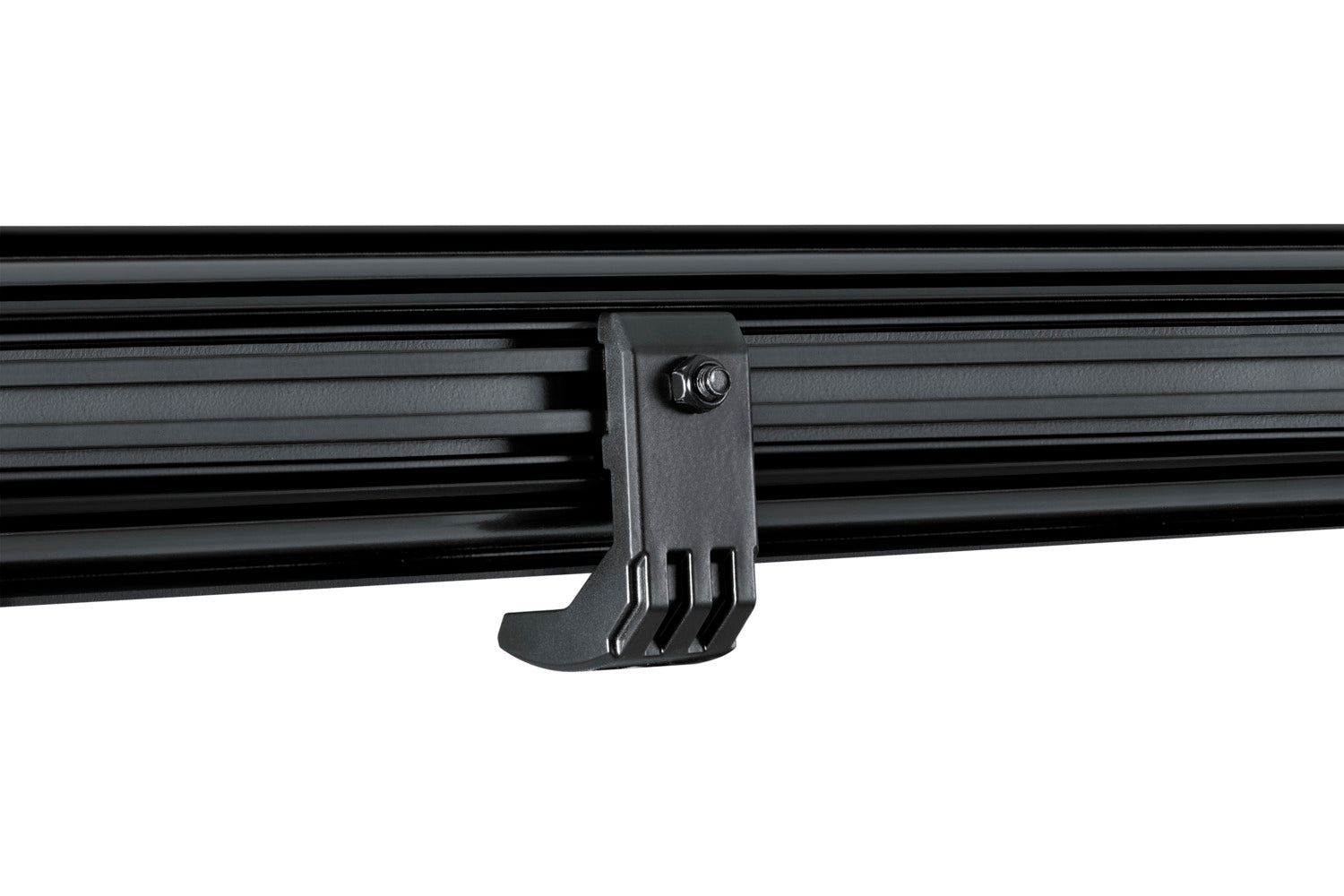

- Easy to assemble: Includes side and rear brackets, 2,000 mm of open cable. Ideal as an auxiliary driving lamp for trucks, off-road vehicles, SUVs, ATVs and UTVs
- IP 68, PI 69K, ECE-R10, white position light: ECE-R148, high beam: ECE-R149, effective light output: High beam (3,730 lumens), high boost (6,332 lumens)

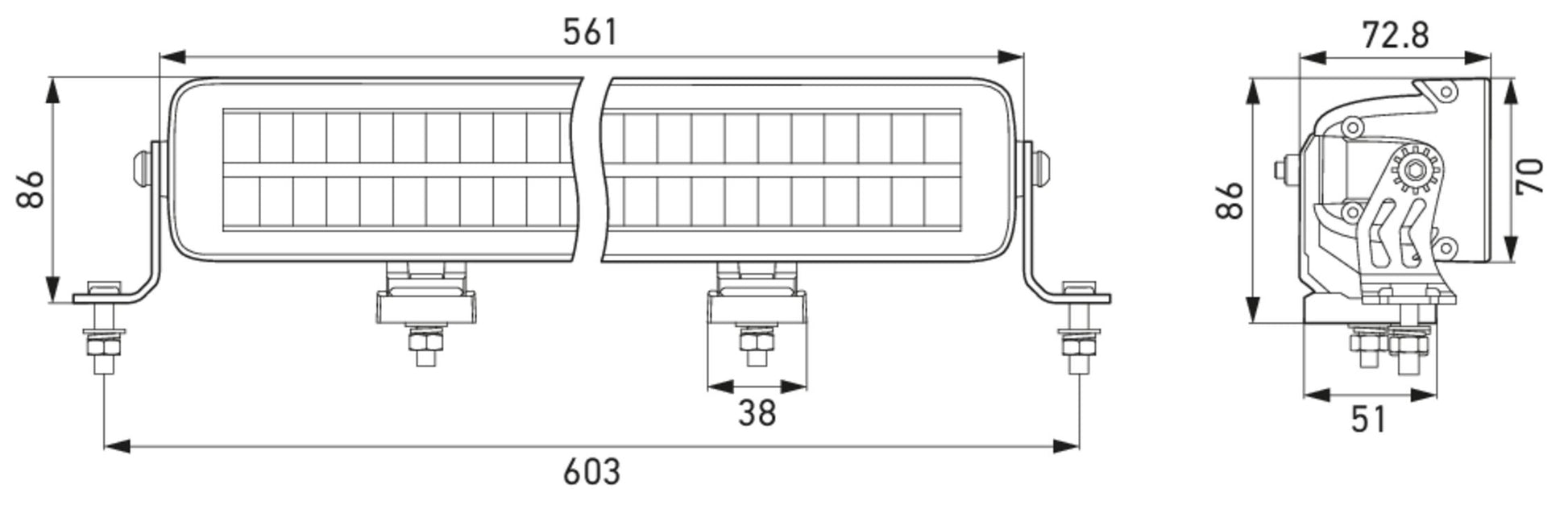

- Length: 561mm - Height: 70mm - Depth: 68mm - Overall Height: 86mm - Lamp Type: LED - Number of LEDs: 40
- Light functions: 3 - with position light (LED)/with high beam (LED)/High-boost
Item Attributes:
Mounting Type: mounting

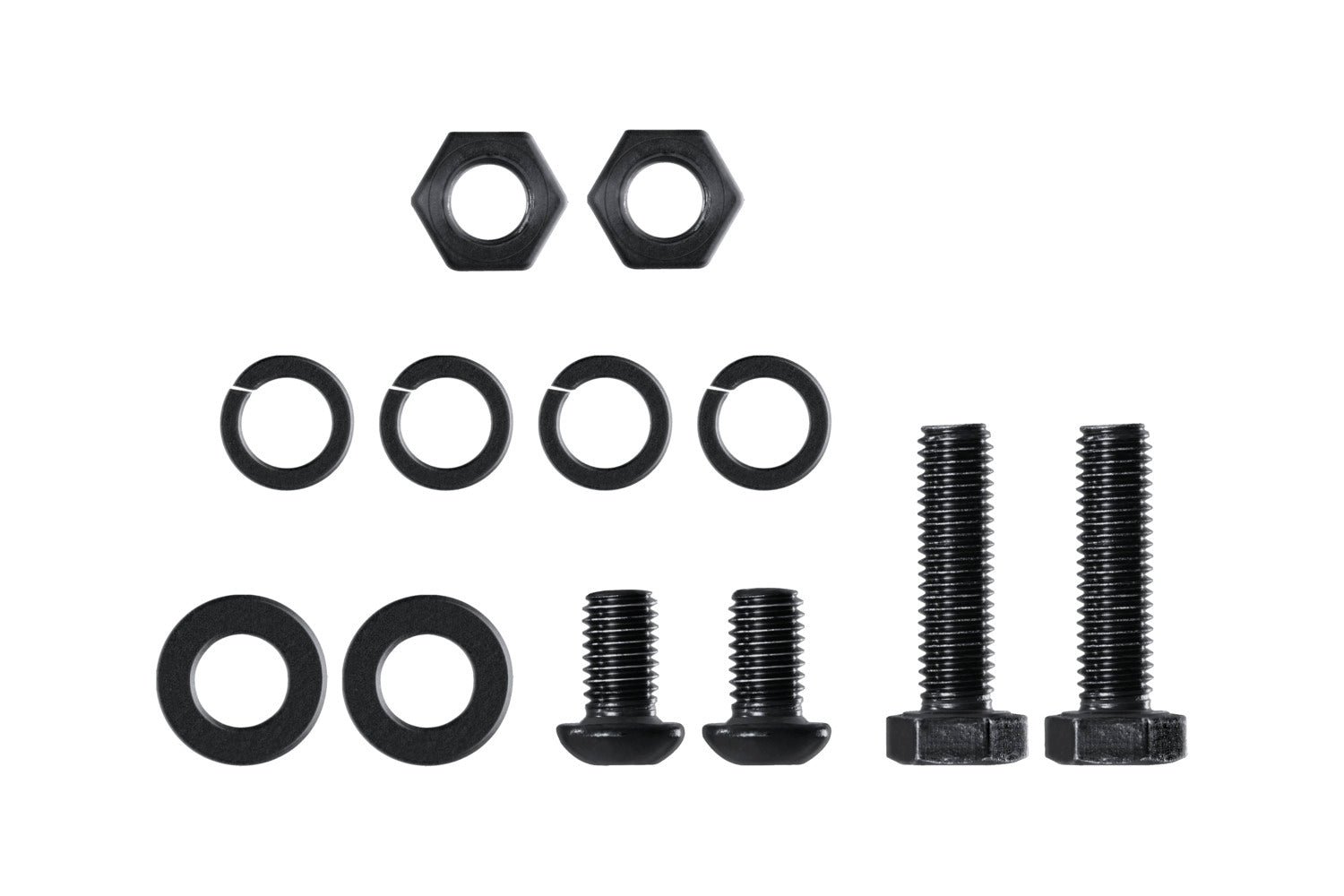

Fastening Type: Screw connection
Fitting Position: Front
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Voltage from: 10 V
Voltage to: 30 V
Rated Power: 74 W
Light Function: High-boost / with position light (LED) / with high beam (LED)
Luminous Flux: 4870 lm
Luminous in boost mode: 10246 lm
Theoretical luminous flux: 8400 lm
Theoretical luminous flux in Boost mode: 16800 lm
Light functions: 3
Number of LEDs: 40
Colour Temperature: 5700 K
Reference number: 50
Housing material: Aluminium
Housing Colour: black
Frame Colour: black
Lens Colour: white
Light colour: white / yellow (amber)
Diffusing Lens Material: PC (Polycarbonate)
Diffusing Lens Type: Clear diffusing lens
Temperature range from: -30 °C
Temperature range to: +65 °C
Prot.type (IP Code): IP68 / IP69K
Shape: slim
Overall Height: 86 mm
Length: 561 mm
Height: 70 mm
Depth: 68 mm
Length: 21.5 "

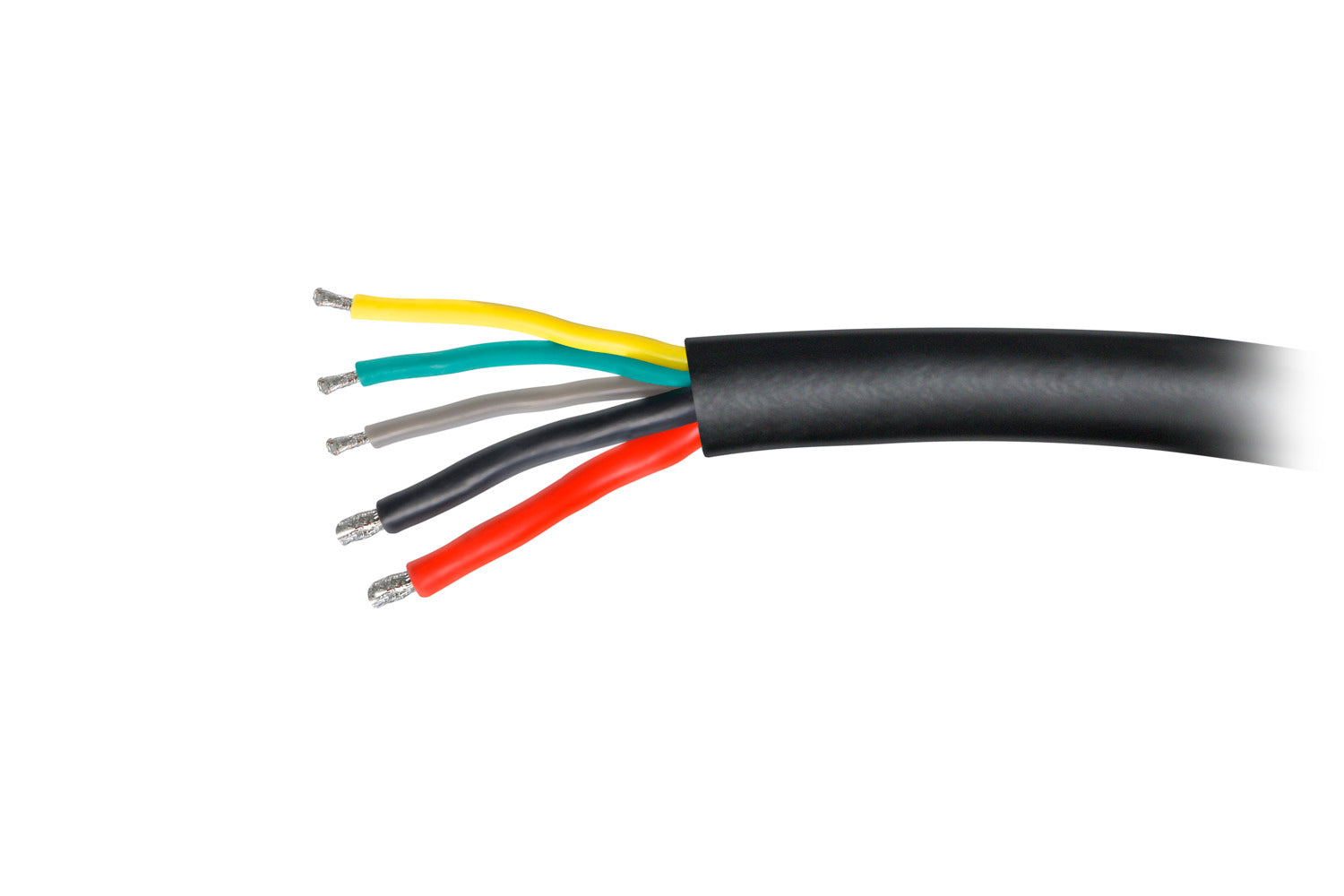

Cable: 2000 mm
Registration Type: ECE
fulfils ECE standard: R149 / R148 / R10
Weight: 2550 g
Assembly by qualified personnel required!
