Description

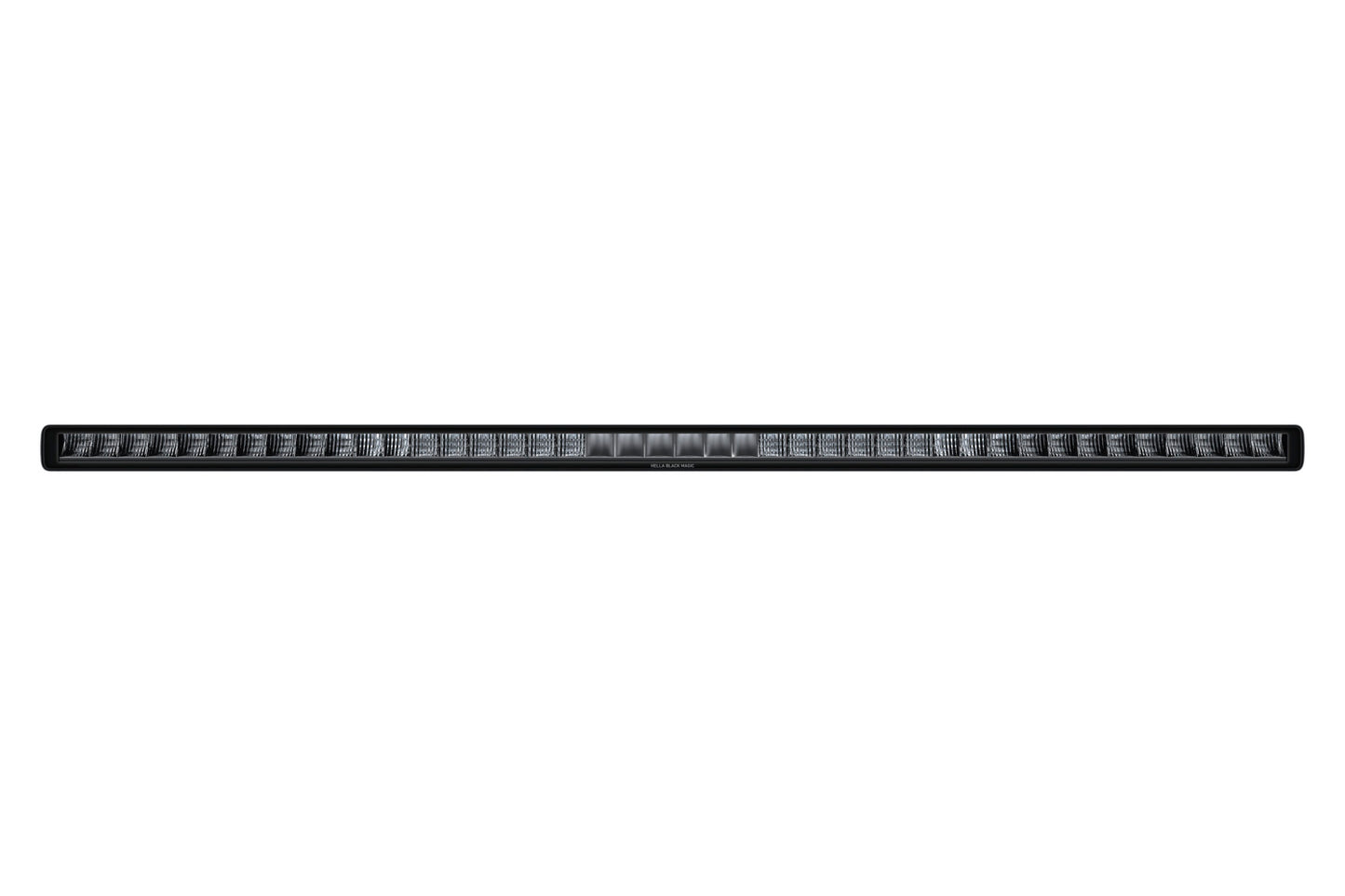

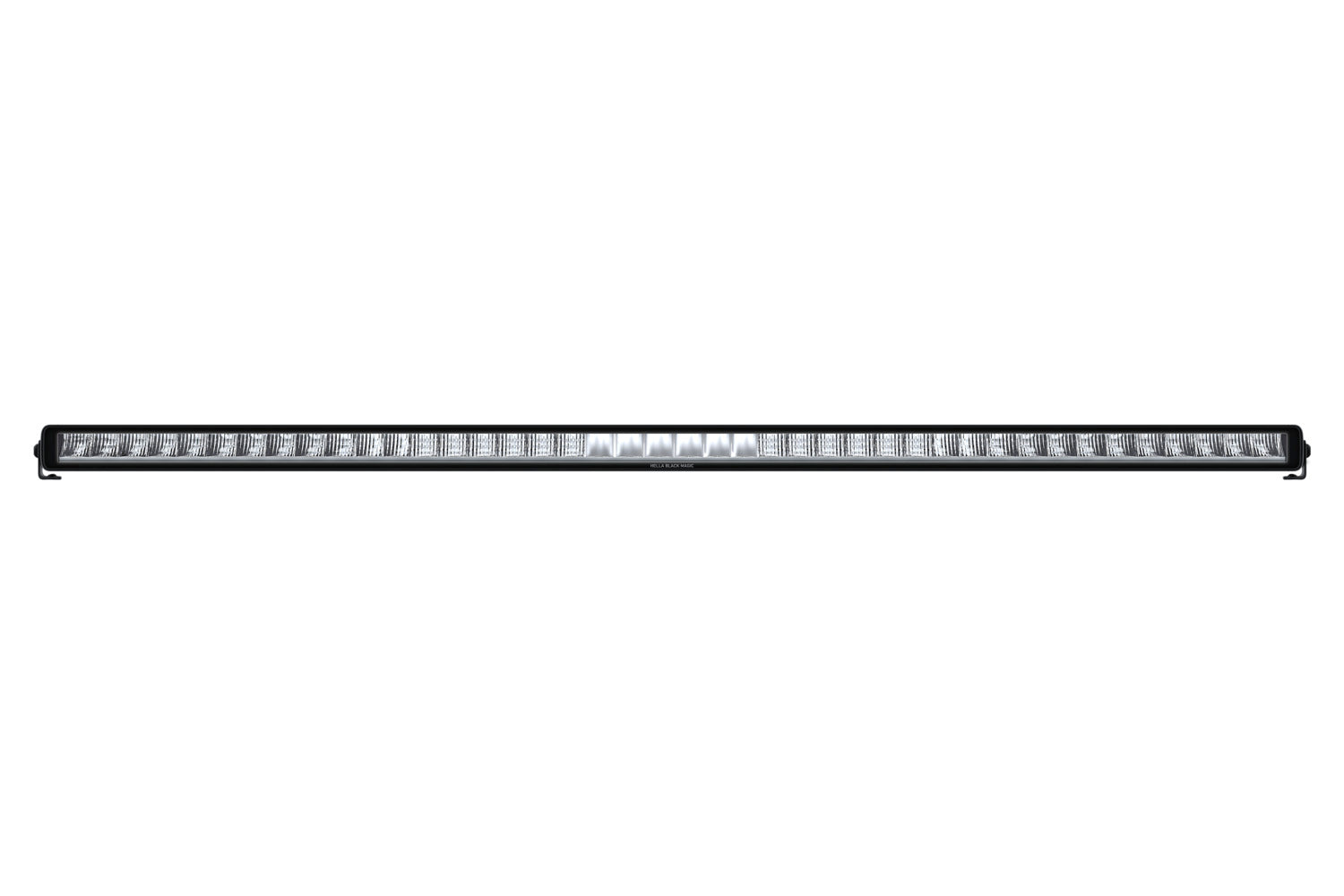

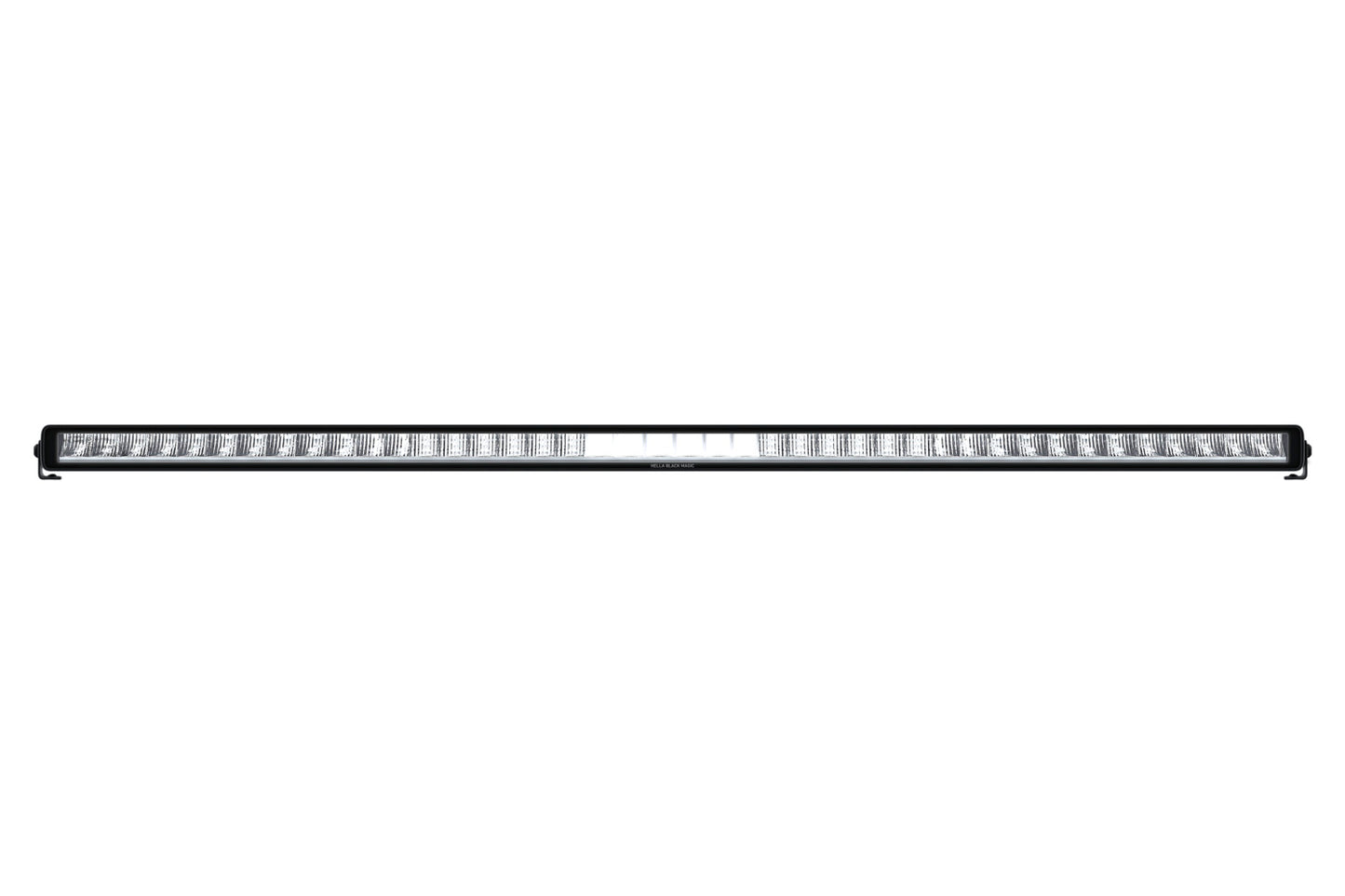

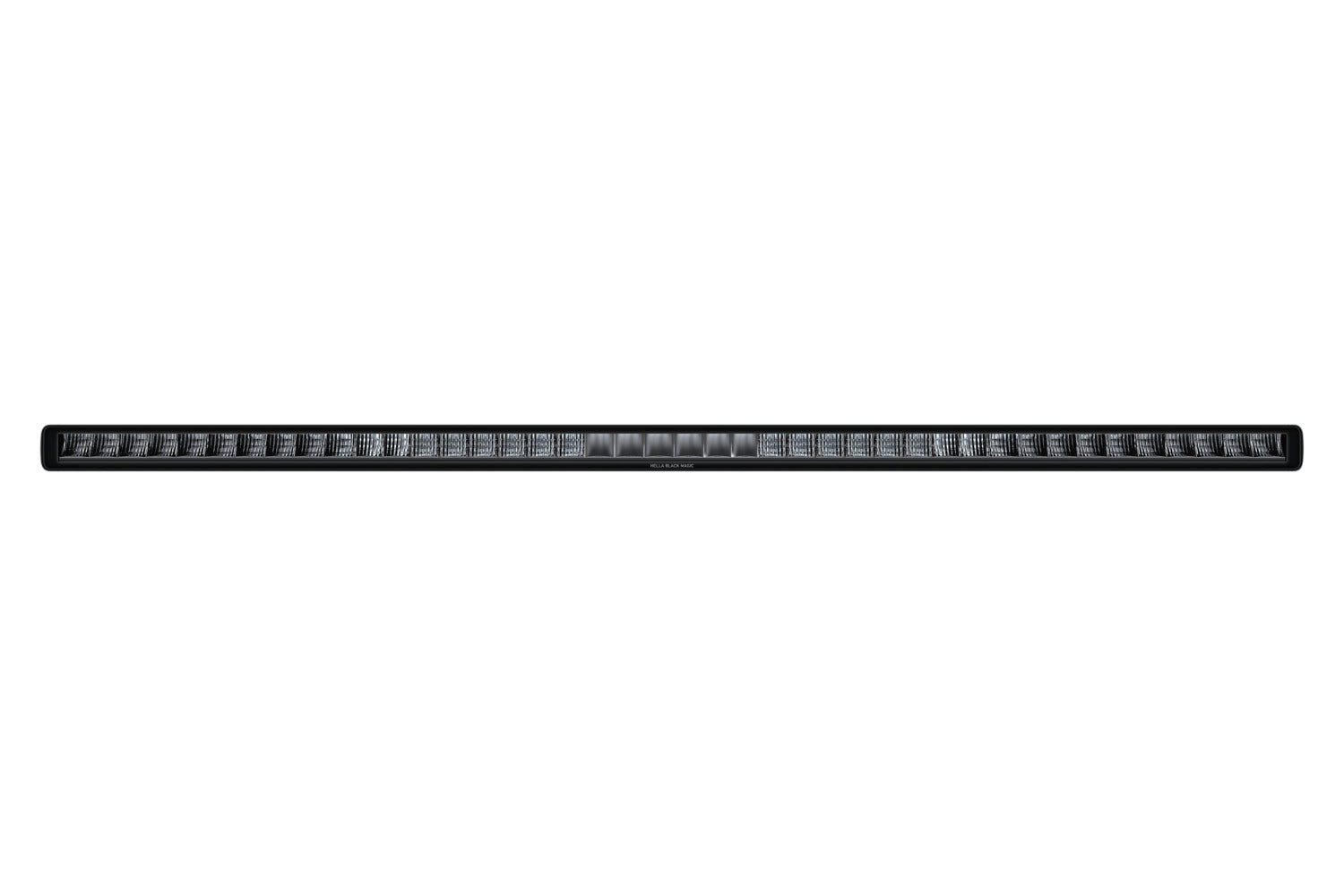

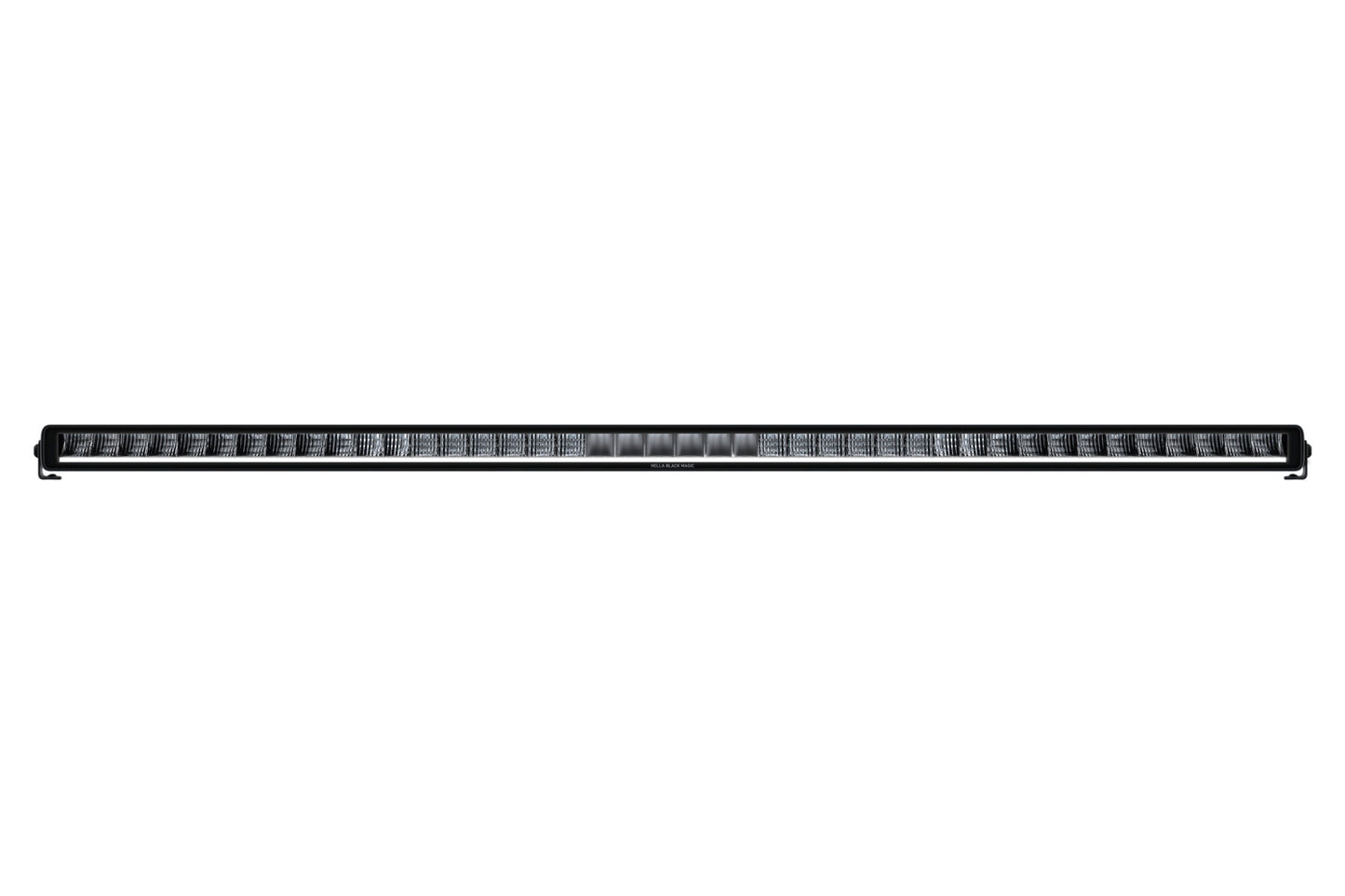

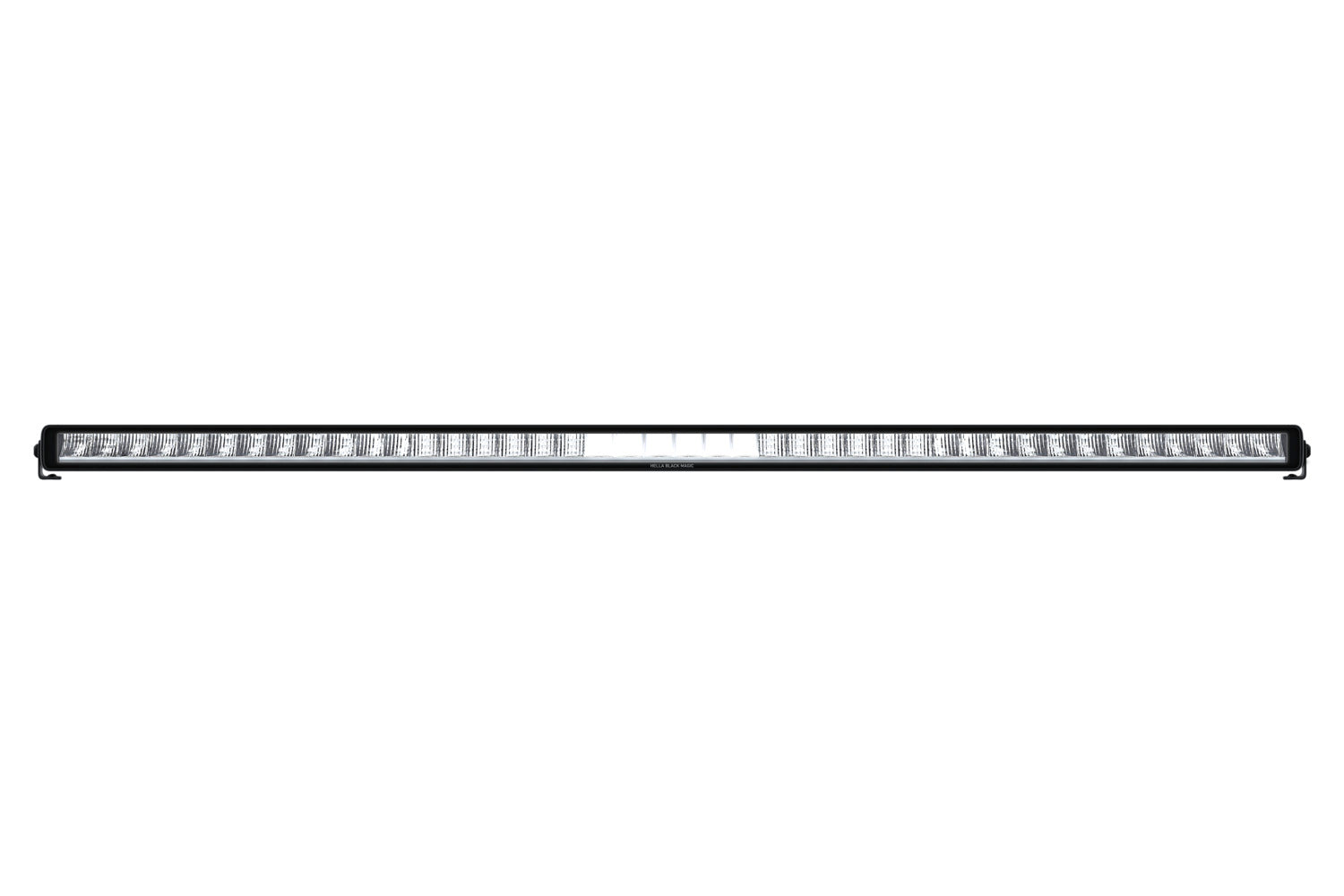

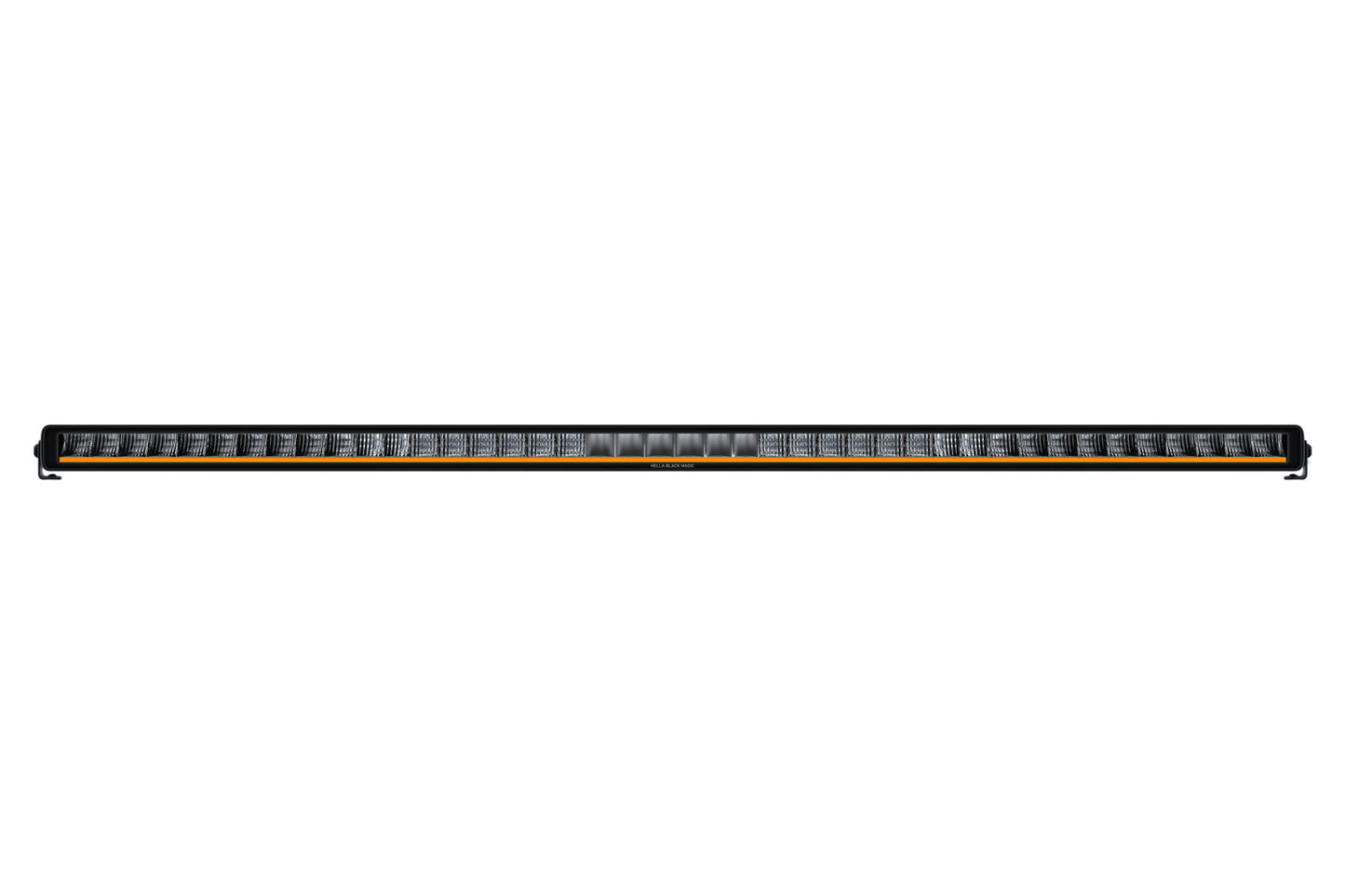

LED-Lightbar - Black Magic Edgeless Pro - 12/24V - 6508lm - slim - Reference number: 45 - ECE - Clear diffusing lens - white - Light colour: yellow (amber)/white - Cable: 2000mm - Front

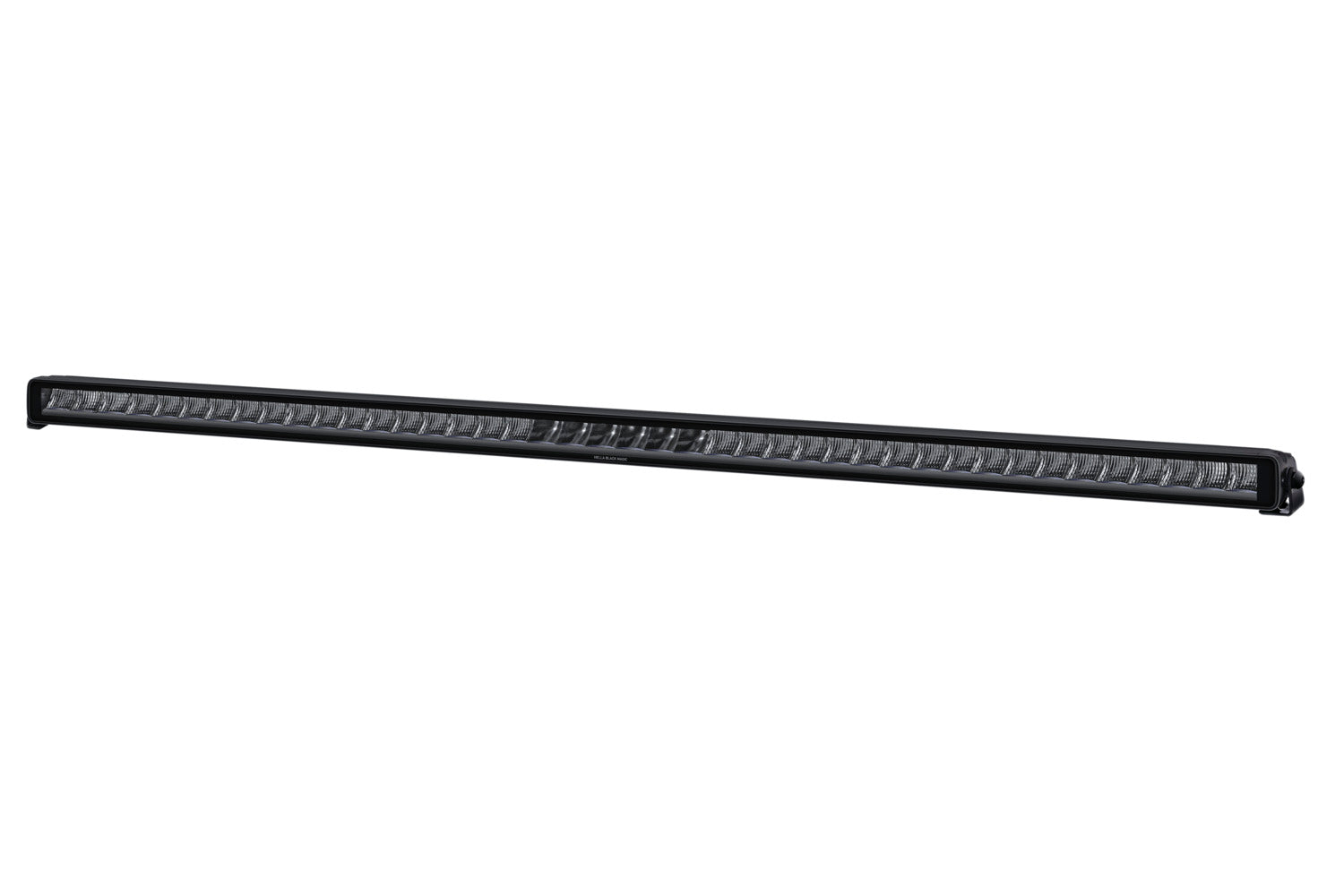

The 40" Black Magic Edgeless Pro Lightbar from HELLA impresses with its high-boost function, which ensures maximum light output. The edgeless housing with electrophoresis coating offers optimal corrosion protection and durability. The position light is available in white (ECE-R148) and amber (off-road use only), and the innovative welcome and goodbye light provides a modern and unique driving experience. This combination of functionality and design makes the 40" Black Magic Edgeless Pro Lightbar the perfect choice for demanding conditions. This is a driving lamp according to ECE-R149. The stable attachment is made possible by the mounting brackets on the side and back. A 2,000 mm long cable with open ends is available for connection. Please note: The amber position light is not ECE-approved: its use may be limited to off-road use outside of road traffic in accordance with local regulations.

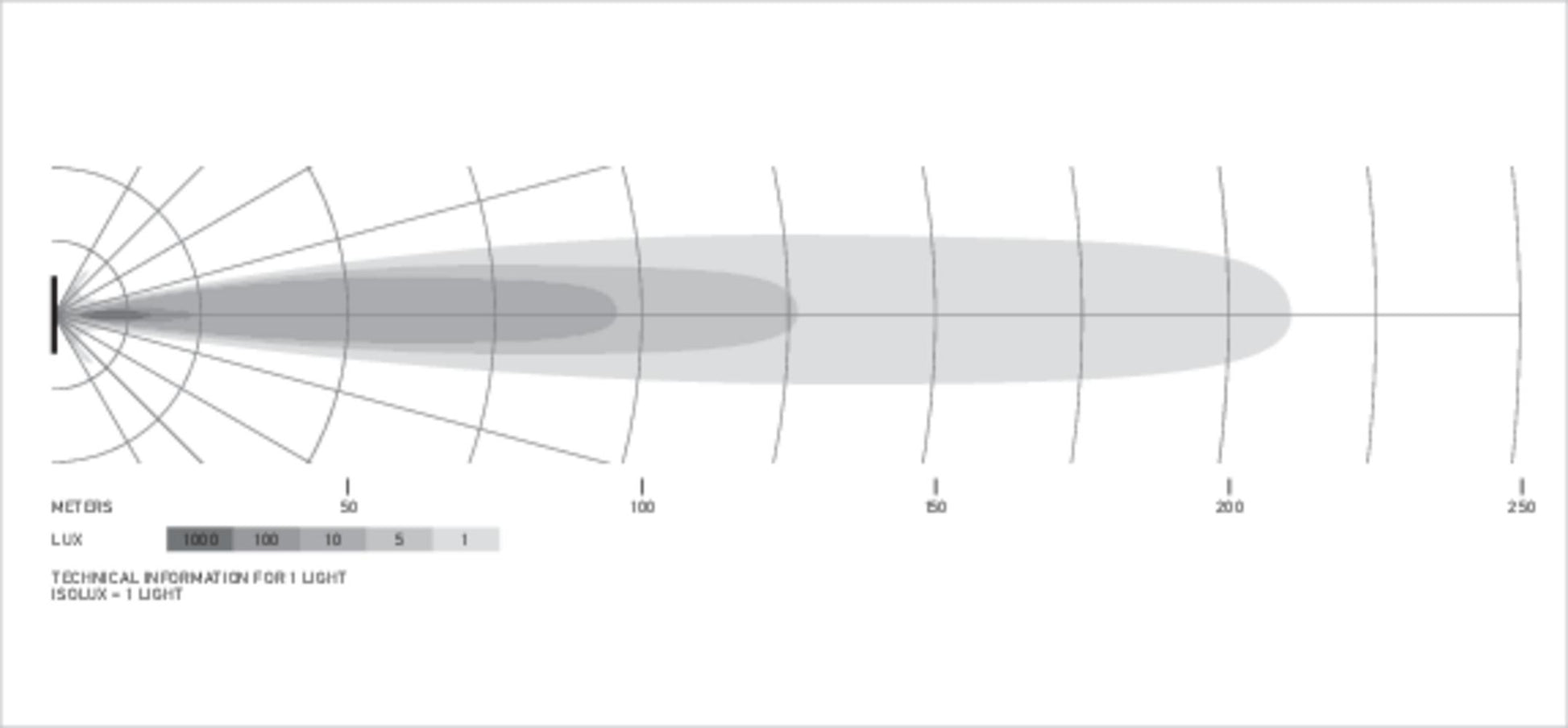

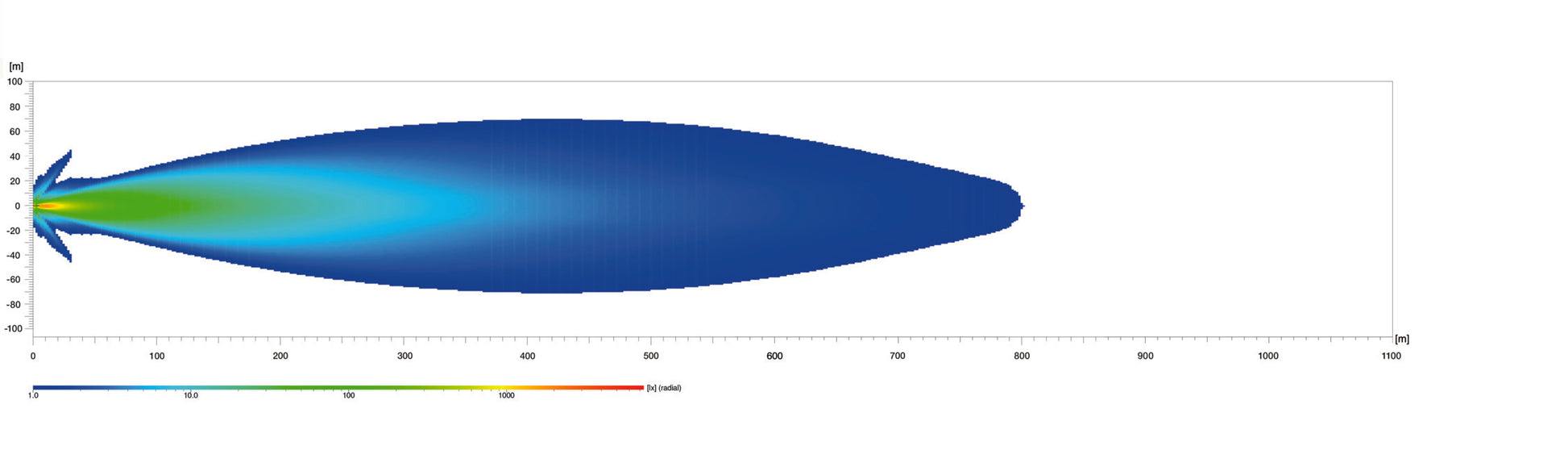

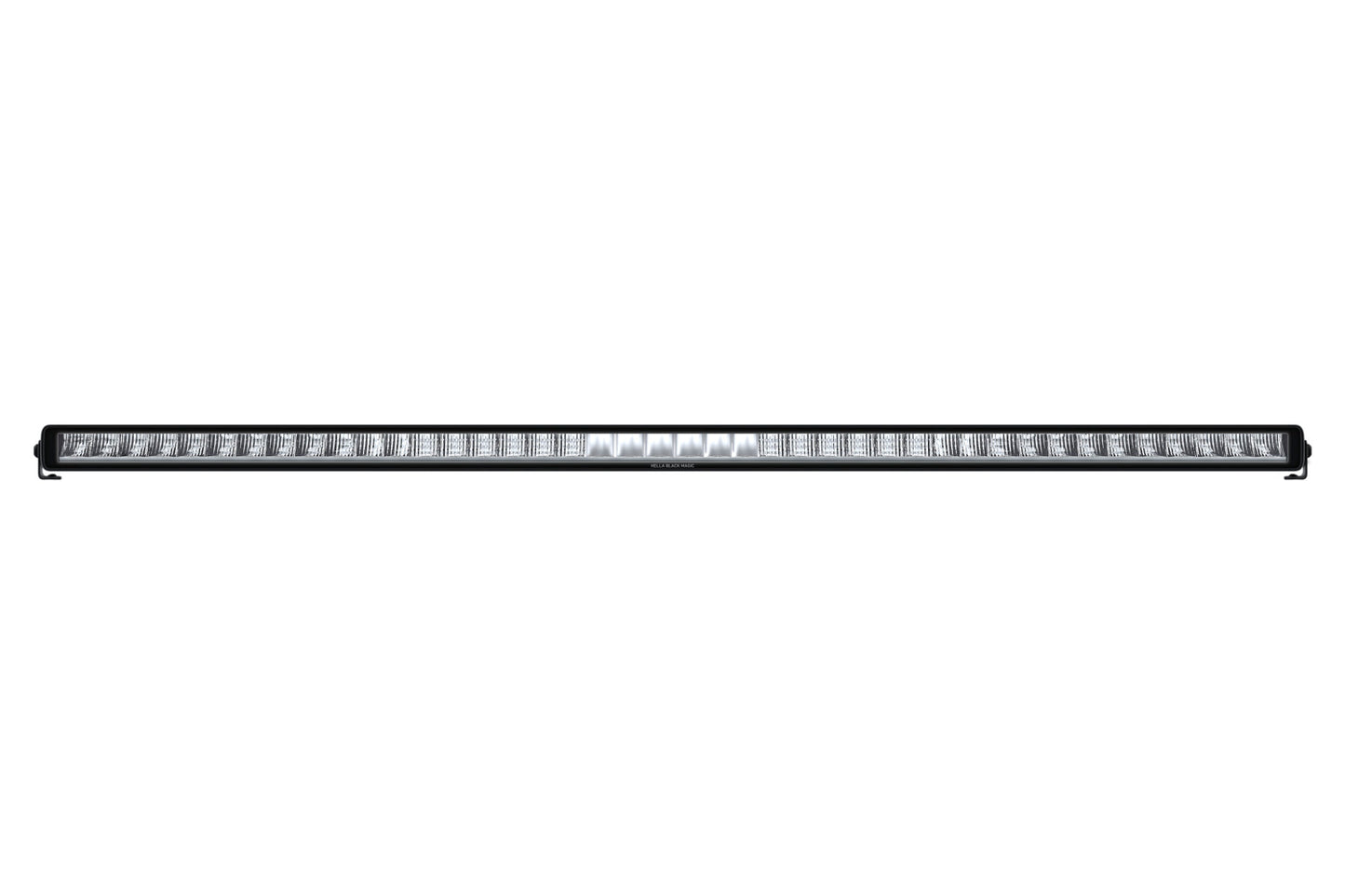

- Black Magic Edgeless Pro LED Lightbar 40" (ECE-Ref. 45). The high beam is approved for use on public roads (ECE approval according to ECE-R149) and offers a light output of 6,508 lumens. The high-boost mode, which can be used off-road, offers a light output of 11,140 lumens.

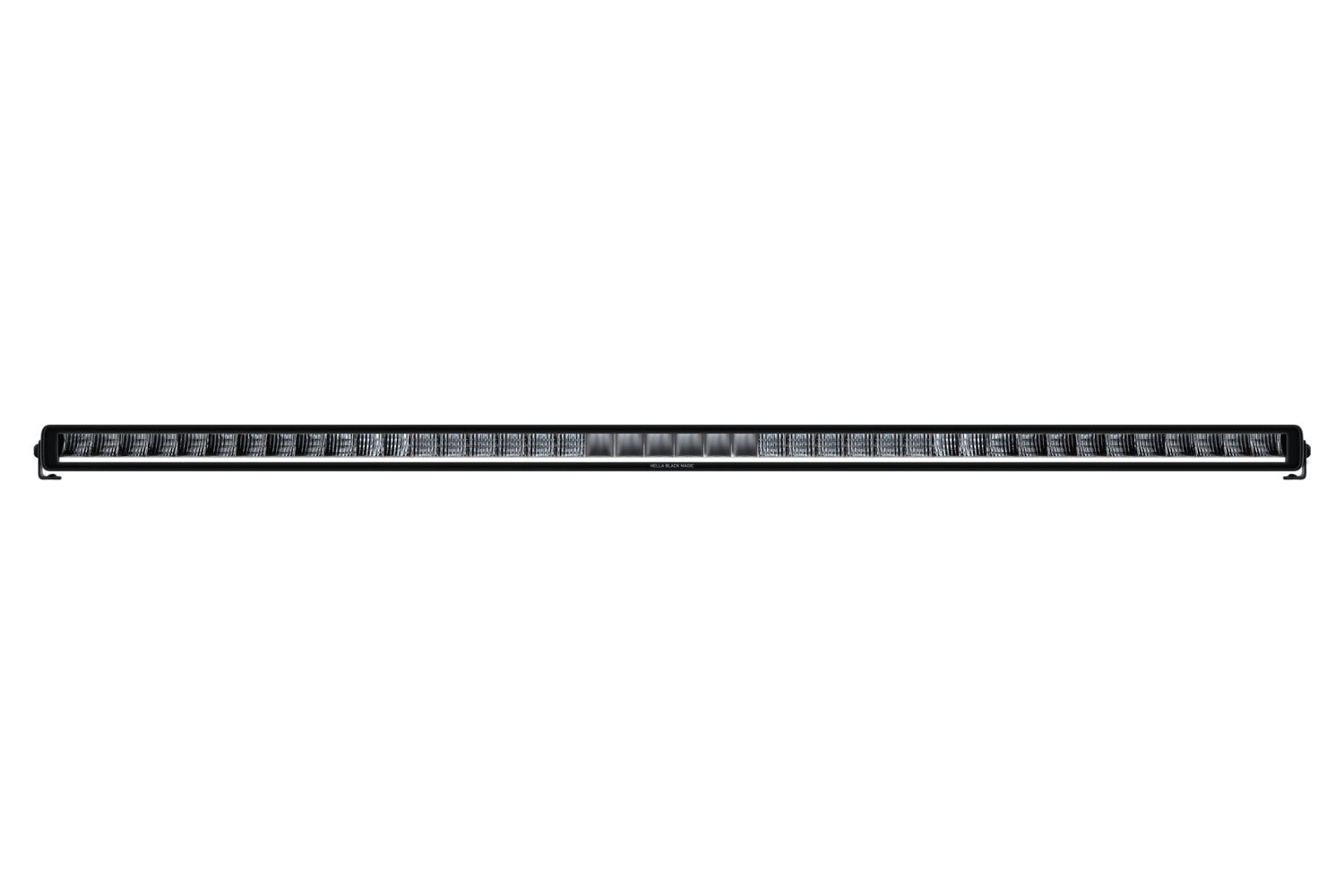

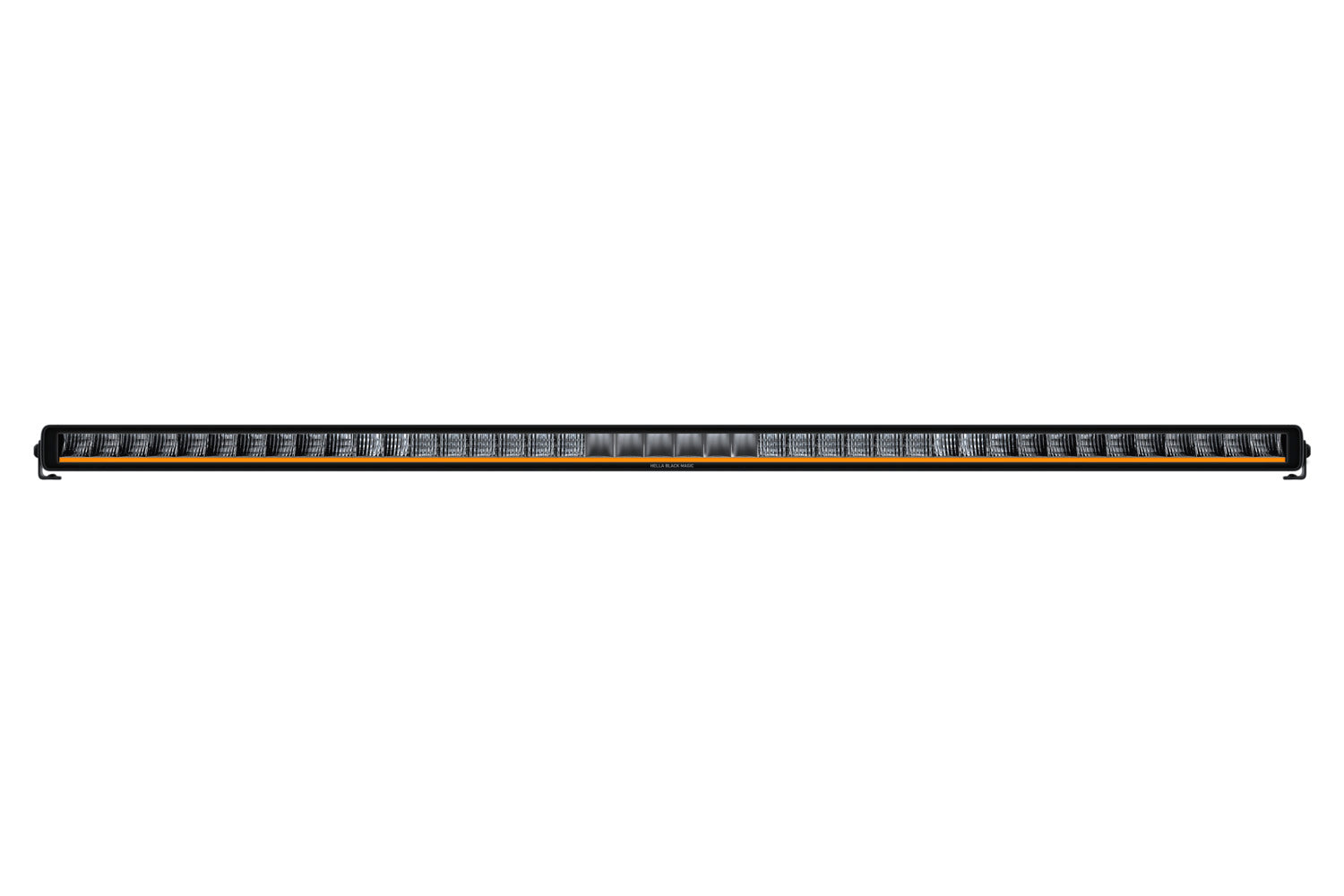

- Versatile lighting: Horizontal position light in white (ECE-R148) or amber (off-road only) and innovative welcome and goodbye light
- Robust design for extreme conditions: Edgeless lightbar housing made of electrophoresis-coated aluminium, IP68 & IP69K-compliant, water- and dustproof

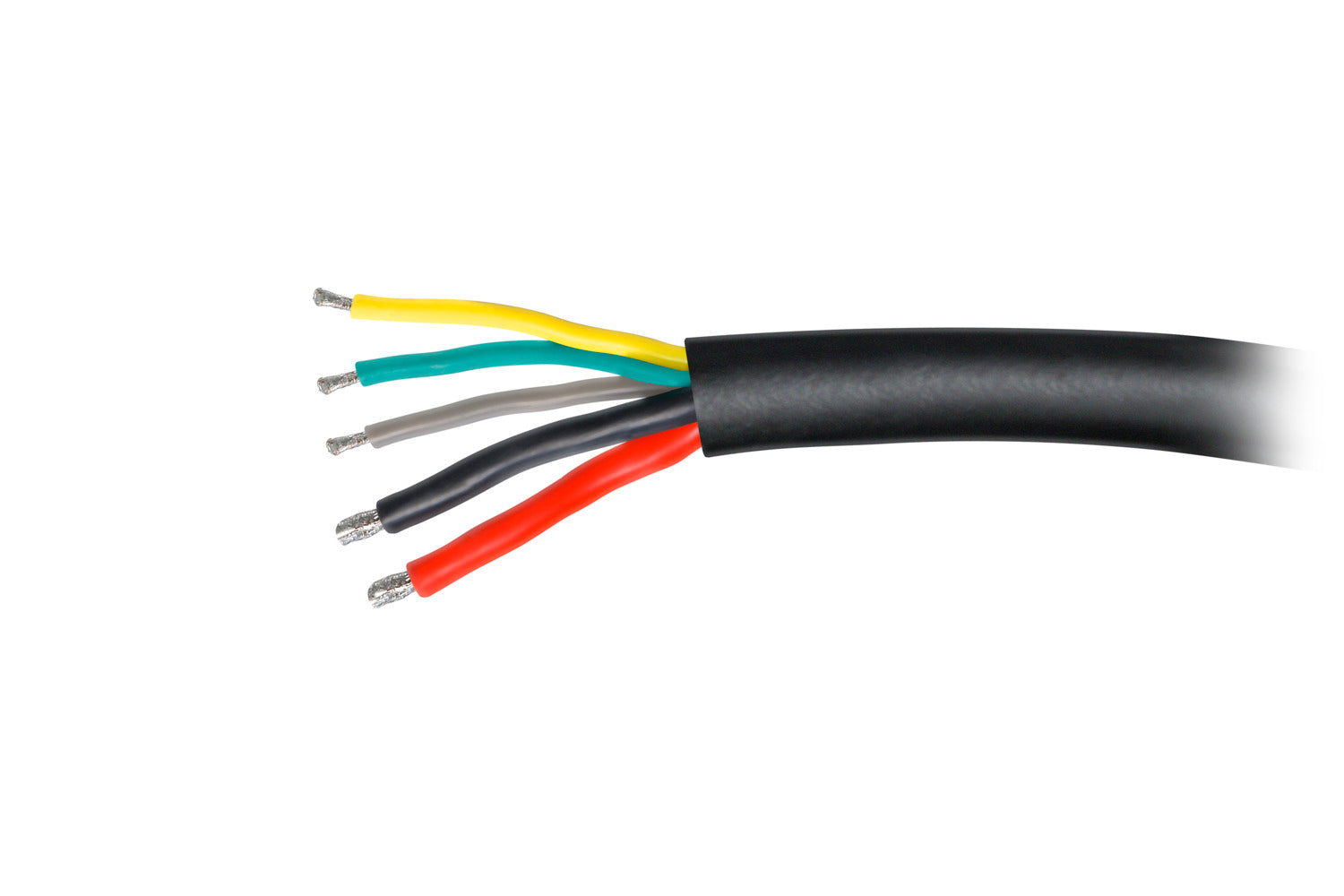

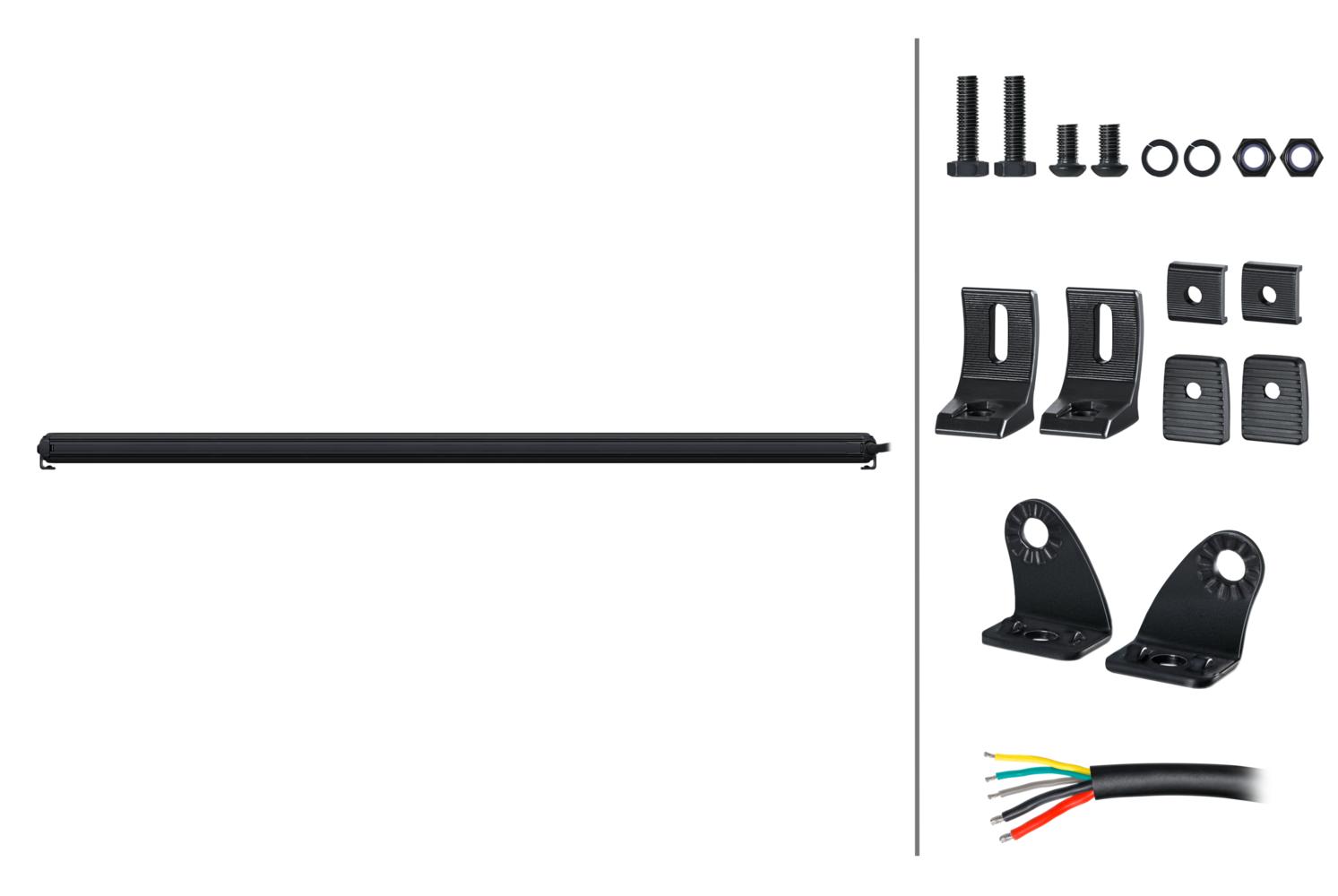

- Easy to assemble: Includes side and rear brackets, 2,000 mm of open cable. Ideal as an auxiliary driving lamp for trucks, off-road vehicles, SUVs, ATVs and UTVs
- IP 68, PI 69K, ECE-R10, white position light: ECE-R148, high beam: ECE-R149, effective light output: High beam (3,730 lumens), high boost (6,332 lumens)

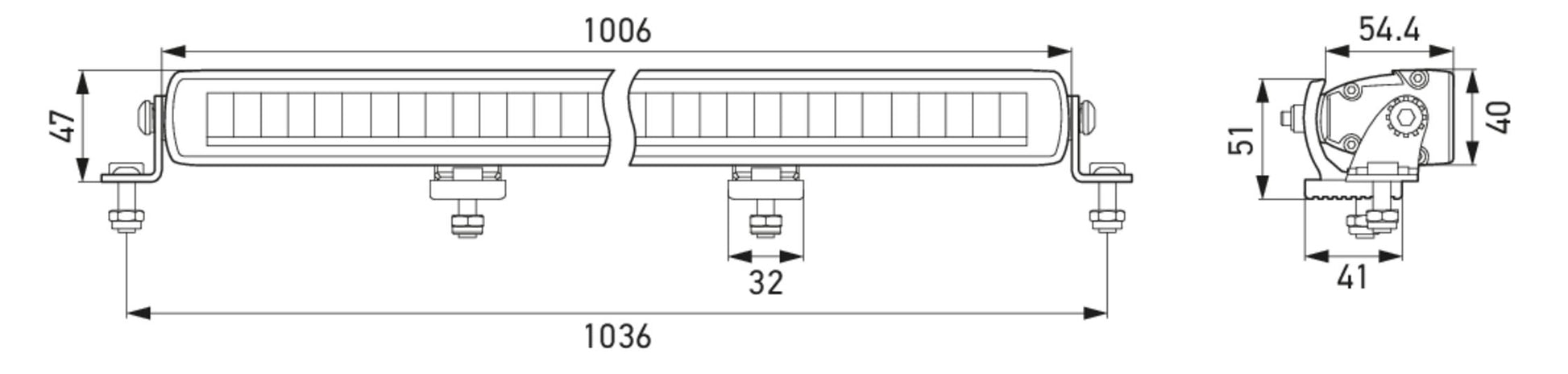

- Length: 1006mm - Height: 40mm - Depth: 54mm - Overall Height: 47mm - Lamp Type: LED - Number of LEDs: 42
- Light functions: 3 - with position light (LED)/High-boost
Item Attributes:
Mounting Type: mounting
Fastening Type: Screw connection
Fitting Position: Front
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Rated Power: 100 W
Light Function: with position light (LED) / High-boost
Luminous Flux: 6508 lm
Luminous in boost mode: 11140 lm
Theoretical luminous flux: 10584 lm
Theoretical luminous flux in Boost mode: 17640 lm
Light functions: 3
Number of LEDs: 42
Colour Temperature: 5700 K
Reference number: 45
Housing material: Aluminium
Housing Colour: black
Frame Colour: black
Lens Colour: white
Light colour: yellow (amber) / white
Diffusing Lens Material: PC (Polycarbonate)
Diffusing Lens Type: Clear diffusing lens
Temperature range from: -30 °C
Temperature range to: +65 °C
Prot.type (IP Code): IP69K / IP68
Shape: slim
Overall Height: 47 mm
Length: 1006 mm
Height: 40 mm
Depth: 54 mm
Cable: 2000 mm
Registration Type: ECE
fulfils ECE standard: R10 / R148 / R149
Assembly by qualified personnel required!
