HELLA LED-Reverse Light - Modul 70 Gen. 3.2 - 12/24V 2ZR996576-501

LED-Reverse Light - Modul 70 Gen. 3.2 - 12/24V - 1800lm - Bolted - Vertical/Suspended - Short-Range Illumination - Cable: 2000mm - Plug: open cable ends - 2-pin connector

With the Module 70 LED Generation 3.2, HELLA brings a light upgrade of the established Module 70 LED Generation 3. Equipped with 3 high-power multichip LEDs, the module produces 70 LED Generation 3.2 now 1,800 measured lumens with an energy consumption of only 20 watts. (Comparison: Generation 3 only produced 800 lumens). The worklight's black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. In addition to the standard cable version, the compact Module 70 LED Generation 3.2 also comes with an integrated DEUTSCH plug for the first time. The electronics of the worklight are multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. Despite its compact design, this is a very robust worklight for numerous applications. The light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making it much easier for the human eye to perceive the senses and preventing fatigue. The Module 70 LED Generation 3.2 is also available as a reversing spotlight.

• Successor of the successful Modul 70 LED Gen. 3
• More than twice as much light despite compact design
• Also available as a reversing light
• Lamp Type: LED - Number of LEDs: 3 - Power consumption: 18W - Colour Temperature: 5000K
• Light functions: 1 - with reverse light (LED) - Lens Colour: Crystal clear - Fitting Position: Rear
• fulfils ECE standard: R23/R10 - Prot.type (IP Code): IP67/IP6K9K
• Housing Colour: Grey

Item Attributes:

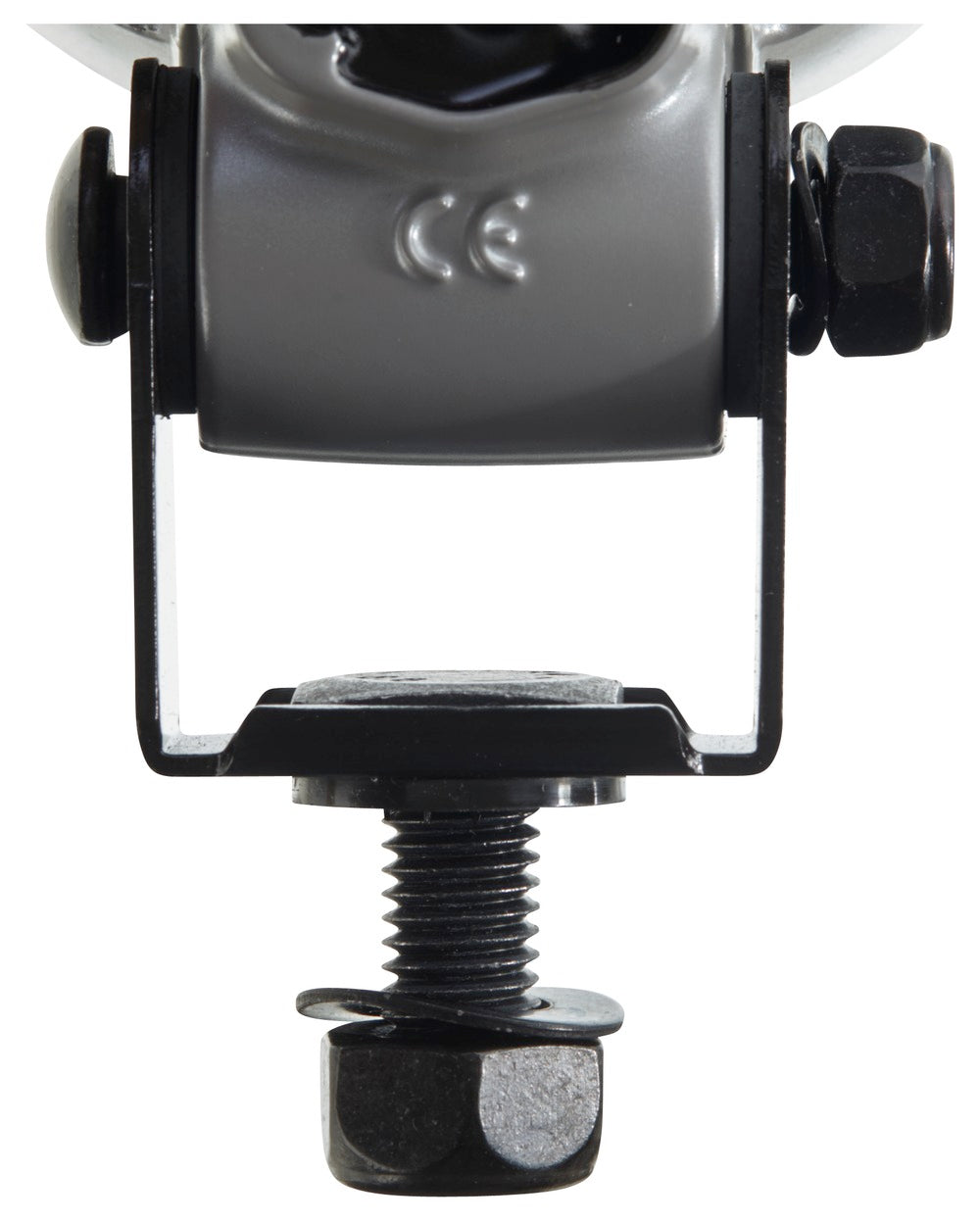

Mounting Type: Bolted
Fastening Type: Vertical / Suspended
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: Rear
Width: 83 mm
Length: 123 mm
Ø: 83 mm
Light Distribution: Short-Range Illumination
Light Function: with reverse light (LED)
Light functions: 1
fulfils ECE standard: R10 / R23
Plug: open cable ends
Prot.type (IP Code): IP67 / IP6K9K
Luminous Flux: 1800 lm
Colour Temperature: 5000 K
Cable: 2000 mm
Lens Colour: Crystal clear
Number of LEDs: 3
Housing Colour: grey
Power consumption: 18 W
Number of pins: 2 -pin connector
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
SVHC: 7439-92-1; Lead / 1317-36-8; Lead monoxide (lead oxide)
Assembly by qualified personnel required!
