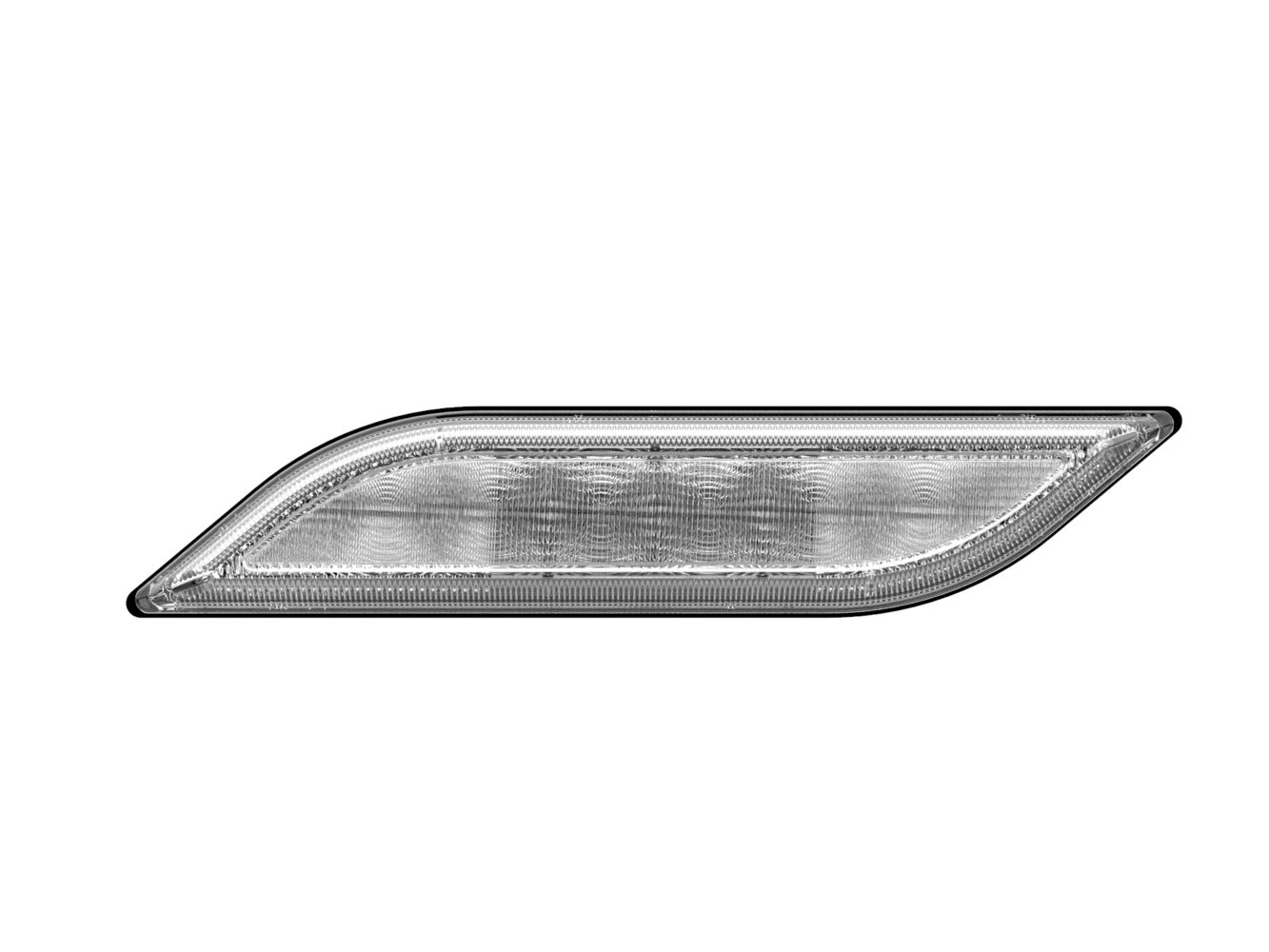

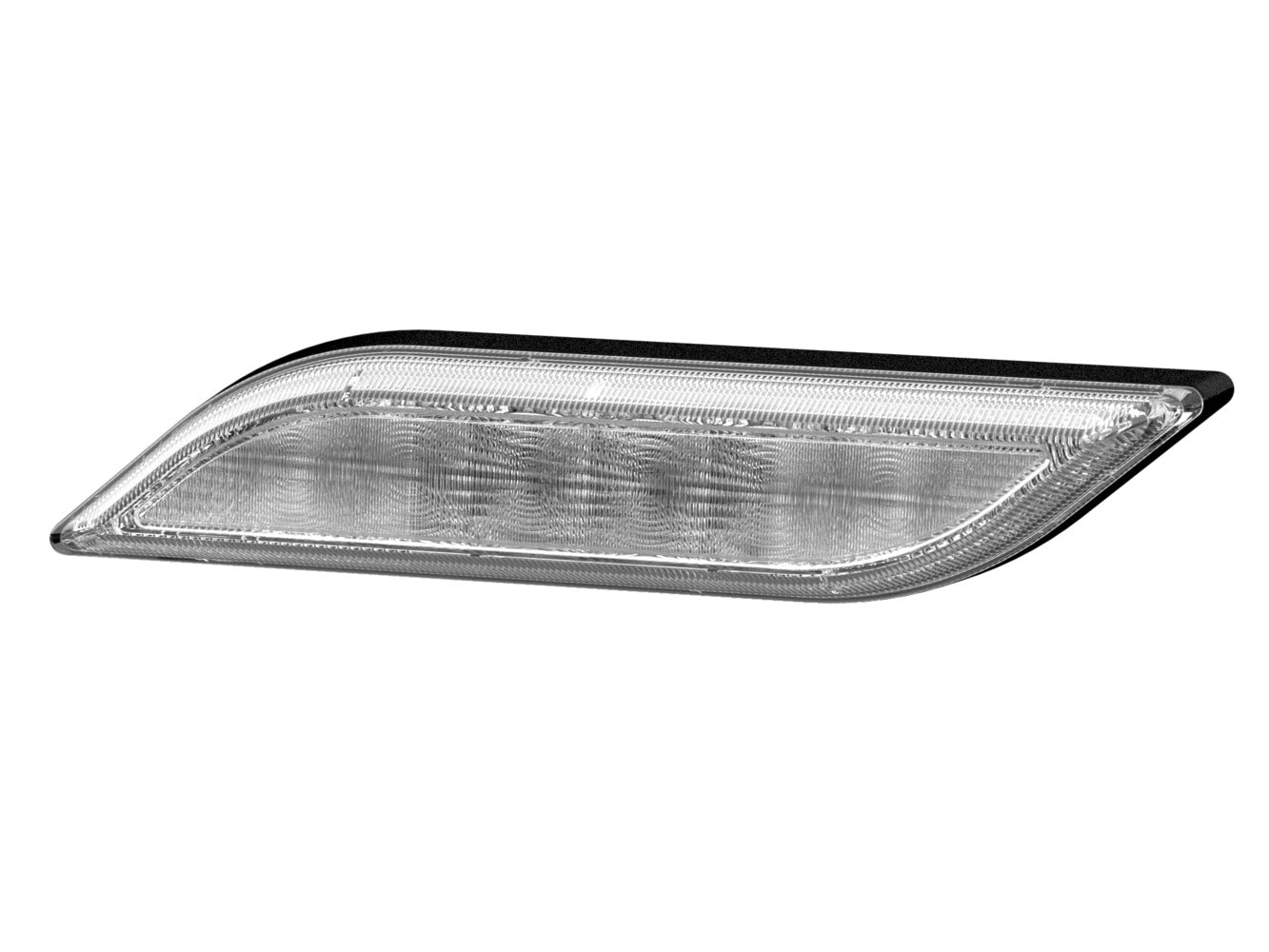

HELLA LED-Reverse Light - Shapeline Style - 12/24V 2ZR013401-011

LED-Reverse Light - Shapeline Style - 12/24V - Glued - for horizontal fastening - Plug: AMP - 2-pin connector

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
• High recognition value thanks to unique yet consistent light signature
• LED technology ensures long service life and energy efficiency
• Simple and safe installation
• Lamp Type: LED - Number of LEDs: 6
• Light functions: 1 - with reverse light (LED) - Lens Colour: Crystal clear - Fitting Position: Left Rear

Item Attributes:
Mounting Type: Glued
Fastening Type: for horizontal fastening
Fitting Position: Left Rear
Lamp Type: LED
Light Function: with reverse light (LED)
Light Design: LED
Voltage: 12 V / 24 V
Length: 200 mm
Width: 40 mm
Plug: AMP
Number of pins: 2 -pin connector
Housing Colour: black
Lens Colour: Crystal clear
Prot.type (IP Code): IP6K7
fulfils ECE standard: R10 / R23
Light functions: 1
Number of LEDs: 6
SVHC: 7439-92-1; Lead
Registration Type: ADR/GGVS / SAE
Assembly by qualified personnel required!

OE references: AEBI 1312223-9; AEBI 1312223-9 GELÖSCHT; AGCO ACX3081750; AGRIFAC 7700112; HYMER 9927170; SCANIA 2 752 306
