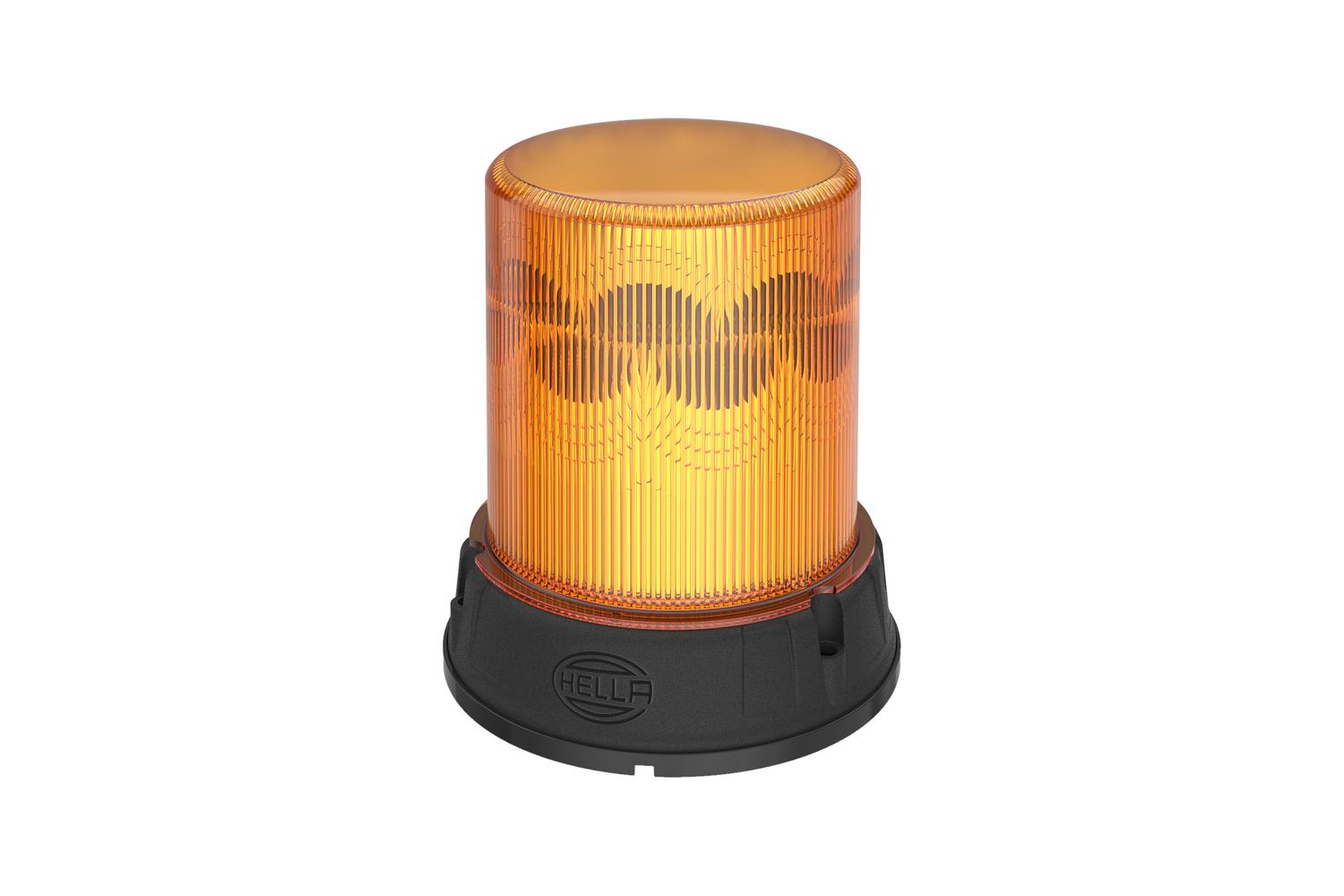

HELLA LED-Rotating Beacon - K-LED Nano 120 - 12/24V - yellow (amber) 2RL099484-001

LED-Rotating Beacon - K-LED Nano 120 - 12/24V - yellow (amber) - Bolted - Plug: AMP - Quantity: 1

The K-LED Nano 50, 80 and 120 beacons are designed to enhance safety and visibility, offering rotating and flashing modes to suit different needs. With various sizes and lens colors (amber, blue, red and green) available, as well as easy mounting options that meet international standards, they provide unmatched flexibility. Beyond their stylish appearance, they are built to last, with impact resistance and electromagnetic compatibility (EMC) that meet strict standards like ECE-R65, SAE, ADR, UKCA, and RCM. By adhering to industry regulations, the K-LED Nano 50, 80 and 120 series guarantee reliability and assurance across a wide range of applications.

• Offered in three sizes
• Designed for a wide range of applications
• Available as rotating or flashing version for fixed or pipe socket mounting
• Lamp Type: LED - Number of LEDs: 16 - Power consumption: 4W
• With flashing warning signal - Lens Colour: yellow (amber)
• Registration Type: SAE/ECE/ADR/GGVS - fulfils ECE standard: R10/R65/TA1 - fulfils SAE standard: J845 Class 1 - Prot.type (IP Code): IP6K7/IP6K9
• Housing material: PC (Polycarbonate) - Housing Colour: black - Diffusing Lens Material: PC (Polycarbonate)

Item Attributes:
Mounting Type: Bolted
Voltage: 24 V / 12 V
Lamp Type: LED
Light Design: LED

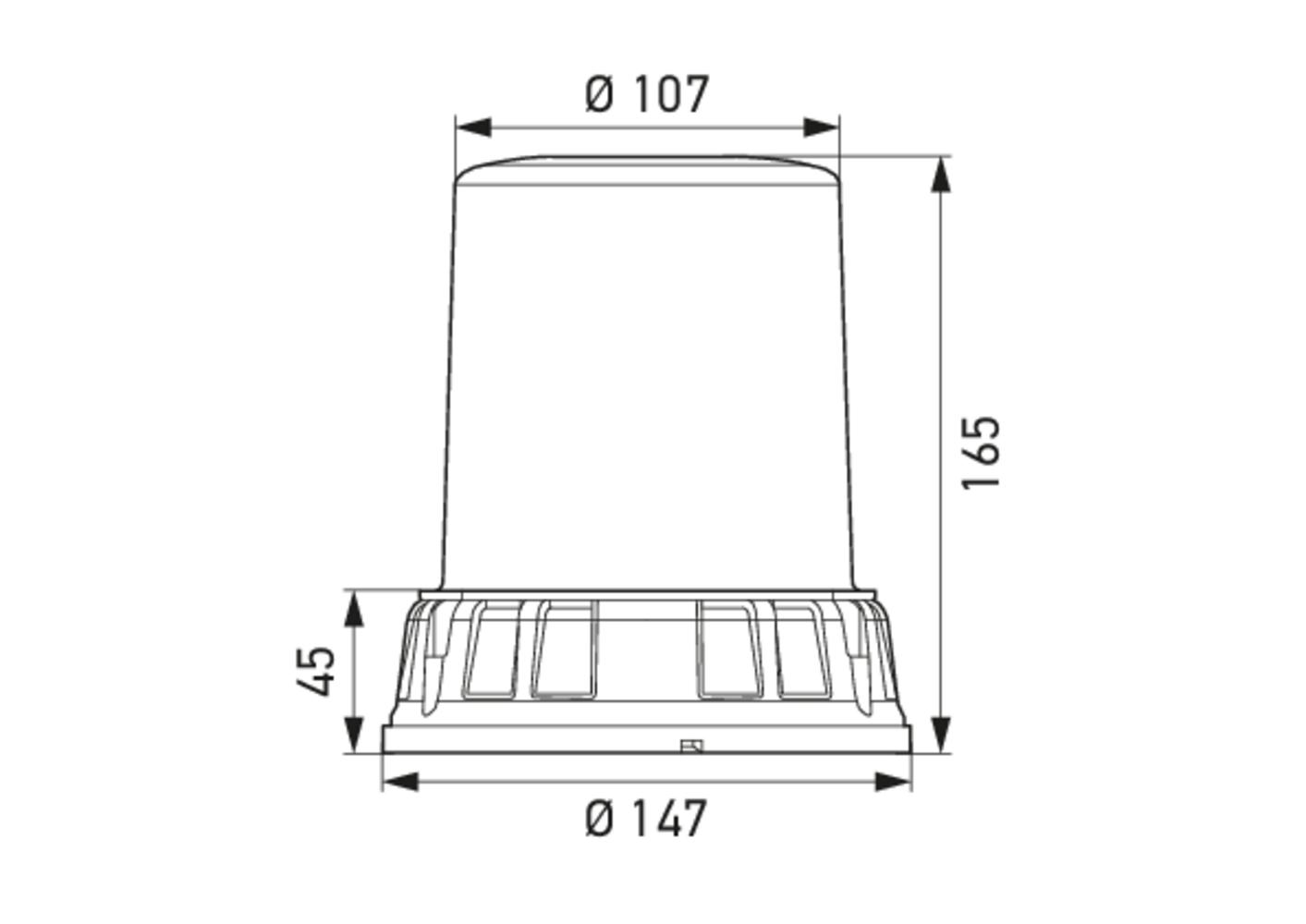

Height: 165 mm
Light Function: With flashing warning signal
Housing Colour: black
Housing material: PC (Polycarbonate)
Lens Colour: yellow (amber)
Light colour: yellow (amber)
Number of LEDs: 16
Temperature range from: -40 °C
Temperature range to: +60 °C
Outer Diameter: 147 mm
Power consumption: 4 W
Prot.type (IP Code): IP6K7 / IP6K9
Quantity: 1
Plug: AMP
Registration Type: ADR/GGVS / ECE / SAE
fulfils SAE standard: J845 Class 1
fulfils EMC/CISPR standard: Class 5
fulfils ECE standard: R10 / TA1 / R65
fulfils test standard: RCM
Weight: 471 g
Diffusing Lens Material: PC (Polycarbonate)
Assembly by qualified personnel required!
