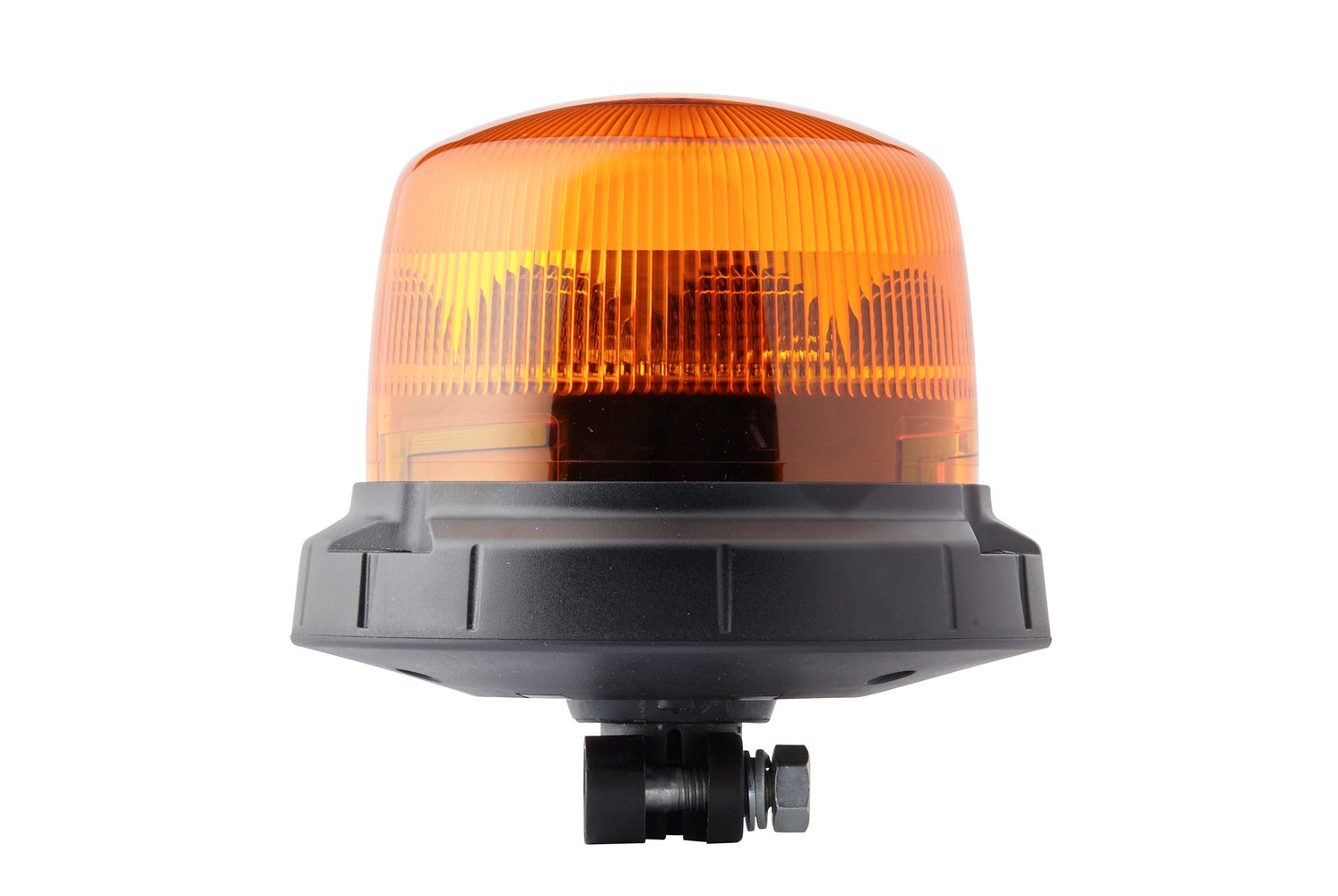

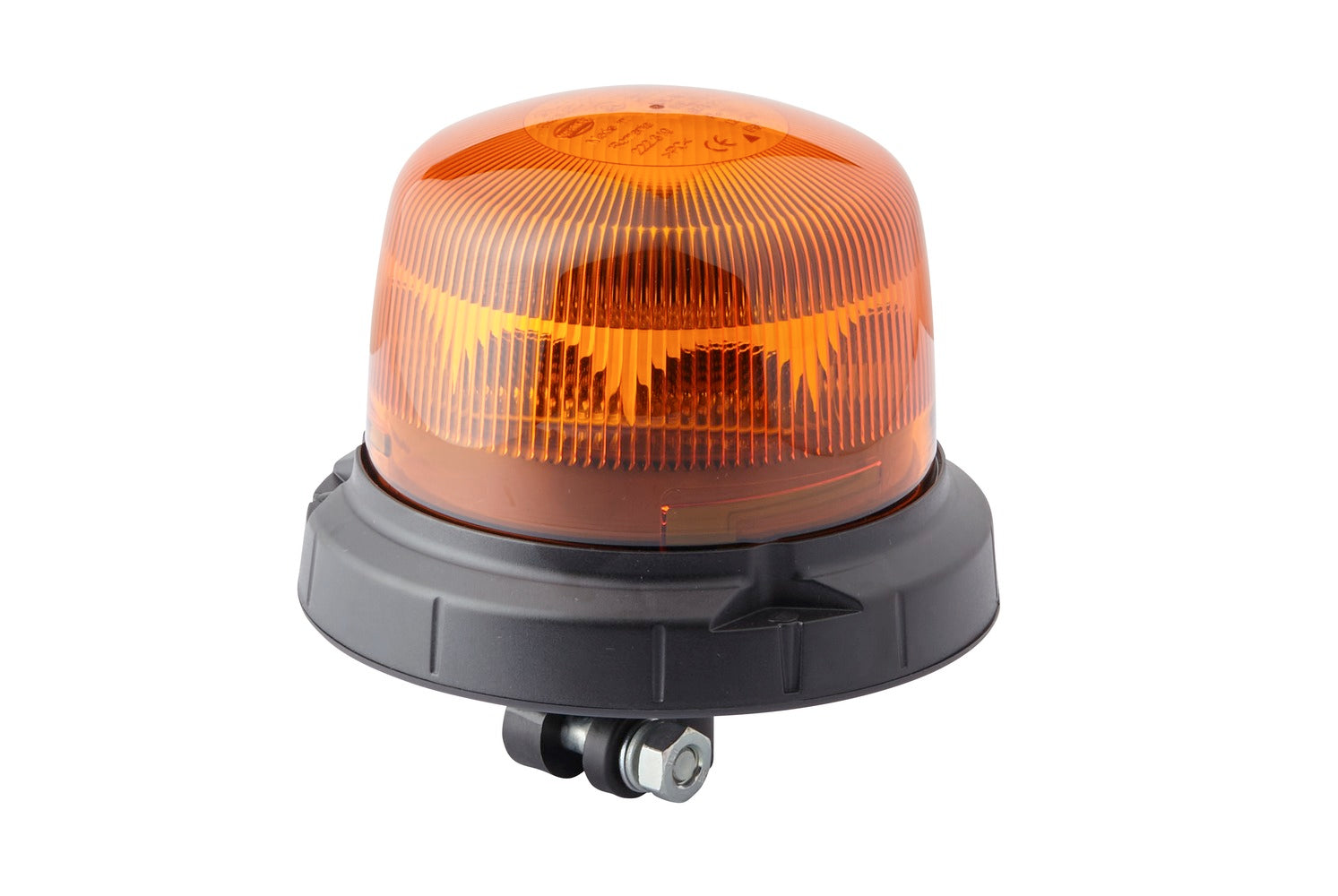

HELLA LED-Rotating Beacon - RotaLED Compact - 12/24V - yellow (amber) 2RL014979-011

LED-Rotating Beacon - RotaLED Compact - 12/24V - yellow (amber) - Flexible pipe sockets - Quantity: 1

The RotaLED Compact beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 30 V and has an impact-resistant polycarbonate light cover. The height is approx. 118 mm (F) to 164 mm (FL), depending on the design. The RotaLED Compact beacon meets the requirements of IP 67 and IP X9K and is therefore dust-tight and resistant to high-pressure cleaners. Even short-term immersion up to 1 metre under water is possible. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The RotaLED Compact is the successor to the halogen beacon series Rotafix, Rotaflex and Rota Compact and makes a 1:1 exchange to LED technology possible.

• The RotaLED Compact is the LED successor to the existing halogen beacon series Rotafix, Rotaflex and Rota Compact. These are 1:1 interchangeable
• Signal generation by means of electronic concept, without moving parts
• Compact design
• Impact-resistant polycarbonate light dome
• Dust-tight, resistant to high-pressure cleaners and protected against immersion to a depth of 1 m
• Lamp Type: LED - Number of LEDs: 16 - Power consumption: 7W
• With rotating warning signal/with indicator (LED) - Lens Colour: yellow (amber) - LED colour: White

Item Attributes:

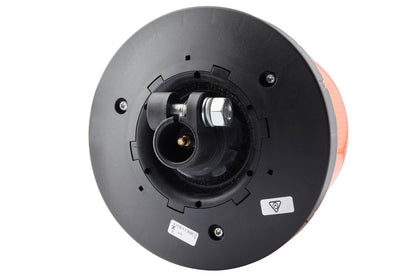

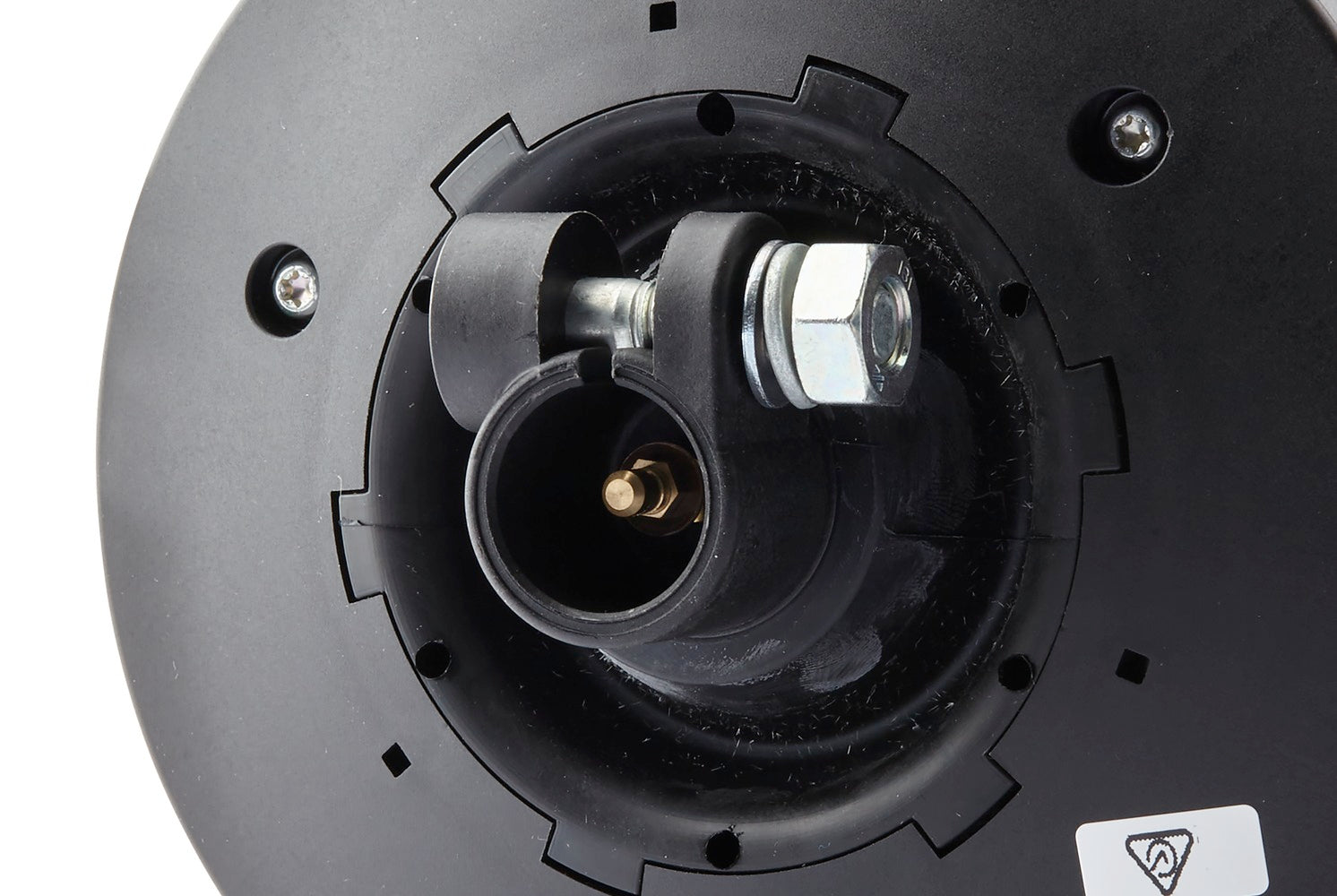

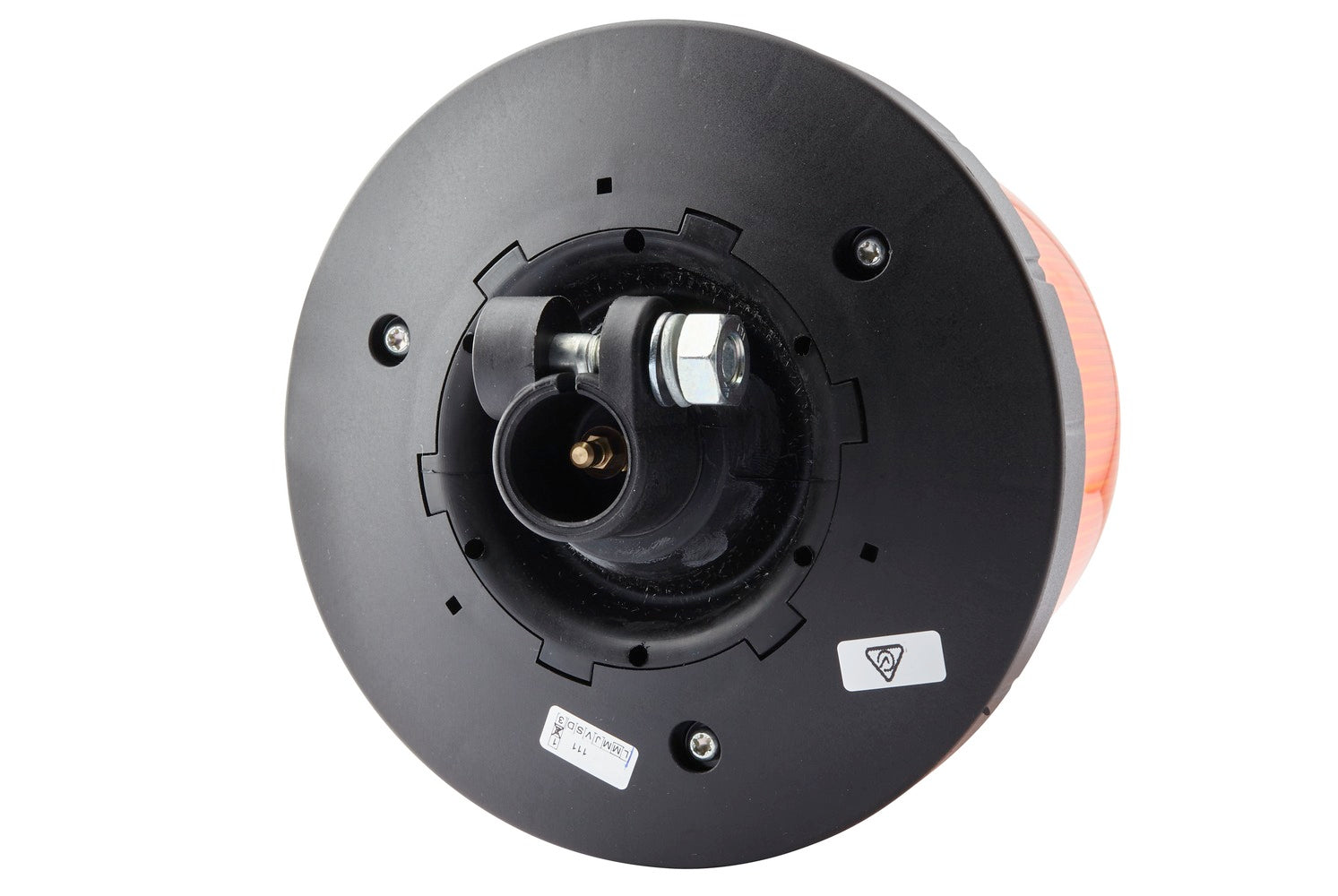

Mounting Type: Flexible pipe sockets
Light Design: LED
Lamp Type: LED
Height: 164 mm
Outer Diameter 1: 165 mm
Voltage: 12 V / 24 V
Light Function: With rotating warning signal / with indicator (LED)
Light colour: yellow (amber)
Number of LEDs: 16
Prot.type (IP Code): IP6K9K / IP6K7
Registration Type: ADR/GGVS / SAE
fulfils ECE standard: R65 / R10
fulfils test standard: RCM
Lens Colour: yellow (amber)
Housing Colour: black
Rotating beacon RPM: 123 1/min
Power consumption: 7 W
Housing material: ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
Temperature range from: -40 °C
Temperature range to: +60 °C
Weight: 400 g
LED colour: white
Diffusing Lens Material: PC (Polycarbonate)
Reverse polarity protection: Yes
Quantity: 1
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!

OE references: KOMATSU 42R0651220; KOMATSU 42W-06-51880; KRONE 516010790; KUBOTA 3J036-6482; KUBOTA 3J0366482A; LIEBHERR 12102647
