HELLA LED-Searchlight - Modul 70 Gen. III - 12/24V 1H0996376-491

LED-Searchlight - Modul 70 Gen. III - 12/24V - Handheld searchlight - 800lm - mounting - Cable: 3500mm

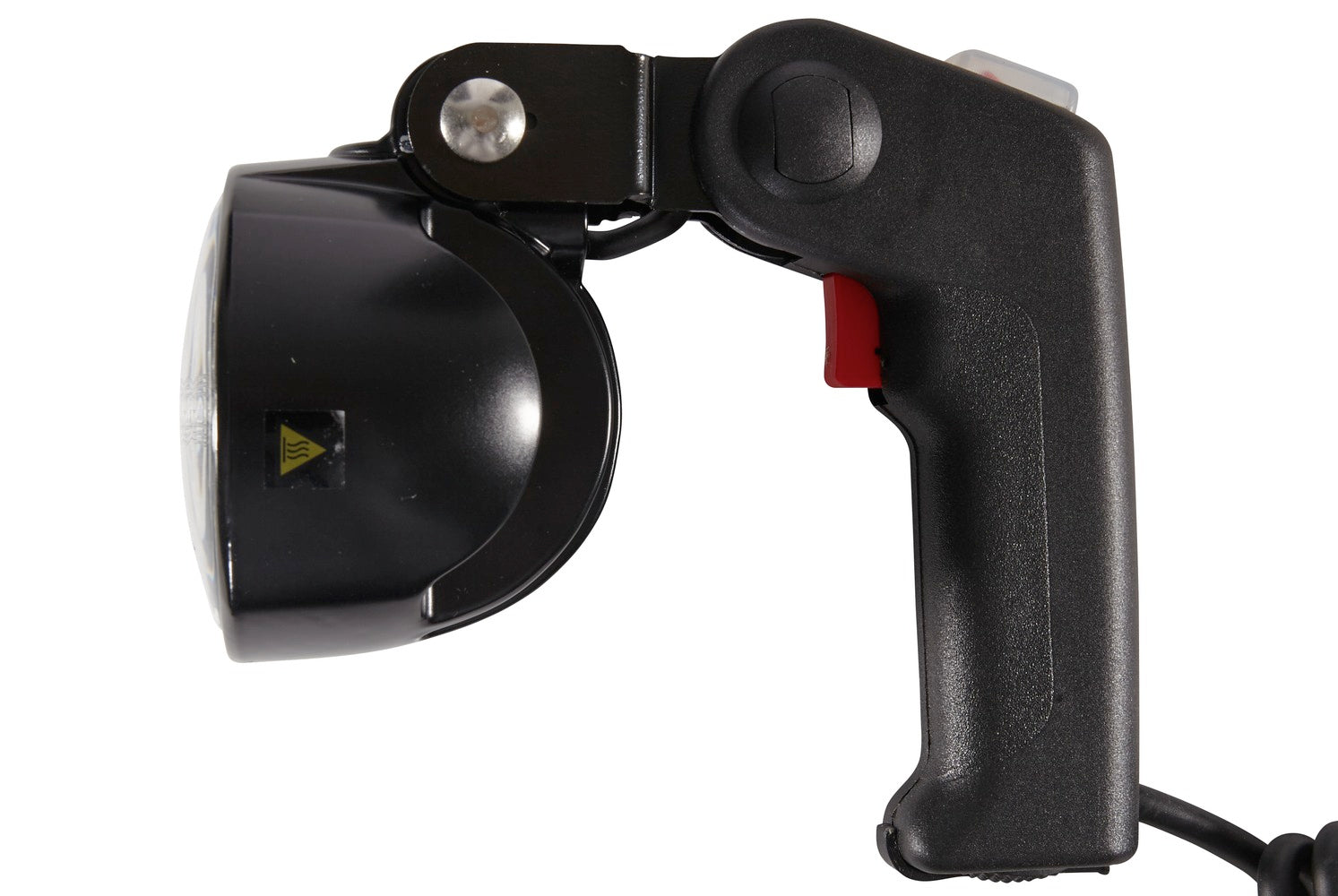

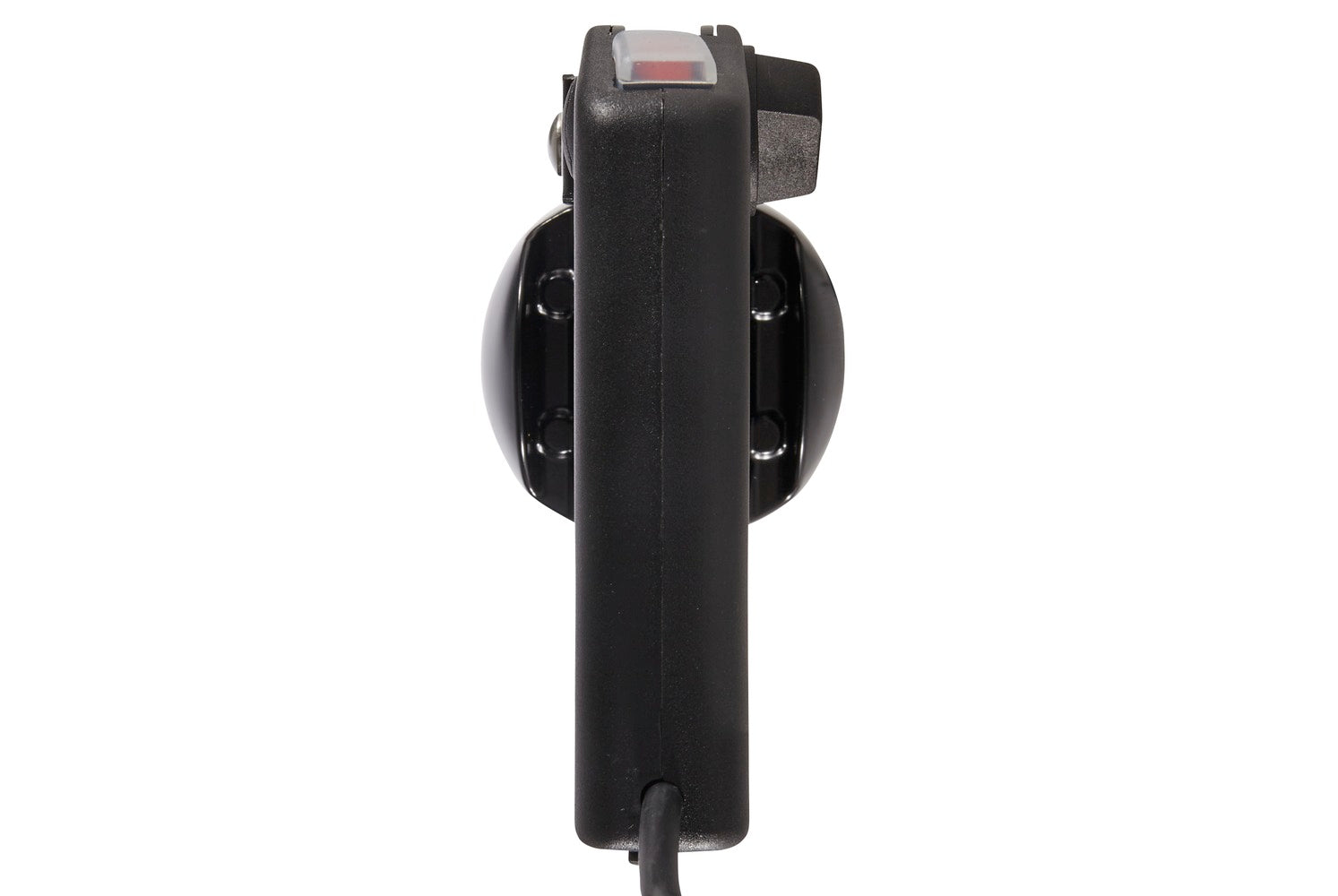

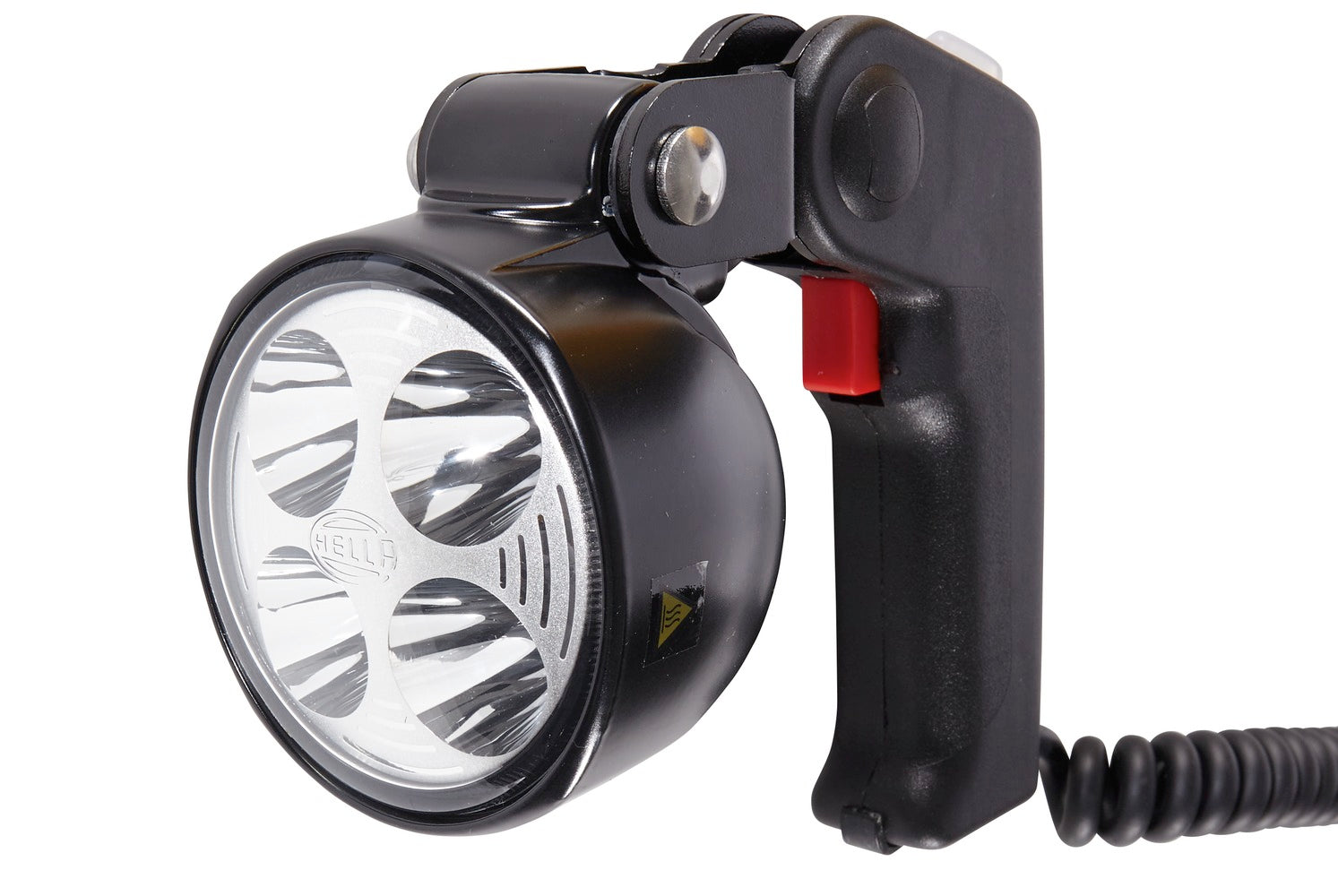

The Module 70 LED hand-held searchlight adds another variant to the already established Module 70 series. The handheld searchlight can be used flexibly thanks to the practical handle. In addition to a switch for continuous operation, the handle also has a push-button switch for short-time operation, which additionally enables a Morse function. Thanks to the specially developed reflector, the light from the worklight is directed extremely far into the distance. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish themselves more clearly in the dark, making it much easier for the human eye to perceive them. Due to its low energy consumption, the Module 70 LED hand-held searchlight is ideal for use on vehicles with battery operation. The electronics are multi-voltage compatible and can be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of polarity reversal and ensure constant brightness even with a fluctuating operating voltage of 9 - 32 volts. The hand-held searchlight is resistant to shocks, vibrations and voltage fluctuations. The worklight's black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the four high-performance LEDs, thereby extending their service life. Thanks to the CoroSafe coating, the LED worklight is additionally protected against corrosion to withstand even the toughest conditions. This makes the LED hand-held searchlight ideal for use in areas with high levels of salt and water.

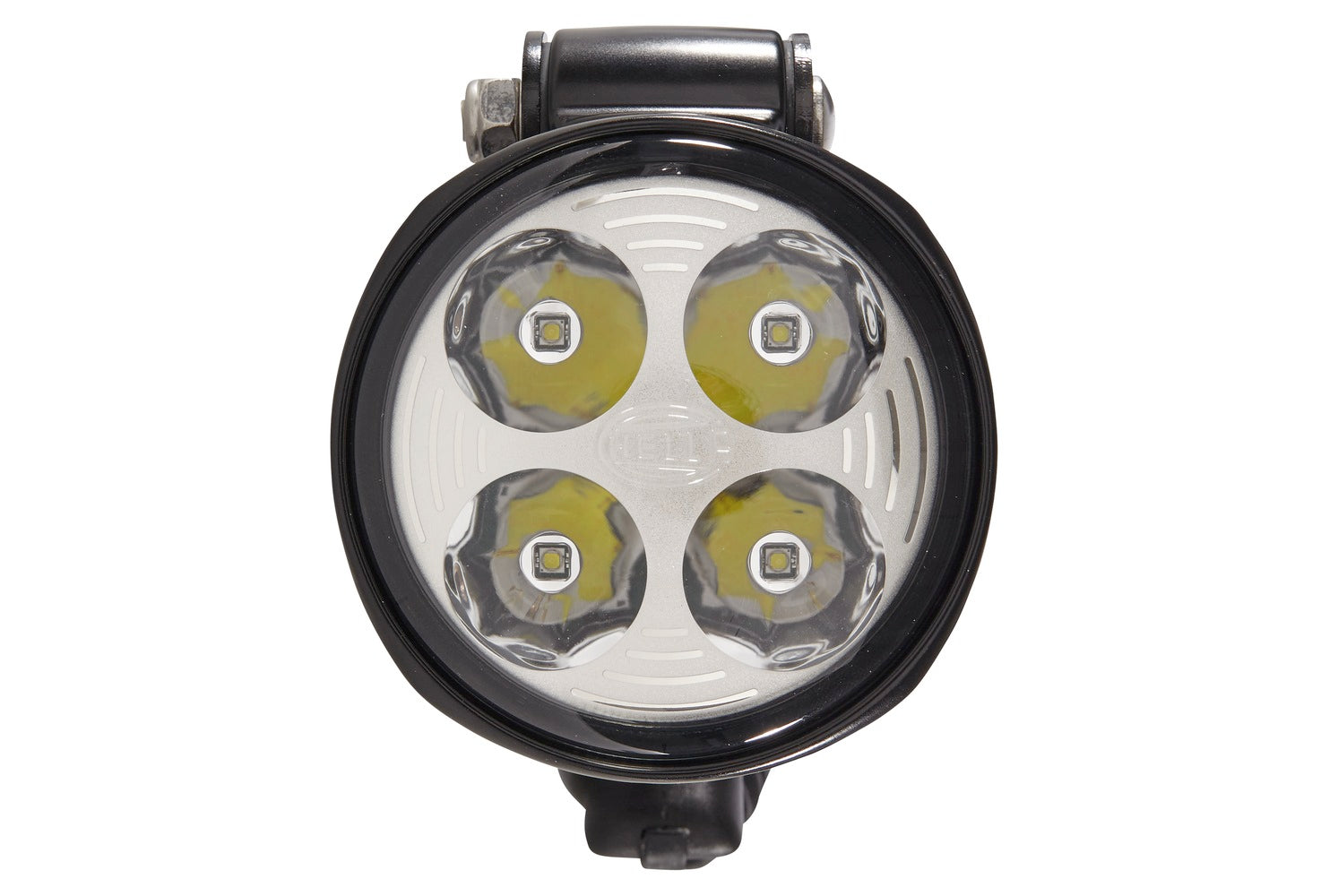

• This worklight has four high-power LEDs whose light is directed particularly far into the distance thanks to the specially developed reflector.
• This illumination provides perfect long-range vision up to 160 m.
• Thanks to its low power consumption, the LED handheld searchlight is particularly suitable for use on battery-powered vehicles.
• The hand search light is absolutely resistant to shocks, vibrations and voltage fluctuations.
• The black housing is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the four high-power LEDs and thus enable a long service life.
• Lamp Type: LED - Number of LEDs: 4 - Colour Temperature: 6500K
• Prot.type (IP Code): IP6K9K/IPX7

Item Attributes:
Voltage: 24 V / 12 V
Length: 145 mm
Width: 83 mm

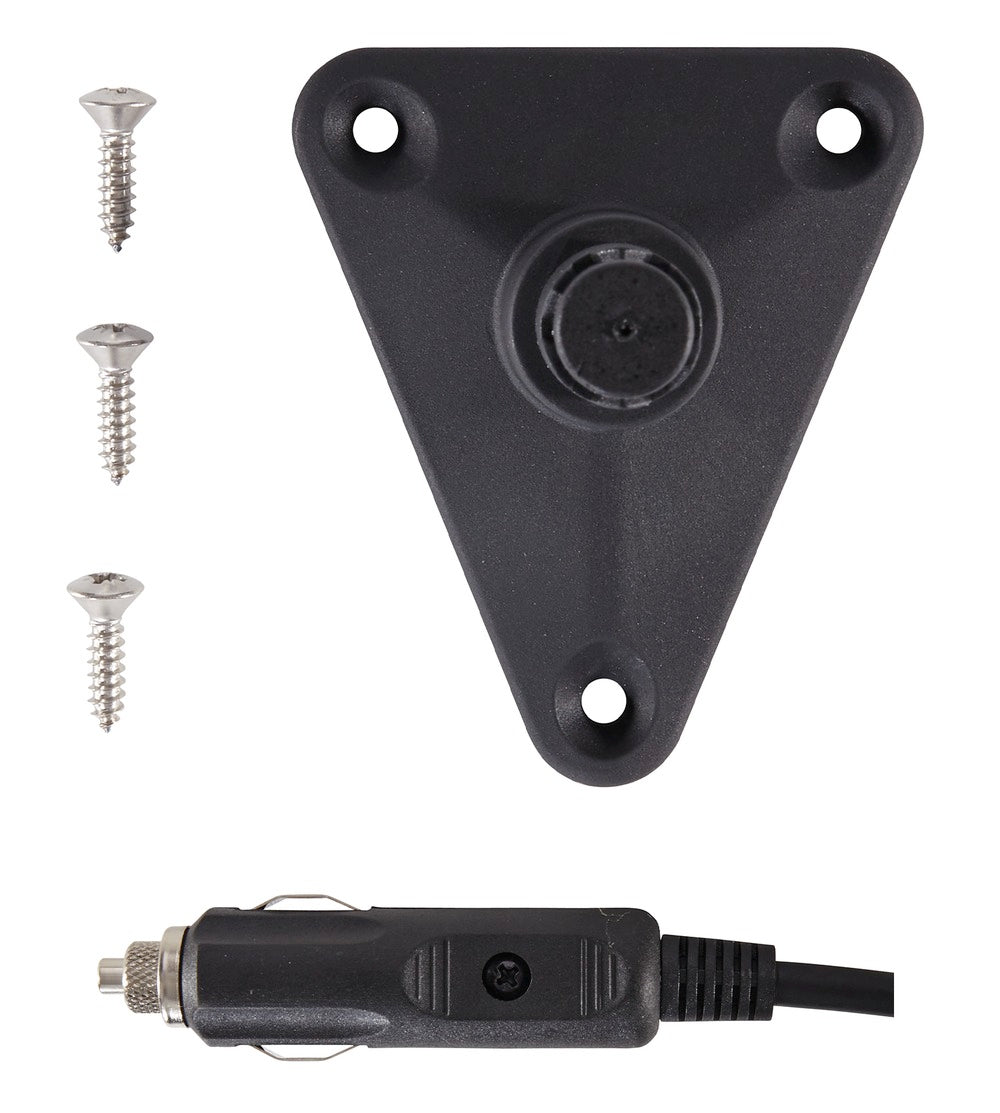

Mounting Type: mounting
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Light Design: LED
Prot.type (IP Code): IP6K9K / IPX7
Number of LEDs: 4
Searchlight type: Handheld searchlight
Colour Temperature: 6500 K
Housing Colour: black
Housing Type: Aluminium Housing
Cable: 3500 mm
Lamp Type: LED
Illuminated Area: 70 mm
Luminous Flux: 800 lm
Reflector Material: Plastic
Vertical swivel range: 20 °
Assembly by qualified personnel required!

OE references: IVECO 5038244546; ROSENBAUER 28013A; ROSENBAUER FE6313; ZIEGLER 10004512
