Description

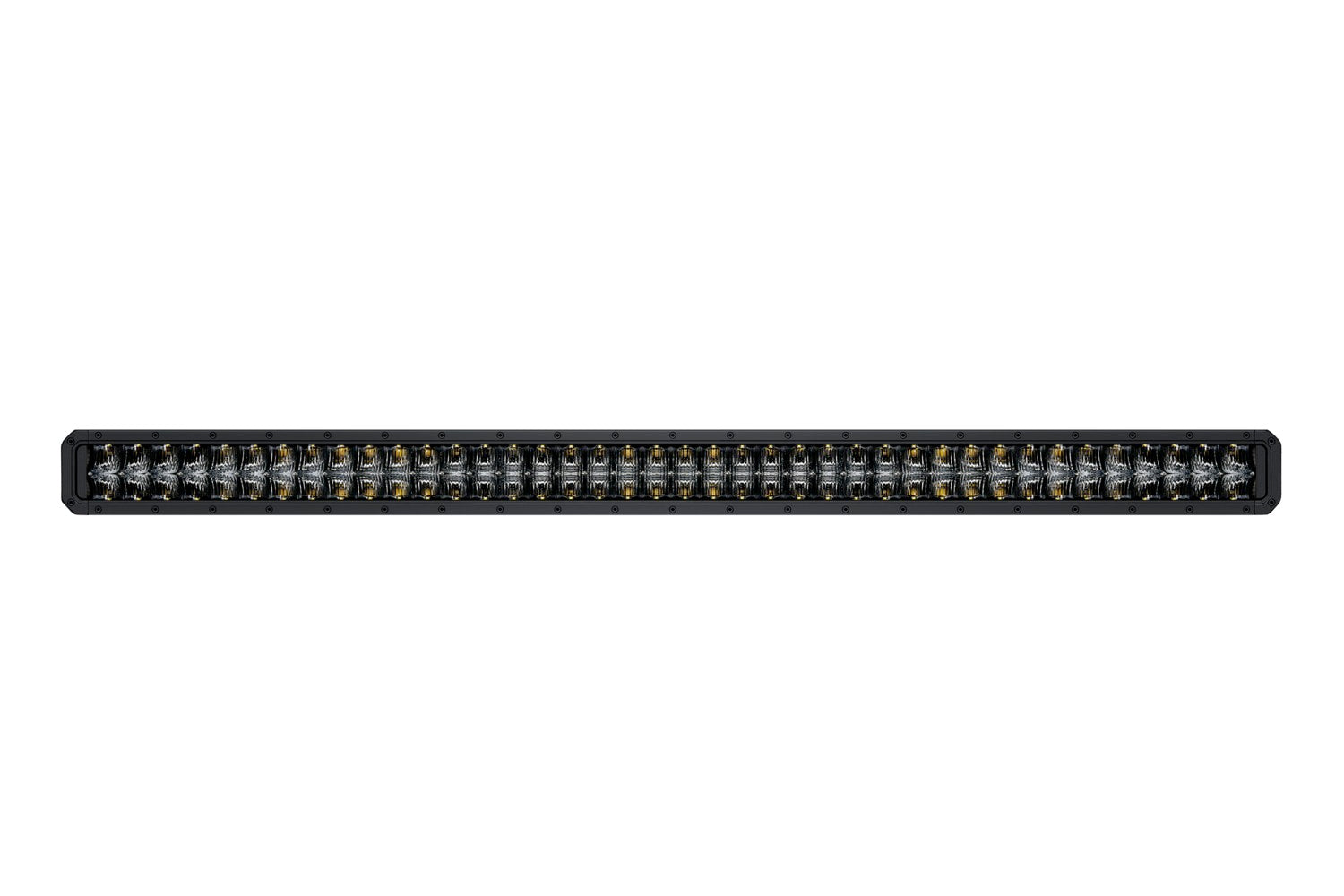

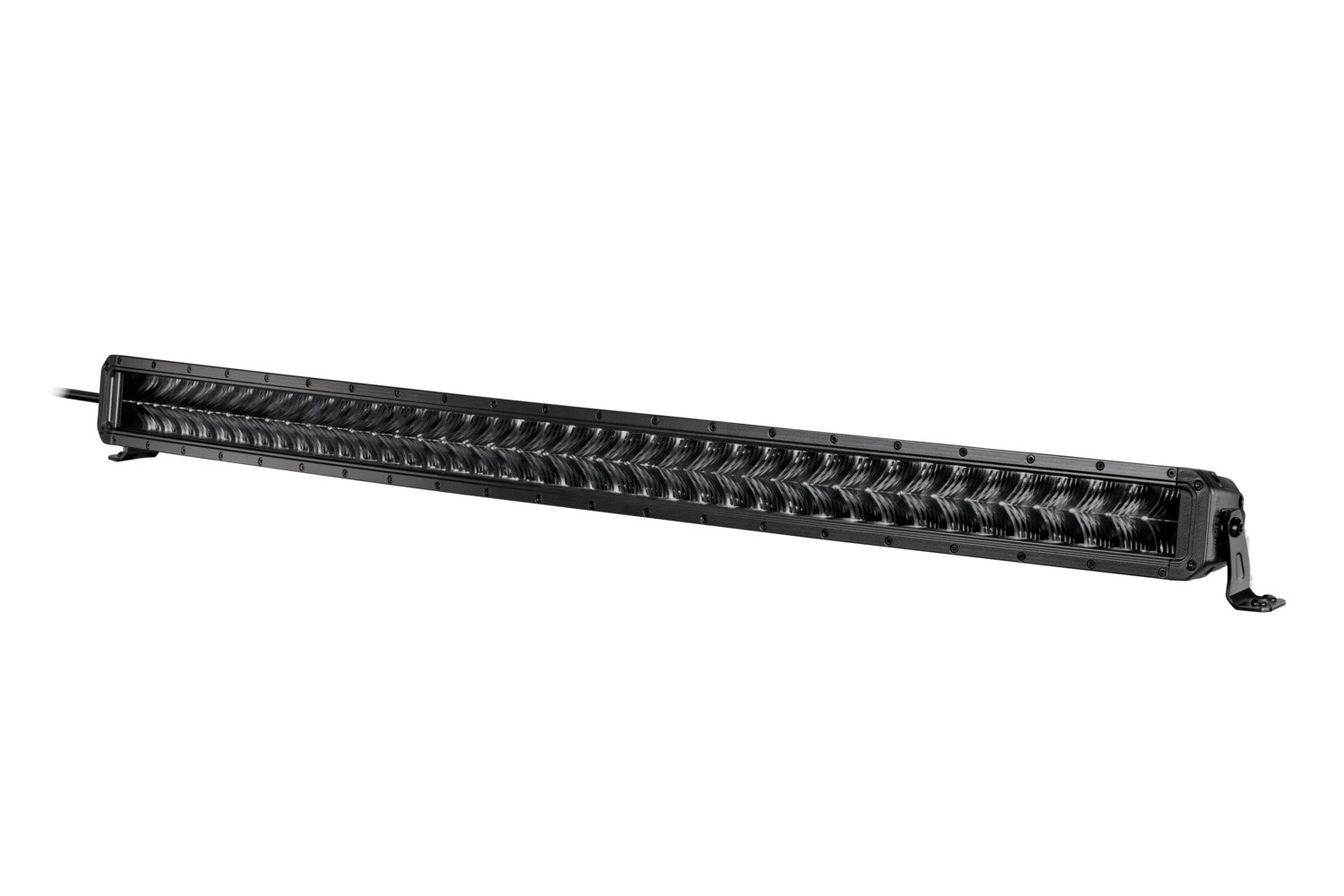

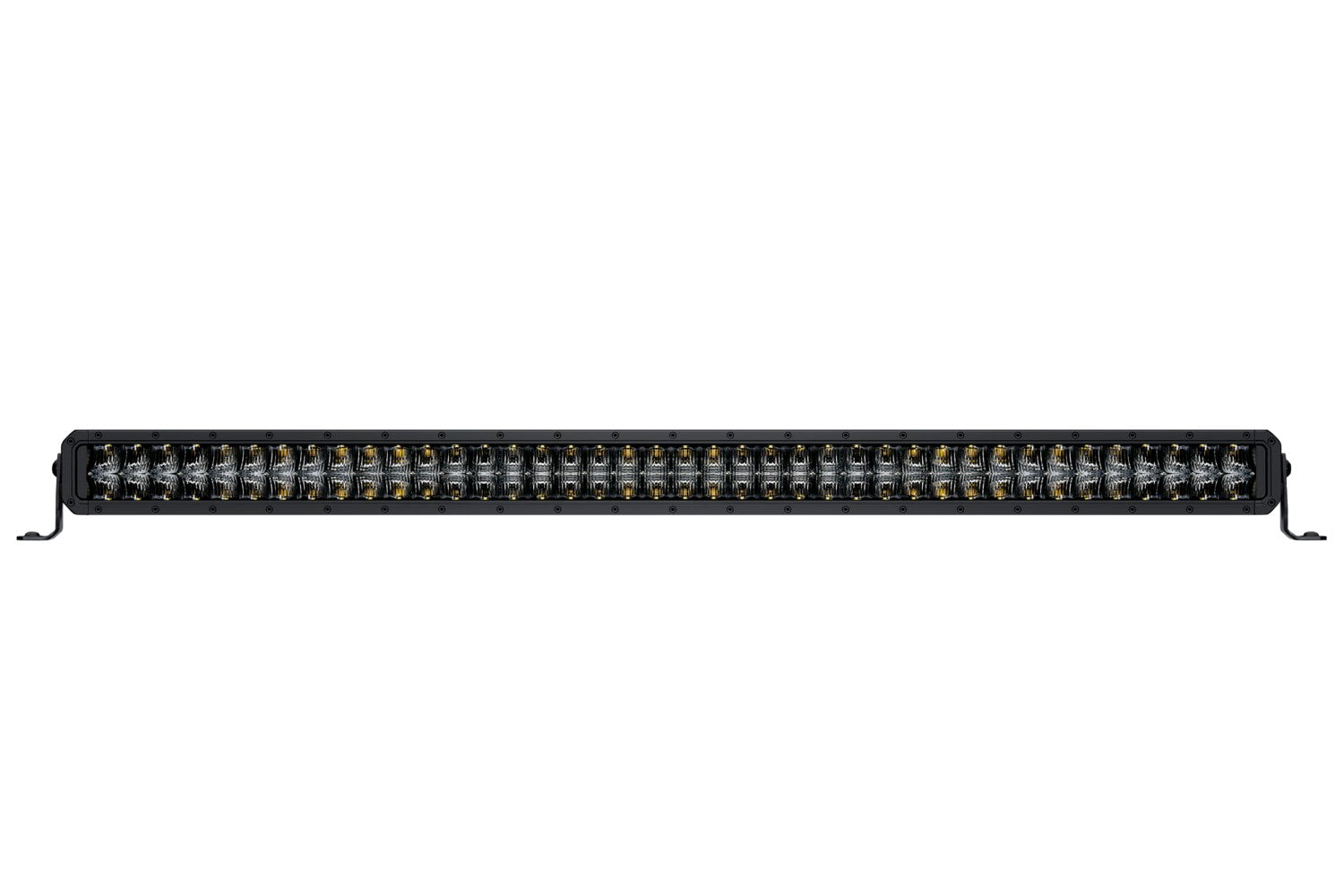

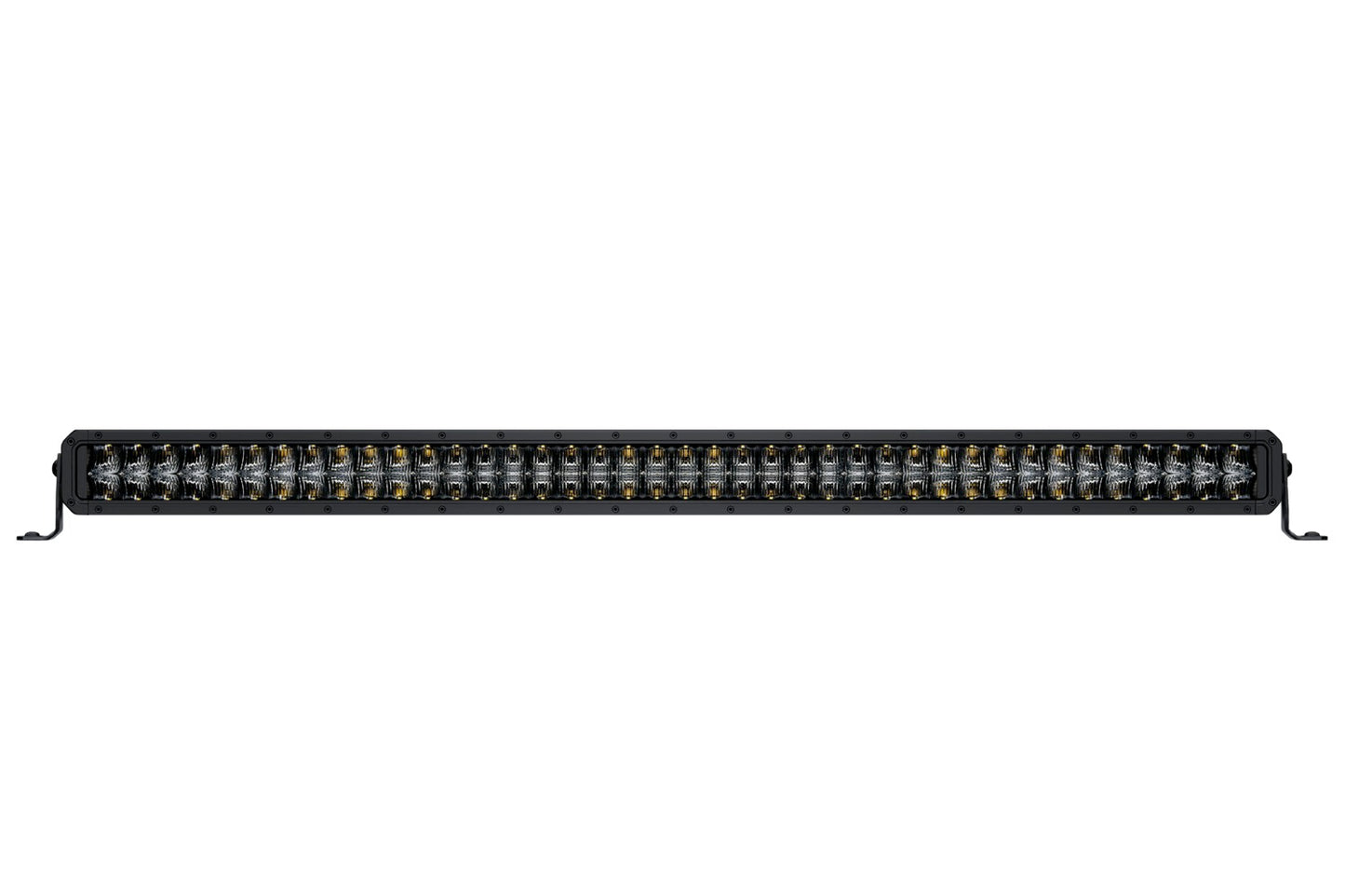

LED-Spotlight - Black Magic Tough Lightbar 40" - 12/24V - 9222lm - double row/curved - Reference number: 45 - ECE - Crystal clear - Cable: 2000mm - Front
The ECE type-approved HELLA Black Magic Lightbars provide high beam (ECE-R149) with a very powerful light output of up to 9,200 effective lumens, ideal for off-road situations where you need it most and for trucks that need really good light. Both the slim and double lightbars offer a high recognition effect with their stylish and robust look in an all-black design. Typical installation locations are on the roof or roof bar, the radiator grille or bumper. The product complies with the highest dust / waterproof class. The extra-long 2 m cable makes it easy to attach to your vehicle.

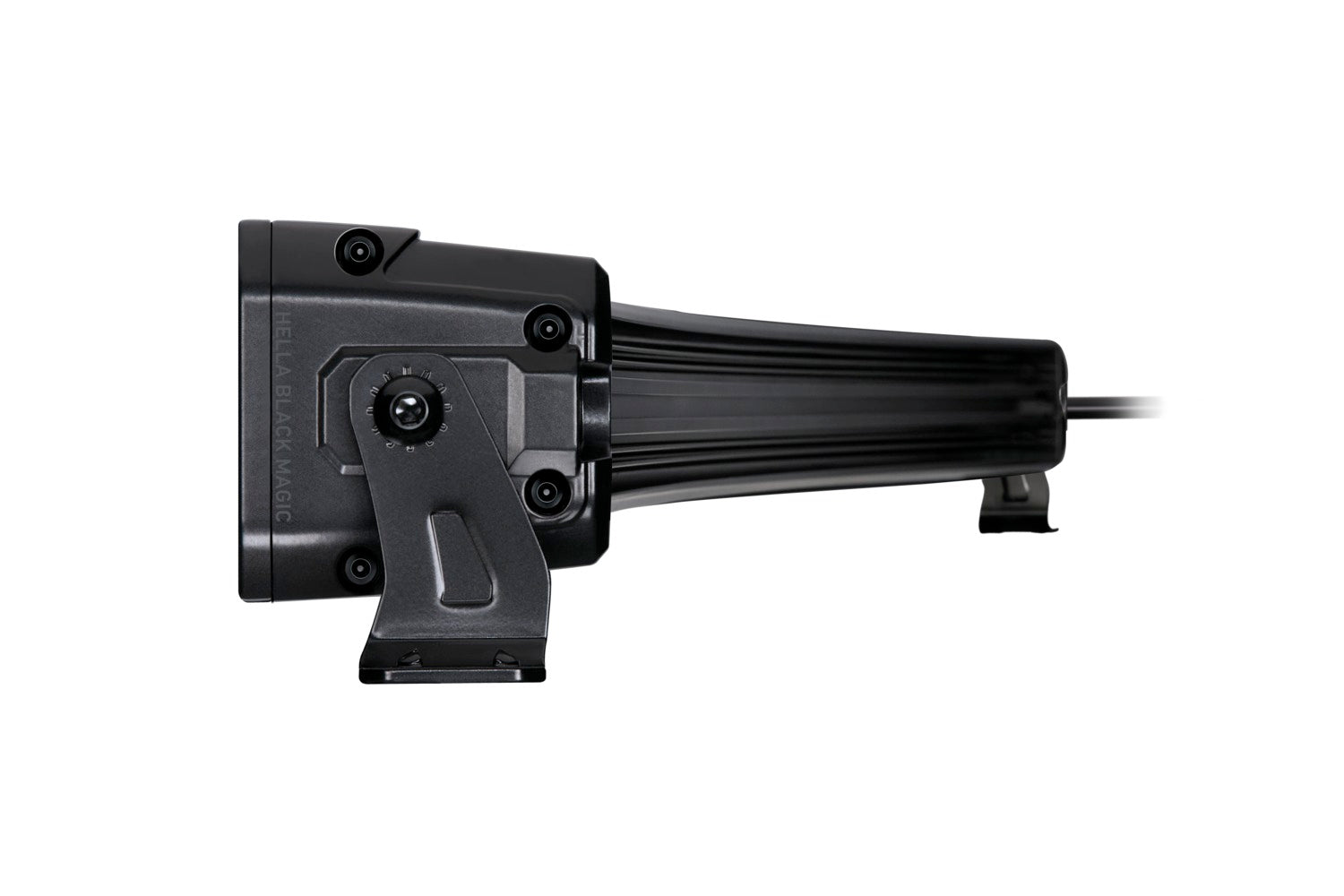

- Typical Black Magic appearance including black brackets in a robust design
- Powerful light output due to modern reflector system in all 14 ECE-approved versions!
- Typical installation locations: Roof or roof bar, radiator grille or bumper. Recommended accessories: Holder set for rear attachment 8HG 358 176-381 (version "Double Row")

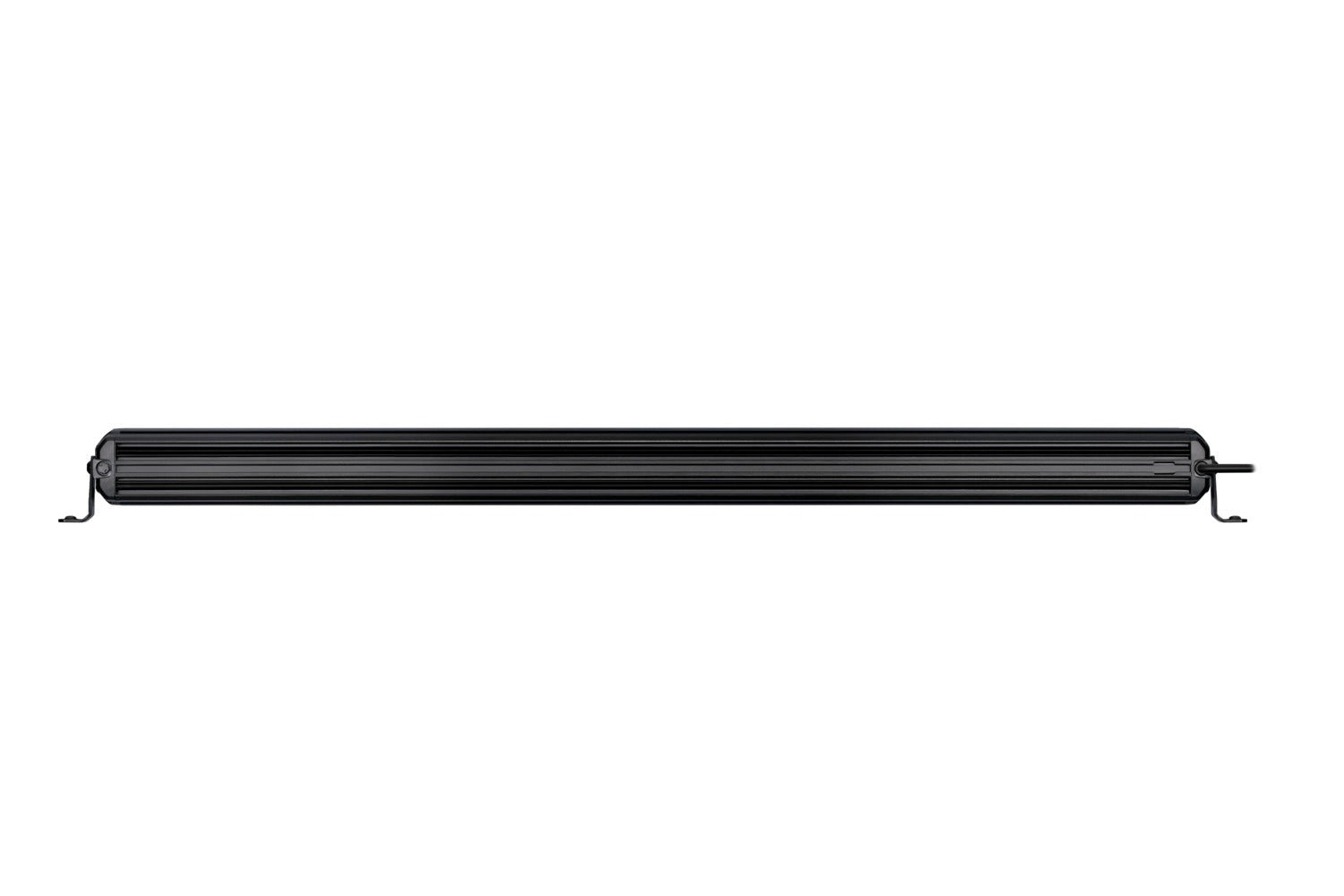

- 40˝ Double Row Curved Lightbar, eTCD, ECE ref. 45
- IP 68, IP 69K, ECE-R10, ECE-R149, 2,000 mm cable with open ends, 5,700 Kelvin

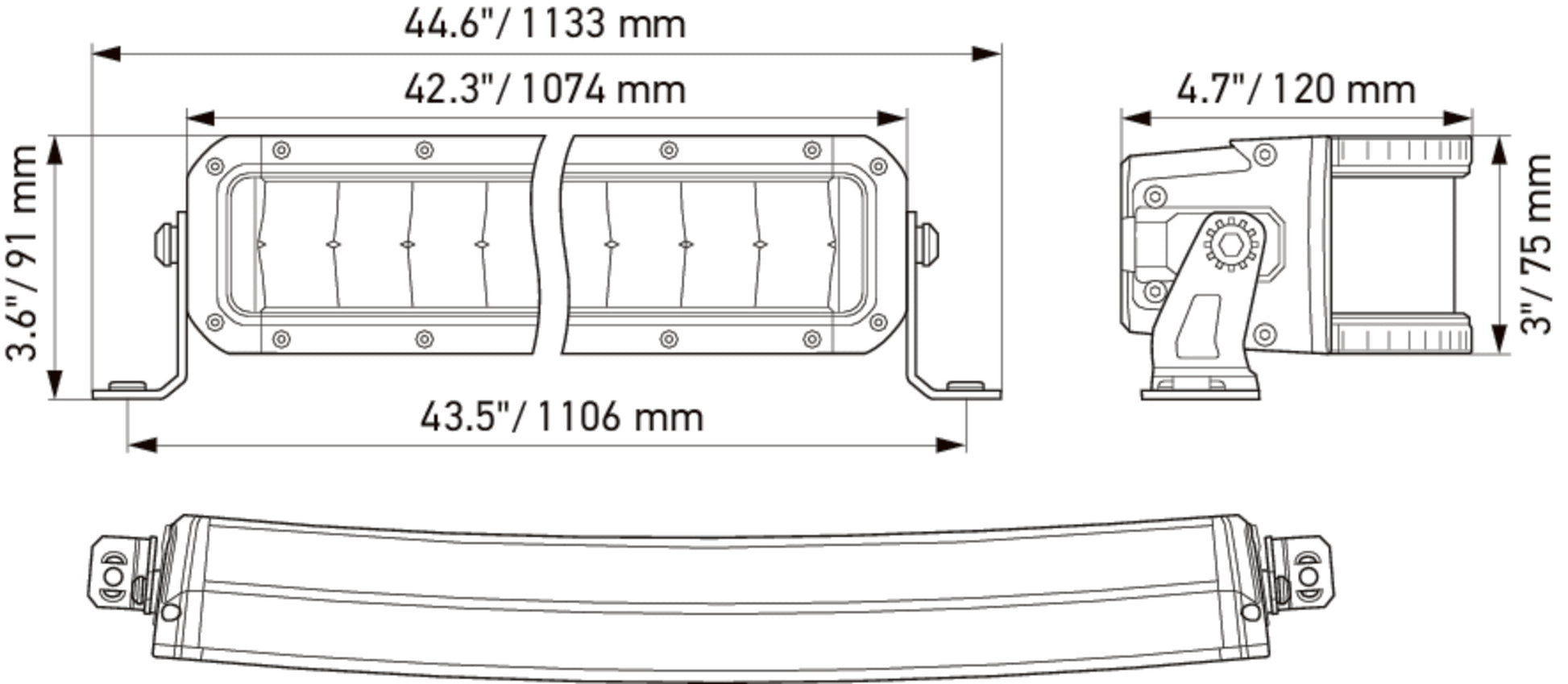

- Length: 1074mm - Width: 75mm - Height: 91mm - Depth: 120mm - Lamp Type: LED

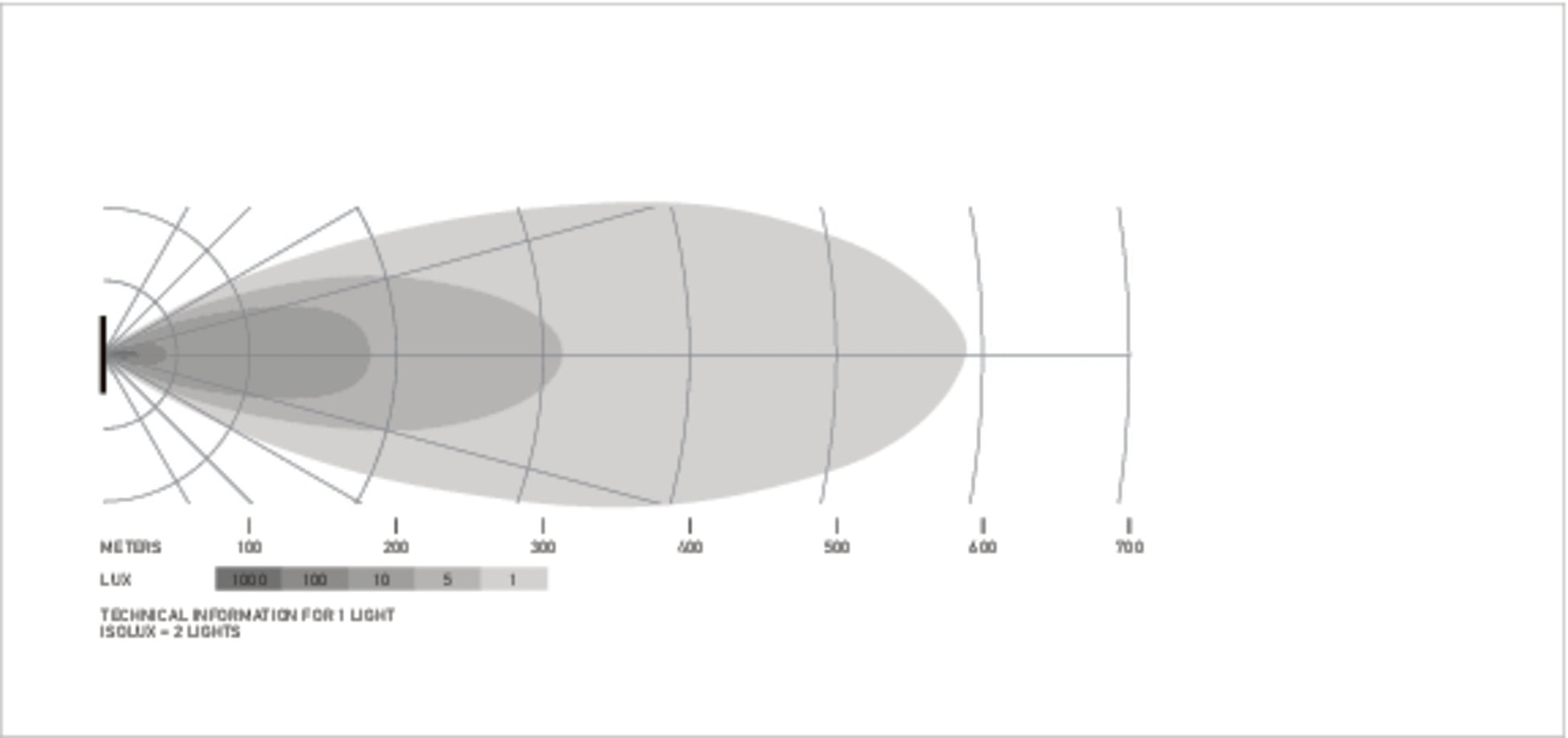

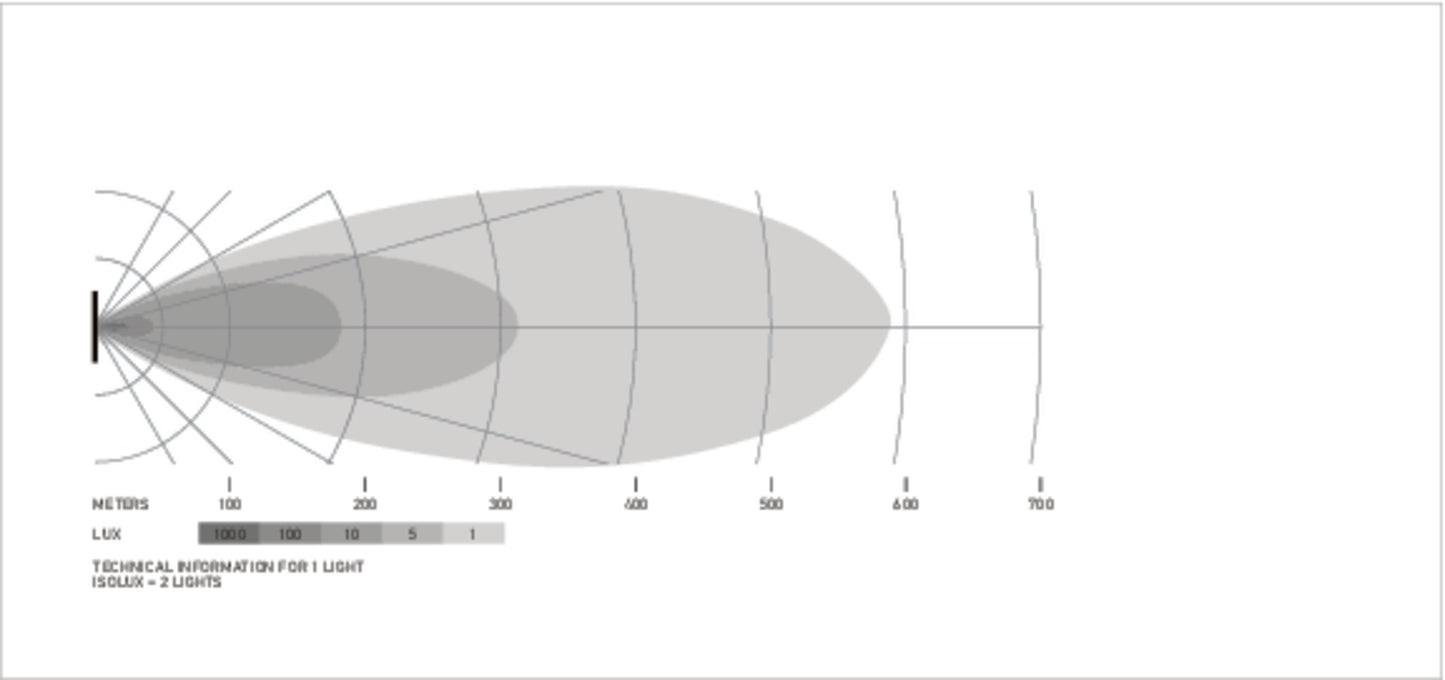

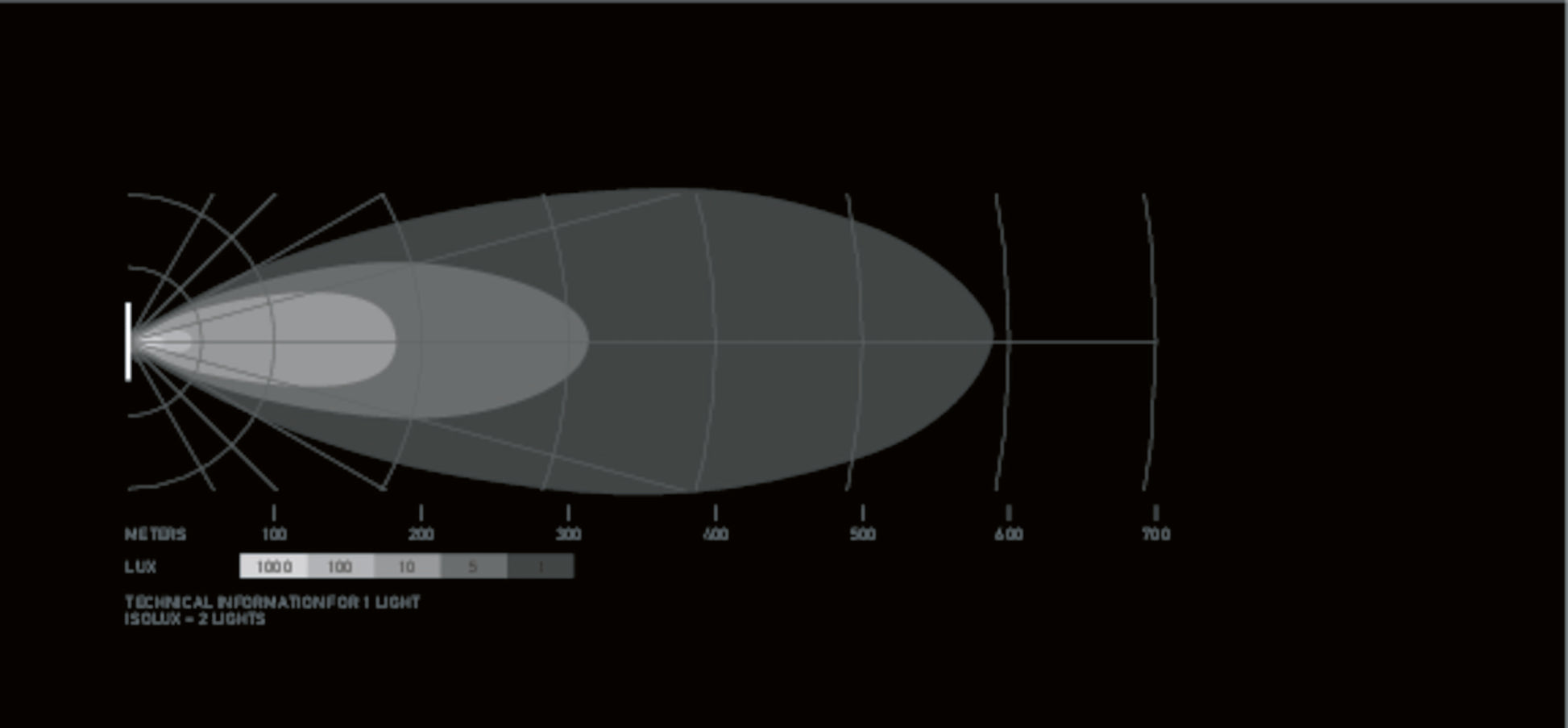

- Light functions: 1 - with high beam (LED)
Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: Vertical
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: Front
Height: 91 mm
Length: 1074 mm
Width: 75 mm
Depth: 120 mm
Light Function: with high beam (LED)
Light functions: 1
Prot.type (IP Code): IP68 / IP69K
Luminous Flux: 9222 lm
Colour Temperature: 5700 K
Registration Type: ECE
fulfils ECE standard: R149 / R10
Reference number: 45
Cable: 2000 mm
Lens Colour: Crystal clear
Frame Colour: black

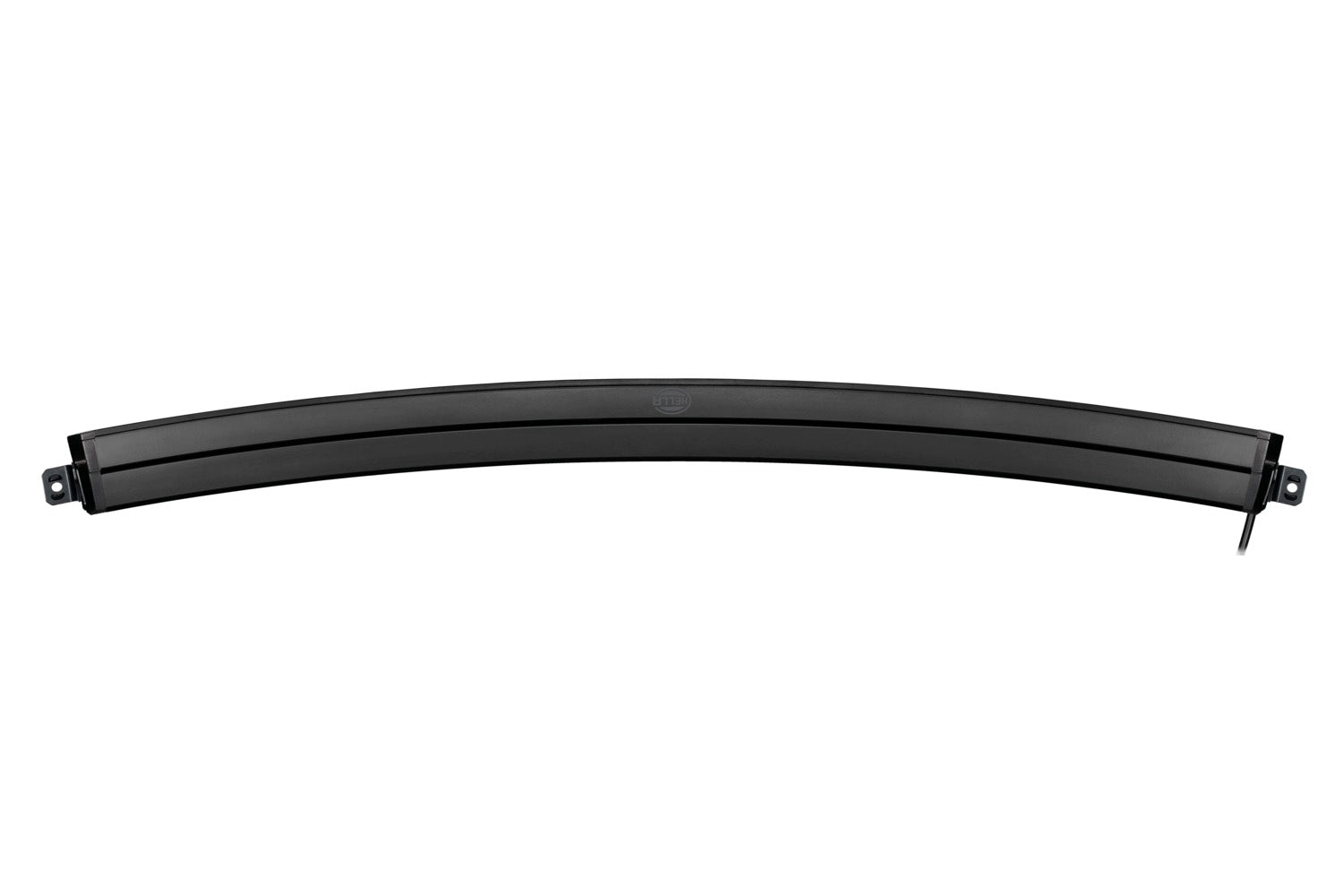

Shape: curved / double row
One-sided/Double-sided: two-layer
Housing Type: Aluminium Housing
Housing Colour: black
Assembly by qualified personnel required!
Length: 40 "
OE references: DAF 1550341
