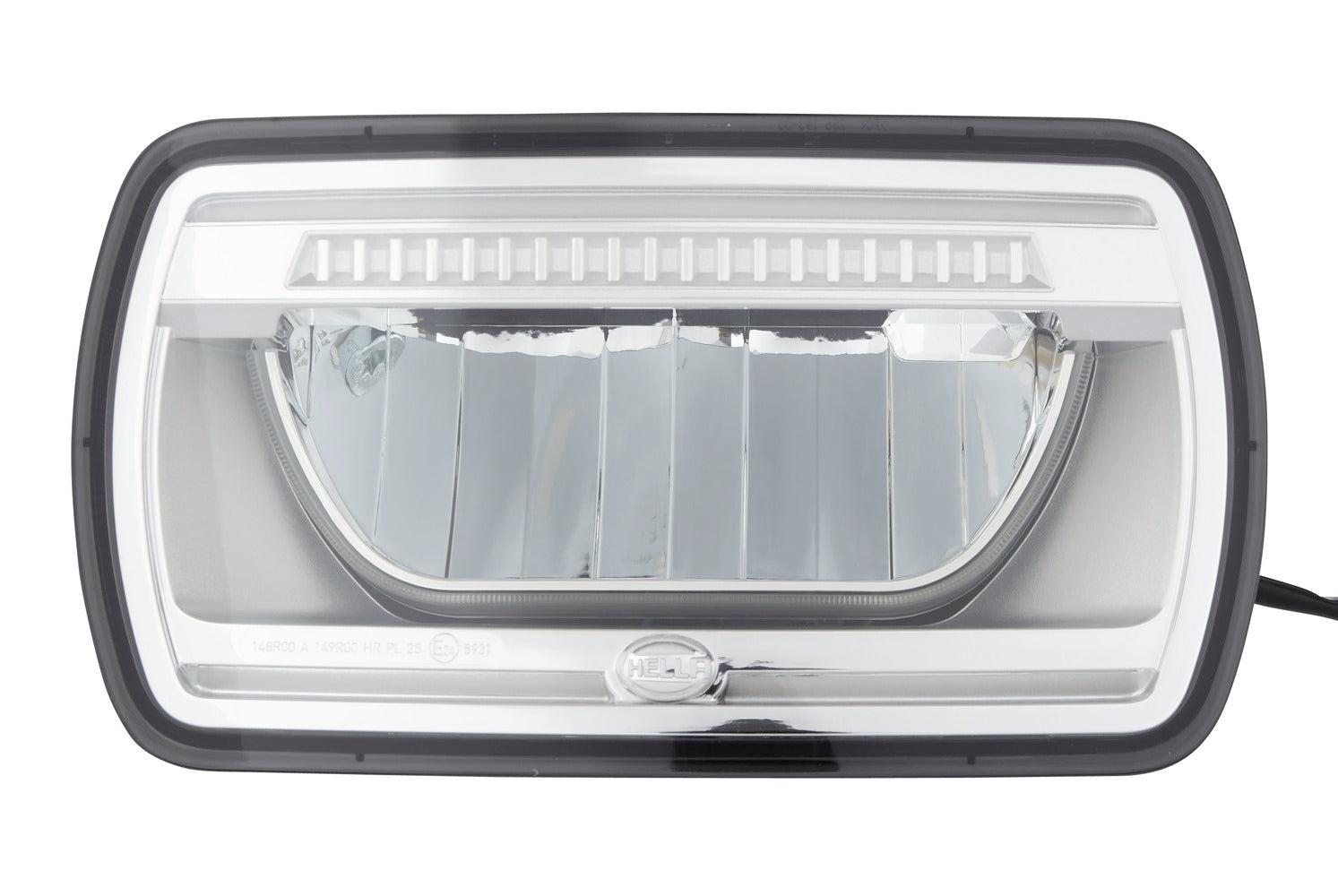

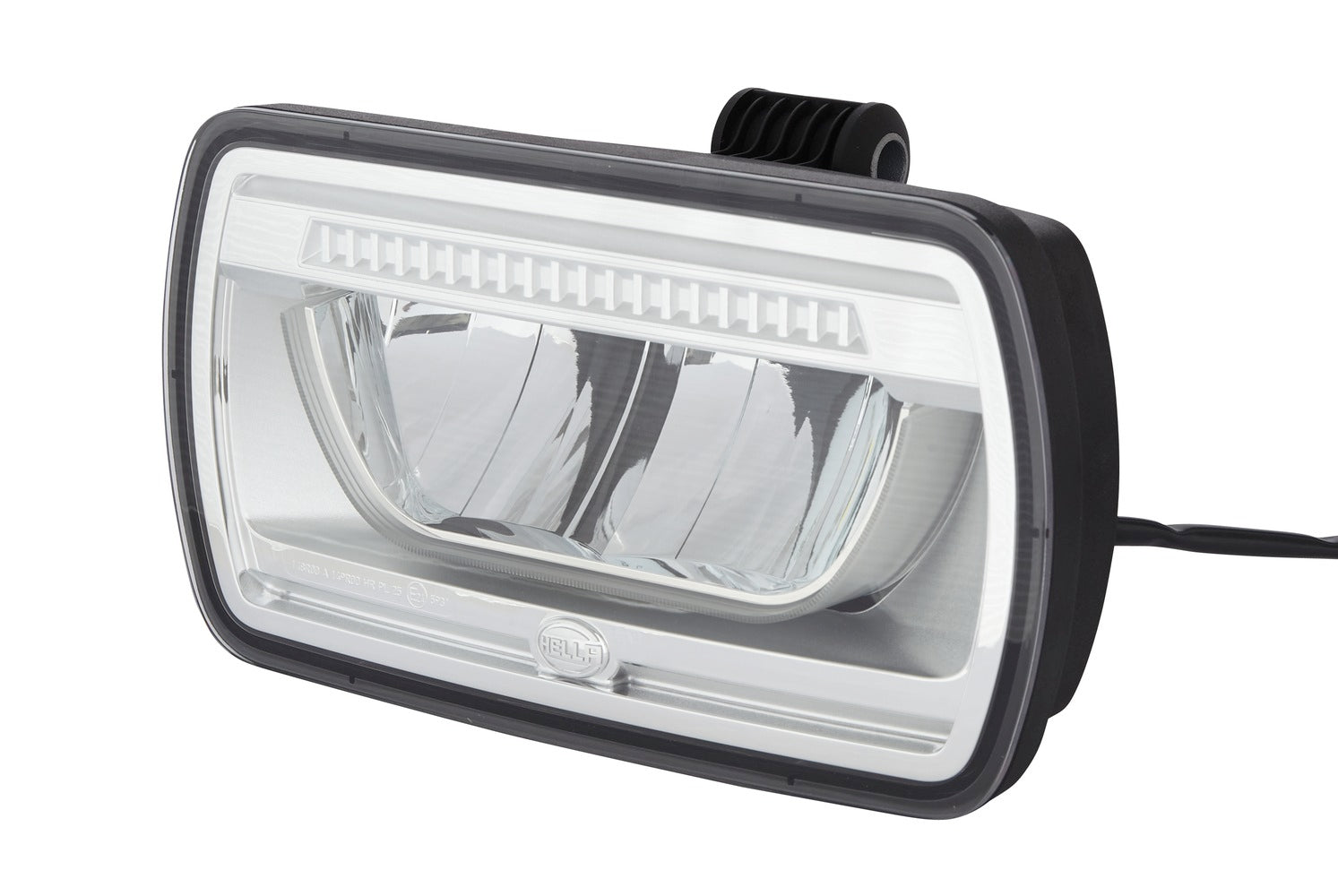

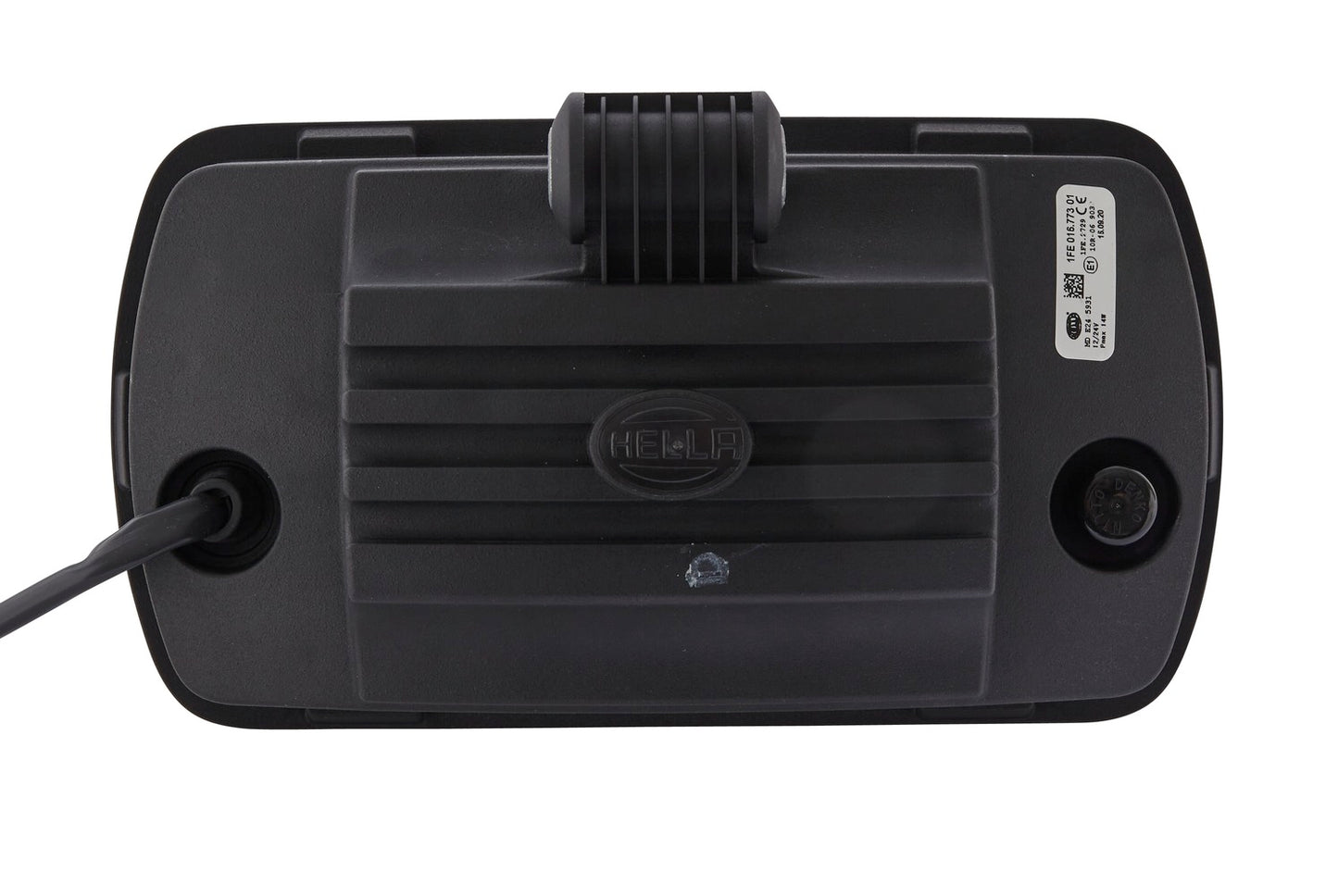

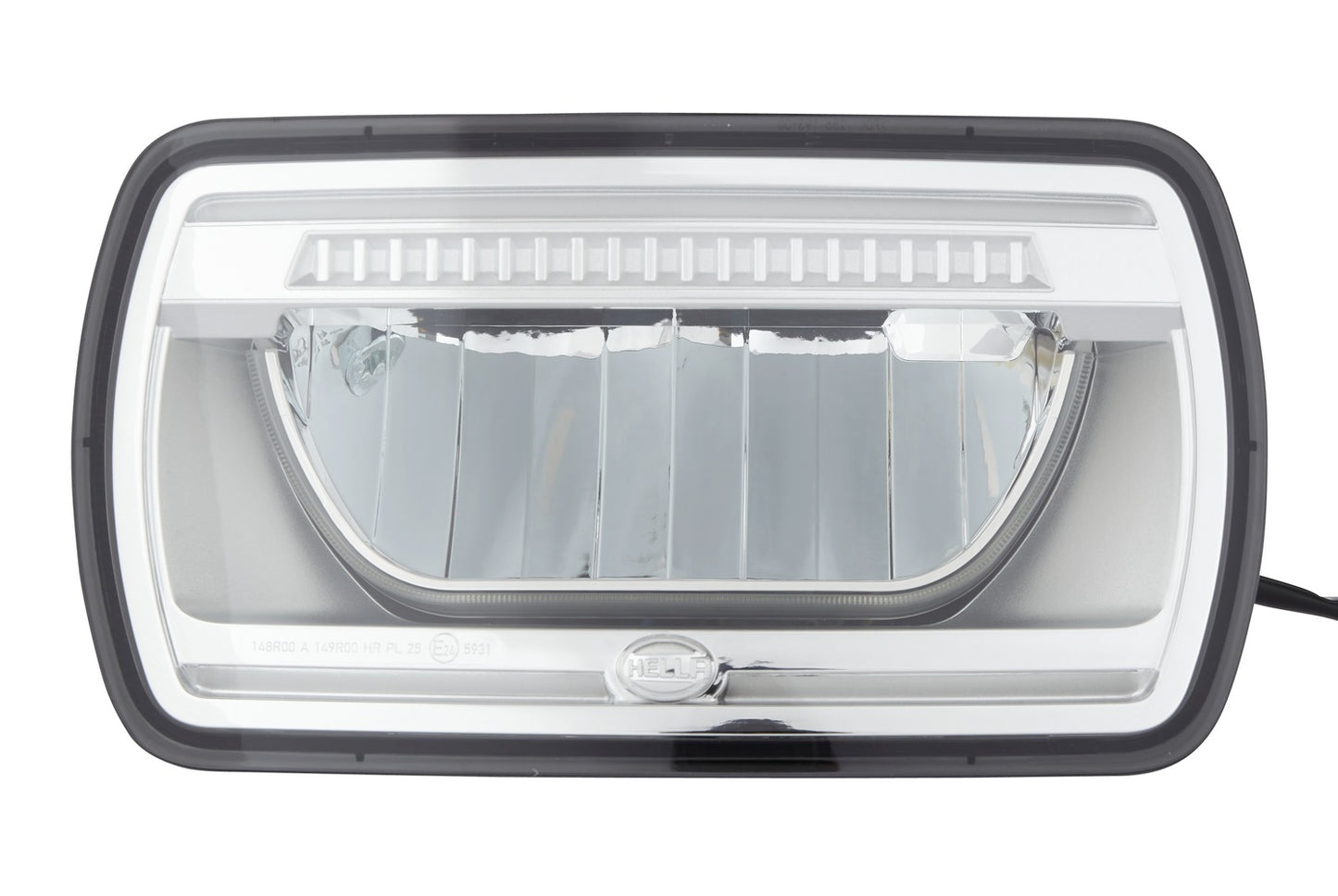

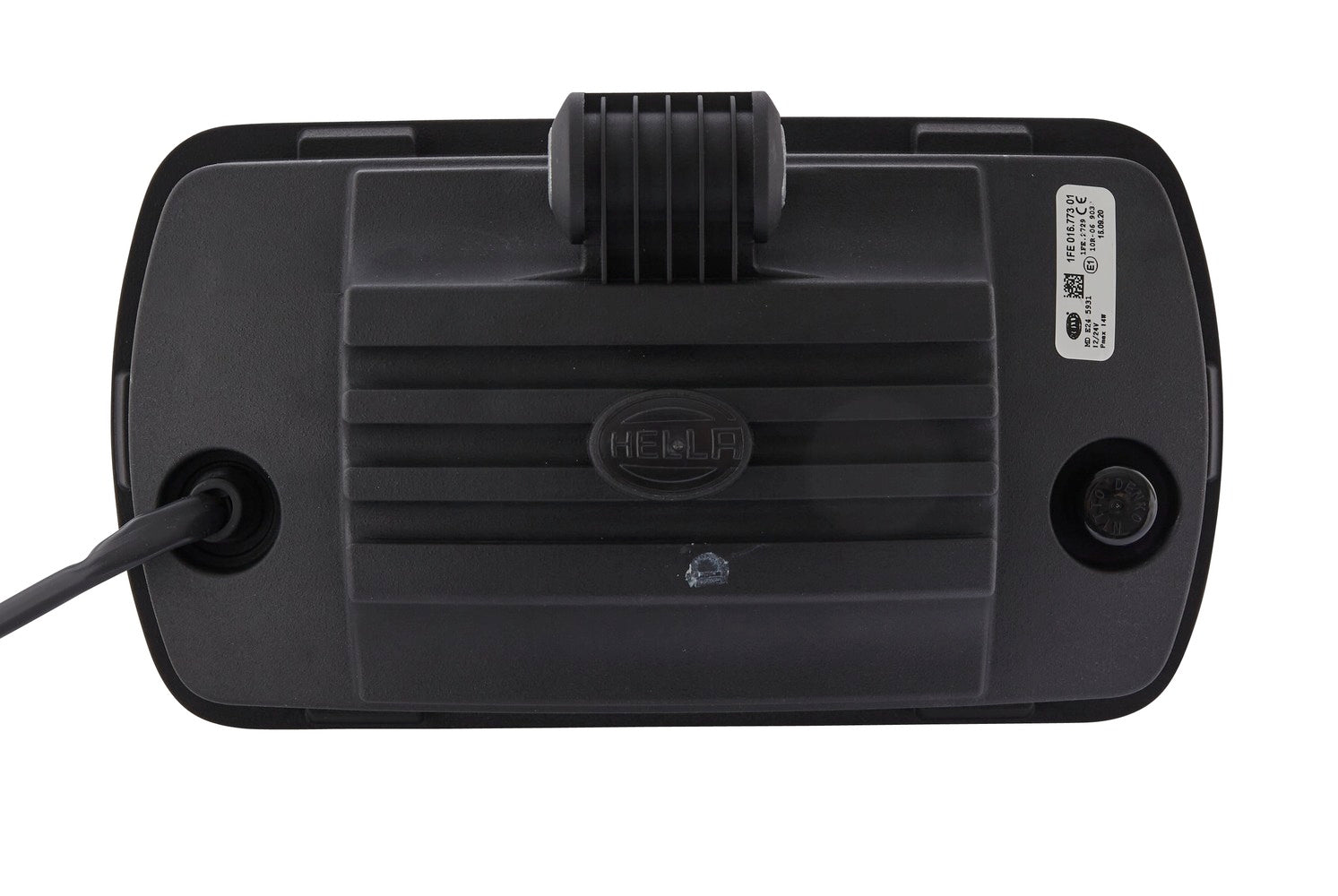

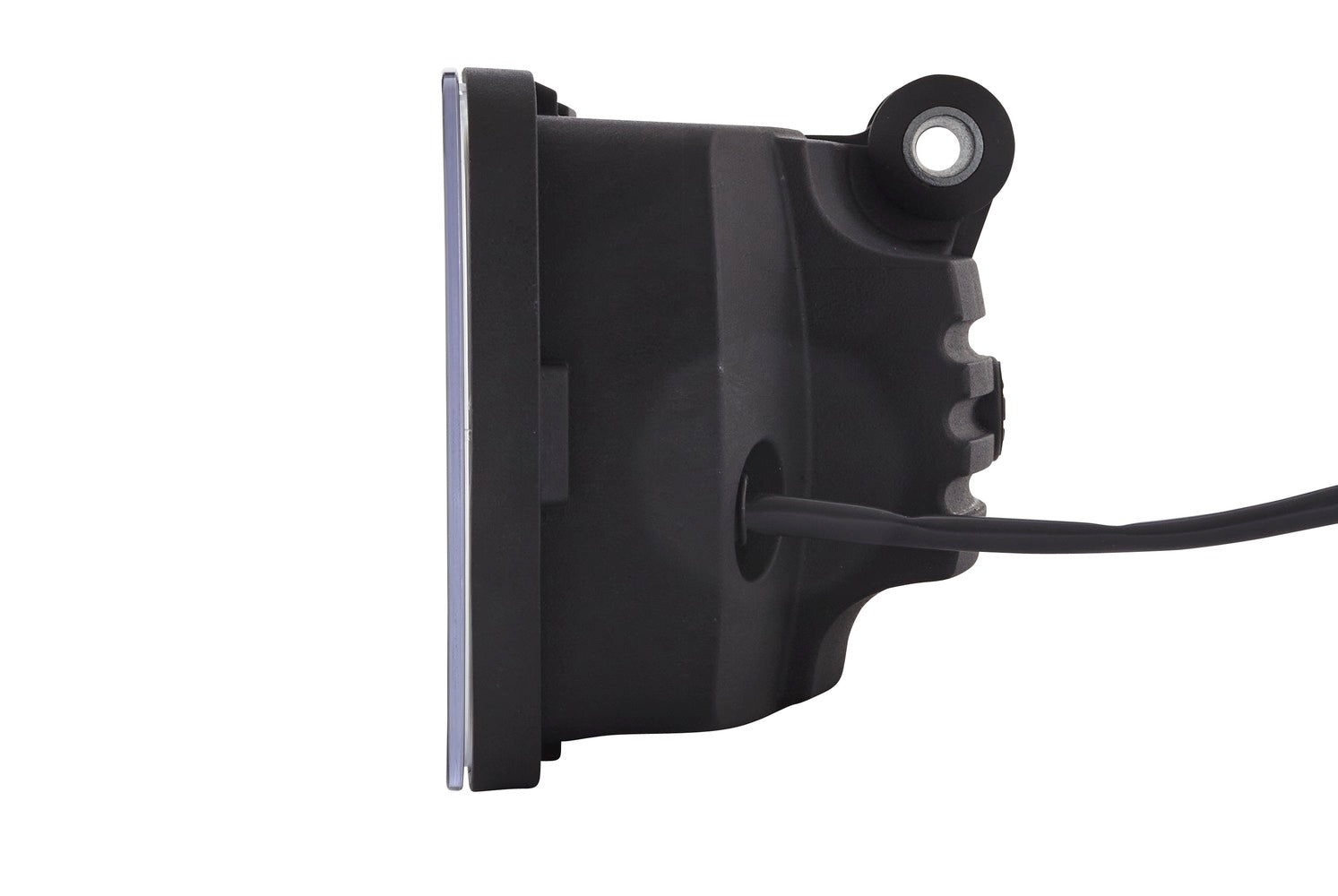

HELLA LED-Spotlight - Jumbo LED - 12/24V 1FE016773-011

LED-Spotlight - Jumbo LED - 12/24V - rectangular - Reference number: 25 - Clear diffusing lens - Crystal clear - Cable: 800mm - left/right

Jumbo LED - 100 % LED technology: Auxiliary high beam headlamp with state-of-the-art optics and impressive LED light pattern for individual style. Edge light technology intensifies the characteristic contours of the highly recognizable LED position light. Immediate response for attention-grabbing headlight flashing. Impact-resistant housing made of high-quality thermoplastic material. Sturdy fastening bracket made of zinc-coated sheet steel with wide adjustment range. Electronics components qualified according to automotive standard. Multi-voltage: suitable for 12 V and 24 V rated voltage. High beam with reference number 25 and with position light. ECE type-approved (ECE R149 high beam, ECE R148 position light, ECE R10 EMC). Weight 980 g (significantly lower weight than diecast aluminium housings of comparable size). Particularly energy-efficient and fuel-saving.

• Auxiliary driving lamps with state-of-the-art optics and impressive LED light pattern for individual style
• EdgeLight technology intensifies the characteristic contour of the striking LED position light
• Delay-free light signal thanks to attention-grabbing flasher function
• Impact-resistant housing made of high-quality thermoplastic
• Particularly energy-efficient and fuel-saving
• Width: 238mm - Height: 132mm - Depth: 113mm - Fitting Depth: 23mm - Overall Height: 141mm - Lamp Type: LED - with LED - without top
• Light functions: 2 - with high beam (LED)/with position light (LED)

Item Attributes:
Mounting Type: mounting
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: left / right
Height: 132 mm
Overall Height: 141 mm
Width: 238 mm
Depth: 113 mm
Fitting Depth: 23 mm
Light Function: with position light (LED) / with high beam (LED)
Light functions: 2
fulfils ECE standard: R149 / R10 / R148
Reference number: 25
Cable: 800 mm
Housing Colour: black
Lens Colour: Crystal clear
Shape: rectangular
Housing Type: Synthetic Material Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: with LED
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: DAF 1546064; LIEBHERR 12105382
