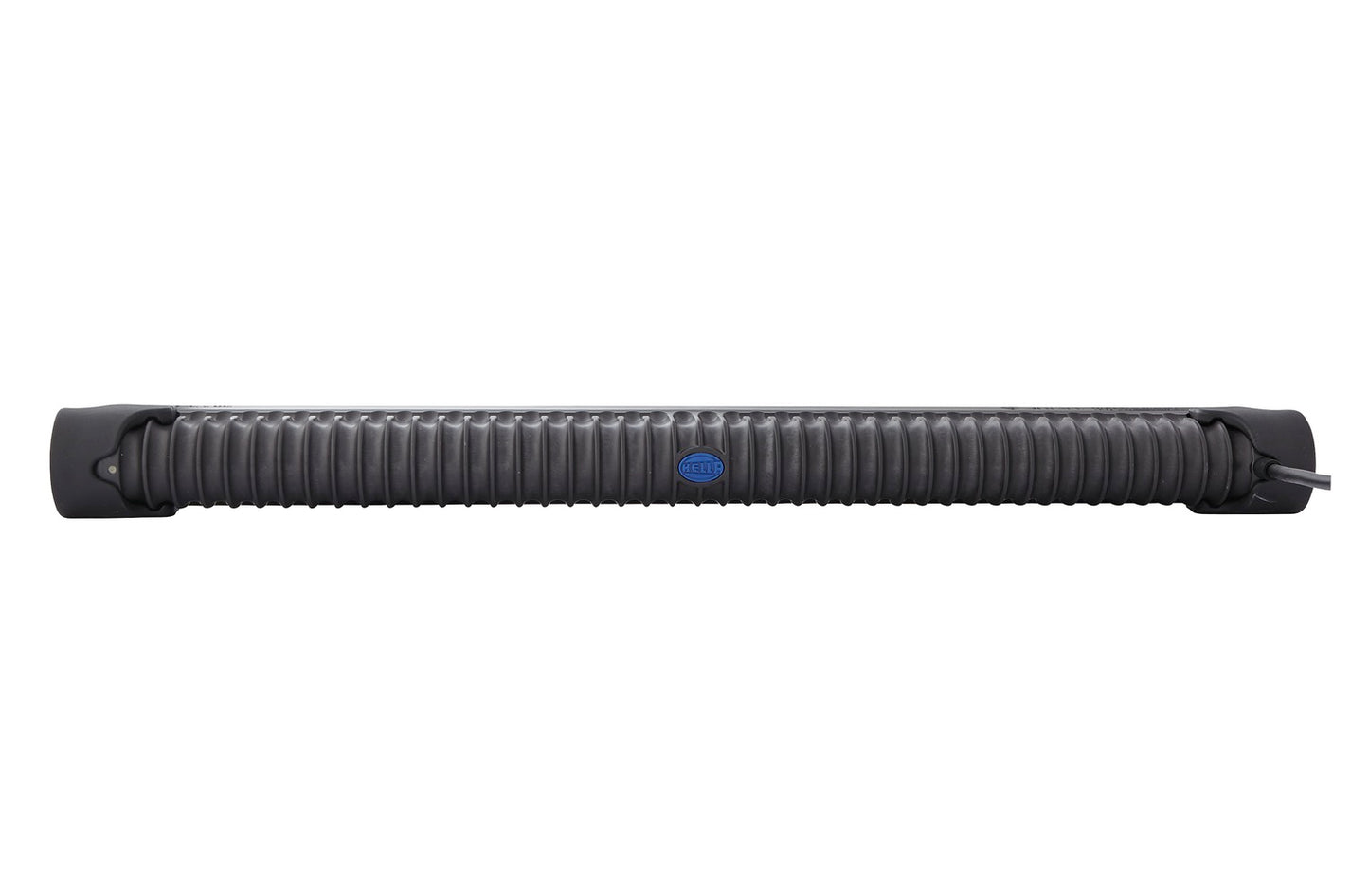

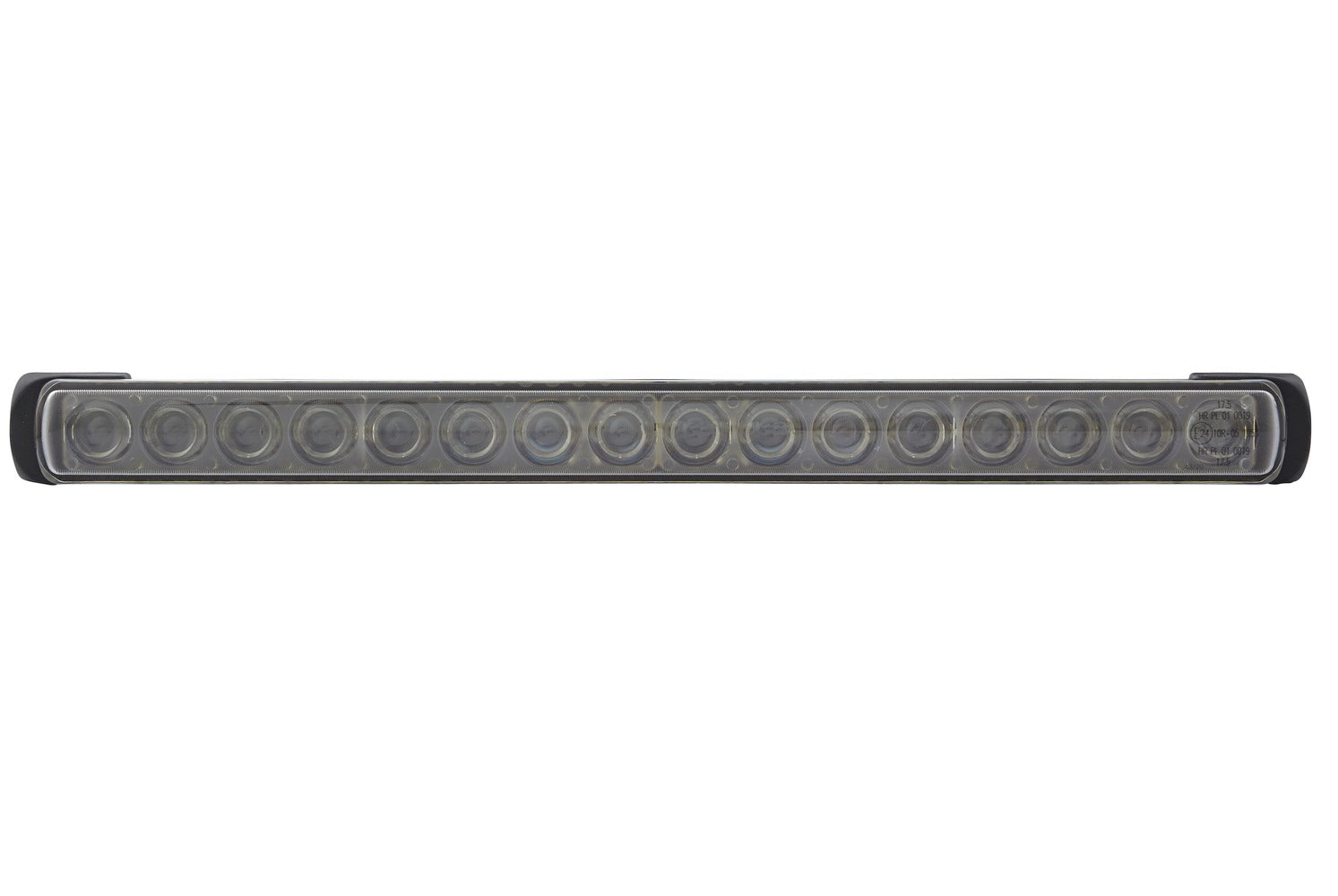

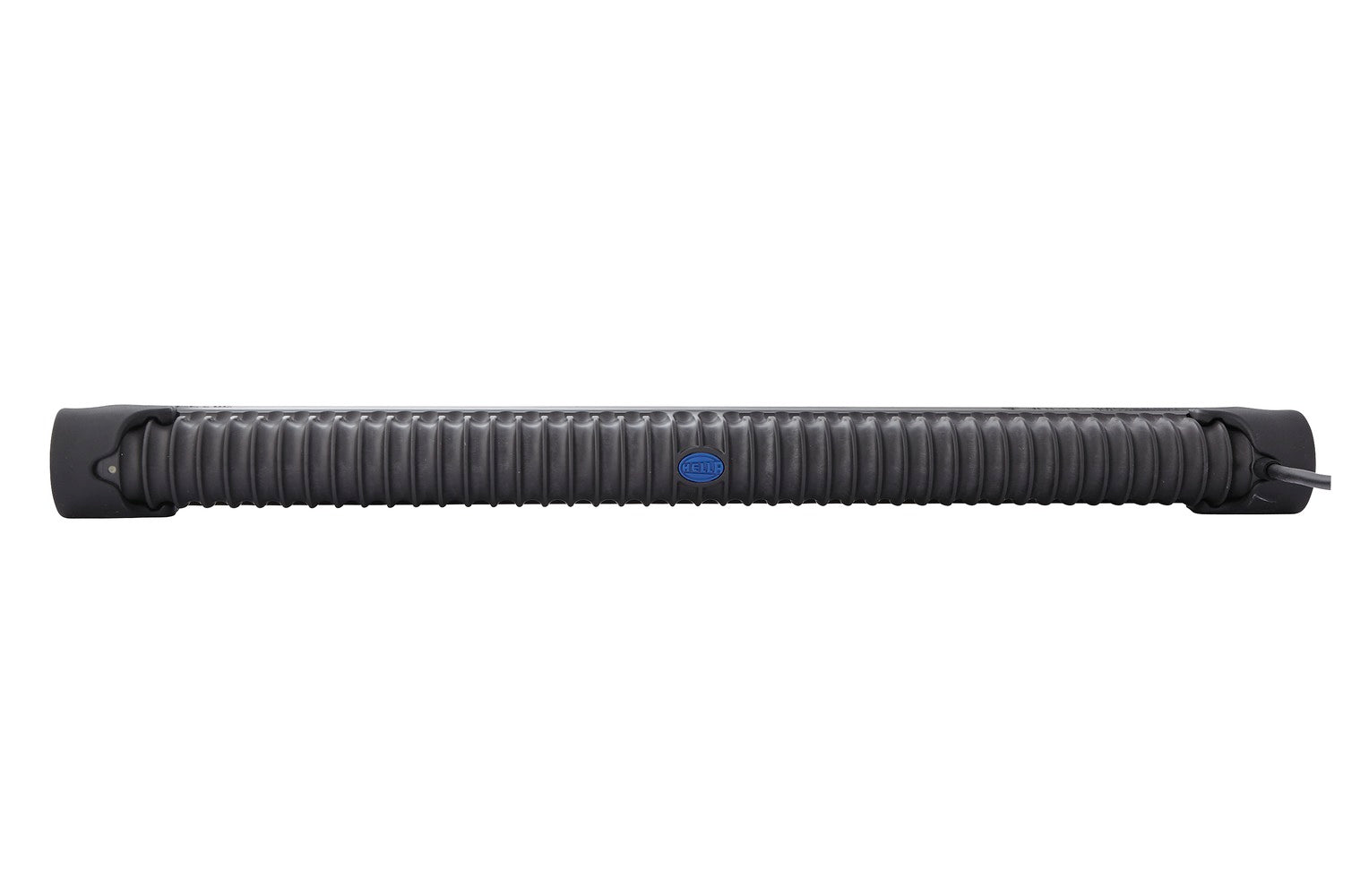

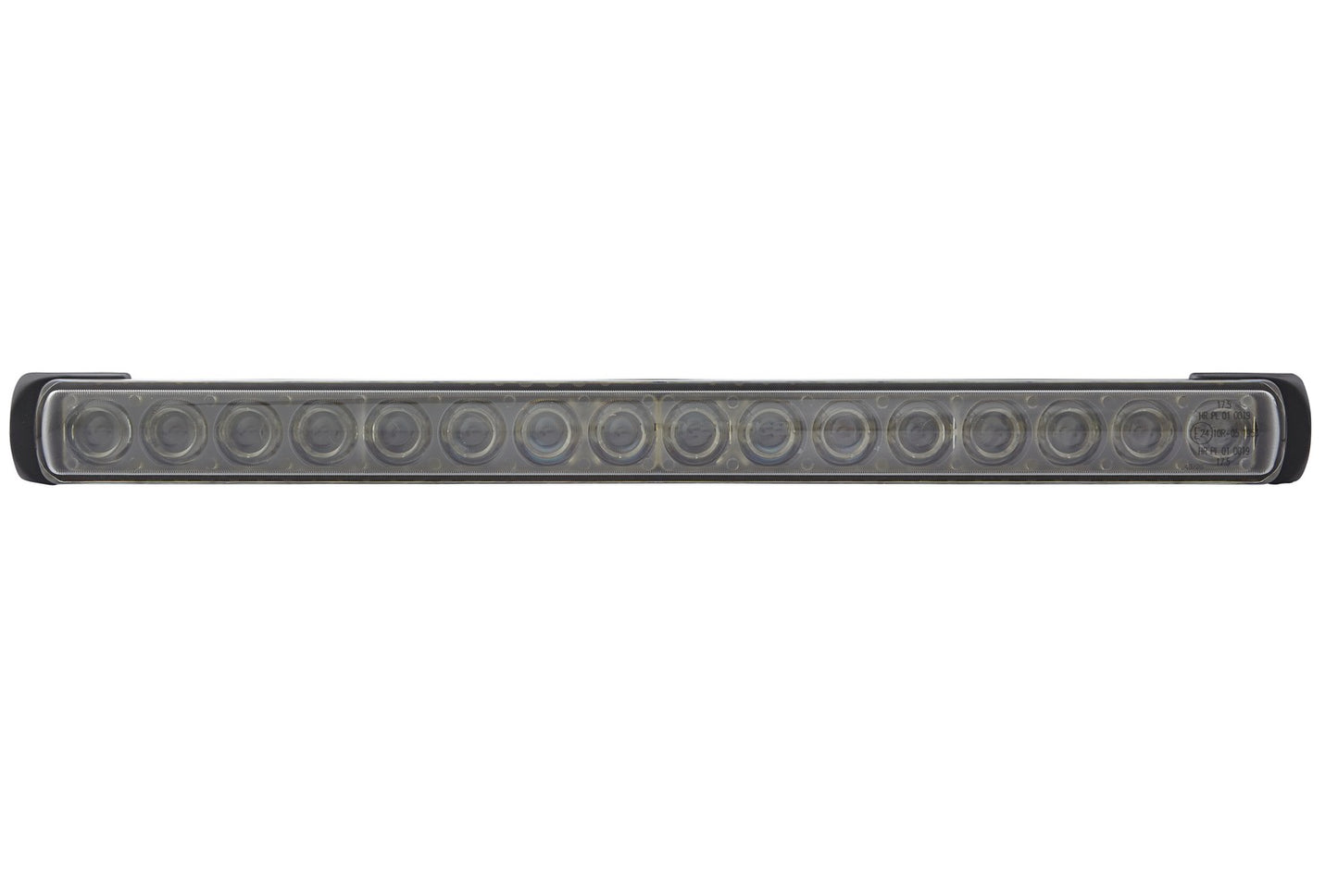

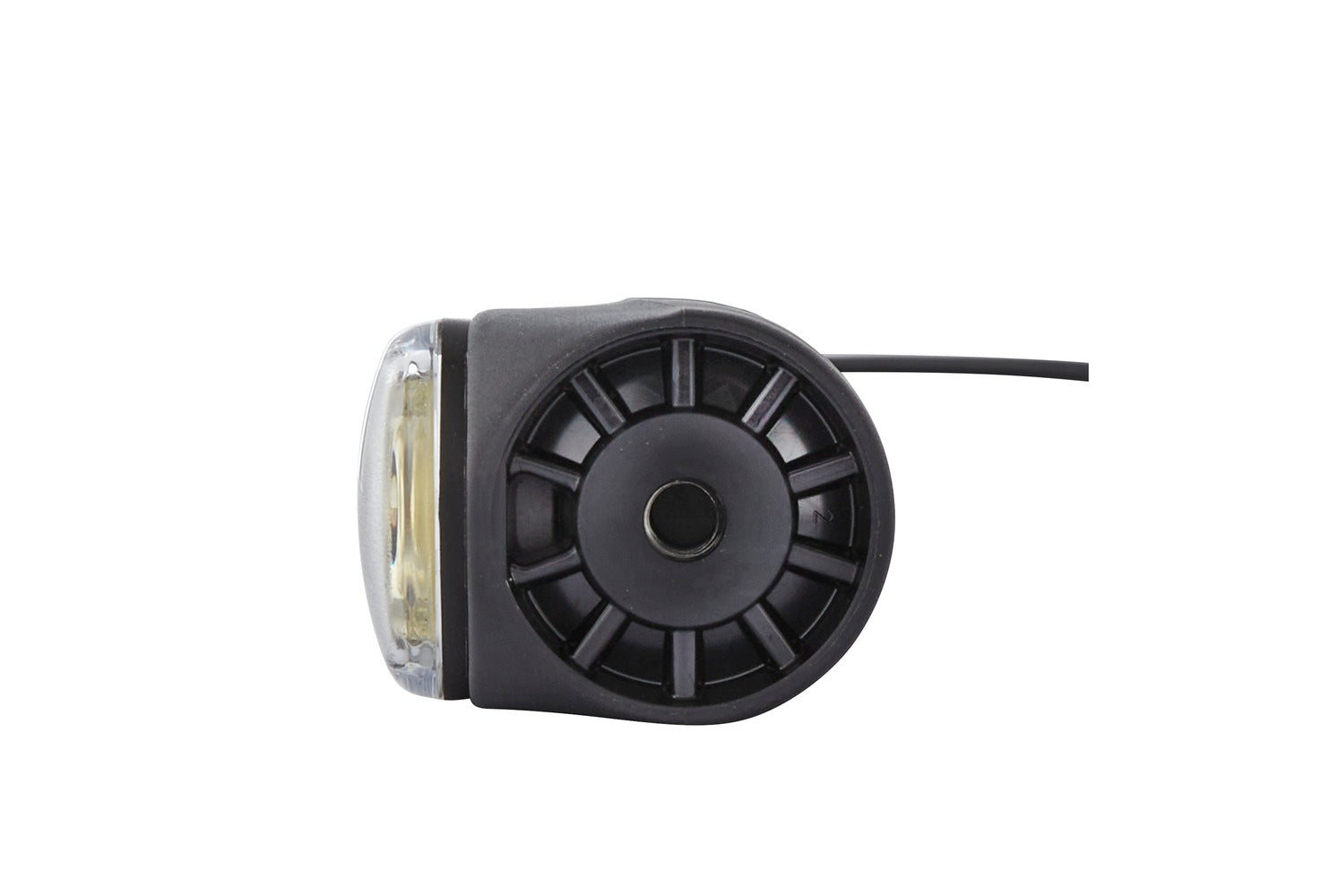

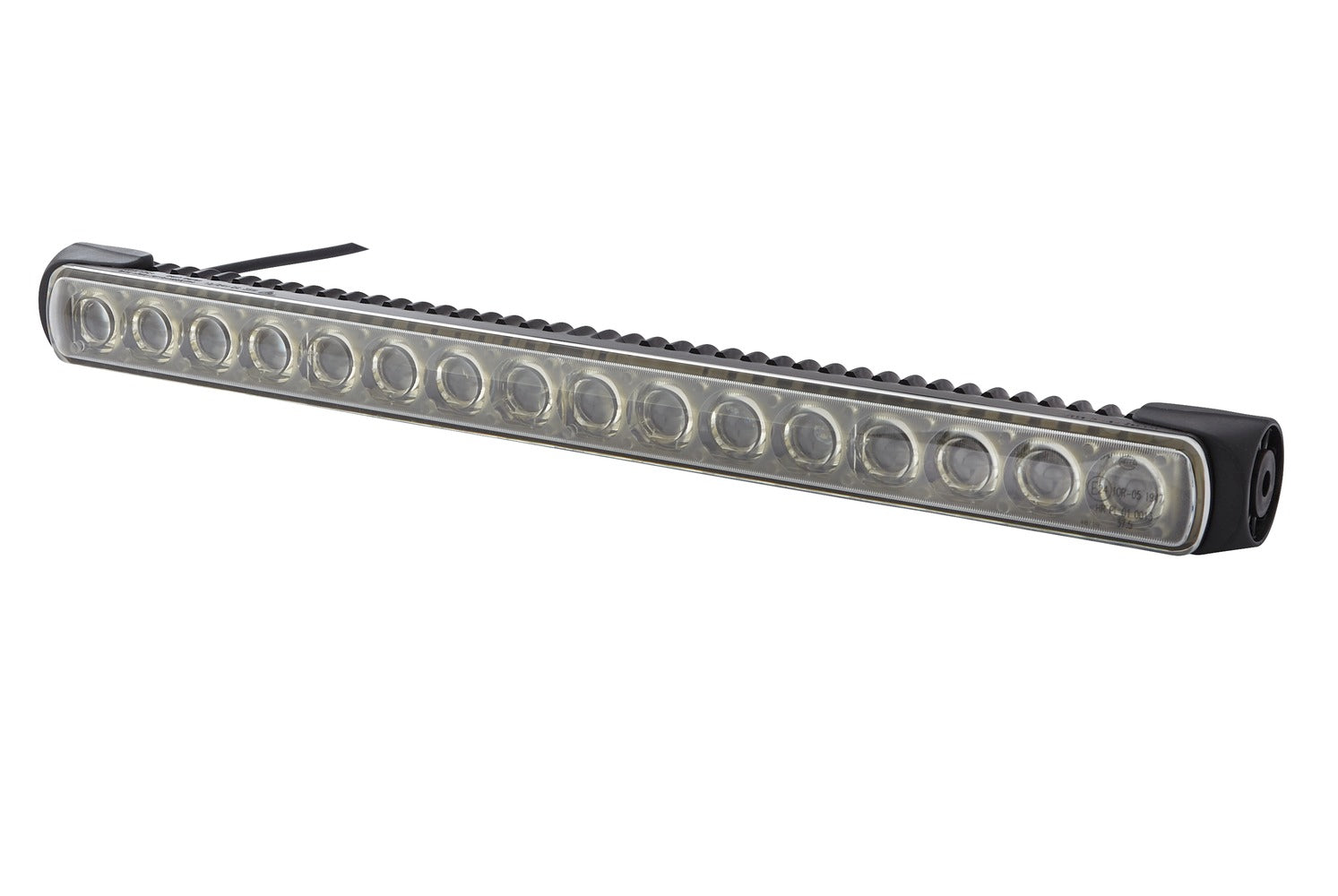

HELLA LED-Spotlight - Light Bar LB470 - 12/24V 1FJ958130-011

LED-Spotlight - Light Bar LB470 - 12/24V - rectangular - Reference number: 37.5 - Clear diffusing lens - Crystal clear - Cable: 2500mm - left/right

The HELLA auxiliary headlights LED Light Bar 350 and 470 were developed for the special requirements of off-road vehicles as well as for aerodynamic roof mounting on truck cabs. The LED spotlights in the form of a compact light strip have a low overall height and low weight. The bright high-performance LEDs provide wide illumination. In addition, the LED Light Bar 470 is submersible and thanks to the housing made of heat-conducting plastic, heat is effectively dissipated from the LED electronics. There are different versions of the LED Light Bar 350 and 470. The LED Light Bar 470 Single Twin, for example, is particularly suitable as a double auxiliary headlamp for central mounting on the vehicle. And the LED Light Bar 470 Combi, as a pure off-road headlamp without approval for road traffic, has a wide-ranging and extremely broad illumination.

• Developed for the special requirements of off-road vehicles and for aerodynamic roof mounting on truck cabs
• Submersible for off-road use (fording capacity up to 10 m water depth up to 2 hours), IP 6K
• LED spotlight in the form of a compact batten luminaire with high-intensity, high-performance LED
• Effective heat dissipation of the LED electronics via the housing made of thermally conductive plastic

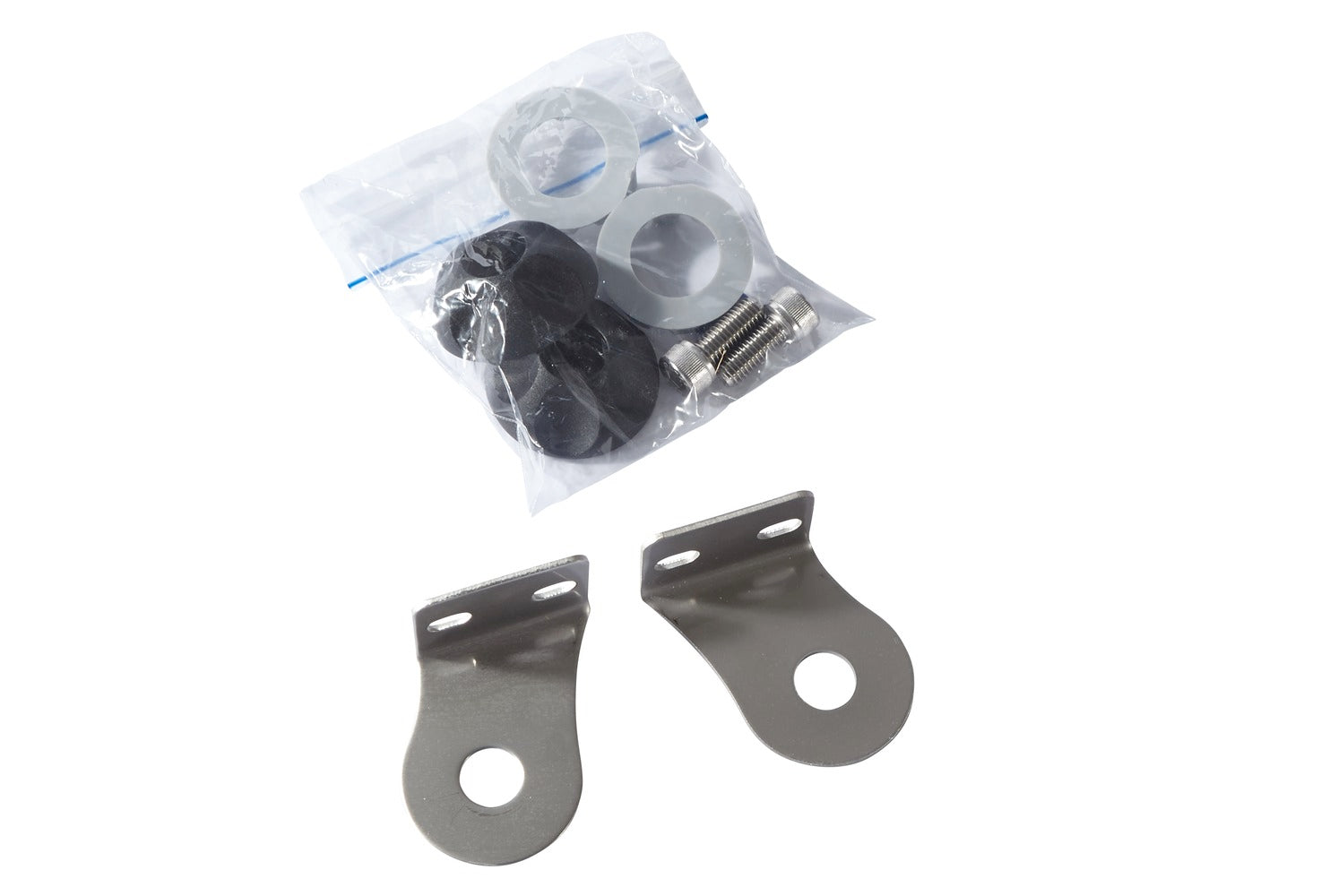

• Compact size and a variety of mounting options
• Width: 528mm - Height: 40mm - Depth: 67mm - Fitting Depth: 13mm - Overall Height: 57mm - Lamp Type: LED - with LED - without top
• Light functions: 1 - Additional High Beam/with high beam (LED)

Item Attributes:
Mounting Type: Fitting / Screw Connection
Fastening Type: Four-point attachment
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: right / left
Height: 40 mm
Overall Height: 57 mm
Width: 528 mm
Depth: 67 mm
Fitting Depth: 13 mm
Light Function: with high beam (LED) / Additional High Beam
Light functions: 1
fulfils ECE standard: R10 / R112
Reference number: 37.5
Cable: 2500 mm
Housing Colour: black
Lens Colour: Crystal clear
Shape: rectangular
Housing Type: Synthetic Material Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: with LED
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: DAF 1537157; SCANIA 2660031; VAN HOOL 11717071; VDL 11717071
