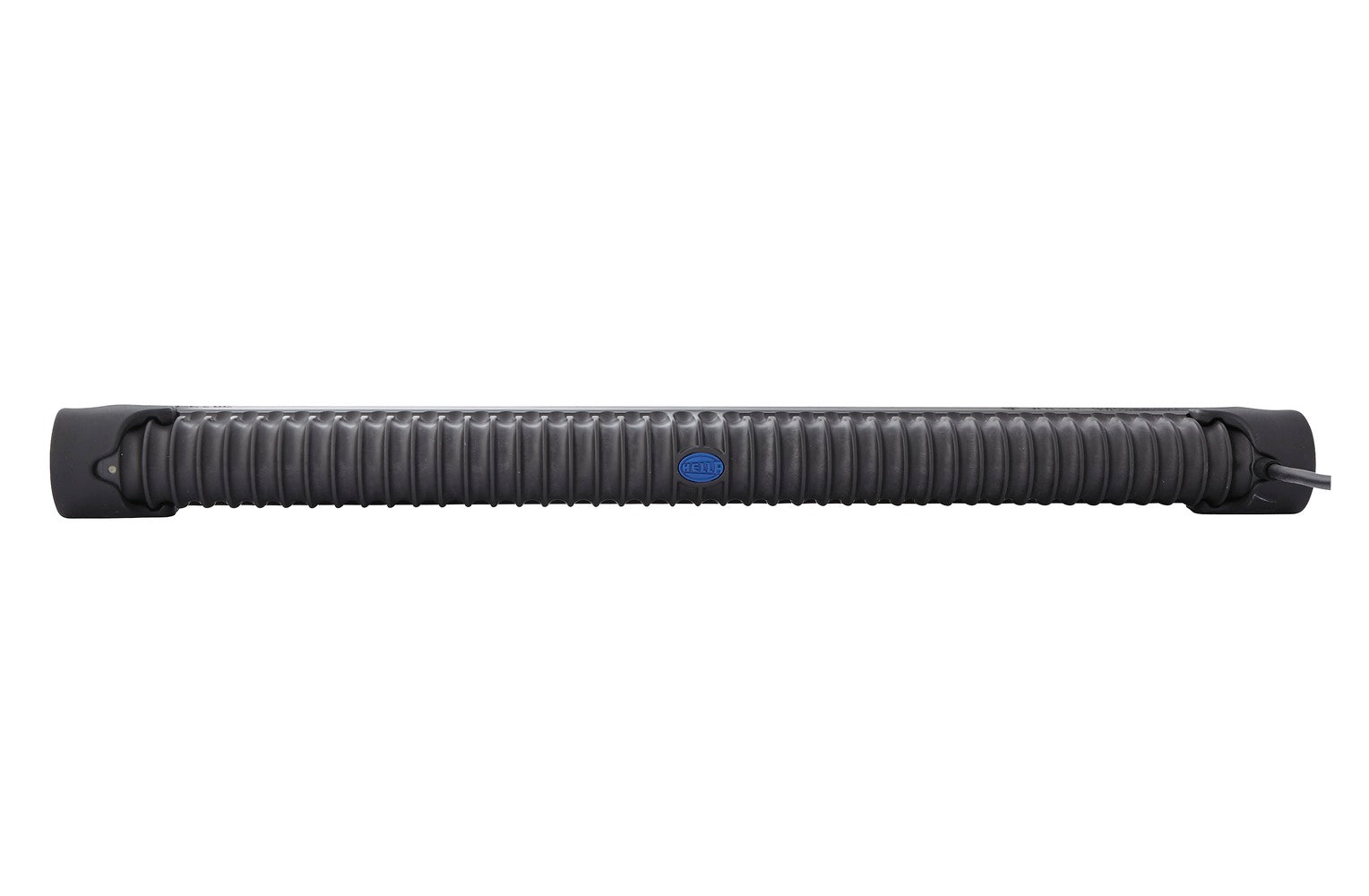

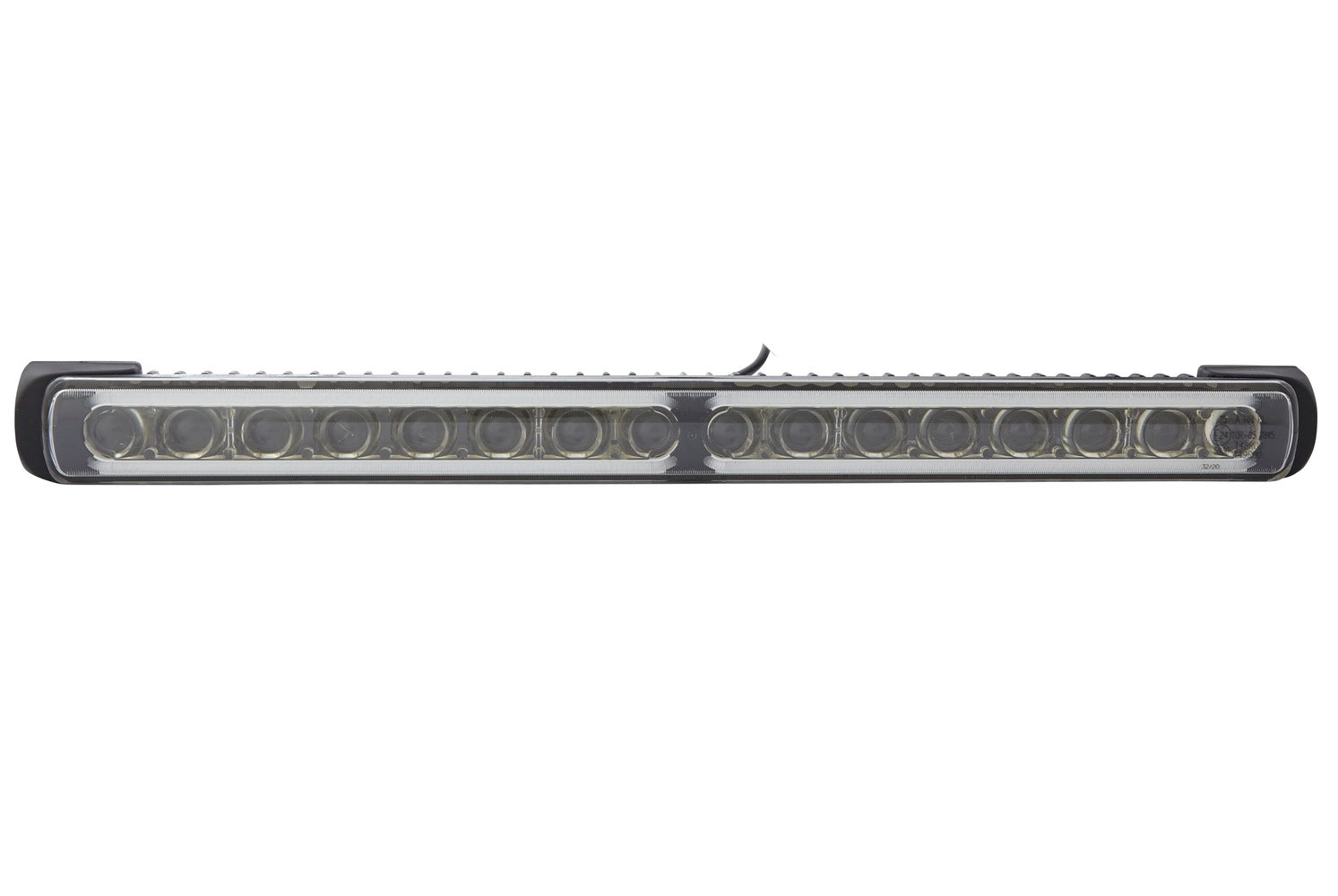

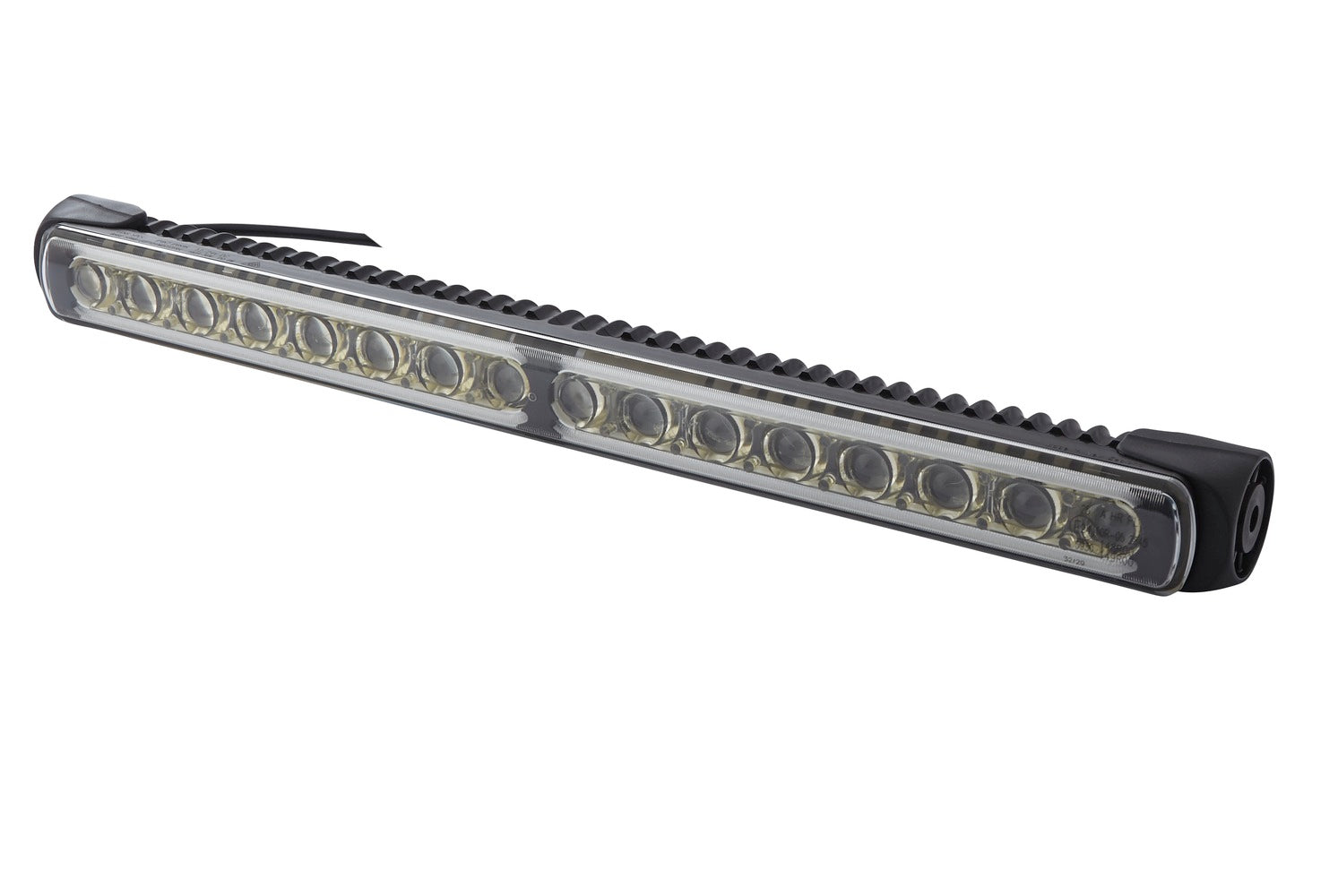

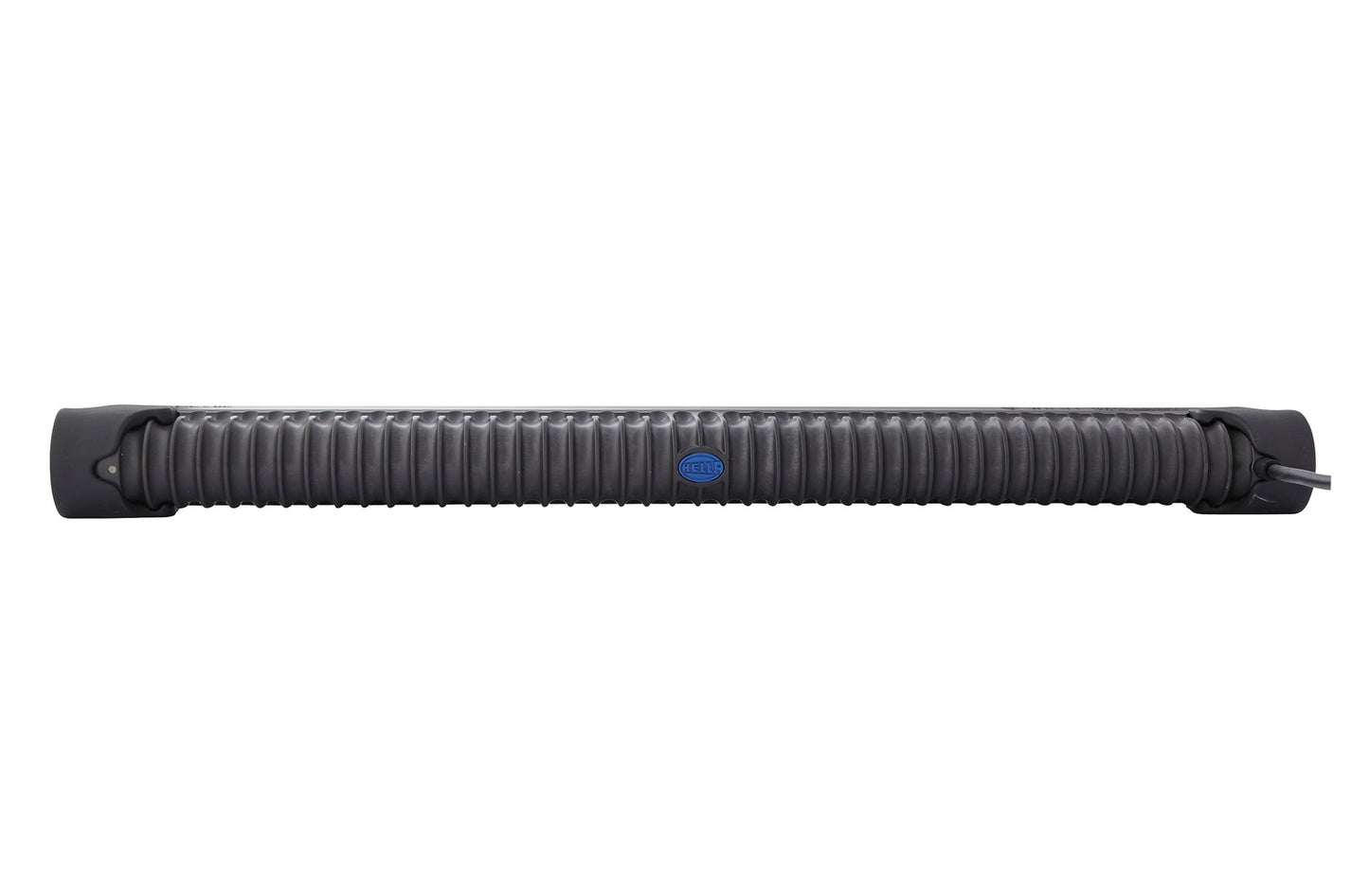

HELLA LED-Spotlight - Light Bar LB470 PO - 24/12V 1FJ958140-001

LED-Spotlight - Light Bar LB470 PO - 24/12V - rectangular - Reference number: 25 - Clear diffusing lens - Crystal clear - Cable: 2500mm - left/right

The LED Light Bar 470 PO convinces with an attractive design and low height. The distinctive contour of the LED position light offers a high recognition value and underlines the individualisation of the vehicle design with the characteristic light signature. It is attached by means of a universal holder, which is included in the scope of delivery.

• Low overall height and low weight
• Developed for the special requirements of off-road vehicles and for aerodynamic roof mounting on truck cabs
• Effective dissipation of the heat generated by the LED electronics through housing made of heat-conducting plastic

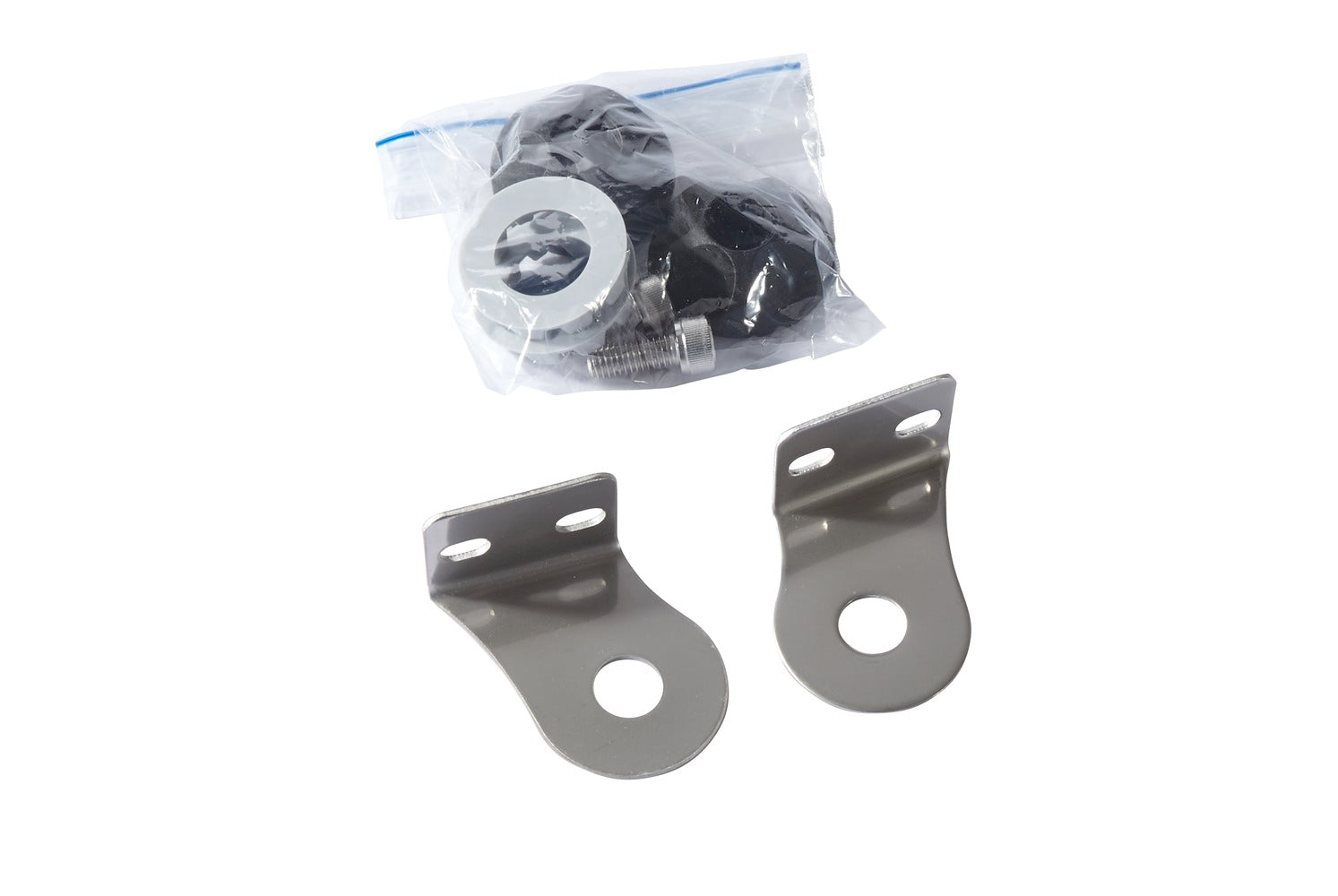

• Including universal holder set (also available as spare part 8HG 958 139-841)
• Suitable for standing or hanging installation and mounting on surfaces of any inclination
• Width: 528mm - Height: 40mm - Depth: 67mm - Overall Height: 57mm - Lamp Type: LED - with LED - without top
• Light functions: 2 - with high beam (LED)/with position light (LED)

Item Attributes:
Mounting Type: mounting
Fastening Type: for horizontal fastening / Suspended / Vertical / Four-point attachment
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: right / left
Height: 40 mm
Overall Height: 57 mm
Width: 528 mm
Depth: 67 mm
Light Function: with high beam (LED) / with position light (LED)
Light functions: 2
fulfils ECE standard: R149 / R148 / R10
Reference number: 25
Cable: 2500 mm
Housing Colour: black
Lens Colour: Crystal clear
Shape: rectangular
Housing Type: Synthetic Material Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: with LED
Assembly by qualified personnel required!

OE references: CATERPILLAR 36740447; DAF 1546123; KNAUS R0101Q19287; LIEBHERR 13680175; SCANIA 2960073
