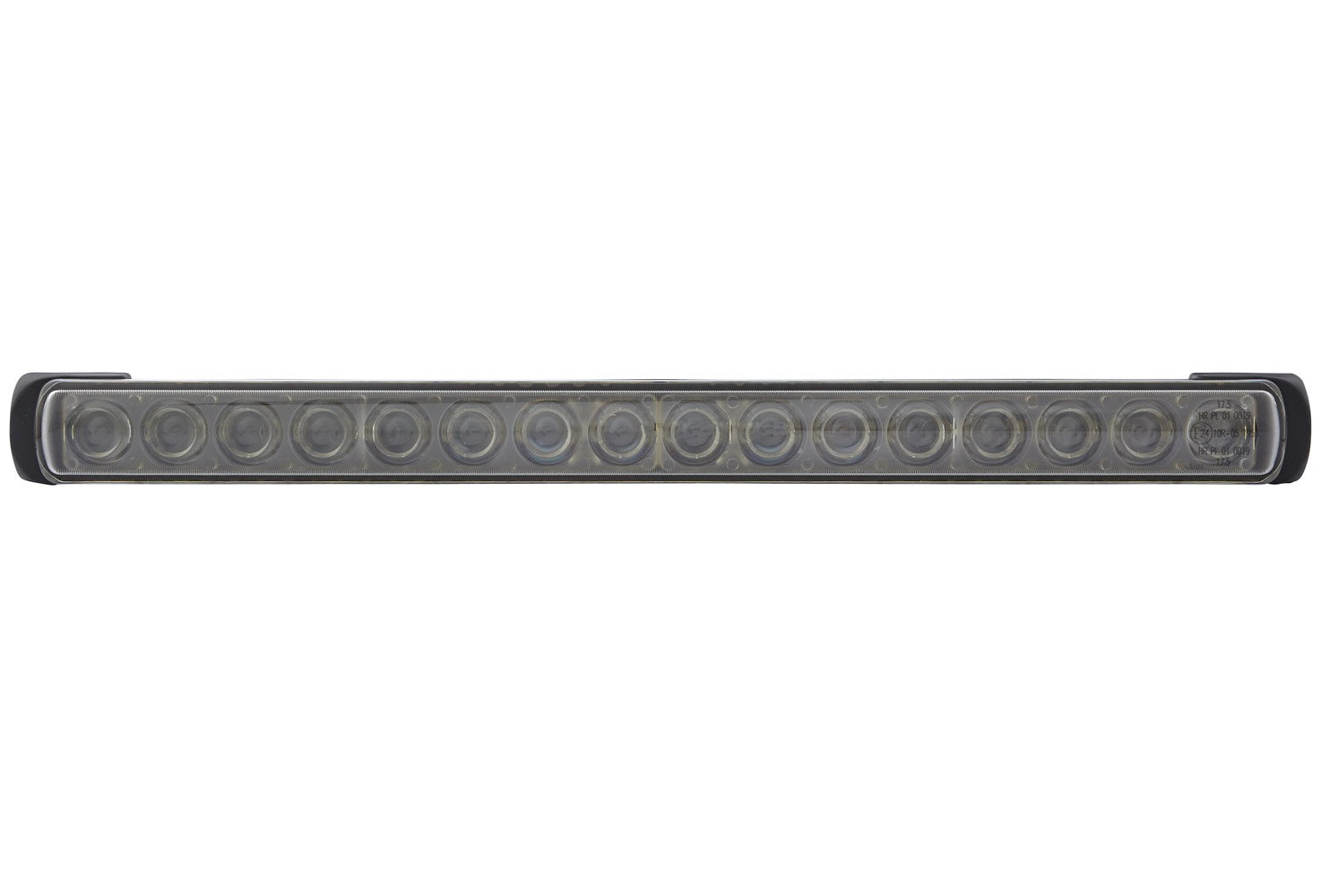

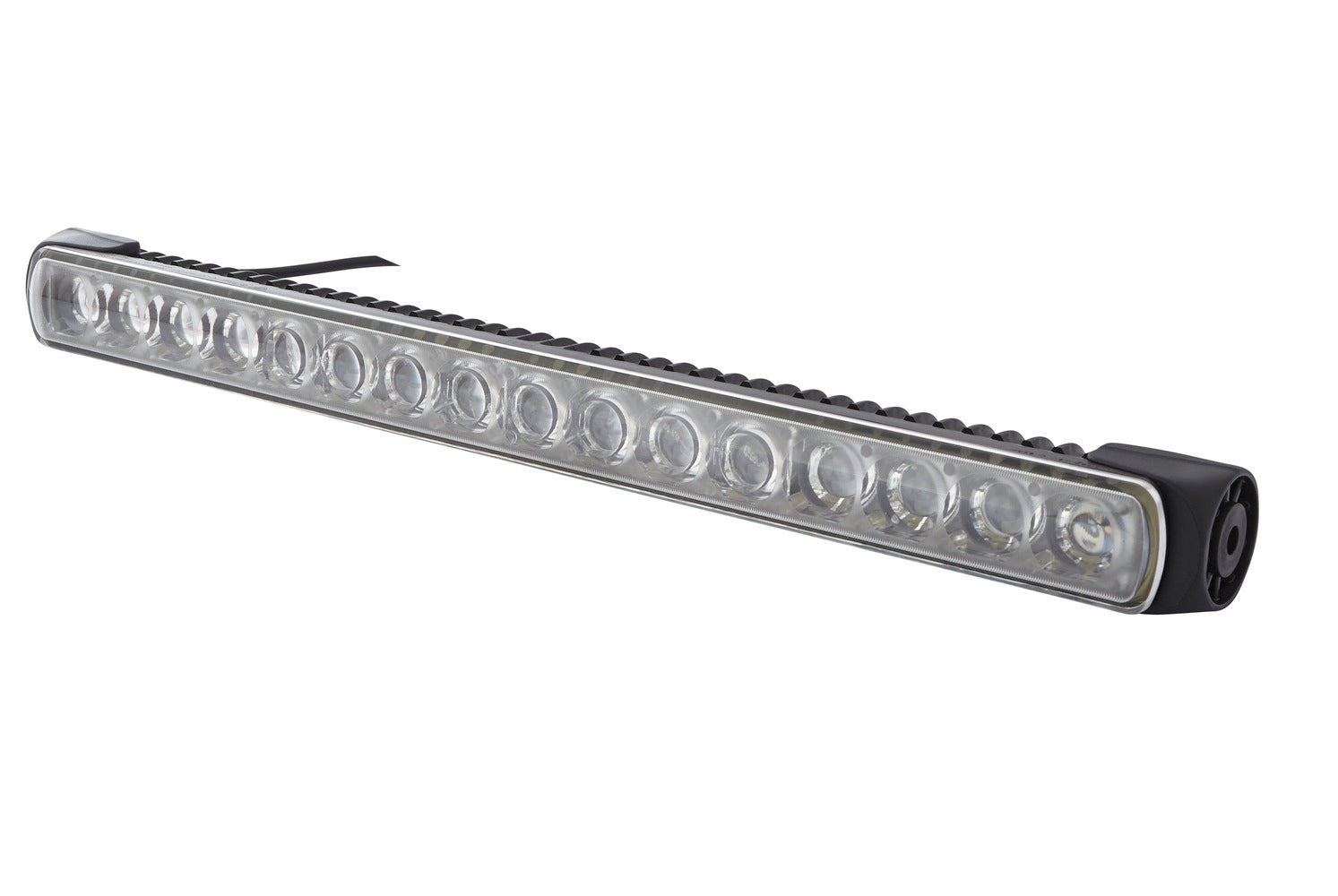

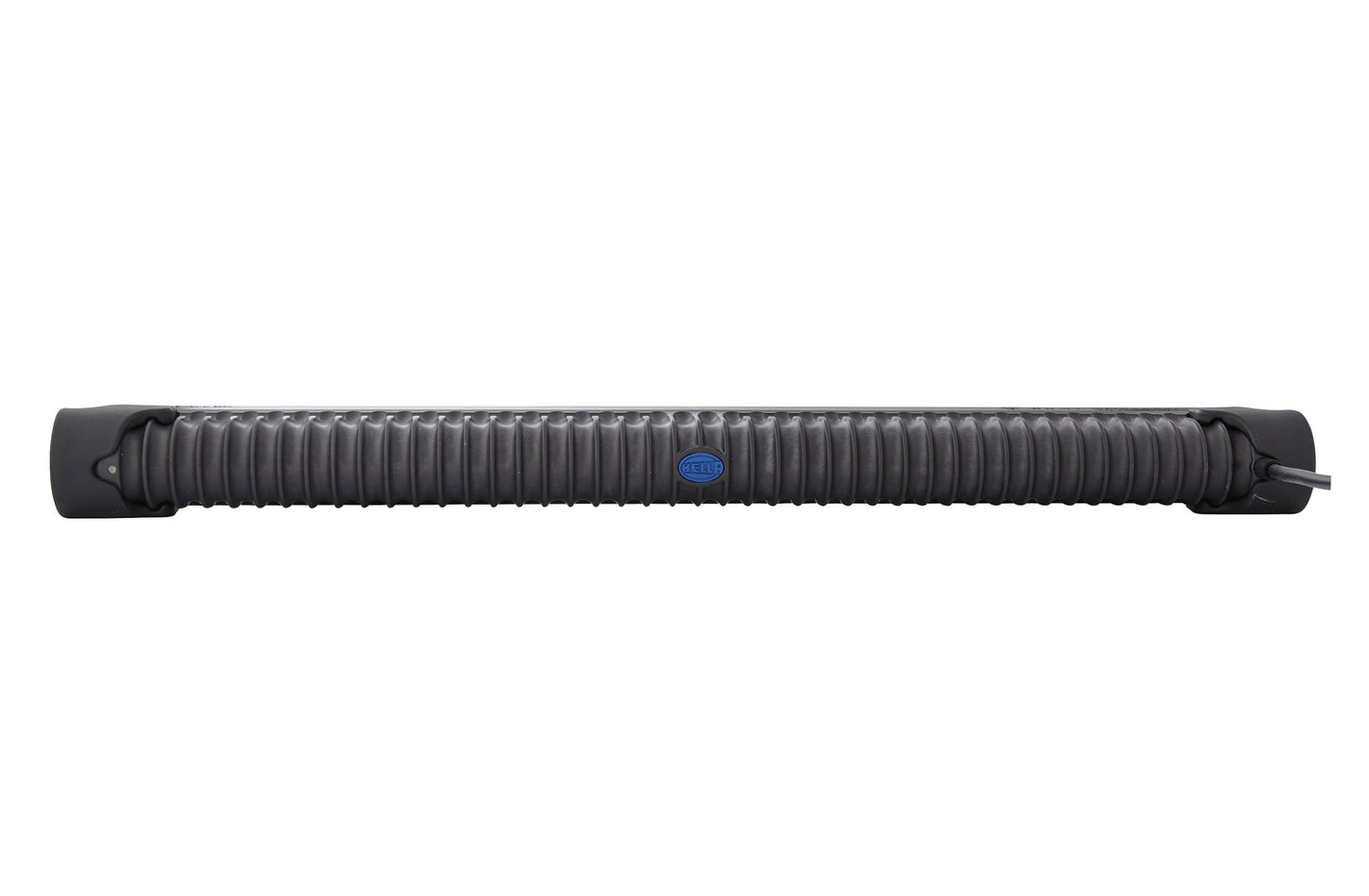

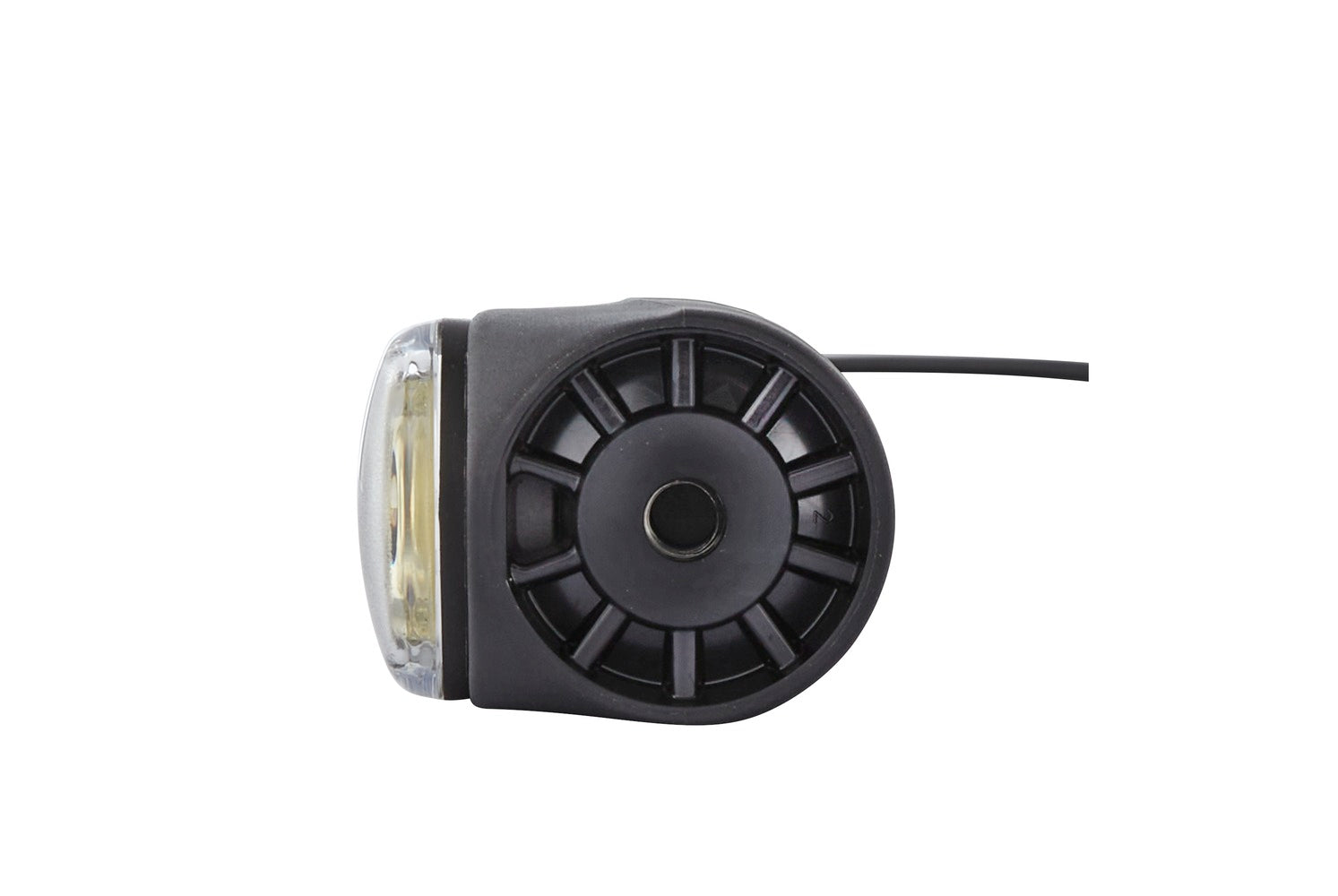

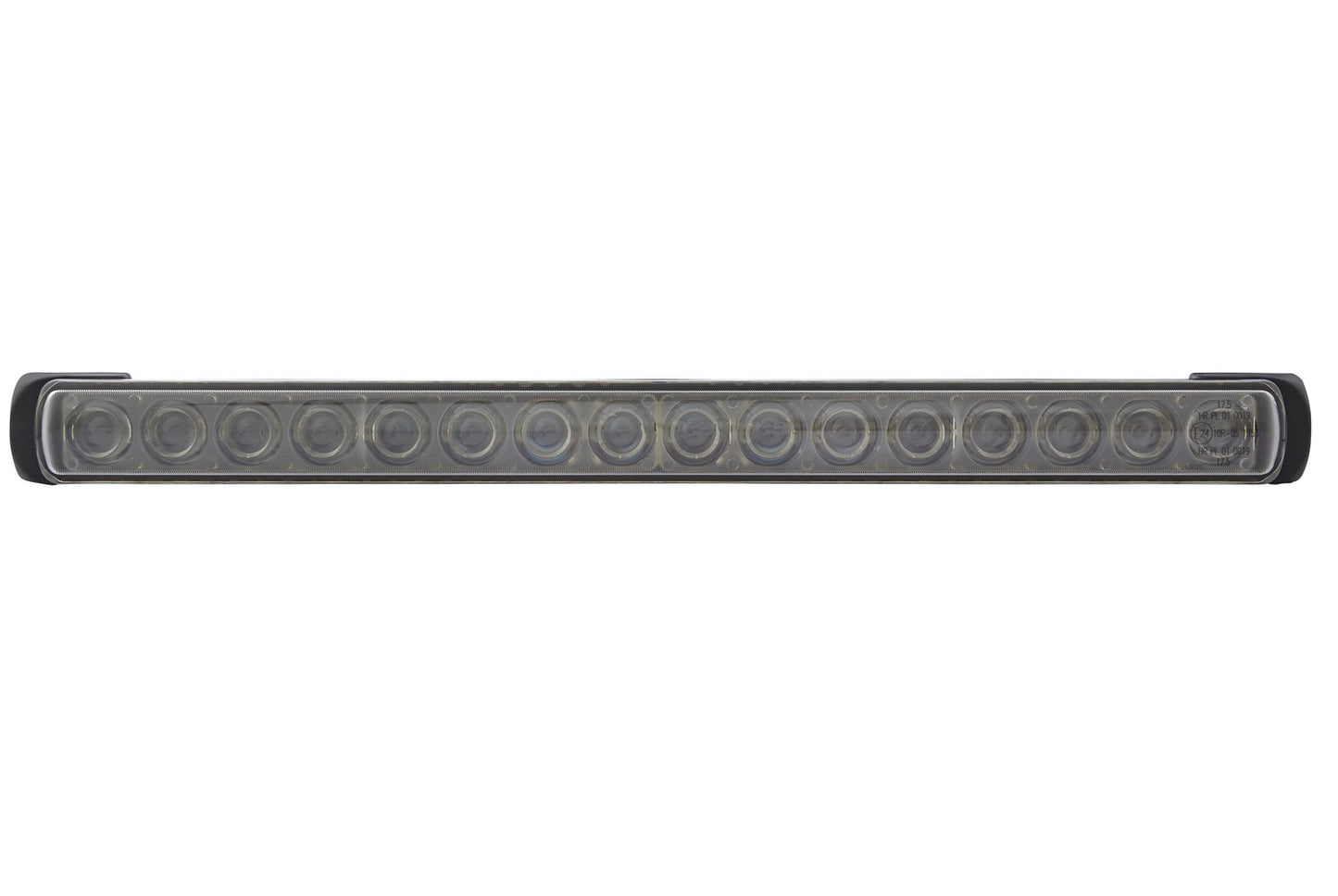

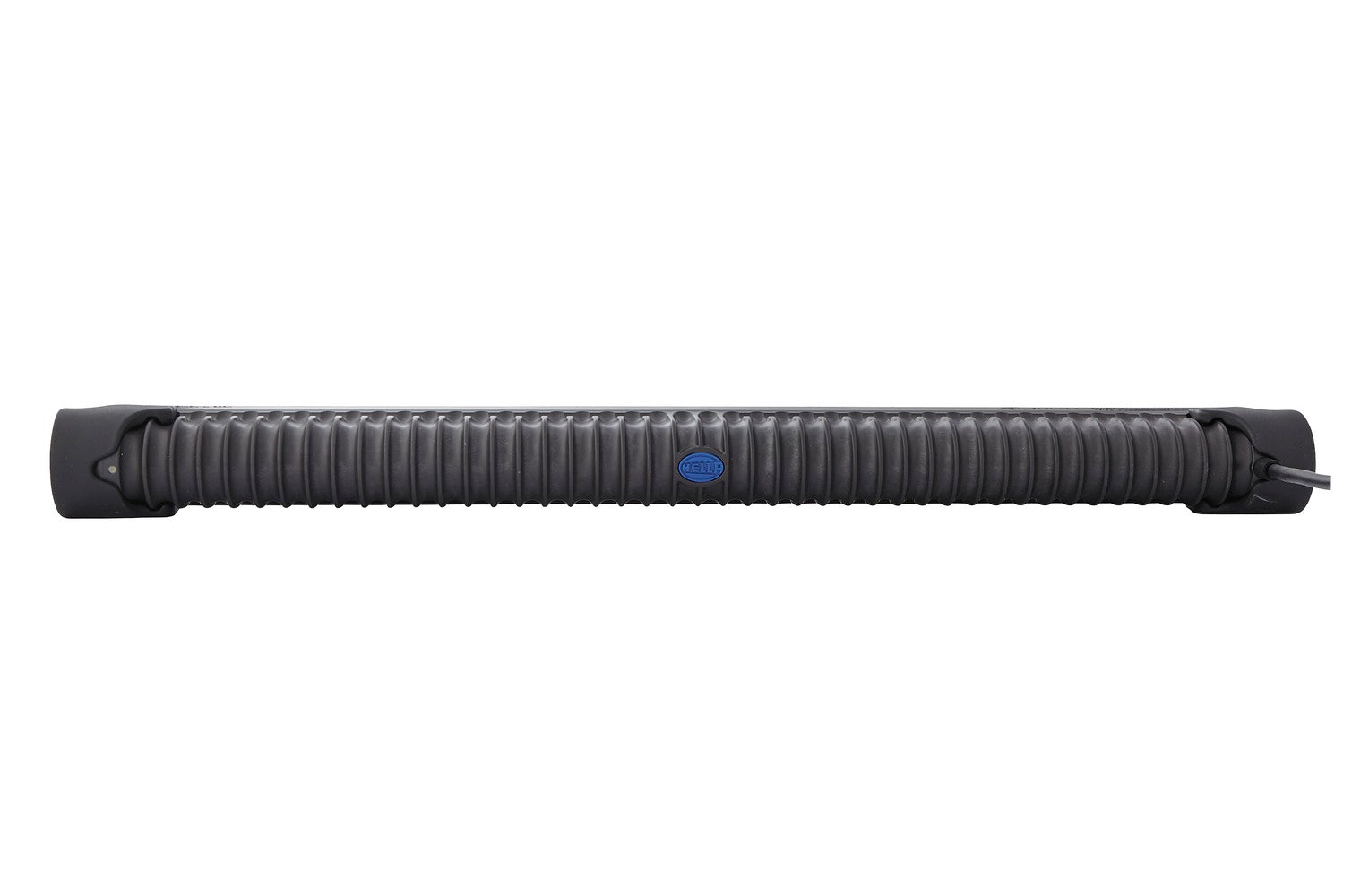

HELLA LED-Spotlight - Light Bar LB470 Single Twin - 12/24V 1FJ958130-301

LED-Spotlight - Light Bar LB470 Single Twin - 12/24V - rectangular - Reference number: 17.5 - Clear diffusing lens - Crystal clear - Cable: 2500mm - Centre/left/right

The HELLA auxiliary headlights LED Light Bar 350 and 470 were developed for the special requirements of off-road vehicles as well as for aerodynamic roof mounting on truck cabs. The LED spotlights in the form of a compact light strip have a low overall height and low weight. The bright high-performance LEDs provide wide illumination. In addition, the LED Light Bar 470 is submersible and thanks to the housing made of heat-conducting plastic, heat is effectively dissipated from the LED electronics. There are different versions of the LED Light Bar 350 and 470. The LED Light Bar 470 Single Twin, for example, is particularly suitable as a double auxiliary headlamp for central mounting on the vehicle. And the LED Light Bar 470 Combi, as a pure off-road headlamp without approval for road traffic, has a wide-ranging and extremely broad illumination.

• The LED Light Bar 470 Single Twin combines 2 lighting units in a common housing
• 2 x 8 high-intensity high-performance LEDs provide optimum illumination
• Effective heat dissipation of the LED electronics via the housing made of thermally conductive plastic

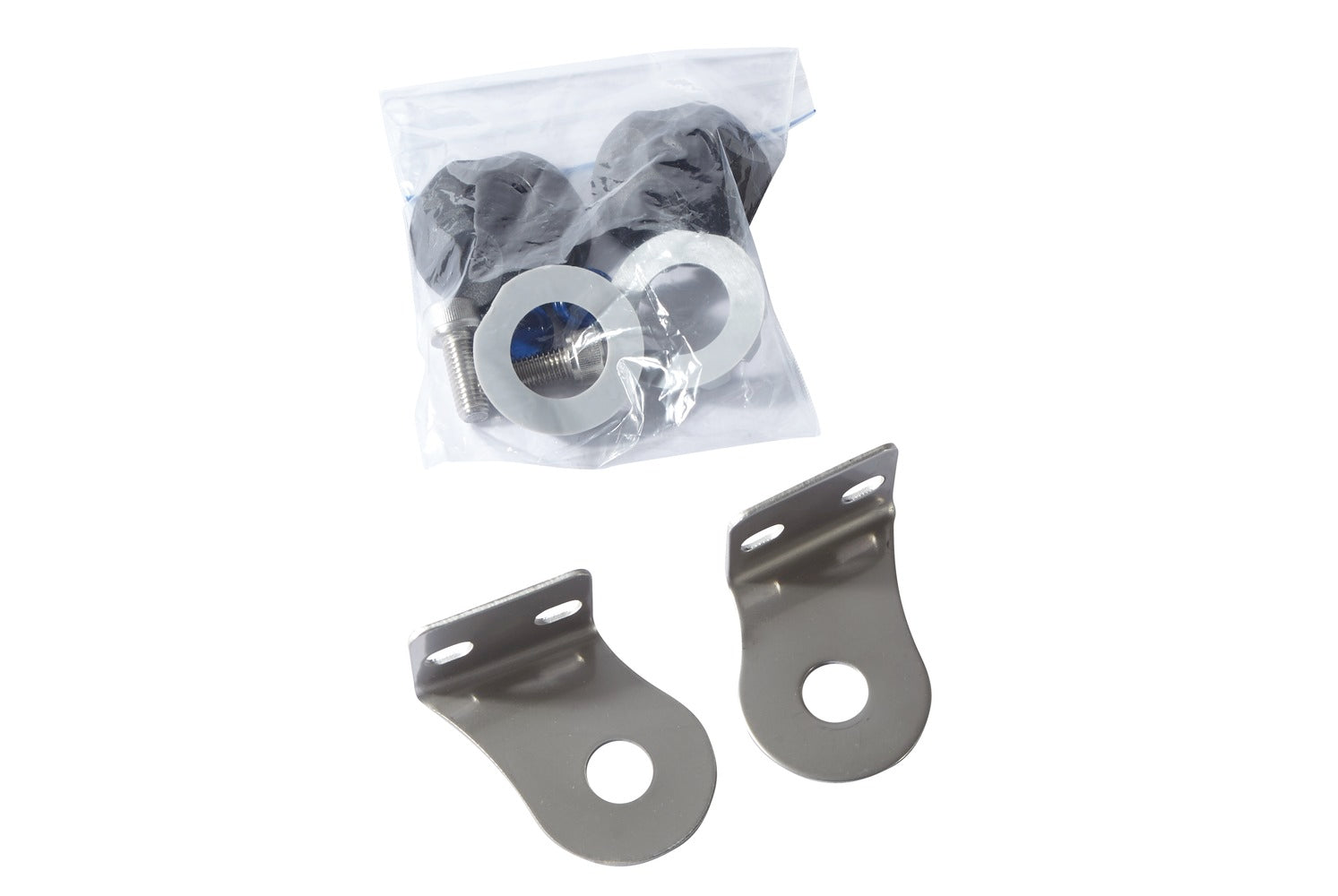

• Compact size and a variety of mounting options
• Submersible for off-road use (wading capability up to 1 m water depth up to 30 minutes), IP 6K7 and IP 6K9K (resistant to high pressure cleaners)
• Width: 528mm - Height: 40mm - Depth: 67mm - Fitting Depth: 13mm - Overall Height: 57mm - Lamp Type: LED - with LED - without top
• Light functions: 1 - Additional High Beam/with high beam (LED)

Item Attributes:
Mounting Type: Screw Connection / Fitting
Fastening Type: Four-point attachment
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: right / left / Centre
Height: 40 mm
Overall Height: 57 mm
Width: 528 mm
Depth: 67 mm
Fitting Depth: 13 mm
Light Function: Additional High Beam / with high beam (LED)
Light functions: 1
fulfils ECE standard: R10 / R112
Reference number: 17.5
Cable: 2500 mm
Housing Colour: black
Lens Colour: Crystal clear
Shape: rectangular
Housing Type: Synthetic Material Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: with LED
Assembly by qualified personnel required!

OE references: IVECO 5802551472; IVECO E5802551472; ROSENBAUER 61614B
