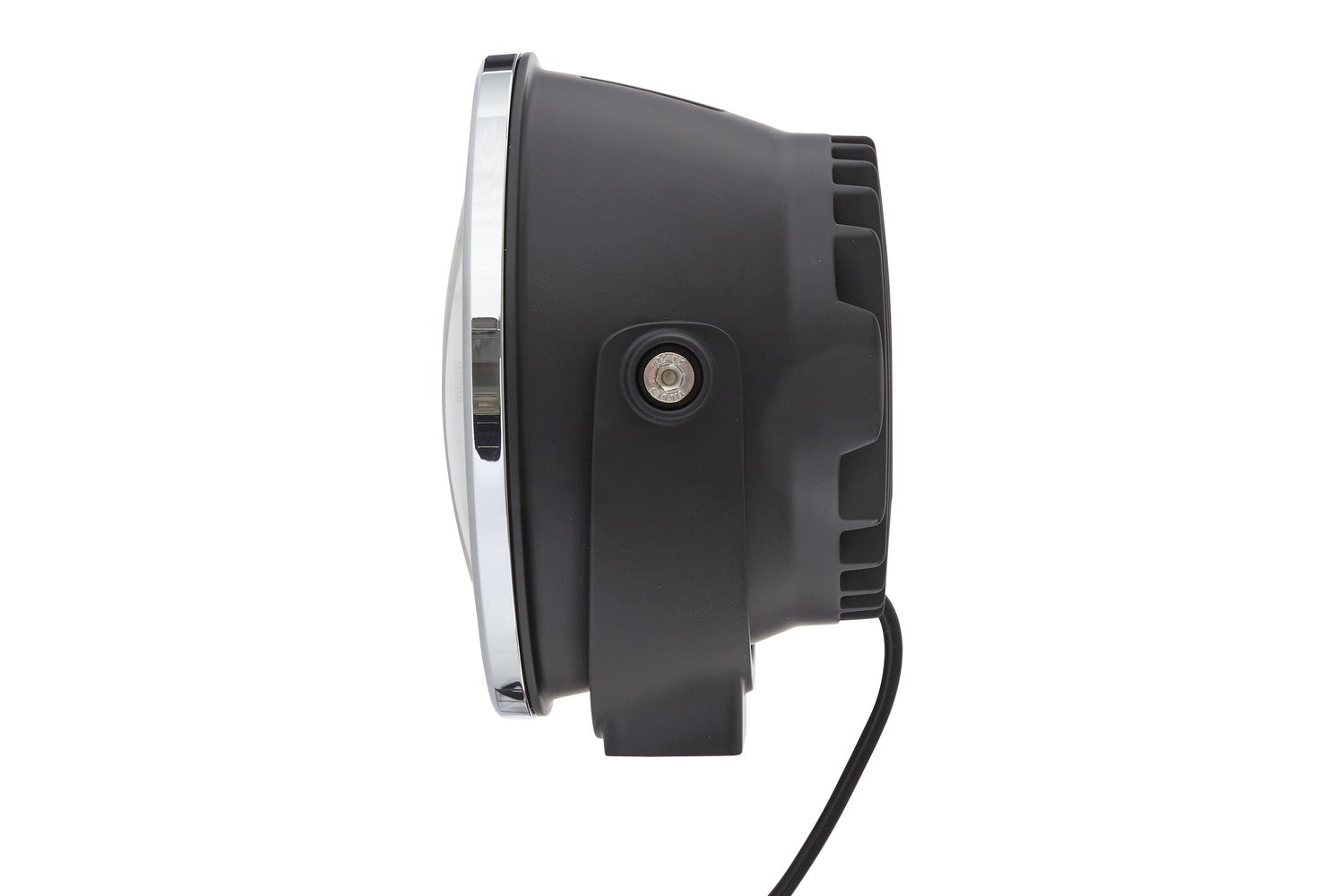

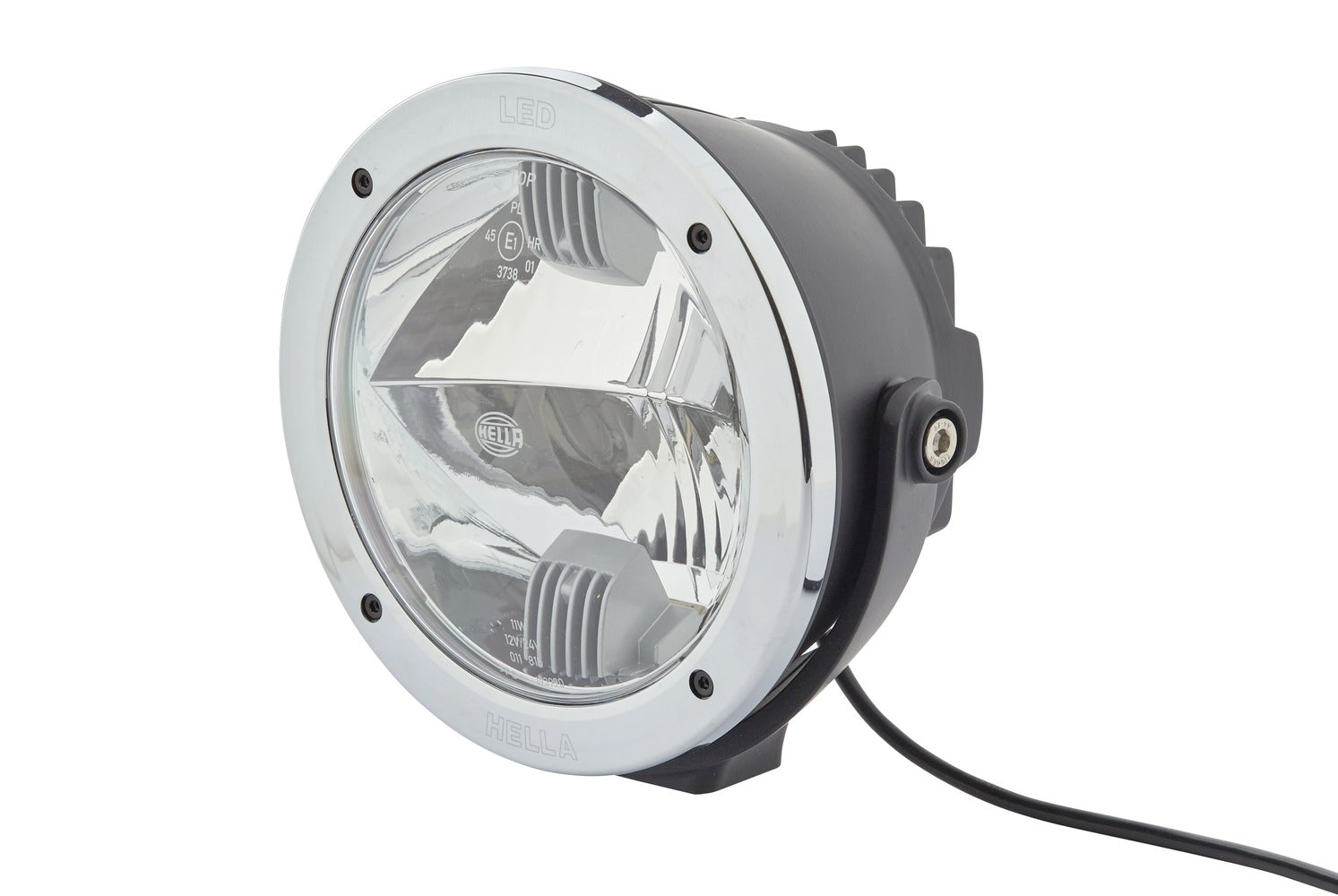

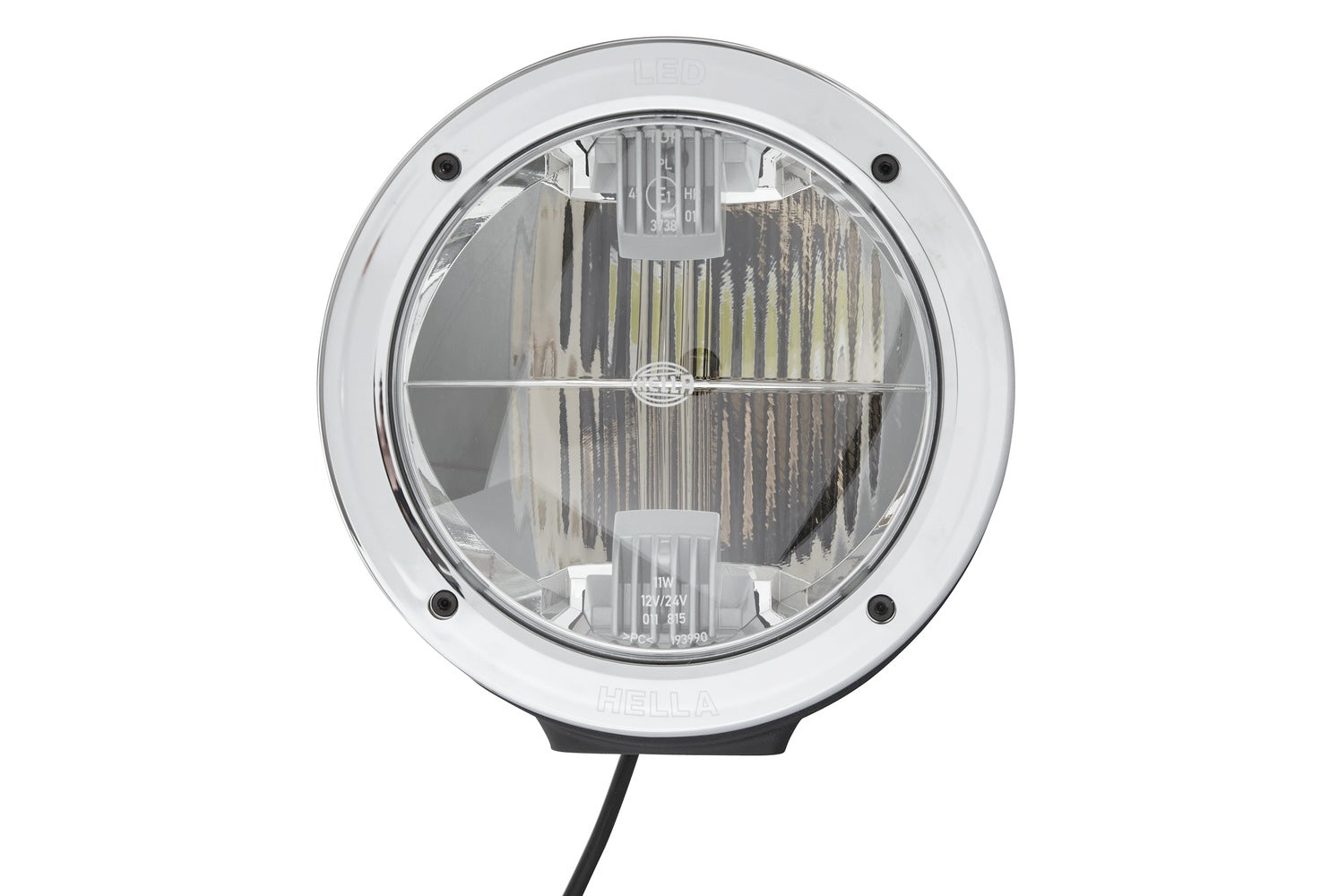

HELLA LED-Spotlight - Luminator Compact LED - 24/12V 1F3011815-001

LED-Spotlight - Luminator Compact LED - 24/12V - round - Reference number: 45 - Clear diffusing lens - Mat/Crystal clear - Cable: 3000mm - left/right

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

• High-performance LED for long range, no more need to replace lamps
• Illumination of the roadway by computer-calculated double reflector technology

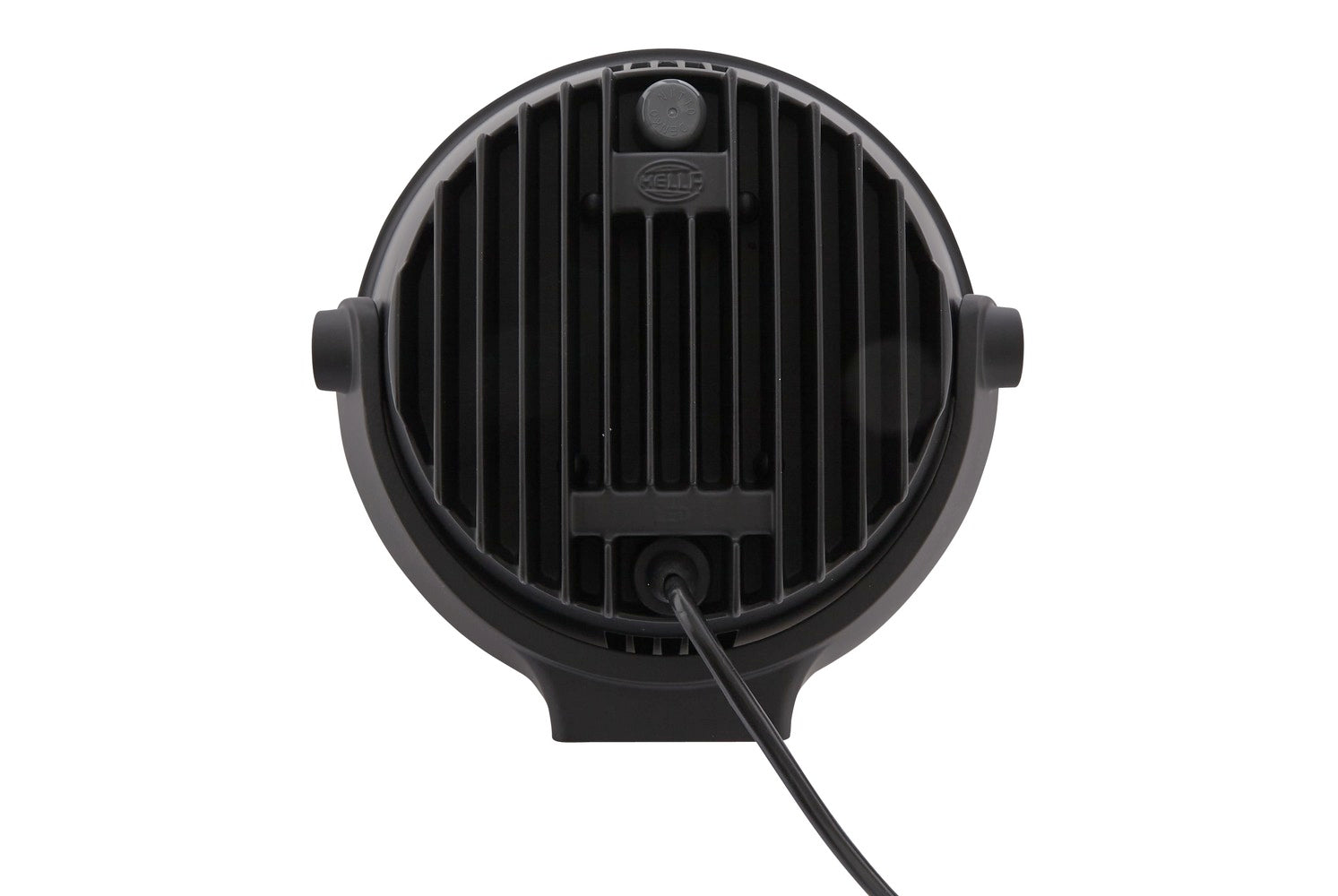

• Integrated electronics and cooling fins for passive heat dissipation, no fan necessary
• 75% energy saving compared to Xenon technology
• Immediate light without delay when light flashes
• Width: 181mm - Height: 178mm - Depth: 120mm - Overall Height: 187mm - Lamp Type: LED - with LED - without top
• Light functions: 1 - with high beam (LED)

Item Attributes:

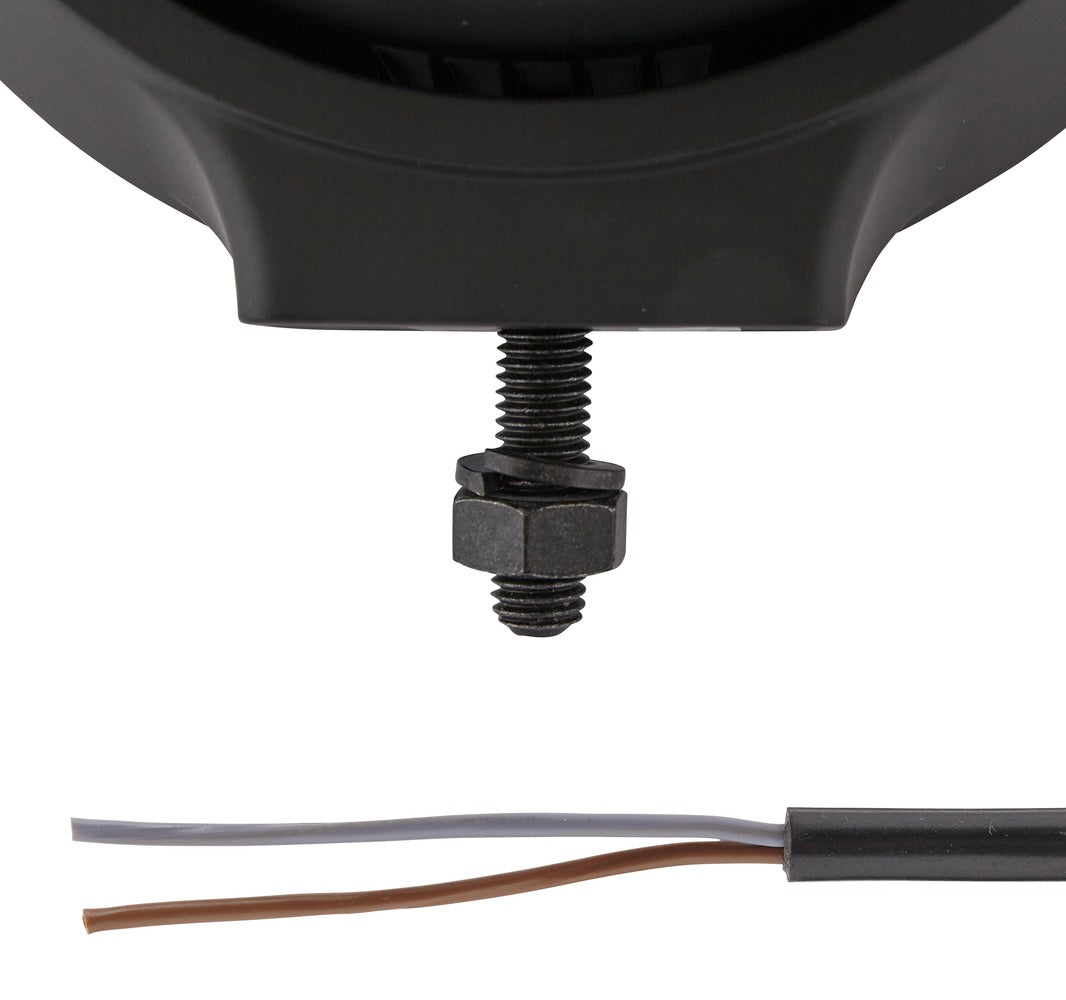

Mounting Type: Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: right / left
Height: 178 mm
Overall Height: 187 mm
Width: 181 mm
Depth: 120 mm
Light Function: with high beam (LED)
Light functions: 1
fulfils ECE standard: R112 / R10
Reference number: 45
Cable: 3000 mm
Housing Colour: Mat / black
Lens Colour: Crystal clear / Mat
Frame Colour: chrome
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: with LED
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: ROSENBAUER 618470; SCANIA 2331313
